首頁 AXTAL晶振

AXE3225P‐33‐50-4F-100.000MHz,3225mm,3.3V,AXTAL差分晶振

AXE3225P‐33‐50-4F-100.000MHz,3225mm,3.3V,AXTAL差分晶振

產品簡介

AXE3225P‐33‐50-4F-100.000MHz,3225mm,3.3V,AXTAL差分晶振,歐美進口晶振,100MHZ有源晶振,六腳差分晶振,SPXO有源晶振,LV-PECL輸出晶振,3225mm小體積振蕩器,石英差分晶振,尺寸3.2*2.5mm,頻率100MHZ,電壓3.3V,輸出LVPECL,低電壓晶振,低相位晶振,低功耗晶振,無線局域網晶振,智能家居晶振,物聯網晶振,多媒體設備晶振,移動應用晶振.

產品詳情

AXE3225P‐33‐50-4F-100.000MHz,3225mm,3.3V,AXTAL差分晶振,歐美進口晶振,100MHZ有源晶振,六腳差分晶振,SPXO有源晶振,LV-PECL輸出晶振,3225mm小體積振蕩器,石英差分晶振,尺寸3.2*2.5mm,頻率100MHZ,電壓3.3V,輸出LVPECL,低電壓晶振,低相位晶振,低功耗晶振,無線局域網晶振,智能家居晶振,物聯網晶振,多媒體設備晶振,移動應用晶振.

AXE3225P‐33‐50-4F-100.000MHz,3225mm,3.3V,AXTAL差分晶振特點:

3.2x2.5 mm封裝的帶PECL輸出的SMD振蕩器 SPXO

頻率范圍13.5~200MHZ

低電壓低功耗

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

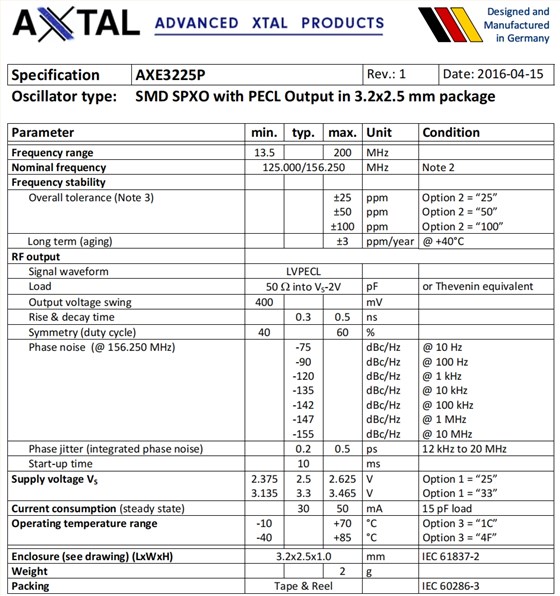

AXE3225P‐33‐50-4F-100.000MHz,3225mm,3.3V,AXTAL差分晶振 參數表

Parameter min. typ. max. Unit Condition
Frequency range
100 MHz
Nominal frequency 125.000/156.250 MHz Note 2
Frequency stability
Overall tolerance (Note 3) ±25
±50
±100 		ppm
ppm
ppm 		Option 2 = “25”
Option 2 = “50”
Option 2 = “100”
Long term (aging) ±3 ppm/year @ +40°C
RF output
Signal waveform LVPECL
Load 50Ωinto VS-2V pF or Thevenin equivalent
Output voltage swing 400 mV
Rise & decay time 0.3 0.5 ns
Symmetry (duty cycle) 40 60 %
Phase noise(@ 156.250 MHz) -75
-90
-120
-135
-142
-147
-155 		dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz 		@ 10 Hz
@ 100 Hz
@ 1 kHz
@ 10 kHz
@ 100 kHz
@ 1 MHz
@ 10 MHz
Phase jitter (integrated phase noise) 0.2 0.5 ps 12 kHz to 20 MHz
Start-up time 10 ms
Supply voltage VS 2.375
3.135 		2.5
3.3 		2.625
3.465 		V
V 		Option 1 = “25”
Option 1 = “33”
Current consumption(steady state) 30 50 mA 15 pF load
Operating temperature range -10
-40 		+70
+85 		°C
°C 		Option 3 = “1C”
Option 3 = “4F”
Enclosure (see drawing) (LxWxH) 3.2x2.5x1.0 mm IEC 61837-2
Weight 2 g
Packing Tape & Reel IEC 60286-3
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

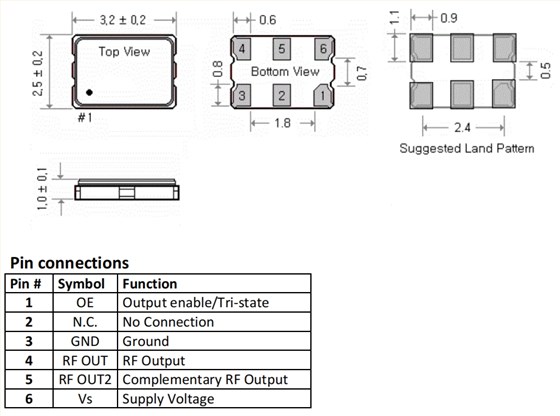

AXE3225P‐33‐50-4F-100.000MHz,3225mm,3.3V,AXTAL差分晶振 尺寸圖

AXE3225P

AXE3225P 1

AXE3225P 2
