愛普生LV-PECL網絡晶振,X1M000411000500,MG7050EAN低相位噪聲晶振，日本進口晶振，EPSON愛普生晶振，型號：MG7050EAN，編碼為：X1M000411000500，頻率：150.000000 MHz，小型外形尺寸：7.0x5.0x1.6mm封裝，14墊腳貼片晶振，基于SAW的差分多輸出LV-PECL差分晶體振蕩器，差分晶振，石英晶體振蕩器，SMD晶振，有源晶振，石英貼片晶振。本產品是利用鋸波諧振器的基本振蕩的LV-PECL輸出的高頻振蕩器。這實現了頻率為100~700MHz的低抖動和低噪聲。具有超小型，輕薄型，低抖動，低功耗，低電源電壓，低耗能，低損耗，低相位噪聲，低電平，高精度，高性能，高品質等特點。7050石英晶振應用程序：GbE，通訊設備，無線網絡，藍牙模塊，光纖通道，存儲、路由器/交換機，物聯網，以太網，光端機，PCI Express等參考時鐘。

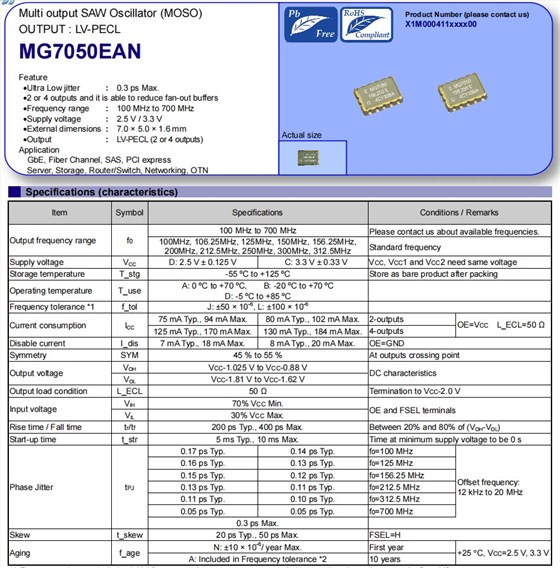

愛普生LV-PECL網絡晶振,X1M000411000500,MG7050EAN低相位噪聲晶振參數表

Item	Symbol	MG7050EAN規格說明		Conditions / Remarks
		150.000MHz		Please contact us about available frequencies.
Output frequency range	f0	100MHz, 106.25MHz, 125MHz, 150MHz, 156.25MHz,		Standard frequency
		200MHz, 212.5MHz, 250MHz, 300MHz, 312.5MHz
Supply voltage	VCC	D: 2.5 V ± 0.125 V	C: 3.3 V ± 0.33 V	VCC, VCC1 and VCC2 need same voltage
Storage temperature	T_stg	-55 ºC to +125 ºC		Store as bare product after packing
Operating temperature	T_use	A: 0 ºC to +70 ºC,B: -20 ºC to +70 ºC
		D: -5 ºC to +85 ºC
Frequency tolerance *1	f_tol	J: ±50 × 10-6, L: ±100 × 10-6
Current consumption	ICC	75 mA Typ., 94 mA Max.	80 mA Typ., 102 mA Max.	2-outputs	OE=VCCL_ECL=50Ω
		125 mA Typ., 170 mA Max.	130 mA Typ., 184 mA Max.	4-outputs
Disable current	I_dis	7 mA Typ., 18 mA Max.	8 mA Typ., 20 mA Max.	OE=GND
Symmetry	SYM	45 % to 55 %		At outputs crossing point
Output voltage	VOH	VCC-1.025 V to VCC-0.88 V		DC characteristics
	VOL	VCC-1.81 V to VCC-1.62 V
Output load condition	L_ECL	50Ω		Termination to VCC-2.0 V
Input voltage	VIH	70% VCC Min.		OE and FSEL terminals
	VIL	30% VCC Max.
Rise time / Fall time	tr/tf	200 ps Typ., 400 ps Max.		Between 20% and 80% of (VOH-VOL)
Start-up time	t_str	5 ms Typ., 10 ms Max.		Time at minimum supply voltage to be 0 s
		0.17 ps Typ.	0.14 ps Typ.	f0=100 MHz
		0.16 ps Typ.	0.13 ps Typ.	f0=125 MHz
		0.15 ps Typ.	0.12 ps Typ.	f0=156.25 MHz	Offset frequency: 12 kHz to 20 MHz
Phase Jitter	tPJ	0.13 ps Typ.	0.11 ps Typ.	f0=212.5 MHz
		0.11 ps Typ.	0.10 ps Typ.	f0=312.5 MHz
		0.05 ps Typ.	0.05 ps Typ.	f0=700 MHz
		0.3 ps Max.
Skew	t_skew	20 ps Typ., 50 ps Max.		FSEL=H
Aging	f_age	N: ±10 × 10-6/ year Max.		First year	+25°C, VCC=2.5 V, 3.3 V
		A: Included in Frequency tolerance *2		10 years

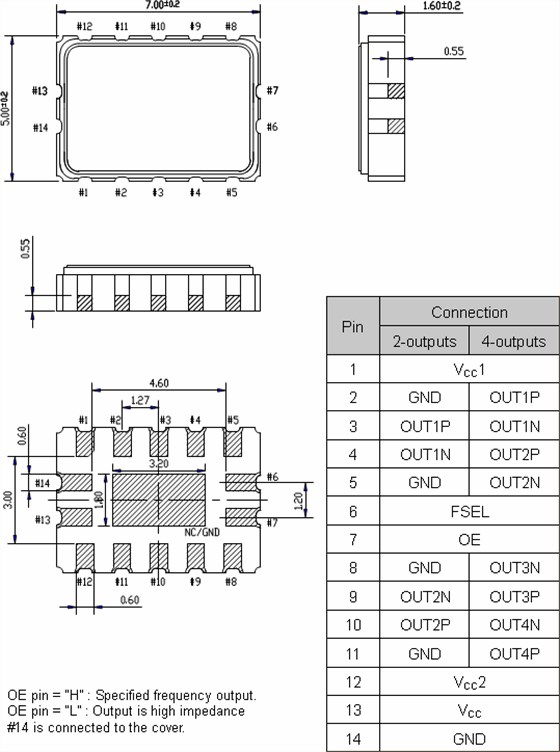

愛普生LV-PECL網絡晶振,X1M000411000500,MG7050EAN低相位噪聲晶振尺寸圖

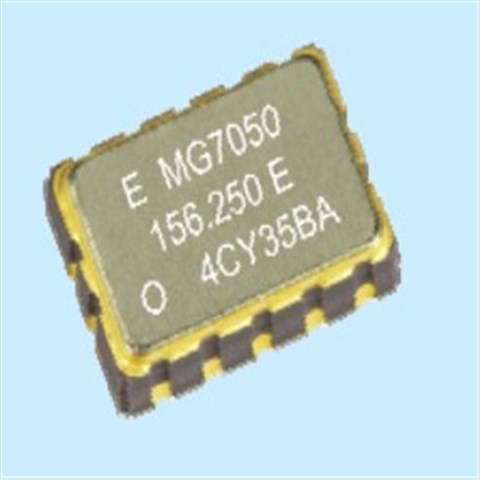

愛普生LV-PECL網絡晶振,X1M000411000500,MG7050EAN低相位噪聲晶振

產品特點：

超低抖動： 0.3ps Max

2或4輸出，它能夠減少風扇輸出緩沖器

頻率范圍： 100MHz到700MHz

電源電壓： 2.5V / 3.3V

外部尺寸： 7.0×5.0×1.6mm

輸出： LV-PECL（2或4輸出）差分晶體

Pb免費

符合歐盟RoHS的指令

應用于：GbE、光纖通道、SAS、PCI表達，服務器、存儲、路由器/交換機，網絡、OTN等

晶振編碼	晶振廠家	型號	頻率	尺寸	輸出方式
X1G004511000100	EPSON晶振	SG7050EBN	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL
X1G004511000200	EPSON晶振	SG7050EBN	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL
X1G004511000300	EPSON晶振	SG7050EBN	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL
X1G004511000400	EPSON晶振	SG7050EBN	106.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL
X1G004511000500	EPSON晶振	SG7050EBN	122.880000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL
X1G004511000700	EPSON晶振	SG7050EBN	150.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL
X1G004511000800	EPSON晶振	SG7050EBN	155.520000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL
X1G004511001100	EPSON晶振	SG7050EBN	114.285000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL
X1G004511001200	EPSON晶振	SG7050EBN	156.253906 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL
X1G004511060100	EPSON晶振	SG7050EBN	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL
X1G004511060200	EPSON晶振	SG7050EBN	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL
X1G004511060300	EPSON晶振	SG7050EBN	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL
X1M000411000200	EPSON晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411000500	EPSON晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411000600	EPSON晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411000700	EPSON晶振	MG7050EAN	669.325580 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411000800	EPSON晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411000900	EPSON晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411001000	EPSON晶振	MG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411001100	EPSON晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411001200	EPSON晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411001300	石英晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411001400	EPSON晶振	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411001500	EPSON晶振	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411001600	EPSON晶振	MG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411001700	EPSON晶振	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411001800	EPSON晶振	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411001900	EPSON晶振	MG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411002000	EPSON晶振	MG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411002100	EPSON晶振	MG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411002200	EPSON晶振	MG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411002300	EPSON晶振	MG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411002400	EPSON晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411002500	EPSON晶振	MG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
X1M000411002600	EPSON晶振	MG7050EAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL
