X3ABBCNANF-32.000000,1612貼片晶振,臺產泰藝晶振

產品簡介

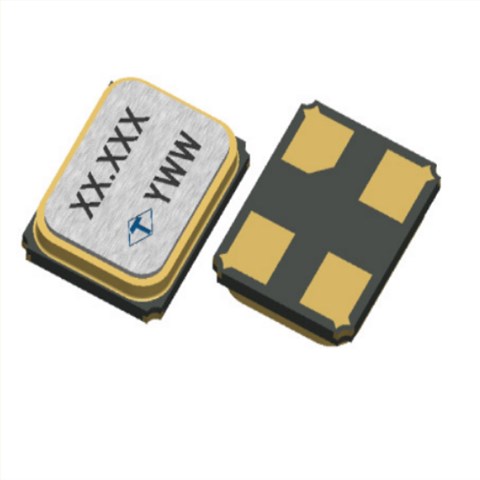

X3ABBCNANF-32.000000,1612貼片晶振,臺產泰藝晶振，物料編碼為X3ABBCNANF-32.000000，型號為X3，頻率為32MHz，精度為±10ppm，負載電容為8pF，工作溫度為-20℃~70℃，尺寸為1.6*1.2mm，四腳晶振，石英晶振，1612貼片晶振，1612諧振器，晶振廠家，泰藝電子，無源晶振，石英晶體諧振器，SMD晶振，特點：輕小薄，高性能，高品質。廣泛應用在5G網，6G網，無線充電寶，藍牙耳機等產品。

產品詳情

1XQJX

2GGCS

TY-2

X3ABBCNANF-32.000000,1612貼片晶振,臺產泰藝晶振

參數表
型號	X3
頻率	32MHz
精度	±10ppm
負載電容	8pF
工作溫度	-20℃-70℃
尺寸	1.6*1.2mm

3CC

TY-3

X3ABBCNANF-32.000000,1612貼片晶振,臺產泰藝晶振

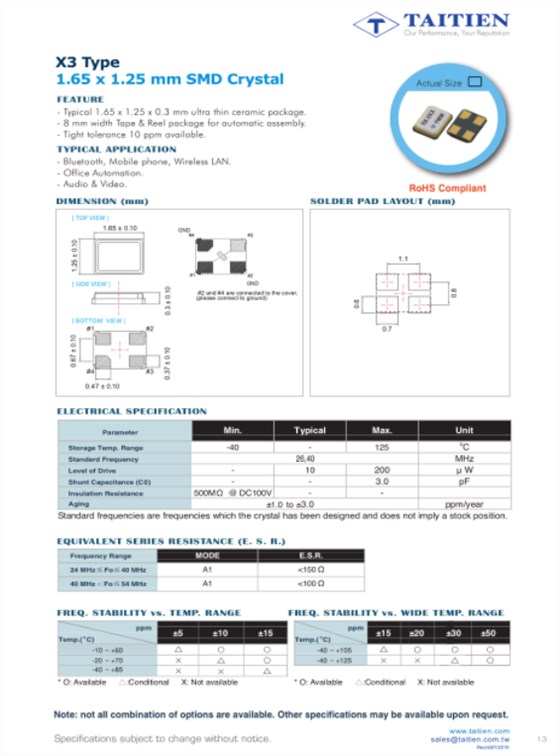

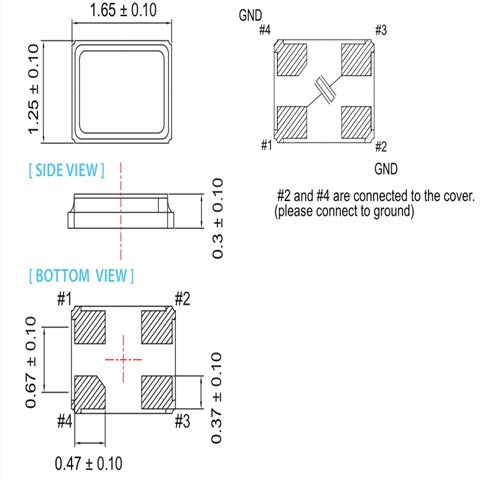

X3 1612尺寸圖

原廠編碼	參數描述	型號	頻率	頻率穩定度	頻率容差	負載電容	工作溫度
X3AEELNANF-50.000000	CRYSTAL 50.0000MHZ 8PF SMD	X3	臺產晶振	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3ABBCNANF-32.000000	CRYSTAL 32.0000MHZ 8PF SMD	X3	32 MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
X3CBBCNANF-26.000000	CRYSTAL 26.0000MHZ 10PF SMD	X3	26 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
X3LBBCNANF-32.000000	CRYSTAL 32.0000MHZ 6PF SMD	X3	32 MHz	±10ppm	±10ppm	6pF	-20°C ~ 70°C
XVEBBCNANF-40.000000	CRYSTAL 40.0000MHZ 15PF SMD	XV	40 MHz	±10ppm	±10ppm	15pF	-20°C ~ 70°C
XVBCCLNANF-20.000000	CRYSTAL 20.0000MHZ 9PF SMD	XV	20 MHz	±20ppm	±20ppm	9pF	-40°C ~ 85°C
XVCCCLNANF-25.000000	CRYSTAL 25.0000MHZ 10PF SMD	XV	25 MHz	±20ppm	±20ppm	10pF	-40°C ~ 85°C
XVDGGHNANF-20.000000	CRYSTAL 20.0000MHZ 12PF SMD	XV	20 MHz	±50ppm	±50ppm	12pF	-40°C ~ 125°C
XVHCELNANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XV	25 MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
XVCEELNANF-10.000000	CRYSTAL 10.0000MHZ 10PF SMD	XV	10 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
XVDEECNANF-12.000000	CRYSTAL 12.0000MHZ 12PF SMD	XV	12 MHz	±30ppm	±30ppm	12pF	-20°C ~ 70°C
XVDEECNANF-16.000000	CRYSTAL 16.0000MHZ 12PF SMD	XV	16 MHz	±30ppm	±30ppm	12pF	-20°C ~ 70°C
XVDGGCNANF-27.000000	CRYSTAL 27.0000MHZ 12PF SMD	XV	27 MHz	±50ppm	±50ppm	12pF	-20°C ~ 70°C
XVDGGHNANF-28.000000	CRYSTAL 28.0000MHZ 12PF SMD	XV	28 MHz	±50ppm	±50ppm	12pF	-40°C ~ 125°C
XVDGHHNANF-27.000000	CRYSTAL 27.0000MHZ 12PF SMD	XV	27 MHz	±100ppm	±50ppm	12pF	-40°C ~ 125°C
XVECCLNANF-13.000000	CRYSTAL 13.0000MHZ 15PF SMD	XV	13 MHz	±20ppm	±20ppm	15pF	-40°C ~ 85°C
XVFEGCNANF-16.000000	CRYSTAL 16.0000MHZ 16PF SMD	XV	16 MHz	±50ppm	±30ppm	16pF	-20°C ~ 70°C
XVHCCLNANF-16.000000	CRYSTAL 16.0000MHZ 20PF SMD	XV	16 MHz	±20ppm	±20ppm	20pF	-40°C ~ 85°C
XVHCELNANF-14.318180	CRYSTAL 14.31818MHZ 20PF SMD	XV	14.31818 MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
XVHCELNANF-24.000000	CRYSTAL 24.0000MHZ 20PF SMD	XV	24 MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
XVHCELNANF-8.000000	CRYSTAL 8.0000MHZ 20PF SMD	XV	8 MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
XVHDDCNANF-25.000000	CRYSTAL 25.0000MHZ 20PF SMD	XV	25 MHz	±25ppm	±25ppm	20pF	-20°C ~ 70°C
XVHEELNANF-24.000000	CRYSTAL 24.0000MHZ 20PF SMD	XV	24 MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
XVHEELNANF-27.000000	CRYSTAL 27.0000MHZ 20PF SMD	XV	27 MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
XVHEELNANF-8.000000	CRYSTAL 8.0000MHZ 20PF SMD	XV	8 MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
XVFBCLNANF-12.000000	CRYSTAL 12.0000MHZ 16PF SMD	XV	12 MHz	±20ppm	±10ppm	16pF	-40°C ~ 85°C
XVGBBCNANF-20.000000	CRYSTAL 20.0000MHZ 18PF SMD	XV	20 MHz	±10ppm	±10ppm	18pF	-20°C ~ 70°C
X3DBBCNANF-26.000000	CRYSTAL 26.0000MHZ 12PF SMD	X3	26 MHz	±10ppm	±10ppm	12pF	-20°C ~ 70°C
