首頁 泰藝晶振

XDLCZLNDMD-0.032768,32.768KHZ晶振,泰藝進口晶振

XDLCZLNDMD-0.032768,32.768KHZ晶振,泰藝進口晶振XDLCZLNDMD-0.032768,32.768KHZ晶振,泰藝進口晶振

產品簡介

XDLCZLNDMD-0.032768,32.768KHZ晶振,泰藝進口晶振，物料編碼為XDLCZLNDMD-0.032768，型號為XD系列晶振，頻率為32.768KHZ，精度為±20ppm，負載電容為6pF，工作溫度為-40℃~85℃，尺寸為2.0*1.2mm，四腳晶振，晶振廠家，無源晶振，臺產晶振，泰藝進口晶振，貼片晶振，石英晶體諧振器，SMD晶振，石英晶振，2012貼片晶振，特點：高性能，小型，輕型，薄型，廣泛應用在無線充電寶，車載雷達，車載導航，車載音響等產品。


產品詳情

1XQJX

TY-1

XDLCZLNDMD-0.032768,32.768KHZ晶振,泰藝進口晶振，物料編碼為XDLCZLNDMD-0.032768，型號為XD系列晶振，頻率為32.768KHZ，精度為±20ppm，負載電容為6pF，工作溫度為-40℃~85℃，尺寸為2.0*1.2mm，四腳晶振，晶振廠家，無源晶振，臺產晶振，泰藝進口晶振，貼片晶振，石英晶體諧振器，SMD晶振，石英晶振，2012貼片晶振，特點：高性能，小型，輕型，薄型，廣泛應用在無線充電寶，車載雷達，車載導航，車載音響等產品。

2GGCS

TY-2

XDLCZLNDMD-0.032768,32.768KHZ晶振,泰藝進口晶振

參數表
型號 XD
頻率 32.768KHZ
精度 ±20ppm
負載電容 6pF
工作溫度 -40℃-85℃
尺寸 2.0*1.2mm

3CC

TY-3

XDLCZLNDMD-0.032768,32.768KHZ晶振,泰藝進口晶振

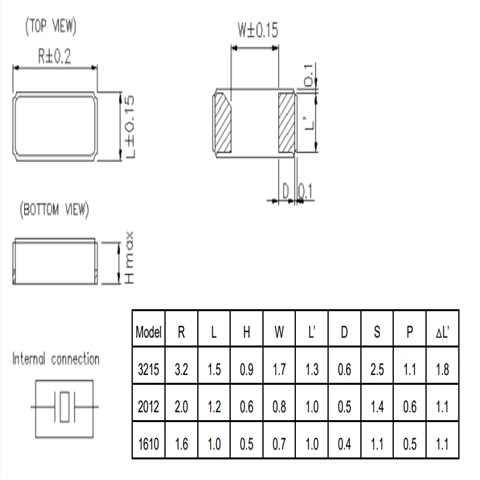

XD 3215尺寸圖

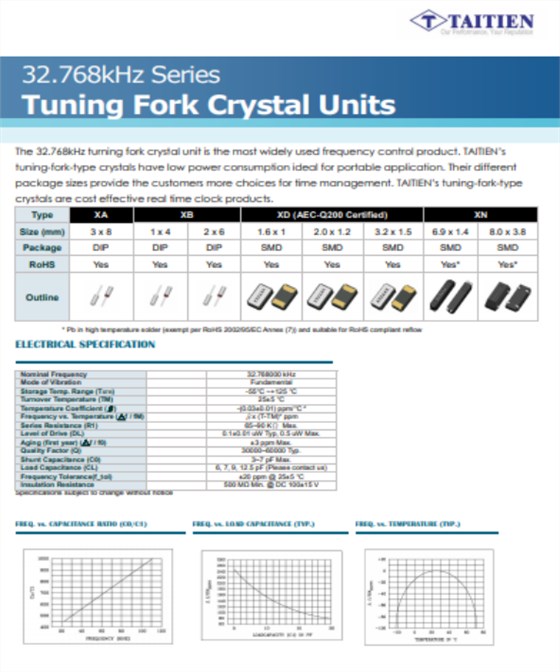

XD 3215規格書(1)

原廠編碼 參數描述 型號 頻率 頻率容差 負載電容 工作溫度
XDMCZLNDDD-0.032768 CRYSTAL 32.768KHZ 12.5PF SMD XD 貼片晶振 ±20ppm 12.5pF -40°C ~ 85°C
XDMCZLNDMD-0.032768 CRYSTAL 32.768KHZ 12.5PF SMD XD 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C
XYLEEJNANF-32.000000 CRYSTAL 32.0000MHZ 6PF SMD XY 32 MHz ±30ppm 6pF -40°C ~ 105°C
XDLCZLNDMD-0.032768 CRYSTAL 32.768KHZ 6PF SMD XD 32.768 kHz ±20ppm 6pF -40°C ~ 85°C
XDOCZLNDMD-0.032768 CRYSTAL 32.768KHZ 7PF SMD XD 32.768 kHz ±20ppm 7pF -40°C ~ 85°C
XDOCZLNDDD-0.032768 CRYSTAL 32.768KHZ 7PF SMD XD 32.768 kHz ±20ppm 7pF -40°C ~ 85°C
XDBCZLNDMD-0.032768 CRYSTAL 32.768KHZ 9PF SMD XD 32.768 kHz ±20ppm 9pF -40°C ~ 85°C
XYDBBCNANF-32.000000 CRYSTAL 32.0000MHZ 12PF SMD XY 32 MHz ±10ppm 12pF -20°C ~ 70°C
XYABBCNANF-32.000000 CRYSTAL 32.0000MHZ 8PF SMD XY 32 MHz ±10ppm 8pF -20°C ~ 70°C
XYCBBCNANF-32.000000 CRYSTAL 32.0000MHZ 10PF SMD XY 32 MHz ±10ppm 10pF -20°C ~ 70°C
XYABBCNANF-26.000000 CRYSTAL 26.0000MHZ 8PF SMD XY 26 MHz ±10ppm 8pF -20°C ~ 70°C
XYCBBCNANF-26.000000 CRYSTAL 26.0000MHZ 10PF SMD XY 26 MHz ±10ppm 10pF -20°C ~ 70°C
XYDBBCNANF-26.000000 CRYSTAL 26.0000MHZ 12PF SMD XY 26 MHz ±10ppm 12pF -20°C ~ 70°C
XYAEEJNANF-27.000000 CRYSTAL 27.0000MHZ 8PF SMD XY 27 MHz ±30ppm 8pF -40°C ~ 105°C
XYAEECNANF-38.400000 CRYSTAL 38.4000MHZ 8PF SMD XY 38.4 MHz ±30ppm 8pF -20°C ~ 70°C
XYLEEJNANF-26.000000 CRYSTAL 26.0000MHZ 6PF SMD XY 26 MHz ±30ppm 6pF -40°C ~ 105°C
XYLEEJNANF-30.000000 CRYSTAL 30.0000MHZ 6PF SMD XY 30 MHz ±30ppm 6pF -40°C ~ 105°C
XYAEECNANF-32.000000 CRYSTAL 32.0000MHZ 8PF SMD XY 32 MHz ±30ppm 8pF -20°C ~ 70°C
XYAEELNANF-32.000000 CRYSTAL 32.0000MHZ 8PF SMD XY 32 MHz ±30ppm 8pF -40°C ~ 85°C
XYLEECNANF-32.000000 CRYSTAL 32.0000MHZ 6PF SMD XY 32 MHz ±30ppm 6pF -20°C ~ 70°C
XYLEECNANF-27.120000 CRYSTAL 27.1200MHZ 6PF SMD XY 27.12 MHz ±30ppm 6pF -20°C ~ 70°C
XYAEEJNANF-32.000000 CRYSTAL 32.0000MHZ 8PF SMD XY 32 MHz ±30ppm 8pF -40°C ~ 105°C
XYCEECNANF-27.120000 CRYSTAL 27.1200MHZ 10PF SMD XY 27.12 MHz ±30ppm 10pF -20°C ~ 70°C
XYAEEJNANF-48.000000 CRYSTAL 48.0000MHZ 8PF SMD XY 48 MHz ±30ppm 8pF -40°C ~ 105°C
XYFEECNANF-24.000000 CRYSTAL 24.0000MHZ 16PF SMD XY 24 MHz ±30ppm 16pF -20°C ~ 70°C
XYAEEJNANF-38.400000 CRYSTAL 38.4000MHZ 8PF SMD XY 38.4 MHz ±30ppm 8pF -40°C ~ 105°C
XYAEECNANF-50.000000 CRYSTAL 50.0000MHZ 8PF SMD XY 50 MHz ±30ppm 8pF -20°C ~ 70°C
