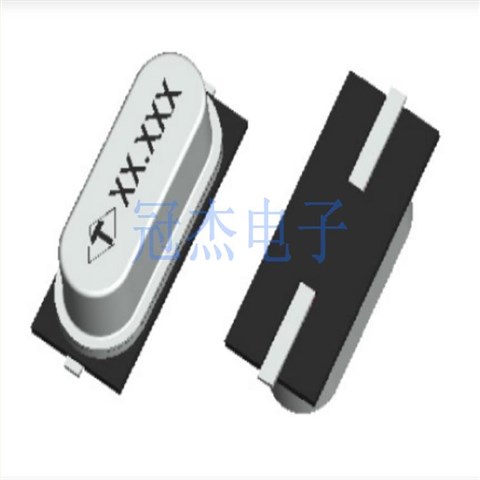

XJDECCAANF-4.194304,臺產晶振,石英晶體諧振器，物料編碼為XJDECCAANF-4.194304，頻率為4.194304MHz，精度為±20ppm，負載電容為12PF，工作溫度為-20℃~70℃，尺寸為11.4*4.5mm，SMD晶振，無源晶振，石英晶振，石英晶體諧振器，泰藝晶振，臺產晶振，晶振廠家，具有高性能和高品質等特點，適用于智能烤箱，智能洗碗機，智能熱水器，智能晾衣架等產品。
XJDECCAANF-4.194304,臺產晶振,石英晶體諧振器
|
參數表
|
|
型號
|
XJ
|
|
頻率
|
4.194304MHZ
|
|
精度
|
±20ppm
|
|
負載電容
|
12pF
|
|
工作溫度
|
-20℃-70℃
|
|
尺寸
|

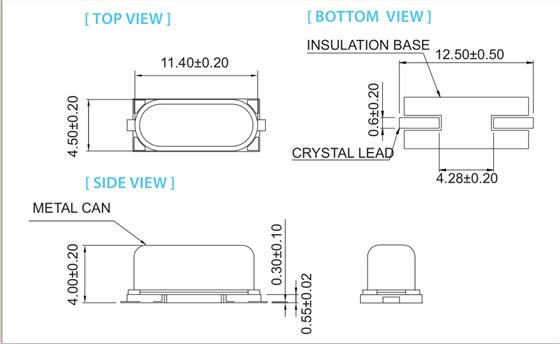

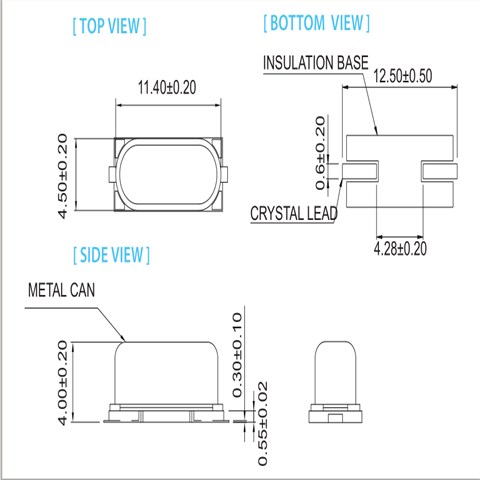

11.4*4.5mm
|
XJDECCAANF-4.194304,臺產晶振,石英晶體諧振器
|
原廠編碼
|
參數描述
|
型號
|
頻率
|
頻率穩定度
|
負載電容
|
工作溫度
|
|
X3AEELNANF-50.000000
|
CRYSTAL 50.0000MHZ 8PF SMD
|
X3
|
石英晶體
|
±30ppm
|
8pF
|
-40°C ~ 85°C
|
|
X3ABBCNANF-32.000000
|
CRYSTAL 32.0000MHZ 8PF SMD
|
X3
|
32 MHz
|
±10ppm
|
8pF
|
-20°C ~ 70°C
|
|
X3CBBCNANF-26.000000
|
CRYSTAL 26.0000MHZ 10PF SMD
|
X3
|
26 MHz
|
±10ppm
|
10pF
|
-20°C ~ 70°C
|
|
X3LBBCNANF-32.000000
|
CRYSTAL 32.0000MHZ 6PF SMD
|
X3
|
32 MHz
|
±10ppm
|
6pF
|
-20°C ~ 70°C
|
|
X3CBBCNANF-32.000000
|
CRYSTAL 32.0000MHZ 10PF SMD
|
X3
|
32 MHz
|
±10ppm
|
10pF
|
-20°C ~ 70°C
|
|
X3ABBCNANF-26.000000
|
CRYSTAL 26.0000MHZ 8PF SMD
|
X3
|
26 MHz
|
±10ppm
|
8pF
|
-20°C ~ 70°C
|
|
X3AEELNANF-26.000000
|
CRYSTAL 26.0000MHZ 8PF SMD
|
X3
|
26 MHz
|
±30ppm
|
8pF
|
-40°C ~ 85°C
|
|
X3LEELNANF-30.000000
|
CRYSTAL 30.0000MHZ 6PF SMD
|
X3
|
30 MHz
|
±30ppm
|
6pF
|
-40°C ~ 85°C
|
|
X3AEEJNANF-30.000000
|
CRYSTAL 30.0000MHZ 8PF SMD
|
X3
|
30 MHz
|
±30ppm
|
8pF
|
-40°C ~ 105°C
|
|
X3LEECNANF-40.000000
|
CRYSTAL 40.0000MHZ 6PF SMD
|
X3
|
40 MHz
|
±30ppm
|
6pF
|
-20°C ~ 70°C
|
|
X3LEELNANF-32.000000
|
CRYSTAL 32.0000MHZ 6PF SMD
|
X3
|
32 MHz
|
±30ppm
|
6pF
|
-40°C ~ 85°C
|
|
X3LEEJNANF-40.000000
|
CRYSTAL 40.0000MHZ 6PF SMD
|
X3
|
40 MHz
|
±30ppm
|
6pF
|
-40°C ~ 105°C
|
|
X3AEEJNANF-50.000000
|
CRYSTAL 50.0000MHZ 8PF SMD
|
X3
|
50 MHz
|
±30ppm
|
8pF
|
-40°C ~ 105°C
|
|
X3AEEJNANF-32.000000
|
CRYSTAL 32.0000MHZ 8PF SMD
|
X3
|
32 MHz
|
±30ppm
|
8pF
|
-40°C ~ 105°C
|
|
X3AEELNANF-38.400000
|
CRYSTAL 38.4000MHZ 8PF SMD
|
X3
|
38.4 MHz
|
±30ppm
|
8pF
|
-40°C ~ 85°C
|
|
X3LEEJNANF-50.000000
|
CRYSTAL 50.0000MHZ 6PF SMD
|
X3
|
50 MHz
|
±30ppm
|
6pF
|
-40°C ~ 105°C
|
|
X3LEEJNANF-26.000000
|
CRYSTAL 26.0000MHZ 6PF SMD
|
X3
|
26 MHz
|
±30ppm
|
6pF
|
-40°C ~ 105°C
|
|
X3LEEJNANF-38.400000
|
CRYSTAL 38.4000MHZ 6PF SMD
|
X3
|
38.4 MHz
|
±30ppm
|
6pF
|
-40°C ~ 105°C
|
|
X3LEELNANF-50.000000
|
CRYSTAL 50.0000MHZ 6PF SMD
|
X3
|
50 MHz
|
±30ppm
|
6pF
|
-40°C ~ 85°C
|
|
X3DBBCNANF-26.000000
|
CRYSTAL 26.0000MHZ 12PF SMD
|
X3
|
26 MHz
|
±10ppm
|
12pF
|
-20°C ~ 70°C
|
|
X3DCCCNANF-24.000000
|
CRYSTAL 24.0000MHZ 12PF SMD
|
X3
|
24 MHz
|
±20ppm
|
12pF
|
-20°C ~ 70°C
|
|
X3FBPDNANF-37.400000
|
CRYSTAL 37.4000MHZ 16PF SMD
|
X3
|
37.4 MHz
|
±15ppm
|
16pF
|
-30°C ~ 85°C
|
|
X3FEECNANF-24.000000
|
CRYSTAL 24.0000MHZ 16PF SMD
|
X3
|
24 MHz
|
±30ppm
|
16pF
|
-20°C ~ 70°C
|
|
X3HCECNANF-25.000000
|
CRYSTAL 25.0000MHZ 20PF SMD
|
X3
|
25 MHz
|
±30ppm
|
20pF
|
-20°C ~ 70°C
|
|
X3AEEJNANF-26.000000
|
CRYSTAL 26.0000MHZ 8PF SMD
|
X3
|
26 MHz
|
±30ppm
|
8pF
|
-40°C ~ 105°C
|
|
X3AEEJNANF-27.000000
|
CRYSTAL 27.0000MHZ 8PF SMD
|
X3
|
27 MHz
|
±30ppm
|
8pF
|
-40°C ~ 105°C
|
|
X3AEEJNANF-27.120000
|
CRYSTAL 27.1200MHZ 8PF SMD
|
X3
|
27.12 MHz
|
±30ppm
|
8pF
|
-40°C ~ 105°C
|
