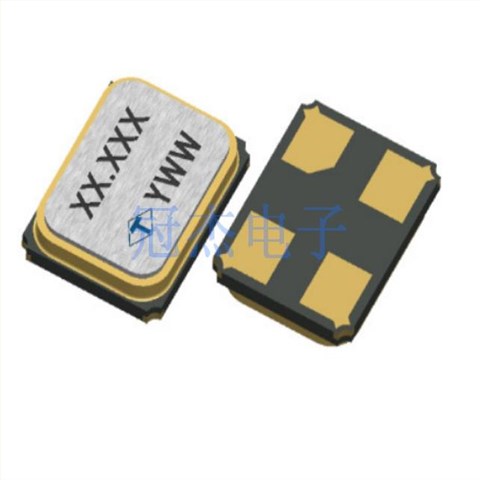

XZCBBCNANF-32.000000,石英晶體諧振器,2016諧振器

XZCBBCNANF-32.000000,石英晶體諧振器,2016諧振器XZCBBCNANF-32.000000,石英晶體諧振器,2016諧振器

產品簡介

XZCBBCNANF-32.000000,石英晶體諧振器,2016諧振器，物料編碼為XZCBBCNANF-32.000000，型號為XZ晶振，頻率為32MHz，精度為±10ppm，負載電容為10pF，工作溫度范圍：-20℃~70℃，尺寸為2.05*1.65mm，2016諧振器，石英晶振，臺產泰藝晶振，無源晶振，SMD晶振，貼片晶體，四腳貼片晶振，2016晶振，石英晶體諧振器，輕小薄，高性能和高品質等特點，被應用在智能電視機，U盤，USB轉接器，5G網域，6G網域等產品。

產品詳情

1XQJX

TY-1

XZCBBCNANF-32.000000,石英晶體諧振器,2016諧振器，物料編碼為XZCBBCNANF-32.000000，型號為XZ晶振，頻率為32MHz，精度為±10ppm，負載電容為10pF，工作溫度范圍：-20℃~70℃，尺寸為2.05*1.65mm，2016諧振器，石英晶振，臺產泰藝晶振，無源晶振，SMD晶振，貼片晶體，四腳貼片晶振，2016晶振，石英晶體諧振器，輕小薄，高性能和高品質等特點，被應用在智能電視機，U盤，USB轉接器，5G網域，6G網域等產品。

2GGCS

TY-2

XZCBBCNANF-32.000000,石英晶體諧振器,2016諧振器

參數表
型號 XZ
頻率 32MHZ
精度 ±10ppm
負載電容 10pF
工作溫度 -20℃-70℃
尺寸 2.05*1.65mm

3CC

TY-3

XZCBBCNANF-32.000000,石英晶體諧振器,2016諧振器

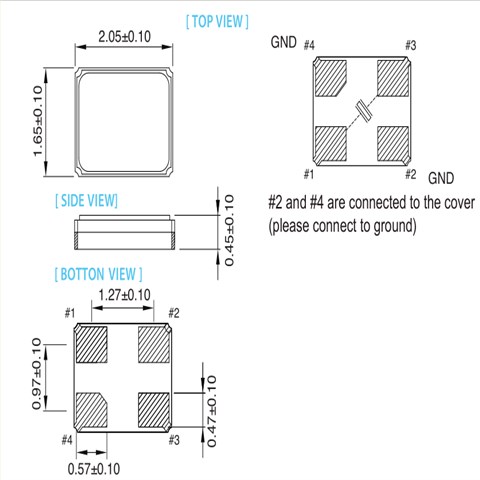

XZ 2016尺寸圖

XZ 2

原廠編碼 參數描述 型號 晶振廠家 頻率穩定度 負載電容 工作溫度
XZLEECNANF-26.000000 CRYSTAL 26.0000MHZ 6PF SMD XZ 26 MHz ±30ppm 6pF -20°C ~ 70°C
XZAEECNANF-40.000000 CRYSTAL 40.0000MHZ 8PF SMD XZ 40 MHz ±30ppm 8pF -20°C ~ 70°C
XZLEECNANF-38.400000 CRYSTAL 38.4000MHZ 6PF SMD XZ 38.4 MHz ±30ppm 6pF -20°C ~ 70°C
XZAEECNANF-38.400000 CRYSTAL 38.4000MHZ 8PF SMD XZ 38.4 MHz ±30ppm 8pF -20°C ~ 70°C
XZAEECNANF-30.000000 CRYSTAL 30.0000MHZ 8PF SMD XZ 30 MHz ±30ppm 8pF -20°C ~ 70°C
XZAEELNANF-27.120000 CRYSTAL 27.1200MHZ 8PF SMD XZ 27.12 MHz ±30ppm 8pF -40°C ~ 85°C
XZLEELNANF-27.000000 CRYSTAL 27.0000MHZ 6PF SMD XZ 27 MHz ±30ppm 6pF -40°C ~ 85°C
XZLEELNANF-27.120000 CRYSTAL 27.1200MHZ 6PF SMD XZ 27.12 MHz ±30ppm 6pF -40°C ~ 85°C
XZLEELNANF-38.400000 CRYSTAL 38.4000MHZ 6PF SMD XZ 38.4 MHz ±30ppm 6pF -40°C ~ 85°C
XZLEELNANF-40.000000 CRYSTAL 40.0000MHZ 6PF SMD XZ 40 MHz ±30ppm 6pF -40°C ~ 85°C
XZLEELNANF-50.000000 CRYSTAL 50.0000MHZ 6PF SMD XZ 50 MHz ±30ppm 6pF -40°C ~ 85°C
XZAEELNANF-40.000000 CRYSTAL 40.0000MHZ 8PF SMD XZ 40 MHz ±30ppm 8pF -40°C ~ 85°C
XZAEELNANF-27.000000 CRYSTAL 27.0000MHZ 8PF SMD XZ 27 MHz ±30ppm 8pF -40°C ~ 85°C
XZLEELNANF-26.000000 CRYSTAL 26.0000MHZ 6PF SMD XZ 26 MHz ±30ppm 6pF -40°C ~ 85°C
XZLEELNANF-30.000000 CRYSTAL 30.0000MHZ 6PF SMD XZ 30 MHz ±30ppm 6pF -40°C ~ 85°C
XZLEELNANF-32.000000 CRYSTAL 32.0000MHZ 6PF SMD XZ 32 MHz ±30ppm 6pF -40°C ~ 85°C
XZAEELNANF-26.000000 CRYSTAL 26.0000MHZ 8PF SMD XZ 26 MHz ±30ppm 8pF -40°C ~ 85°C
XZAEELNANF-30.000000 CRYSTAL 30.0000MHZ 8PF SMD XZ 30 MHz ±30ppm 8pF -40°C ~ 85°C
XZLEELNANF-48.000000 CRYSTAL 48.0000MHZ 6PF SMD XZ 48 MHz ±30ppm 6pF -40°C ~ 85°C
XZAEELNANF-38.400000 CRYSTAL 38.4000MHZ 8PF SMD XZ 38.4 MHz ±30ppm 8pF -40°C ~ 85°C
XZAEELNANF-48.000000 CRYSTAL 48.0000MHZ 8PF SMD XZ 48 MHz ±30ppm 8pF -40°C ~ 85°C
XZAEELNANF-50.000000 CRYSTAL 50.0000MHZ 8PF SMD XZ 50 MHz ±30ppm 8pF -40°C ~ 85°C
XZGEECNANF-24.000000 CRYSTAL 24.0000MHZ 18PF SMD XZ 24 MHz ±30ppm 18pF -20°C ~ 70°C
XZHBBCNANF-32.000000 CRYSTAL 32.0000MHZ 20PF SMD XZ 32 MHz ±10ppm 20pF -20°C ~ 70°C
XZLCCCNANF-30.000000 CRYSTAL 30.0000MHZ 6PF SMD XZ 30 MHz ±20ppm 6pF -20°C ~ 70°C
XZAEECNANF-27.120000 CRYSTAL 27.1200MHZ 8PF SMD XZ 27.12 MHz ±30ppm 8pF -20°C ~ 70°C
XZAEECNANF-32.000000 CRYSTAL 32.0000MHZ 8PF SMD XZ 32 MHz ±30ppm 8pF -20°C ~ 70°C
