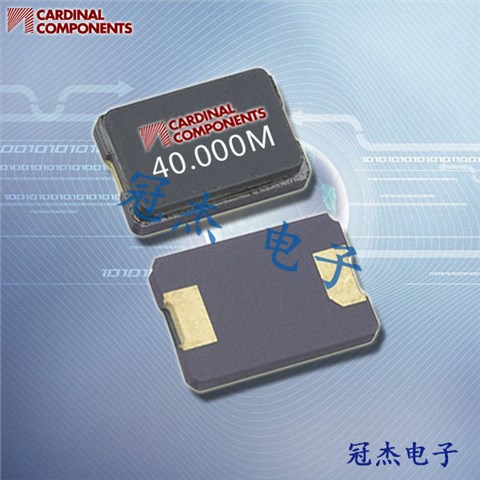

CX532智能家居晶振,CX532Z-A2B3C5-70-12.288D18,卡迪納爾陶瓷晶振，尺寸尺寸5.0*3.2mm,頻率12.288MHZ，Cardinal貼片晶振，歐美進口晶振，無源貼片晶振，SMD晶振，Cardinal Crystal，陶瓷晶振，5032mm貼片晶振，無源晶振，兩腳貼片晶振，輕薄型晶振，陶瓷諧振器，SMD晶體諧振器，低耗能晶振，低損耗晶振，高質量晶振，高性能晶振，智能家居晶振，物聯網晶振，智能手機專用晶振，無線藍牙晶振，通信設備晶振，娛樂設備晶振，數碼電子晶振，具有輕薄小高性能的特點。
諧振器產品可快速滿足不同應用程序的需求，比較適合用于智能家居，物聯網，智能手機，無線藍牙，通信設備，娛樂設備，數碼電子等領域。CX532智能家居晶振,CX532Z-A2B3C5-70-12.288D18,卡迪納爾陶瓷晶振.

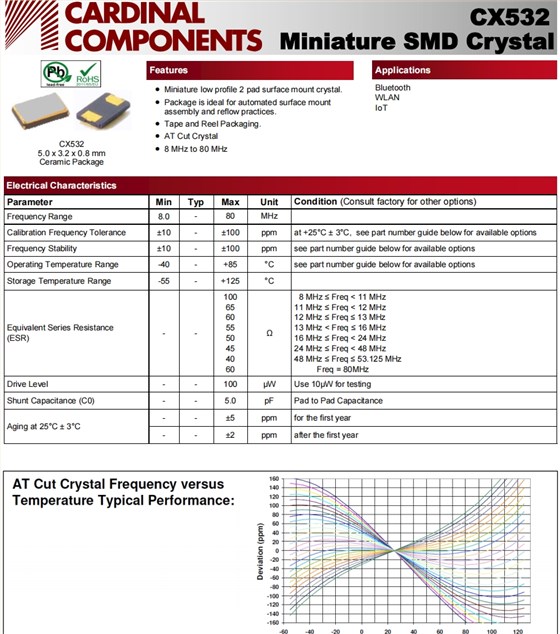

CX532智能家居晶振,CX532Z-A2B3C5-70-12.288D18,卡迪納爾陶瓷晶振 參數表
| Parameter | Min | Typ | Max | Unit | Condition(Consult factory for other options) | ||||||||||||||||||||||||||||||
| Frequency Range |
|
12.288 |
|
MHz | |||||||||||||||||||||||||||||||
| Calibration Frequency Tolerance | ±10 | - | ±100 | ppm | at +25°C ± 3°C,see part number guide below for available options | ||||||||||||||||||||||||||||||
| Frequency Stability | ±10 | - | ±100 | ppm | see part number guide below for available options | ||||||||||||||||||||||||||||||
| Operating Temperature Range | -40 | - | +85 | °C | see part number guide below for available options | ||||||||||||||||||||||||||||||
| Storage Temperature Range | -55 | - | +125 | °C | |||||||||||||||||||||||||||||||
|
Equivalent Series Resistance (ESR) |
- | - |
100 65 60 55 50 45 40 60 |
Ω |
8 MHz ≤ Freq < 11 MHz 11 MHz ≤ Freq < 12 MHz 12 MHz ≤ Freq ≤ 13 MHz 13 MHz < Freq ≤ 16 MHz 16 MHz ≤ Freq < 24 MHz 24 MHz ≤ Freq < 48 MHz 48 MHz ≤ Freq ≤ 53.125 MHz Freq = 80MHz |
||||||||||||||||||||||||||||||
| Drive Level | - | - | 100 | µW | Use 10µW for testing | ||||||||||||||||||||||||||||||
| Shunt Capacitance (C0) | - | - | 5.0 | pF | Pad to Pad Capacitance | ||||||||||||||||||||||||||||||
| Aging at 25°C ± 3°C | - | - | ±5 | ppm | for the first year | ||||||||||||||||||||||||||||||
| - | - | ±2 | ppm | after the first year | |||||||||||||||||||||||||||||||

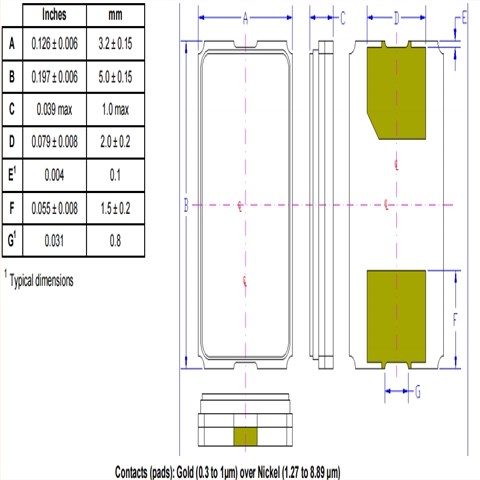

CX532智能家居晶振,CX532Z-A2B3C5-70-12.288D18,卡迪納爾陶瓷晶振 尺寸圖
CX532智能家居晶振,CX532Z-A2B3C5-70-12.288D18,卡迪納爾陶瓷晶振
5032晶振產品特性：
小型薄型2焊盤表面安裝晶體。
包裝是自動表面安裝的理想選擇組裝和回流實踐。
磁帶和卷軸包裝。
AT切割水晶
8MHz至80MHz
| Manufacturer Part Number原廠編碼 | Manufacturer廠家 | Description 參數 | Series型號 | Frequency | Frequency Stability頻率穩定度 | Operating Temperature工作溫度 |
| CPFBZ-A2C4-32.768KD6 | Cardinal晶振 | CRYSTAL 32.7680KHZ 6PF SMD | CPFB | 32.768kHz | - | -40°C ~ 85°C |
| CPFBZ-A2C5-32.768KD6 | Cardinal晶振 | CRYSTAL 32.7680KHZ 6PF SMD | CPFB | 32.768kHz | - | -40°C ~ 85°C |
| CX5Z-A5B2C5-70-7.37280D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CX5 | 7.3728MHz | ±50ppm | -20°C ~ 70°C |
| CX532Z-A2B3C5-70-12.288D18 | Cardinal晶振 | CRYSTAL 12.2880MHZ 18PF SMD | CX532 | 12.288MHz | ±30ppm | -40°C ~ 85°C |
| CPFBZ-A2C4-32.768KD12.5 | Cardinal晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | CPFB | 32.768kHz | - | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CSM4 | 12MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-25.0D18-F | Cardinal晶振 | CRYSTAL 25.0000MHZ 18PF SMD | CSM4 | 25MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CX532 | 16MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-ARB2C5-70-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CX5 | 7.3728MHz | ±50ppm | -40°C ~ 125°C |
| CX325Z-A5B2C5-50-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CX325 | 20MHz | ±50ppm | -20°C ~ 70°C |
| CX635A-A5B2C3-40-18.432D13 | Cardinal晶振 | CRYSTAL 18.4320MHZ 13PF SMD | CX635A | 18.432MHz | ±50ppm | -20°C ~ 70°C |
| CPFBZ-A2C5-32.768KD12.5 | Cardinal晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | CPFB | 32.768kHz | - | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-10.0D18 | Cardinal晶振 | CRYSTAL 10.0000MHZ 18PF SMD | CSM4 | 10MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-20.0D18 | Cardinal晶振 | CRYSTAL 20.0000MHZ 18PF SMD | CSM4 | 20MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-6.0D18 | Cardinal晶振 | CRYSTAL 6.0000MHZ 18PF SMD | CSM4 | 6MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CSM4 | 8MHz | ±30ppm | -40°C ~ 85°C |
| CX532Z-A2B3C5-70-12.0D18 | Cardinal晶振 | CRYSTAL 12.0000MHZ 18PF SMD | CX532 | 12MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-29.49152D18-F | Cardinal晶振 | CRYSTAL 29.49152MHZ 18PF SMD | CSM4 | 29.49152MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-26.0D18-F | Cardinal晶振 | CRYSTAL 26.0000MHZ 18PF SMD | CSM4 | 26MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-180-4.0D18 | Cardinal晶振 | CRYSTAL 4.0000MHZ 18PF SMD | CSM4 | 4MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-9.8304D18 | Cardinal晶振 | CRYSTAL 9.8304MHZ 18PF SMD | CSM4 | 9.8304MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-11.0592D18 | Cardinal晶振 | CRYSTAL 11.0592MHZ 18PF SMD | CSM4 | 11.0592MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-40-16.0D18 | Cardinal晶振 | CRYSTAL 16.0000MHZ 18PF SMD | CSM4 | 16MHz | ±30ppm | -40°C ~ 85°C |
| CSM4Z-A2B3C3-60-7.3728D18 | Cardinal晶振 | CRYSTAL 7.3728MHZ 18PF SMD | CSM4 | 7.3728MHz | ±30ppm | -40°C ~ 85°C |
| CX5Z-A5B2C5-40-27.0D18 | Cardinal晶振 | CRYSTAL 27.0000MHZ 18PF SMD | CX5 | 27MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-24.0D18 | Cardinal晶振 | CRYSTAL 24.0000MHZ 18PF SMD | CX5 | 24MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-40-24.576D18 | Cardinal晶振 | CRYSTAL 24.5760MHZ 18PF SMD | CX5 | 24.576MHz | ±50ppm | -20°C ~ 70°C |
| CX5Z-A5B2C5-70-8.0D18 | Cardinal晶振 | CRYSTAL 8.0000MHZ 18PF SMD | CX5 | 8MHz | ±50ppm | -20°C ~ 70°C |
