首頁 AXTAL晶振

AXE5032P-50-25-0C-100.000MHz,5032mm,AXTAL基站晶振,100MHZ

AXE5032P-50-25-0C-100.000MHz,5032mm,AXTAL基站晶振,100MHZ

產品簡介

AXE5032P-50-25-0C-100.000MHz,5032mm,HCMOS,AXTAL基站晶振,100MHZ,歐美進口晶振,AXTAL有源晶振,時鐘振蕩器,有源晶體振蕩器,可編程晶體振蕩器,100MHZ貼片晶振,HCMOS輸出晶振,5032mm小體積晶振,SPXO振蕩器,尺寸5.0*3.2mm,頻率16MHZ,輸出HCMOS,高性能晶振,高品質晶振,低電壓晶振,低相位晶振,微波通信晶振,空中雷達晶振,便攜式設備晶振,智能家電晶振.

產品詳情

AXE5032P-50-25-0C-100.000MHz,5032mm,HCMOS,AXTAL基站晶振,100MHZ,歐美進口晶振,AXTAL有源晶振,時鐘振蕩器,有源晶體振蕩器,可編程晶體振蕩器,100MHZ貼片晶振,HCMOS輸出晶振,5032mm小體積晶振,SPXO振蕩器,尺寸5.0*3.2mm,頻率16MHZ,輸出HCMOS,高性能晶振,高品質晶振,低電壓晶振,低相位晶振,微波通信晶振,空中雷達晶振,便攜式設備晶振,智能家電晶振.

AXE5032P-50-25-0C-100.000MHz,5032mm,HCMOS,AXTAL基站晶振,100MHZ特點:

5x3.2毫米封裝的可編程晶體振蕩器
低電壓高性能

符合RoHS標準且無鉛耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

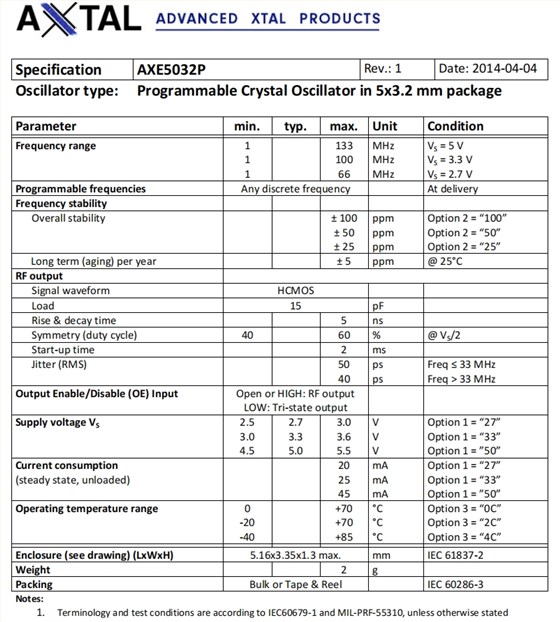

AXE5032P-50-25-0C-100.000MHz,5032mm,HCMOS,AXTAL基站晶振,100MHZ 參數表

Parameter min. typ. max. Unit Condition
Frequency range 1
1
1 		133
100
66 		MHz
MHz
MHz 		VS= 5 V
VS= 3.3 V
VS= 2.7 V
Programmable frequencies Any discrete frequency At delivery
Frequency stability
Overall stability ± 100
± 50
± 25 		ppm
ppm
ppm 		Option 2 = “100”
Option 2 = “50”
Option 2 = “25”
Long term (aging) per year ± 5 ppm @ 25°C
RF output
Signal waveform HCMOS
Load 15 pF
Rise & decay time 5 ns
Symmetry (duty cycle) 40 60 % @ VS/2
Start-up time 2 ms
Jitter (RMS) 50
40 		ps
ps 		Freq ≤ 33 MHz
Freq > 33 MHz
Output Enable/Disable (OE) Input Open or HIGH: RF output
LOW: Tri-state output
Supply voltage VS 2.5
3.0
4.5 		2.7
3.3
5.0 		3.0
3.6
5.5 		V
V
V 		Option 1 = “27”
Option 1 = “33”
Option 1 = ”50”
Current consumption
(steady state, unloaded) 		20
25
45 		mA
mA
mA 		Option 1 = “27”
Option 1 = “33”
Option 1 = ”50”
Operating temperature range 0
-20
-40 		+70
+70
+85 		°C
°C
°C 		Option 3 = “0C”
Option 3 = “2C”
Option 3 = “4C”
Enclosure (see drawing) (LxWxH) 5.16x3.35x1.3 max. mm IEC 61837-2
Weight 2 g
Packing Bulk or Tape & Reel IEC 60286-3

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

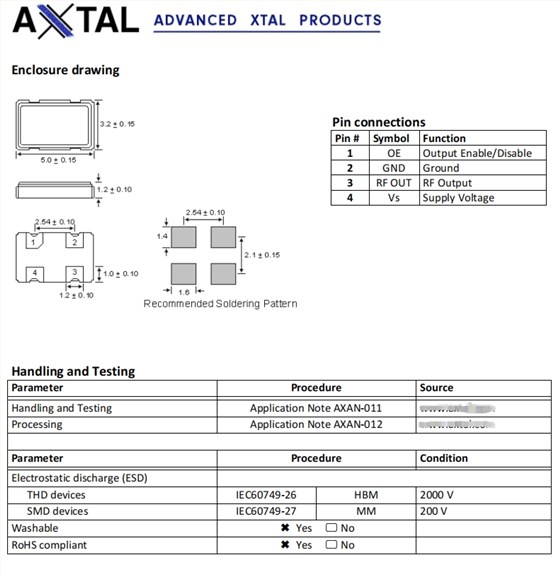

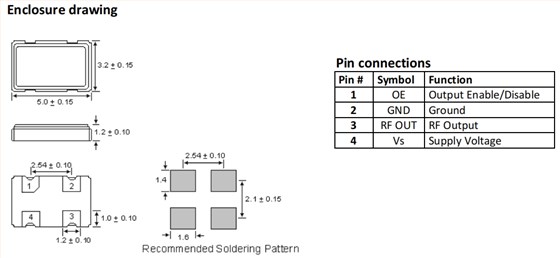

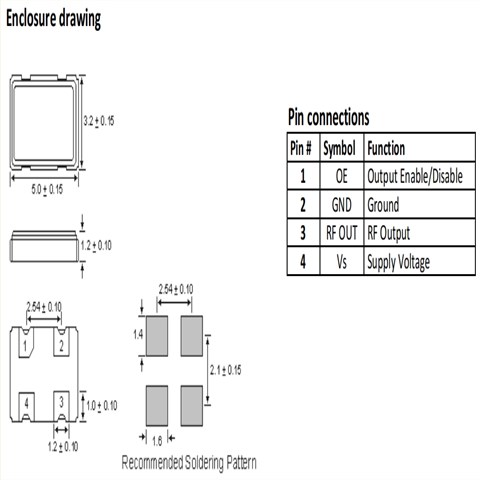

AXE5032P-50-25-0C-100.000MHz,5032mm,HCMOS,AXTAL基站晶振,100MHZ 尺寸圖

AXE5032P

AXE5032P 3

AXE5032P 2

AXE5032P 1
