FMXMC12S-9FC-32.768K-TR,FMI音叉晶振,2012mm,FMXMC12S系列晶體,美國FMI晶振,歐美進口晶振,無源貼片晶振,SMD晶振,兩腳水晶振動子,2012mm超小型諧振器,無源晶振,輕薄型晶振,32.768KHZ晶振,尺寸2.0*1.2mm,頻率32.768KHZ,負載9pF,無鉛晶振,低功耗晶振,高精度晶振,高性能晶振,電話機晶振,無線設備晶振,數字顯示晶振,時鐘晶振.
FMXMC12S-9FC-32.768K-TR,FMI音叉晶振,2012mm,FMXMC12S系列晶體特點:

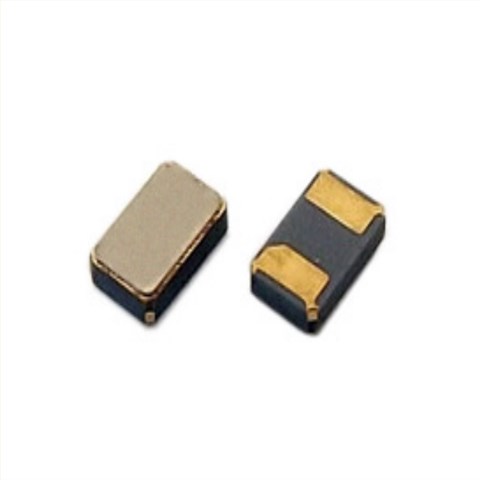

表面貼裝陶瓷組件。

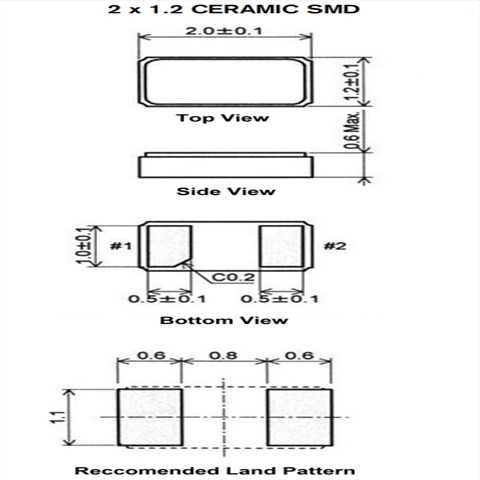

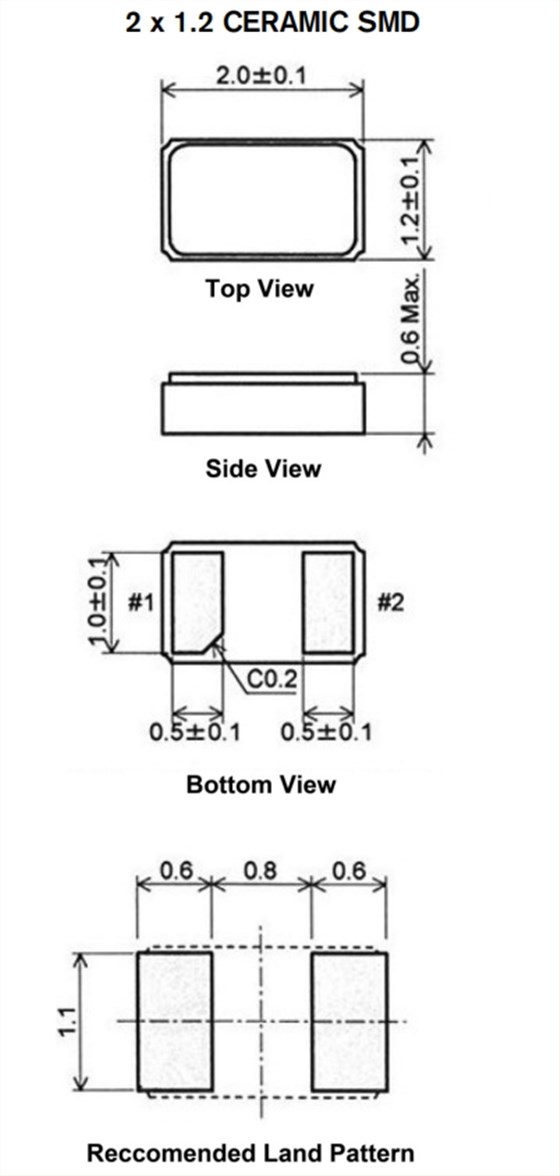

Micro 2 x 1.2/超薄型無源晶振
32.768千赫
緊密穩定性

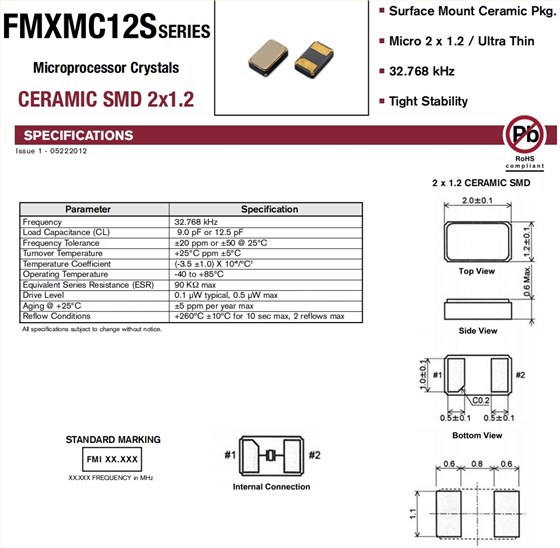

FMXMC12S-9FC-32.768K-TR,FMI音叉晶振,2012mm,FMXMC12S系列晶體 參數表
| Parameter | Specification | ||||||||||||||
| Frequency | 32.768 kHz | ||||||||||||||
| Load Capacitance (CL) | 9.0 pF or 12.5 pF | ||||||||||||||
| Frequency Tolerance | ±20 ppm or ±50 @ 25°C | ||||||||||||||
| Turnover Temperature | +25°C ppm ±5°C | ||||||||||||||
| Temperature Coefficient | (-3.5 ±1.0) X 10-8/ºC2 | ||||||||||||||
| Operating Temperature | -40 to +85°C | ||||||||||||||
| Equivalent Series Resistance (ESR) | 90 KΩ max | ||||||||||||||
| Drive Level | 0.1 µWtypical, 0.5 µW max | ||||||||||||||
| Aging @ +25°C | ±5 ppm per year max | ||||||||||||||
| Reflow Conditions | +260ºC ±10ºC for 10 sec max, 2 reflows max | ||||||||||||||
