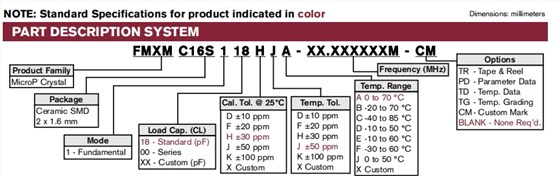

FMI輕薄型晶振,FMXMC16S系列,FMXMC16S118HJA-30.000000M-CM,2016mm,歐美石英晶體,FMI晶體諧振器,水晶振動子,2016mm貼片晶振,無源貼片晶振,30MHZ石英晶振,無源晶振,SMD晶振,尺寸2.0*1.6mm,頻率30MHZ,負載18pF,綠色環保晶振,高可靠晶振,高品質晶振,低耗能晶振,智能穿戴晶振,視聽設備晶振,便攜式設備晶振,蜂窩電話晶振.
FMI輕薄型晶振,FMXMC16S系列,FMXMC16S118HJA-30.000000M-CM,2016mm特點:

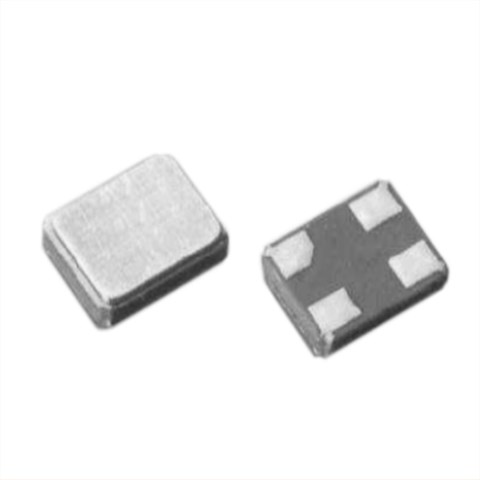

表面貼裝陶瓷SMD晶振組件。

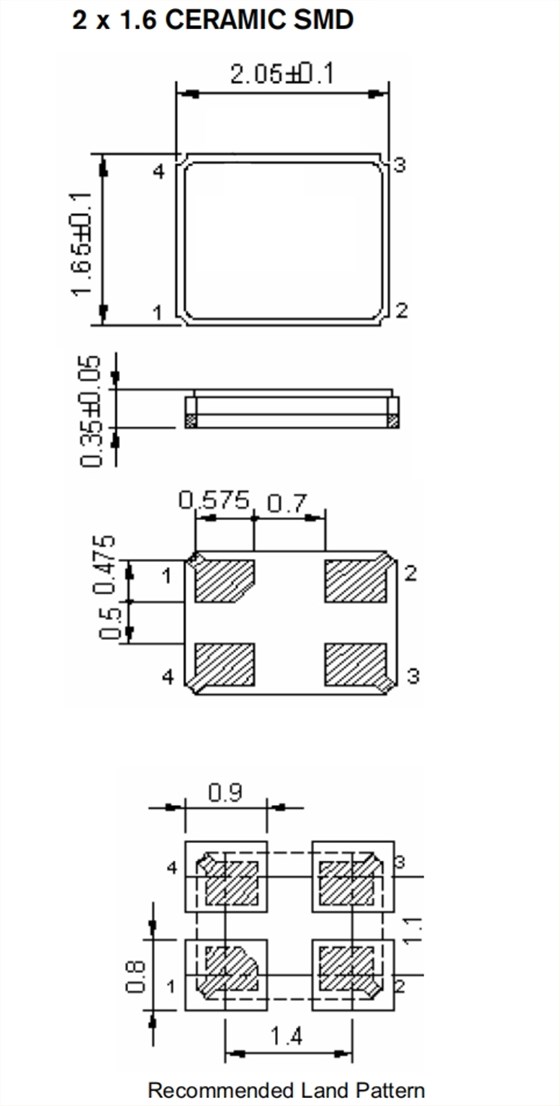

Micro 2 x 1.6/超薄
高可靠性
緊密穩定性

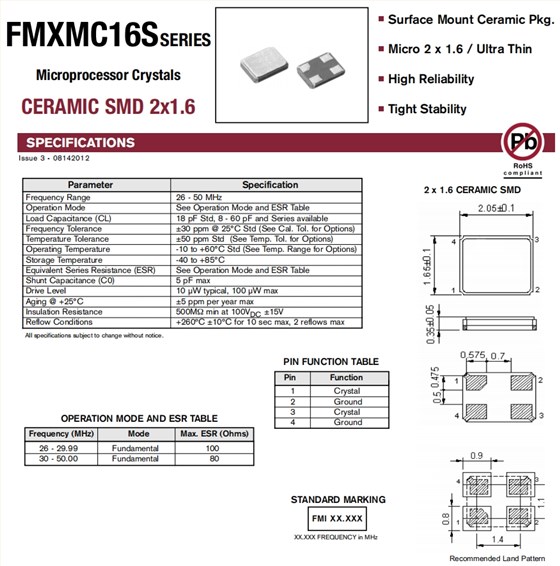

FMI輕薄型晶振,FMXMC16S系列,FMXMC16S118HJA-30.000000M-CM,2016mm 參數表
| Parameter | Specification | ||||||||||||
| Frequency Range | 30 MHz | ||||||||||||
| Operation Mode | See Operation Mode and ESR Table | ||||||||||||
| Load Capacitance (CL) | 18 pF Std, 8 - 60 pF and Series available | ||||||||||||
| Frequency Tolerance | ±30 ppm @ 25°C Std (See Cal. Tol. for Options) | ||||||||||||
| Temperature Tolerance | ±50 ppm Std(See Temp. Tol. for Options) | ||||||||||||
| Operating Temperature | -10 to +60°C Std (See Temp. Range for Options) | ||||||||||||
| Storage Temperature | -40 to +85°C | ||||||||||||
| Equivalent Series Resistance (ESR) | See Operation Mode and ESR Table | ||||||||||||
| Shunt Capacitance (C0) | 5 pF max | ||||||||||||
| Drive Level | 10 µWtypical, 100 µW max | ||||||||||||
| Aging @ +25°C | ±5 ppm per year max | ||||||||||||
| Insulation Resistance | 500MΩ min at 100VDC±15V | ||||||||||||
| Reflow Conditions | +260ºC ±10ºC for 10 sec max, 2 reflows max |
