NDK汽車氛圍燈晶振,NP3225SC-156.25MHz-NSC5344B,6G網絡差分晶振

NDK汽車氛圍燈晶振,NP3225SC-156.25MHz-NSC5344B,6G網絡差分晶振NDK汽車氛圍燈晶振,NP3225SC-156.25MHz-NSC5344B,6G網絡差分晶振

產品簡介

NDK汽車氛圍燈晶振,NP3225SC-156.25MHz-NSC5344B,6G網絡差分晶振，尺寸3.2×2.5mm,頻率156.25MHz,輸出邏輯HCSL,工作溫度-40 to +105，電壓3.3 V±10 %，HCSL差分石英晶振，差分晶體振蕩器，SPXO差分振蕩器，貼片差分晶振，156.25MHz差分晶振，低電壓差分振蕩器，低抖動差分晶振，高頻差分晶振，6G基站差分晶振，以太網專用差分晶振，汽車音響專用差分振蕩器，電腦應用差分晶振，產品具備低電壓高精度高頻的特點。

有源晶振產品應用范圍廣，很適合用于5G兼容設備、基站、光網絡單元、SDH/SONET設備，低端路由器、以太網、光收發器，汽車音響、汽車電腦等領域。NDK汽車氛圍燈晶振,NP3225SC-156.25MHz-NSC5344B,6G網絡差分晶振.


產品詳情

NDK汽車氛圍燈晶振,NP3225SC-156.25MHz-NSC5344B,6G網絡差分晶振，尺寸3.2×2.5mm,頻率156.25MHz,輸出邏輯HCSL,工作溫度-40 to +105，電壓3.3 V±10 %，HCSL差分石英晶振，差分晶體振蕩器，SPXO差分振蕩器，貼片差分晶振，156.25MHz差分晶振，低電壓差分振蕩器，低抖動差分晶振，高頻差分晶振，6G基站差分晶振，以太網專用差分晶振，汽車音響專用差分振蕩器，電腦應用差分晶振，產品具備低電壓高精度高頻的特點。

有源晶振產品應用范圍廣，很適合用于5G兼容設備、基站、光網絡單元、SDH/SONET設備，低端路由器、以太網、光收發器，汽車音響、汽車電腦等領域。NDK汽車氛圍燈晶振,NP3225SC-156.25MHz-NSC5344B,6G網絡差分晶振.耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

NDK汽車氛圍燈晶振,NP3225SC-156.25MHz-NSC5344B,6G網絡差分晶振 參數表

Item Ratings Notes
min max Units
1 Supply Voltage -0.3 +4.0 V
2 Input Voltage -0.3 VCC+0.3 V
3 Storage Temperature Range -55 +125 。C
6. Electrical Specifications
Parameters SYM Electrical Spec. Notes
min typ max Units
1 Nominal Frequency fnom
156.25 MHz See Table.2
2 Supply Voltage VCC +2.5 to +3.3 V See Table.1
3 Current Consumption (Operating) ICC 50 mA at 25。C
4 Current Consumption (Stand-by) IST See Table.1 μA at 25。C
5 Output Level - HCSL
6 Load RL 50 Ω
7 Operating Temperature Range Topr [-40 to +85] to [-40 to +105] 。C See Table.1
8 Overall Frequency Tolerance Δf/fnom -50 +50 ppm *1
9 Output Voltage VOL - 150 +150 mV
VOH +580 +850 mV
10 Rise Time(tr), Fall Time(tf) tr/tf 0.5 ns 0.175 to 0.525 V
11 Symmetry SYM 45 55 % at 50 % Waveform
12 Start-up Time tsu 10 ms
13 Phase Jitter tpj 1 ps *2
14 Output Wave Form - Square wave
15 Stand-by Function #1 PAD input #4, 5 PAD output
H level (0.7 VCCto VCC) or open Operating
L level (0.3 VCCmax) High impedance
Nominal
Frequency 		Operating Temperature
Range [。C] 		Current Consumption
(Stand-by) 		Supply Voltage [V]
2.5 V±5 % 3.3 V±10 %
100 to 175 MHz -40 to +85 15μA MAX. NSC5343A NSC5343B
-40 to +105 30μA MAX. NSC5344A NSC5344B
175 to 220 MHz -40 to +85 15μA MAX. NSC5236A NSC5236B
-40 to +105 30μA MAX. NSC5238A NSC5238B
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

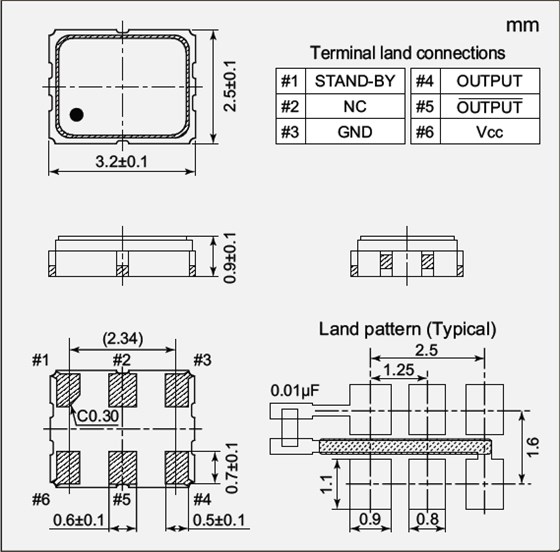

NDK汽車氛圍燈晶振,NP3225SC-156.25MHz-NSC5344B,6G網絡差分晶振 尺寸圖NP3225SC_3.2_2.5 SPXO

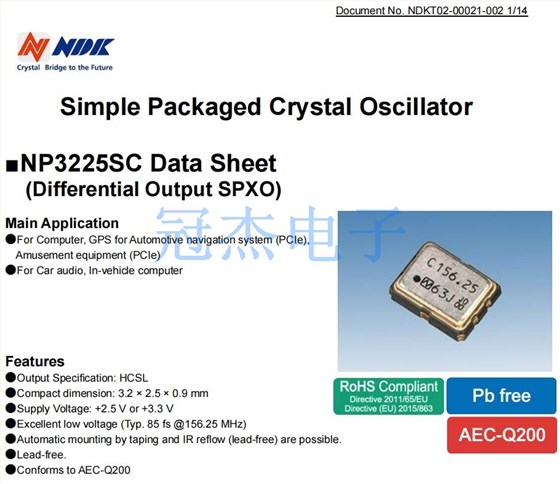

產品特性：

HCSL差分輸出SPXO

緊湊型:3.2 x 2.5 x 0.9毫米

電源電壓:+2.5V或者+3.3V

低相位抖動:典型。85fs @156.25MHz

通過纏繞自動安裝和IR回流(無鉛)是可能的。

無鉛

符合AEC-Q200

NP3225SC 1更多相關NDK晶振型號

Manufacturer Part Number Manufacturer Series Frequency 頻率 Voltage - Supply電壓
NZ2520SB-32.768KHZ-NSA3534C NDK晶振 NZ2520S 32.768kHz 1.8V
NT2016SA-26.000000MHZ-NBG2 NDK晶振 NT2016SA 26MHz 1.8V
NZ2520SB-32.768KHZ-NSA3536C NDK晶振 NZ2520S 32.768kHz 3.3V
NT3225SA-13.000000MHZ NDK晶振 NT3225SA 13MHz 3V
NT3225SA-19.680000MHZ NDK晶振 NT3225SA 19.68MHz 3V
NT3225SA-26.000000MHZ NDK晶振 NT3225SA 26MHz 3V
NT2016SA-16.368000 MHZ-NTG1 NDK晶振 NT2016SA 16.368MHz 2.5V
NT3225SA-19.200000MHZ NDK晶振 NT3225SA 19.2MHz 2.8V
NT3225SA-19.2M-DJA3002B NDK晶振 NT3225SA 19.2MHz 2.8V
NT2520SA-26.000000MHZ-A1 NDK晶振 NT2520SA 26MHz 2.4V
NZ2520SB-32.768KHZ-NSA3535C NDK晶振 NZ2520S 32.768kHz 2.5V
NZ2520SB-2.750000MHZ NDK晶振 NZ2520SB 2.75MHz 3V
NZ2520SB-7.600000MHZ NDK晶振 NZ2520SB 7.6MHz 3V
NZ2520SB-5.000000MHZ NDK晶振 NZ2520SB 5MHz 3V
NZ2520SB-10.000000MHZ NDK晶振 NZ2520SB 10MHz 3V
NZ2520SB-19.200MHZ NDK晶振 NZ2520SB 19.2MHz 3V
NZ2520SB-20.000000MHZ NDK晶振 NZ2520SB 20MHz 3V
NZ2520SB-22.000000MHZ NDK晶振 NZ2520SB 22MHz 3V
NZ2520SB-25.600MHZ NDK晶振 NZ2520SB 25.6MHz 3V
NZ2520SB-38.900MHZ NDK晶振 NZ2520SB 38.9MHz 3V
NZ2520SB-40.000000MHZ NDK晶振 NZ2520SB 40MHz 3V
NZ2520SB-41.360MHZ NDK晶振 NZ2520SB 41.36MHz 3V
NZ2520SB-44.000000MHZ NDK晶振 NZ2520SB 44MHz 3V
NT3225SA-26.000000MHZ-G5 NDK晶振 NT3225SA 26MHz 2.4V
NT3225SA-26.000000MHZ-G7 NDK晶振 NT3225SA 26MHz 2.7V
NT3225SA-26.000000MHZ-G8 NDK晶振 NT3225SA 26MHz 2.75V
NT3225SA-19.200000MHZ-T3 NDK晶振 NT3225SA 19.2MHz 2.8V
2775W-2.176 NDK晶振 2775W 2.176MHz 5V
2765E-2.457600MHZ NDK晶振 2765E 2.4576MHz 3.3V
2765E-16.666700MHZ NDK晶振 2765E 16.6667MHz 3.3V
2765E-25.000000MHZ NDK晶振 2765E 25MHz 3.3V
2765E-33.333300MHZ NDK晶振 2765E 33.3333MHz 3.3V
2765E-40.000000MHZ NDK晶振 2765E 40MHz 3.3V
2765E-50.000000MHZ NDK晶振 2765E 50MHz 3.3V
2765E-66.000000MHZ NDK晶振 2765E 66MHz 3.3V
2765E-66.667000MHZ NDK晶振 2765E 66.667MHz 3.3V
2765E-80.000000MHZ NDK晶振 2765E 80MHz 3.3V
NZ2520SA-2.750000MHZ NDK晶振 NZ2520SA 2.75MHz 3V
NZ2520SA-5.000000MHZ NDK晶振 NZ2520SA 5MHz 3V
NZ2520SA-7.600000MHZ NDK晶振 NZ2520SA 7.6MHz 3V
NZ2520SA-10.000000MHZ NDK晶振 NZ2520SA 10MHz 3V
NZ2520SA-20.000000MHZ NDK晶振 NZ2520SA 20MHz 3V
NZ2520SA-22.000000MHZ NDK晶振 NZ2520SA 22MHz 3V
NZ2520SA-40.000000MHZ NDK晶振 NZ2520SA 40MHz 3V
NZ2520SA-44.000000MHZ NDK晶振 NZ2520SA 44MHz 3V
NT3225SA-52.000000MHZ-S1 NDK晶振 NT3225SA 52MHz 2.4V
NZ2520SA-19.200MHZ NDK晶振 NZ2520SA 19.2MHz 3V
NZ2520SA-25.600MHZ NDK晶振 NZ2520SA 25.6MHz 3V
NZ2520SA-38.900MHZ NDK晶振 NZ2520SA 38.9MHz 3V
NZ2520SA-41.360MHZ NDK晶振 NZ2520SA 41.36MHz 3V
