首頁 Skyworks晶振

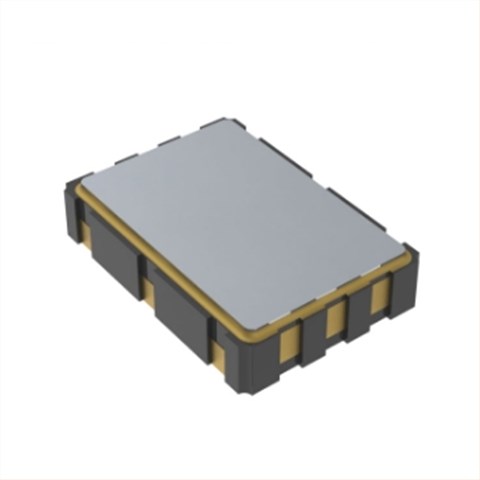

531FA27M0000DGR,Skyworks差分晶振,6G視頻晶振,Si531高質量晶振

531FA27M0000DGR,Skyworks差分晶振,6G視頻晶振,Si531高質量晶振531FA27M0000DGR,Skyworks差分晶振,6G視頻晶振,Si531高質量晶振

產品簡介

531FA27M0000DGR,Skyworks差分晶振,6G視頻晶振,Si531高質量晶振，尺寸7.0*5.0mm,頻率27MHZ，電壓2.5V，輸出LVDS，LVDS輸出晶振，差分晶體振蕩器，LVDS晶振，LVDS差分振蕩器，石英差分晶振，貼片差分晶振，SMD差分振蕩器，7050mm差分晶振，低電壓差分晶振，低損耗差分振蕩器，低抖動差分晶振，低功耗差分振蕩器，高品質差分晶振，高性能差分振蕩器，有源差分晶振，6G視頻差分晶振，光模塊差分晶振，小型設備差分晶振，通訊模塊差分振蕩器，測試測量差分晶振，具有高品質高性能的特點。

Si530/531 XO時鐘振蕩器采用Skyworks Solutions的先進DSPLL®電路以提供高頻下的低抖動時鐘。Si530/531可用具有從10到945MHz的任意速率輸出頻率，并選擇頻率1400兆赫。與傳統XO不同，在傳統XO中每個輸出頻率，Si530/531使用一個固定晶體來提供寬范圍的輸出頻率。這種基于IC的方法允許晶體諧振器，提供卓越的頻率穩定性和可靠性.531FA27M0000DGR,Skyworks差分晶振,6G視頻晶振,Si531高質量晶振.


產品詳情

531FA27M0000DGR,Skyworks差分晶振,6G視頻晶振,Si531高質量晶振，尺寸7.0*5.0mm,頻率27MHZ，電壓2.5V，輸出LVDS，LVDS輸出晶振，差分晶體振蕩器，LVDS晶振，LVDS差分振蕩器，石英差分晶振，貼片差分晶振，SMD差分振蕩器，7050mm差分晶振，低電壓差分晶振，低損耗差分振蕩器，低抖動差分晶振，低功耗差分振蕩器，高品質差分晶振，高性能差分振蕩器，有源差分晶振，6G視頻差分晶振，光模塊差分晶振，小型設備差分晶振，通訊模塊差分振蕩器，測試測量差分晶振，具有高品質高性能的特點。

Si530/531 XO時鐘振蕩器采用Skyworks Solutions的先進DSPLL®電路以提供高頻下的低抖動時鐘。Si530/531可用具有從10到945MHz的任意速率輸出頻率，并選擇頻率1400兆赫。與傳統XO不同，在傳統XO中每個輸出頻率，Si530/531使用一個固定晶體來提供寬范圍的輸出頻率。這種基于IC的方法允許晶體諧振器，提供卓越的頻率穩定性和可靠性.531FA27M0000DGR,Skyworks差分晶振,6G視頻晶振,Si531高質量晶振.

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

531FA27M0000DGR,Skyworks差分晶振,6G視頻晶振,Si531高質量晶振參數表

Parameter Symbol Test Condition Min Typ Max Unit
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75 V
1.8 V option 1.71 1.8 1.89 V
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS 		—
—
—
— 		111
99
90
81 		121
108
98
88 		mA
Tristate mode — 60 75 mA
Output Enable (OE)2 VIH 0.75 x VDD — — V
VIL — — 0.5 V
Operating Temperature Range TA –40 — 85 ºC
Parameter Symbol Test Condition Min Typ Max Unit
Nominal Frequency1,2 fO LVPECL/LVDS/CML 10 — 945 MHz
CMOS 10 — 160 MHz
Initial Accuracy fi Measured at +25 °C at time of
shipping 		— ±1.5 — ppm
Temperature Stability1,3 –7
–20
–50

— 		+7
+20
+50 		ppm
Aging fa Frequency drift over first year — — ±3 ppm
Frequency drift over 20 year
life 		— — ±10 ppm
Parameter Symbol Test Condition Min Typ Max Unit
LVPECL Output Option1 VO mid-level VDD– 1.42 — VDD– 1.25 V
VOD swing (diff) 1.1 — 1.9 VPP
VSE swing (single-ended) 0.55 — 0.95 VPP
LVDS Output Option2 VO mid-level 1.125 1.20 1.275 V
VOD swing (diff) 0.5 0.7 0.9 VPP
CML Output Option2 VO 2.5/3.3 V option mid-level VDD– 1.30 V
1.8 V option mid-level VDD– 0.36 V
VOD 2.5/3.3 V option swing (diff) 1.10 1.50 1.90 VPP
1.8 V option swing (diff) 0.35 0.425 0.50 VPP
CMOS Output Option3 VOH IOH= 32 mA 0.8 x VDD VDD V
VOL IOL= 32 mA 0.4 V
Rise/Fall time (20/80%) tR,tF LVPECL/LVDS/CML 350 ps
CMOS with CL= 15 pF 1 ns
Symmetry (duty cycle) SYM LVPECL:
(diff)
LVDS:
CMOS: 		VDD– 1.3 V

1.25 V (diff)
VDD/2 		45 55 %
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

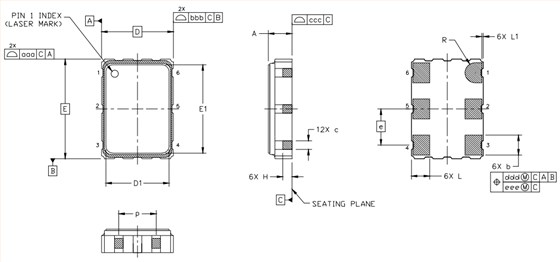

531FA27M0000DGR,Skyworks差分晶振,6G視頻晶振,Si531高質量晶振尺寸圖

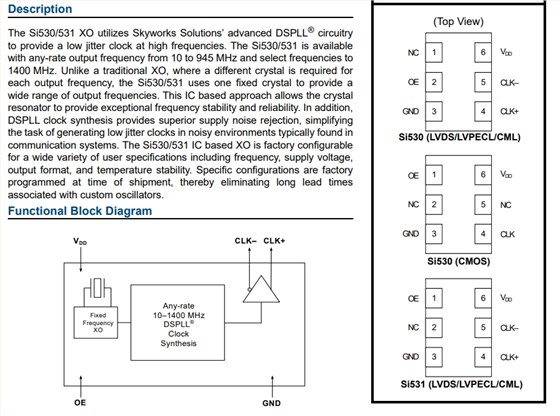

Si530 Si531

有源晶振產品特性：

可用于任何速率輸出頻率從10MHz到945MHz

并選擇1.4 GHz的頻率

具有卓越性能的第三代DSPLL®抖動性能

頻率穩定性比SAW振蕩器

內部固定晶體頻率

確保高可靠性和低成本變老

可用的CMOS、LVPECL、LVDS和CML輸出

3.3、2.5和1.8 V電源選項

行業標準5 x 7mm包裝和引腳

無鉛/符合RoHS

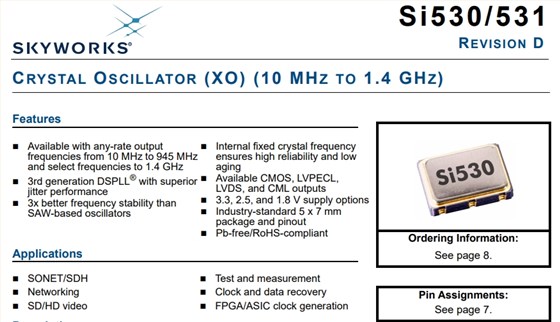

Si530 Si531 1 Si530 Si531 2

更多相關美國Skyworks晶振型號

Mfr Part # Mfr Description Series Frequency Output Voltage - Supply Frequency Stability
531BC156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si531 156.25 MHz LVDS 3.3V ±7ppm
531BA125M000DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si531 125 MHz LVDS 3.3V ±50ppm
531FA125M000DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si531 125 MHz LVDS 2.5V ±50ppm
531BC156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si531 156.25 MHz LVDS 3.3V ±7ppm
531FC100M000DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si531 100 MHz LVDS 2.5V ±7ppm
531AC156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si531 156.25 MHz LVPECL 3.3V ±7ppm
531EC156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si531 156.25 MHz LVPECL 2.5V ±7ppm
531BC148M500DG Skyworks有源晶振 XTAL OSC XO 148.5000MHZ LVDS SMD Si531 148.5 MHz LVDS 3.3V ±7ppm
531BC200M000DG Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVDS SMD Si531 200 MHz LVDS 3.3V ±7ppm
531FC200M000DG Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVDS SMD Si531 200 MHz LVDS 2.5V ±7ppm
531NA000185DGR Skyworks有源晶振 XTAL OSC XO 161.132812MHZ LVDS Si531 161.132812 MHz LVDS 3.3V ±50ppm
531NA161M132DGR Skyworks有源晶振 XTAL OSC XO 161.1320MHZ LVDS SMD Si531 161.132 MHz LVDS 3.3V ±50ppm
531NA000185DG Skyworks有源晶振 XTAL OSC XO 161.132812MHZ LVDS Si531 161.132812 MHz LVDS 3.3V ±50ppm
531NA161M132DG Skyworks有源晶振 XTAL OSC XO 161.1320MHZ LVDS SMD Si531 161.132 MHz LVDS 3.3V ±50ppm
531BB122M880DGR Skyworks有源晶振 XTAL OSC XO 122.8800MHZ LVDS SMD Si531 122.88 MHz LVDS 3.3V ±20ppm
531DB25M0000DGR Skyworks有源晶振 XTAL OSC XO 25.0000MHZ CML SMD Si531 25 MHz CML 3.3V ±20ppm
531NB122M880DGR Skyworks有源晶振 XTAL OSC XO 122.8800MHZ LVDS SMD Si531 122.88 MHz LVDS 3.3V ±20ppm
531NB80M0000DGR Skyworks有源晶振 XTAL OSC XO 80.0000MHZ LVDS SMD Si531 80 MHz LVDS 3.3V ±20ppm
531BB122M880DG Skyworks有源晶振 XTAL OSC XO 122.8800MHZ LVDS SMD Si531 122.88 MHz LVDS 3.3V ±20ppm
531DB25M0000DG Skyworks有源晶振 XTAL OSC XO 25.0000MHZ CML SMD Si531 25 MHz CML 3.3V ±20ppm
531NB122M880DG Skyworks有源晶振 XTAL OSC XO 122.8800MHZ LVDS SMD Si531 122.88 MHz LVDS 3.3V ±20ppm
531NB80M0000DG Skyworks有源晶振 XTAL OSC XO 80.0000MHZ LVDS SMD Si531 80 MHz LVDS 3.3V ±20ppm
531AC114M285DG Skyworks有源晶振 XTAL OSC XO 114.2850MHZ LVPECL Si531 114.285 MHz LVPECL 3.3V ±7ppm
531AC116M444DG Skyworks有源晶振 XTAL OSC XO 116.4440MHZ LVPECL Si531 116.444 MHz LVPECL 3.3V ±7ppm
531AC25M0002DG Skyworks有源晶振 XTAL OSC XO 25.0002MHZ LVPECL Si531 25.0002 MHz LVPECL 3.3V ±7ppm
531BC22M5792DG Skyworks有源晶振 XTAL OSC XO 22.5792MHZ LVDS SMD Si531 22.5792 MHz LVDS 3.3V ±7ppm
531AC114M285DGR Skyworks有源晶振 XTAL OSC XO 114.2850MHZ LVPECL Si531 114.285 MHz LVPECL 3.3V ±7ppm
531AC116M444DGR Skyworks有源晶振 XTAL OSC XO 116.4440MHZ LVPECL Si531 116.444 MHz LVPECL 3.3V ±7ppm
531AC25M0002DGR Skyworks有源晶振 XTAL OSC XO 25.0002MHZ LVPECL Si531 25.0002 MHz LVPECL 3.3V ±7ppm
531BC22M5792DGR Skyworks有源晶振 XTAL OSC XO 22.5792MHZ LVDS SMD Si531 22.5792 MHz LVDS 3.3V ±7ppm
531BB000185DG Skyworks有源晶振 XTAL OSC XO 185.0000KHZ LVDS SMD Si531 185 kHz LVDS 3.3V ±20ppm
531FB148M350DG Skyworks有源晶振 XTAL OSC XO 148.3500MHZ LVDS SMD Si531 148.35 MHz LVDS 2.5V ±20ppm
531NB161M132DG Skyworks有源晶振 XTAL OSC XO 161.1320MHZ LVDS SMD Si531 161.132 MHz LVDS 3.3V ±20ppm
531BB000185DGR Skyworks有源晶振 XTAL OSC XO 185.0000KHZ LVDS SMD Si531 185 kHz LVDS 3.3V ±20ppm
531FB148M350DGR Skyworks有源晶振 XTAL OSC XO 148.3500MHZ LVDS SMD Si531 148.35 MHz LVDS 2.5V ±20ppm
531NB161M132DGR Skyworks有源晶振 XTAL OSC XO 161.1320MHZ LVDS SMD Si531 161.132 MHz LVDS 3.3V ±20ppm
531BA48M0000DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED; SINGL Si531 48 MHz LVDS 3.3V ±50ppm
531AA000183DGR Skyworks有源晶振 XTAL OSC XO 183.0000KHZ LVPECL Si531 183 kHz LVPECL 3.3V ±50ppm
531AA100M000DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVPECL Si531 100 MHz LVPECL 3.3V ±50ppm
531AA100M100DGR Skyworks有源晶振 XTAL OSC XO 100.1000MHZ LVPECL Si531 100.1 MHz LVPECL 3.3V ±50ppm
531AA106M250DGR Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVPECL Si531 106.25 MHz LVPECL 3.3V ±50ppm
531AA10M0000DGR Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Si531 10 MHz LVPECL 3.3V ±50ppm
531AA112M000DGR Skyworks有源晶振 XTAL OSC XO 112.0000MHZ LVPECL Si531 112 MHz LVPECL 3.3V ±50ppm
531AA114M285DGR Skyworks有源晶振 XTAL OSC XO 114.2850MHZ LVPECL Si531 114.285 MHz LVPECL 3.3V ±50ppm
531AA120M000DGR Skyworks有源晶振 XTAL OSC XO 120.0000MHZ LVPECL Si531 120 MHz LVPECL 3.3V ±50ppm
531AA125M000DGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVPECL Si531 125 MHz LVPECL 3.3V ±50ppm
531AA14M2500DGR Skyworks有源晶振 XTAL OSC XO 14.2500MHZ LVPECL Si531 14.25 MHz LVPECL 3.3V ±50ppm
531AA19M4400DGR Skyworks有源晶振 XTAL OSC XO 19.4400MHZ LVPECL Si531 19.44 MHz LVPECL 3.3V ±50ppm
531AA20M0000DGR Skyworks有源晶振 XTAL OSC XO 20.0000MHZ LVPECL Si531 20 MHz LVPECL 3.3V ±50ppm
531AA25M0000DGR Skyworks有源晶振 XTAL OSC XO 25.0000MHZ LVPECL Si531 25 MHz LVPECL 3.3V ±50ppm
531AA38M8800DGR Skyworks有源晶振 XTAL OSC XO 38.8800MHZ LVPECL Si531 38.88 MHz LVPECL 3.3V ±50ppm
531AA62M5000DGR Skyworks有源晶振 XTAL OSC XO 62.5000MHZ LVPECL Si531 62.5 MHz LVPECL 3.3V ±50ppm
531AA64M0000DGR Skyworks有源晶振 XTAL OSC XO 64.0000MHZ LVPECL Si531 64 MHz LVPECL 3.3V ±50ppm
531AA78M1250DGR Skyworks有源晶振 XTAL OSC XO 78.1250MHZ LVPECL Si531 78.125 MHz LVPECL 3.3V ±50ppm
531AA80M0000DGR Skyworks有源晶振 XTAL OSC XO 80.0000MHZ LVPECL Si531 80 MHz LVPECL 3.3V ±50ppm
531AA83M0000DGR Skyworks有源晶振 XTAL OSC XO 83.0000MHZ LVPECL Si531 83 MHz LVPECL 3.3V ±50ppm
531AA83M3333DGR Skyworks有源晶振 XTAL OSC XO 83.3333MHZ LVPECL Si531 83.3333 MHz LVPECL 3.3V ±50ppm
531AA85M0000DGR Skyworks oscillator XTAL OSC XO 85.0000MHZ LVPECL Si531 85 MHz LVPECL 3.3V ±50ppm
531AA90M0000DGR Skyworks有源晶振 XTAL OSC XO 90.0000MHZ LVPECL Si531 90 MHz LVPECL 3.3V ±50ppm
531BA100M000DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si531 100 MHz LVDS 3.3V ±50ppm
531BA100M300DGR Skyworks有源晶振 XTAL OSC XO 100.3000MHZ LVDS SMD Si531 100.3 MHz LVDS 3.3V ±50ppm
531BA106M250DGR Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVDS SMD Si531 106.25 MHz LVDS 3.3V ±50ppm
531BA120M000DGR Skyworks有源晶振 XTAL OSC XO 120.0000MHZ LVDS SMD Si531 120 MHz LVDS 3.3V ±50ppm
531BA125M000DGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si531 125 MHz LVDS 3.3V ±50ppm
531BA29M4912DGR Skyworks有源晶振 XTAL OSC XO 29.4912MHZ LVDS SMD Si531 29.4912 MHz LVDS 3.3V ±50ppm
531BA40M0000DGR Skyworks有源晶振 XTAL OSC XO 40.0000MHZ LVDS SMD Si531 40 MHz LVDS 3.3V ±50ppm
531BA49M1520DGR Skyworks有源晶振 XTAL OSC XO 49.1520MHZ LVDS SMD Si531 49.152 MHz LVDS 3.3V ±50ppm
531BA50M0000DGR Skyworks有源晶振 XTAL OSC XO 50.0000MHZ LVDS SMD Si531 50 MHz LVDS 3.3V ±50ppm
531BA62M5000DGR Skyworks有源晶振 XTAL OSC XO 62.5000MHZ LVDS SMD Si531 62.5 MHz LVDS 3.3V ±50ppm
531BA66M0000DGR Skyworks有源晶振 XTAL OSC XO 66.0000MHZ LVDS SMD Si531 66 MHz LVDS 3.3V ±50ppm
531BA75M0000DGR Skyworks有源晶振 XTAL OSC XO 75.0000MHZ LVDS SMD Si531 75 MHz LVDS 3.3V ±50ppm
531BA80M0000DGR Skyworks有源晶振 XTAL OSC XO 80.0000MHZ LVDS SMD Si531 80 MHz LVDS 3.3V ±50ppm
