X1M0003210001,EPSON差分振蕩器,XG-2103CA無線路由器晶振

X1M0003210001,EPSON差分振蕩器,XG-2103CA無線路由器晶振X1M0003210001,EPSON差分振蕩器,XG-2103CA無線路由器晶振

產品簡介

X1M0003210001,EPSON差分振蕩器,XG-2103CA無線路由器晶振，尺寸7.0*5.0mm,頻率132.8125MHZ，輸出邏輯LV-PECL，日本進口差分晶振，日本愛普生晶振，貼片差分振蕩器，有源差分晶振，差分晶體振蕩器，LV-PECL輸出晶振，7050mm差分晶振，OSC差分振蕩器，石英差分晶振，低抖動差分晶振，低耗能差分晶振，低電壓差分晶振，低耗能差分晶振，高質量差分晶振，高性能差分晶振，無線路由器差分晶振，通信模塊差分晶振，儀器設備差分晶振，測試測量差分晶振，通信基站差分晶振，航空通信差分晶振，具有低抖動低電壓的特點。

有源晶振產品廣泛應用各大應用程序之中，尤其適合用于無線路由器，通信模塊，儀器設備，測試測量，通信基站差，航空通信等應用。X1M0003210001,EPSON差分振蕩器,XG-2103CA無線路由器晶振.

產品詳情

X1M0003210001,EPSON差分振蕩器,XG-2103CA無線路由器晶振，尺寸7.0*5.0mm,頻率132.8125MHZ，輸出邏輯LV-PECL，日本進口差分晶振，日本愛普生晶振，貼片差分振蕩器，有源差分晶振，差分晶體振蕩器，LV-PECL輸出晶振，7050mm差分晶振，OSC差分振蕩器，石英差分晶振，低抖動差分晶振，低耗能差分晶振，低電壓差分晶振，低耗能差分晶振，高質量差分晶振，高性能差分晶振，無線路由器差分晶振，通信模塊差分晶振，儀器設備差分晶振，測試測量差分晶振，通信基站差分晶振，航空通信差分晶振，具有低抖動低電壓的特點。

有源晶振產品廣泛應用各大應用程序之中，尤其適合用于無線路由器，通信模塊，儀器設備，測試測量，通信基站差，航空通信等應用。X1M0003210001,EPSON差分振蕩器,XG-2103CA無線路由器晶振.

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

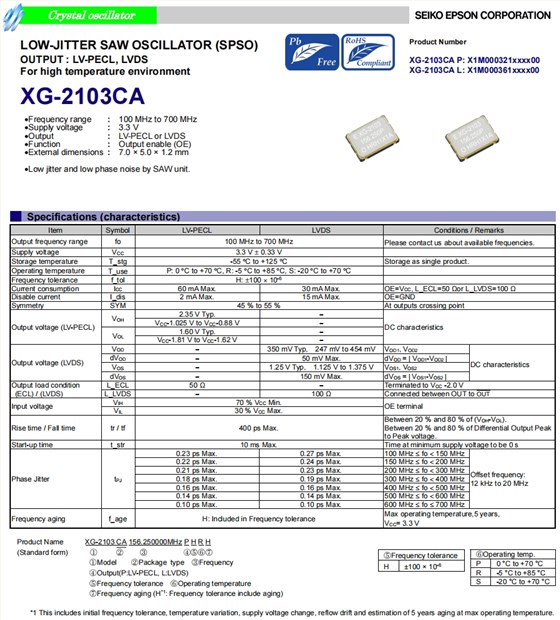

X1M0003210001,EPSON差分振蕩器,XG-2103CA無線路由器晶振 參數表

Specifications (characteristics)
Item Symbol LV-PECL LVDS Conditions / Remarks
Output frequency range fo 132.8125 MHz Please contact us about available frequencies.
Supply voltage VCC 3.3 V±0.33 V
Storage temperature T_stg -55°C to +125°C Storage as single product.
Operating temperature T_use P: 0°C to +70°C, R: -5°C to +85°C , S: -20°C to +70°C
Frequency tolerance f_tol H:±100×10-6
Current consumption ICC 60 mA Max. 30 mA Max. OE=VCC, L_ECL=50 Ωor L_LVDS=100 Ω
Disable current I_dis 2 mA Max. 15 mA Max. OE=GND
Symmetry SYM 45 % to 55 % At outputs crossing point
Output voltage (LV-PECL) VOH 2.35 V Typ. − DC characteristics
VCC- 1.025 V to VCC-0.88 V −
VOL 1.60 V Typ. −
VCC- 1.81 V to VCC- 1.62 V −
Output voltage (LVDS) VOD − 350 mV Typ,247 mV to 454 mV VOD1 , VOD2 DC characteristics
dVOD − 50 mV Max. dVOD=|VOD1-VOD2|
VOS − 1.25 V Typ,1.125 V to 1.375 V VOS1 , VOS2
dVOS − 150 mV Max. dVOS=|VOS1-VOS2|
Output load condition
(ECL) / (LVDS) 		L_ECL 50 Ω − Terminated to VCC-2.0 V
L_LVDS − 100 Ω Connected between OUT to OUT
Input voltage VIH 70 % VCCMin. OE terminal
VIL 30 % VCCMax.
Rise time / Fall time tr / tf 400 ps Max. Between 20 % and 80 % of (VOH-VOL).
Between 20 % and 80 % of Differential Output Peak
to Peak voltage.
Start-up time t_str 10 ms Max. Time at minimum supply voltage to be 0 s
Phase Jitter tPJ 0.23 ps Max. 0.27 ps Max. 100 MHz≤fo<150 MHz Offset frequency:
12 kHz to 20 MHz
0.22 ps Max. 0.24 ps Max. 150 MHz≤fo<200 MHz
0.21 ps Max. 0.23 ps Max. 200 MHz≤fo<300 MHz
0.18 ps Max. 0.19 ps Max. 300 MHz≤fo<400 MHz
0.16 ps Max. 0.16 ps Max. 400 MHz≤fo<500 MHz
0.14 ps Max. 0.14 ps Max. 500 MHz≤fo<600 MHz
0.10 ps Max. 0.10 ps Max. 600 MHz≤fo≤700 MHz
Frequency aging f_age H: Included in Frequency tolerance Max operating temperature,5 years,
VCC= 3.3 V
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

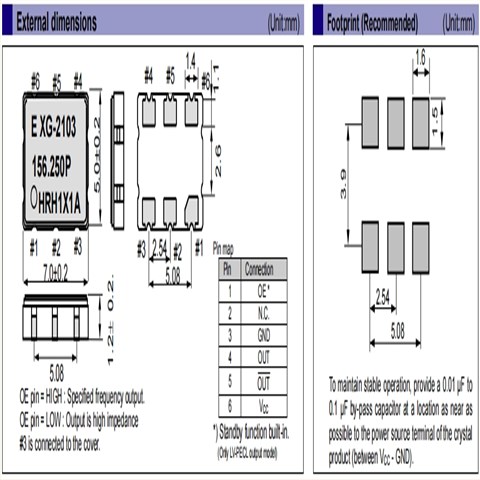

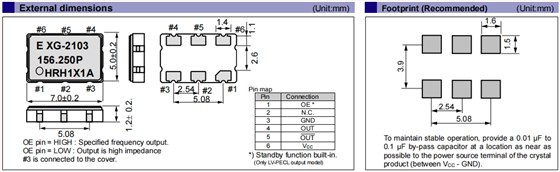

X1M0003210001,EPSON差分振蕩器,XG-2103CA無線路由器晶振 尺寸圖

XG-2103CA

X1M0003210001,EPSON差分振蕩器,XG-2103CA無線路由器晶振

產品特性：

頻率范圍：100MHz至700MHz

電源電壓：3.3 V

輸出：LV-PECL差分晶振或LVDS

功能：輸出啟用（OE）

外形尺寸：7.0×5.0×1.2mm

SAW裝置的低抖動和低相位噪聲。

XG-2103CA 1

XG-2103CA

編碼 品牌 型號 頻率 尺寸 輸出方式 電源電壓 工作溫度
X1G0045110001 愛普生晶振 SG7050EBN 156.250000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0045110002 愛普生晶振 SG7050EBN 125.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0045110003 愛普生晶振 SG7050EBN 100.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0045110004 愛普生晶振 SG7050EBN 106.250000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0045110005 愛普生晶振 SG7050EBN 122.880000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0045110007 愛普生晶振 SG7050EBN 150.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0045110008 愛普生晶振 SG7050EBN 155.520000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0045110011 愛普生晶振 SG7050EBN 114.285000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0045110012 愛普生晶振 SG7050EBN 156.253906 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0045110601 愛普生晶振 SG7050EBN 156.250000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0045110602 愛普生晶振 SG7050EBN 125.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0045110603 愛普生晶振 SG7050EBN 100.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0050310000 愛普生晶振 SG-8506CA 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050310003 愛普生晶振 SG-8506CA 622.080000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1G0050311001 愛普生晶振 SG-8506CA 156.250000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 3.630 V -40 to 85 °C
X1M0003010002 愛普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010003 愛普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010004 愛普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010006 愛普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010007 愛普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010008 愛普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010009 愛普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010010 愛普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010011 愛普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010012 愛普生晶振 XG-2102CA 133.330000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010013 愛普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010014 愛普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010015 愛普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010016 EPSON晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010017 愛普生晶振 XG-2102CA 133.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010019 愛普生晶振 XG-2102CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010020 愛普生晶振 XG-2102CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010021 愛普生晶振 XG-2102CA 106.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010022 愛普生晶振 XG-2102CA 250.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010023 愛普生晶振 XG-2102CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010025 愛普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010026 愛普生晶振 XG-2102CA 245.760000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010027 愛普生晶振 XG-2102CA 250.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010029 愛普生晶振 XG-2102CA 156.257812 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010030 愛普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0003010031 愛普生晶振 XG-2102CA 148.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010032 愛普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010033 愛普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010035 愛普生晶振 XG-2102CA 199.860000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010036 愛普生晶振 XG-2102CA 200.140000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010037 愛普生晶振 XG-2102CA 216.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0003010039 愛普生晶振 XG-2102CA 263.157900 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010040 愛普生晶振 XG-2102CA 622.080000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010041 愛普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010042 愛普生晶振 XG-2102CA 103.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010043 愛普生晶振 XG-2102CA 105.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010044 愛普生晶振 XG-2102CA 161.132800 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010045 愛普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010046 愛普生晶振 XG-2102CA 644.531250 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010047 愛普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0003010048 愛普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0003010049 愛普生晶振 XG-2102CA 156.255000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010050 愛普生晶振 XG-2102CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010051 愛普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010052 愛普生晶振 XG-2102CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010053 愛普生晶振 XG-2102CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003210000 愛普生晶振 XG-2103CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003210001 愛普生晶振 XG-2103CA 132.812500 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1G0058810001 愛普生晶振 SG2520EGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0058810002 愛普生晶振 SG2520EGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0058810003 愛普生晶振 SG2520EGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0058810005 愛普生晶振 SG2520EGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LV-PECL 3.135 to 3.465 V -40 to 105 °C
