首頁 Renesas瑞薩晶振

Renesas差分晶體振蕩器,XPP536625.000000I,光模塊應用晶振

Renesas差分晶體振蕩器,XPP536625.000000I,光模塊應用晶振

產品簡介

Renesas差分晶體振蕩器,XPP536625.000000I,光模塊應用晶振，Renesas瑞薩電子晶振，XP系列晶振，編碼為：XPP536625.000000I，頻率為：625.000MHz，小體積晶振尺寸：5.0x3.2x1.3mm封裝，8墊腳貼片晶振，LV-PECL差分晶體振蕩器，差分晶振，石英晶振，SMD晶振，有源晶振，石英晶體振蕩器，電壓3.3V。具有超小型，輕薄型，低抖動，低功耗，低電源電壓，低相位噪聲，高精度，高性能，高品質等特點。應用于：移動通訊設備，物聯網，無線網絡，藍牙模塊，路由器，交換機，以太網，光纖通道，汽車電子，醫療設備，安防設備，智能家居等應用。

產品詳情

Renesas差分晶體振蕩器,XPP536625.000000I,光模塊應用晶振，Renesas瑞薩電子晶振，XP系列晶振，編碼為：XPP536625.000000I，頻率為：625.000MHz，小體積晶振尺寸：5.0x3.2x1.3mm封裝，8墊腳貼片晶振，LV-PECL差分晶體振蕩器，差分晶振，石英晶振，SMD晶振，有源晶振，石英晶體振蕩器，電壓3.3V。具有超小型，輕薄型，低抖動，低功耗，低電源電壓，低相位噪聲，高精度，高性能，高品質等特點。應用于：移動通訊設備，物聯網，無線網絡，藍牙模塊，路由器，交換機，以太網，光纖通道，汽車電子，醫療設備，安防設備，智能家居等應用。

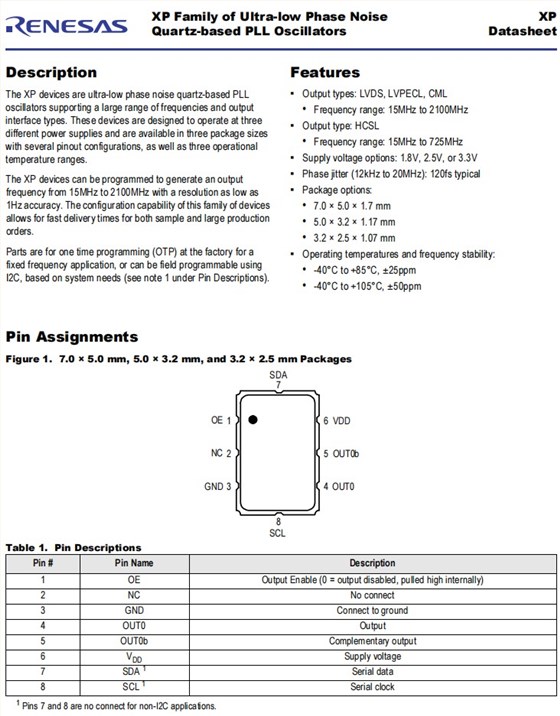

進口晶振XP系列是超低相位噪聲的基于石英的PLL振蕩器，支持大范圍的頻率和輸出接口類型。這些設備被設計為操作在三種不同的電源供應，并可在三種包裝尺寸與幾種針形配置，以及三種操作溫度范圍。XP設備可以通過編程產生從15MHz到2100MHz的輸出頻率，分辨率低至1Hz的精度。該系列設備的配置能力允許樣品和大型生產訂單的快速交付時間。

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

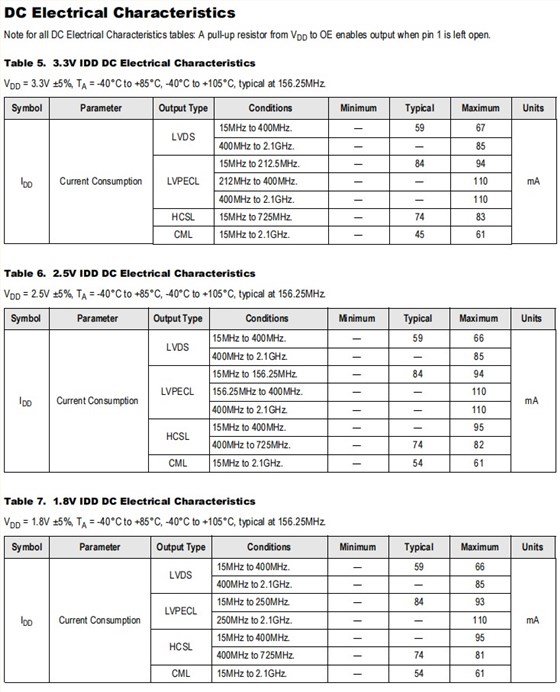

Renesas差分晶體振蕩器,XPP536625.000000I,光模塊應用晶振,參數表

Parameter TestCondition Minimum Typical Maximum Units
OutputFrequencyRange LVDS,LVPECL,CML.
— 625.000 MHz
HCSL. 15 — 725
Frequency Stability Temperature=-40°Cto+85°C. — — ±25 ppm
Temperature=-40°Cto+105°C. — — ±50 ppm
Frequency Tolerance (25°C) Temperature=25°C. -15 ±10 -15 ppm
Aging(1styear) TA=25°C. — — ±3 ppm
Aging(10years) TA=25°C. — — ±10 ppm
Output Load LVDS. Differential. — 100 — Ω
LVPECL. VDD-2.0V. — 50 —
HCSL. ToGND. — 50 —
Start-up Time Output valid time after VDD meets minimum specified level. — 5 — ms
OutputRiseTime LVDS. 20% – 80%,
156.25MHz 		— 299 400 ps
LVPECL. — 287 400
HCSL. — 306 400
CML — 301 400
OutputFallTime LVDS. 20% – 80%,
156.25MHz 		— 279 400 ps
LVPECL. — 274 400
HCSL. — 284 400
CML — 279 400
OutputClockDutyCycle LVDS. 156.25MHz 48 — 52 %
LVPECL. 156.25MHz 48 — 52
HCSL. 156.25MHz 48 — 52
CML 156.25MHz 48 — 52
OutputEnable/DisableTime — — — 1 — ms

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

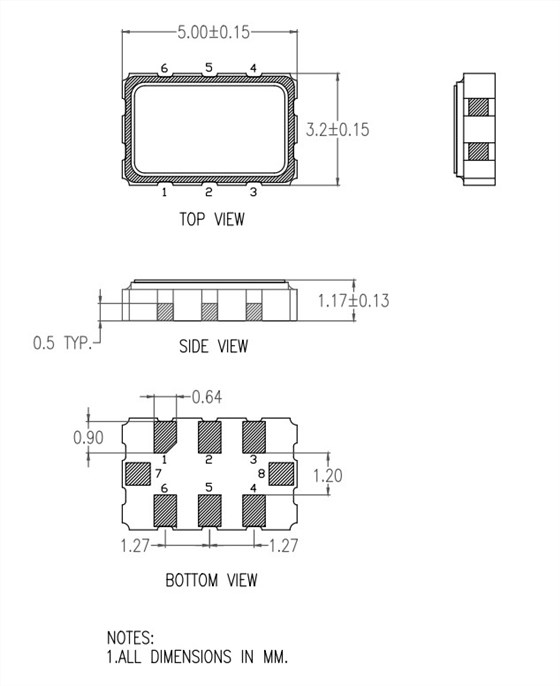

Renesas差分晶體振蕩器,XPP536625.000000I,光模塊應用晶振,尺寸圖

XP尺寸5032

Renesas差分晶體振蕩器,XPP536625.000000I,光模塊應用晶振

產品特點：

輸出類型：LVDS、LVPECL、CML
頻率范圍：15MHz至2100MHz
輸出類型：HCSL差分晶體
頻率范圍：15MHz至725MHz
電源電壓選項：1.8V、2.5V或3.3V
相位抖動（12kHz至20MHz）：典型值為120fs
程序包選項：

7.0×5.0×1.7mm

5.0×3.2×1.17mm

3.2×2.5×1.07mm
工作溫度和頻率穩定性：
-40°C至+85°C，±25ppm
-40°C至+105°C，±50ppm


XP-1

XP-2


編碼 晶振廠家 描述 系列 頻率 輸出 電壓
XPP736625.000000I Renesas晶振 0625.000000MHZ 3.3VDC LVPECL 705 XPP 625 MHz LVPECL 3.3V
XPP736156.250000I Renesas晶振 0156.250000MHZ 3.3VDC LVPECL 705 XPP 156.25 MHz LVPECL 3.3V
XPP736312.500000I Renesas晶振 0312.500000MHZ 3.3VDC LVPECL 705 XPP 312.5 MHz LVPECL 3.3V
XPP336100.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 100 MHz LVPECL 3.3V
XPP736161.132812I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 161.132812 MHz LVPECL 3.3V
XPP736125.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 125 MHz LVPECL 3.3V
XPP316156.250000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 156.25 MHz LVPECL 1.8V
XPP736212.500000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 212.5 MHz LVPECL 3.3V
XPP736156.253906I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 156.253906 MHz LVPECL 3.3V
XPP736175.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 175 MHz LVPECL 3.3V
XPP736100.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 100 MHz LVPECL 3.3V
XPP736106.250000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 106.25 MHz LVPECL 3.3V
XPP735156.250005I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 156.250005 MHz LVPECL 3.3V
XPP736122.880000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 122.88 MHz LVPECL 3.3V
XPP736124.992000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 124.992 MHz LVPECL 3.3V
XPP736200.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 200 MHz LVPECL 3.3V
XPP526156.250000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XPP 156.25 MHz LVPECL 2.5V
XPP726212.500000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 212.5 MHz LVPECL 2.5V
XPP736250.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 250 MHz LVPECL 3.3V
XPP726312.510900I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 312.5109 MHz LVPECL 2.5V
XPP736915.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 915 MHz LVPECL 3.3V
XPP336830.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 830 MHz LVPECL 3.3V
XPP336156.253906I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 156.253906 MHz LVPECL 3.3V
XPP336250.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 250 MHz LVPECL 3.3V
XPP736161.132580I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 161.13258 MHz LVPECL 3.3V
XPP726445.500000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 445.5 MHz LVPECL 2.5V
XPP726160.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 160 MHz LVPECL 2.5V
XPP336312.500000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 312.5 MHz LVPECL 3.3V
XPP516625.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XPP 625 MHz LVPECL 1.8V
XPP336050.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 50 MHz LVPECL 3.3V
XPP336207.500000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 207.5 MHz LVPECL 3.3V
XPP726312.500000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 312.5 MHz LVPECL 2.5V
XPP336040.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 40 MHz LVPECL 3.3V
XPP336A00.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 1 GHz LVPECL 3.3V
XPP736159.375000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 159.375 MHz LVPECL 3.3V
XPP536161.132812I Renesas晶振 XTAL OS XO 161.132812MHZ LVPECL XPP 161.132812 MHz LVPECL 3.3V
XPP726156.257813I Renesas晶振 XTAL OS XO 156.257813MHZ LVPECL XPP 156.257813 MHz LVPECL 2.5V
XPP726100.000000I Renesas晶振 XTAL OSC XO 100.0000MHZ LVPECL XPP 100 MHz LVPECL 2.5V
XPP526155.520000I Renesas晶振 XTAL OSC XO 155.5200MHZ LVPECL XPP 155.52 MHz LVPECL 2.5V
XPP516100.000000I Renesas晶振 XTAL OSC XO 100.0000MHZ LVPECL XPP 100 MHz LVPECL 1.8V
XPP536156.250000I Renesas晶振 XTAL OSC XO 156.2500MHZ LVPECL XPP 156.25 MHz LVPECL 3.3V
XPP726127.500000I Renesas晶振 XTAL OSC XO 127.5000MHZ LVPECL XPP 127.5 MHz LVPECL 2.5V
XPP526150.000000I 石英晶振 XTAL OSC XO 150.0000MHZ LVPECL XPP 150 MHz LVPECL 2.5V
XPP736A00.000000I Renesas晶振 XTAL OSC XO 1.0000GHZ LVPECL SMD XPP 1 GHz LVPECL 3.3V
XPP535156.25000I Renesas晶振 XTAL OSC XO 156.2500MHZ LVPECL XPP 156.25 MHz LVPECL 3.3V
XPP726445.500001I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 445.500001 MHz LVPECL 2.5V
XPP735245.760000K Renesas晶振 XTAL OSC XO 245.7600MHZ LVPECL XPP 245.76 MHz LVPECL 3.3V
XPP535312.500000K Renesas晶振 XTAL OSC XO 312.5000MHZ LVPECL XPP 312.5 MHz LVPECL 3.3V
XPP735100.000000K Renesas晶振 XTAL OSC XO 100.0000MHZ LVPECL XPP 100 MHz LVPECL 3.3V
XPP735156.250000K Renesas晶振 XTAL OSC XO 156.2500MHZ LVPECL XPP 156.25 MHz LVPECL 3.3V
XPP73Q122.880000I Renesas晶振 XPP73Q122.88000 PROGRAMMABLE XO XPP - - -
XPP736045.158400I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 45.1584 MHz LVPECL 3.3V
XPP736050.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 50 MHz LVPECL 3.3V
XPP736155.520000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 155.52 MHz LVPECL 3.3V
XPP736133.333000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 133.333 MHz LVPECL 3.3V
XPP735050.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 50 MHz LVPECL 3.3V
XPP736049.152000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 49.152 MHz LVPECL 3.3V
XPP736150.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 150 MHz LVPECL 3.3V
XPP735156.250000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 156.25 MHz LVPECL 3.3V
XPP336156.250000I Renesas晶振 XTAL OSC XO 156.2500MHZ LVPECL XPP 156.25 MHz LVPECL 3.3V
XPP336156.250000K Renesas晶振 XTAL OSC XO 156.2500MHZ LVPECL XPP 156.25 MHz LVPECL 3.3V
XPP336037.125000I Renesas晶振 XTAL OSC XO 37.1250MHZ LVPECL XPP 37.125 MHz LVPECL 3.3V
XPP326125.000000I Renesas晶振 XTAL OSC XO 125.0000MHZ LVPECL XPP 125 MHz LVPECL 2.5V
XPP536500.000000I Renesas晶振 XTAL OSC XO 500.0000MHZ LVPECL XPP 500 MHz LVPECL 3.3V
XPP536312.500000I Renesas晶振 XTAL OSC XO 312.5000MHZ LVPECL XPP 312.5 MHz LVPECL 3.3V
XPP726156.250000I Renesas晶振 XTAL OSC XO 156.2500MHZ LVPECL XPP 156.25 MHz LVPECL 2.5V
XPP536625.000000I Renesas晶振 XTAL OSC XO 625.0000MHZ LVPECL XPP 625 MHz LVPECL 3.3V
XPP736705.024000I Renesas晶振 XTAL OSC XO 705.0240MHZ LVPECL XPP 705.024 MHz LVPECL 3.3V
XPP726500.000000I Renesas晶振 XTAL OSC XO 500.0000MHZ LVPECL XPP 500 MHz LVPECL 2.5V
XPP726120.000000I Renesas晶振 XTAL OSC XO 120.0000MHZ LVPECL XPP 120 MHz LVPECL 2.5V
XPP33CA00.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 1 GHz LVPECL 3.3V
XPP52C156.250000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 1.27MM P XPP 156.25 MHz LVPECL 2.5V
XPP33IA00.000000I Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 1 GHz LVPECL 3.3V
XPP736248.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 248 MHz LVPECL 3.3V
XPP535156.250000K Renesas晶振 XTAL OSC XO 156.2500MHZ LVPECL XPP 156.25 MHz LVPECL 3.3V
XPP73Q156.250000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 156.25 MHz LVPECL 3.3V
XPP73Q100.000000I Renesas晶振 CLCC 7.00X5.00X1.70 MM, 2.54MM P XPP 100 MHz LVPECL 3.3V
XPP335026.000000K Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 26 MHz LVPECL 3.3V
XPP325156.250000K Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 156.25 MHz LVPECL 2.5V
XPP335156.250000K Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 156.25 MHz LVPECL 3.3V
XPP335054.000000K Renesas晶振 CLCC 3.20X2.50X0.95 MM, 2.10MM P XPP 54 MHz LVPECL 3.3V


耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振
