首頁 NDK晶振

NDK低電壓振蕩器,NP5032SB-125MHZ-NSC5401A,6G網絡差分晶振

NDK低電壓振蕩器,NP5032SB-125MHZ-NSC5401A,6G網絡差分晶振NDK低電壓振蕩器,NP5032SB-125MHZ-NSC5401A,6G網絡差分晶振

產品簡介

NDK低電壓振蕩器,NP5032SB-125MHZ-NSC5401A,6G網絡差分晶振，尺寸5.0x3.2mm,頻率為125MHZ，輸出邏輯LVDS，LVDS輸出晶振，差分晶體振蕩器，OSC差分晶振，LVDS貼片振蕩器，NDK差分晶振，差分石英晶體振蕩器，OSC差分石英晶振，低電壓差分振蕩器，低功耗差分晶振，低抖動差分振蕩器，藍牙模塊差分晶振，通信設備差分晶振，智能家居差分晶振，測試專用差分晶振，高精度差分晶振，高品質差分晶振無線設備差分晶振，具備低抖動低電壓低相位的特點。

LVDS晶振產品非常適合用于藍牙模塊，通信設備，智能家居，無線設備以及SONET，SDH與千兆以太網相關的設備等領域.NDK低電壓振蕩器,NP5032SB-125MHZ-NSC5401A,6G網絡差分晶振.

產品詳情

NDK低電壓振蕩器,NP5032SB-125MHZ-NSC5401A,6G網絡差分晶振，尺寸5.0x3.2mm,頻率為125MHZ，輸出邏輯LVDS，LVDS輸出晶振，差分晶體振蕩器，OSC差分晶振，LVDS貼片振蕩器，NDK差分晶振，差分石英晶體振蕩器，OSC差分石英晶振，低電壓差分振蕩器，低功耗差分晶振，低抖動差分振蕩器，藍牙模塊差分晶振，通信設備差分晶振，智能家居差分晶振，測試專用差分晶振，高精度差分晶振，高品質差分晶振無線設備差分晶振，具備低抖動低電壓低相位的特點。

LVDS晶振產品非常適合用于藍牙模塊，通信設備，智能家居，無線設備以及SONET，SDH與千兆以太網相關的設備等領域.NDK低電壓振蕩器,NP5032SB-125MHZ-NSC5401A,6G網絡差分晶振.耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

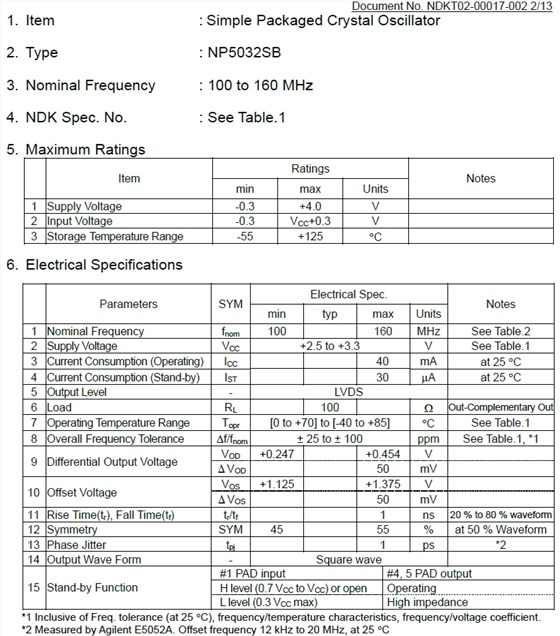

NDK低電壓振蕩器,NP5032SB-125MHZ-NSC5401A,6G網絡差分晶振參數表

Item Ratings Notes
min max Units
1 Supply Voltage -0.3 +4.0 V
2 Input Voltage -0.3 VCC+0.3 V
3 Storage Temperature Range -55 +125 。C
Parameters SYM Electrical Spec. Notes
min typ max Units
1 Nominal Frequency fnom
125
MHz See Table.2
2 Supply Voltage VCC +2.5 to +3.3 V See Table.1
3 Current Consumption (Operating) ICC 40 mA at 25。C
4 Current Consumption (Stand-by) IST 30 μA at 25。C
5 Output Level - LVDS
6 Load RL 100 Ω Out-Complementary Out
7 Operating Temperature Range Topr [0 to +70] to [-40 to +85] 。C See Table.1
8 Overall Frequency Tolerance Δf/fnom ± 25 to ± 100 ppm See Table. 1, *1
9 Differential Output Voltage VOD +0.247 +0.454 V
ΔVOD 50 mV
10 Offset Voltage VOS +1.125 +1.375 V
ΔVOS 50 mV
11 Rise Time(tr), Fall Time(tf) tr/tf 1 ns 20 % to 80 % waveform
12 Symmetry SYM 45 55 % at 50 % Waveform
13 Phase Jitter tpj 1 ps *2
14 Output Wave Form - Square wave
15 Stand-by Function #1 PAD input #4, 5 PAD output
H level (0.7 VCCto VCC) or open Operating
L level (0.3 VCCmax) High impedance
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

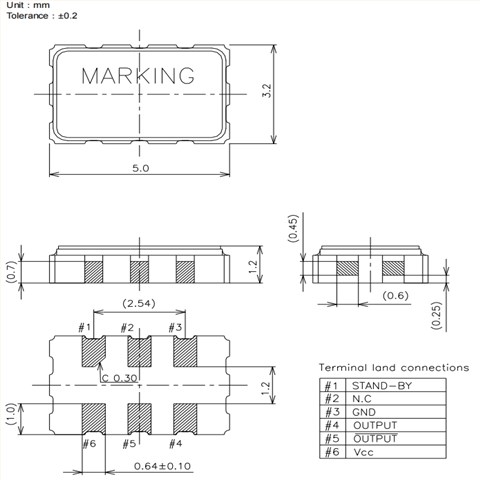

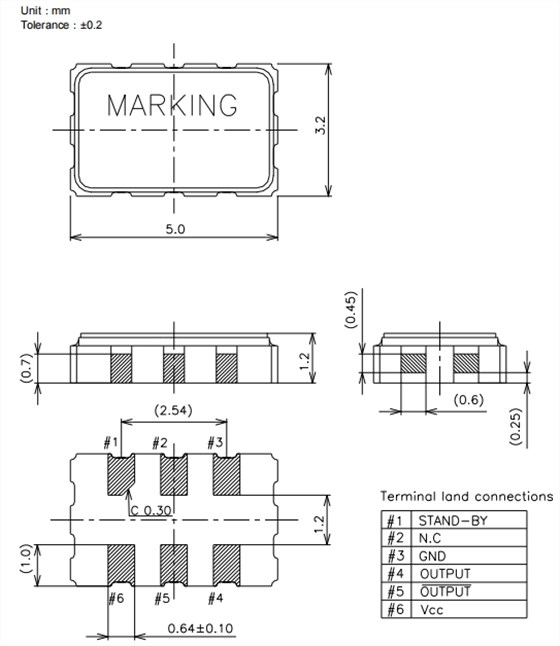

NDK低電壓振蕩器,NP5032SB-125MHZ-NSC5401A,6G網絡差分晶振尺寸圖NP5032SB

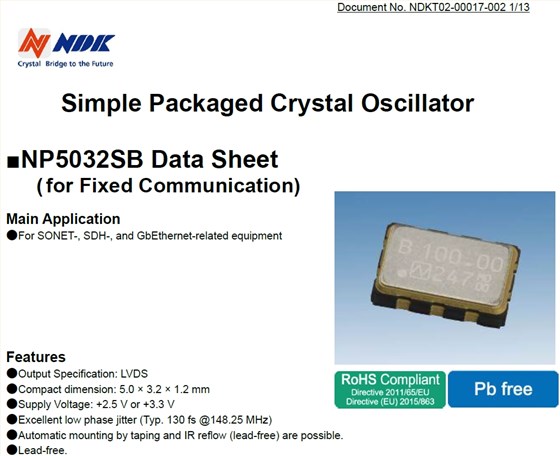

有源晶振產品特性：

LVDS差分輸出SPXO

小巧:5.0x 3.2 x 1.2毫米

電源電壓:+2.5V至+3.3V

低相位抖動:典型。148.5MHz時為130fs

通過纏繞自動安裝和IR回流(無鉛)是可能的。

無鉛

NP5032SB NP5032SB 2

更多相關日本電波NDK CRYSTAL型號

Model Nominal frequency[MHz] Specification number Manufacturer Package size(LxW)[mm] Output specification Operating temperature rang[℃] Storage temperature range[℃] Supply voltage[V]
NP3225SBD 156.25MHZ NSC5348B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SCD 100MHZ NSC5349B NDK晶振 3.2x2.5 HCSL -40~+85 -55~+125 +3.3±0.33
NP3225SCD 156.25MHZ NSC5349B NDK晶振 3.2x2.5 HCSL -40~+85 -55~+125 +3.3±0.33
NP5032SA 100MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 125MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 148.5MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 156.25MHZ NSC5400A NDK晶振 5.0x3.2 LVPECL 0~70 -55~+125 +3.3±0.33
NP5032SA 100MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 125MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 148.5MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 156.25MHZ NSC5400B NDK晶振 5.0x3.2 LVPECL 0~85 -55~+125 +3.3±0.33
NP5032SA 100MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 102.564MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 125MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 133.33MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 133.333MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 148.5MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SA 156.25MHZ NSC5400C NDK晶振 5.0x3.2 LVPECL -40~+85 -55~+125 +3.3±0.33
NP5032SB 100MHZ NSC5401A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +2.5±0.125
NP5032SB 102.564MHZ NSC5401A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +2.5±0.125
NP5032SB 125MHZ NSC5401A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +2.5±0.125
NP5032SB 148.5MHZ NSC5401A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +2.5±0.125
NP5032SB 156.25MHZ NSC5401A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +2.5±0.125
NP5032SB 100MHZ NSC5402A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +3.3±0.33
NP5032SB 102.564MHZ NSC5402A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +3.3±0.33
NP5032SB 125MHZ NSC5402A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +3.3±0.33
NP5032SB 148.5MHZ NSC5402A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +3.3±0.33
NP5032SB 156.25MHZ NSC5402A NDK晶振 5.0x3.2 LVDS 0~70 -55~+125 +3.3±0.33
NP5032SB 100MHZ NSC5401B NDK晶振 5.0x3.2 LVDS 0~85 -55~+125 +2.5±0.125
NP5032SB 102.564MHZ NSC5401B NDK晶振 5.0x3.2 LVDS 0~85 -55~+125 +2.5±0.125
NP5032SB 125MHZ NSC5401B NDK晶振 5.0x3.2 LVDS 0~85 -55~+125 +2.5±0.125
NP5032SB 148.5MHZ NSC5401B NDK晶振 5.0x3.2 LVDS 0~85 -55~+125 +2.5±0.125
NP5032SB 156.25MHZ NSC5401B NDK晶振 5.0x3.2 LVDS 0~85 -55~+125 +2.5±0.125
NP5032SB 100MHZ NSC5402B NDK晶振 5.0x3.2 LVDS 0~85 -55~+125 +3.3±0.33
NP5032SB 102.564MHZ NSC5402B NDK晶振 5.0x3.2 LVDS 0~85 -55~+125 +3.3±0.33
NP5032SB 125MHZ NSC5402B NDK晶振 5.0x3.2 LVDS 0~85 -55~+125 +3.3±0.33
NP5032SB 148.5MHZ NSC5402B NDK晶振 5.0x3.2 LVDS 0~85 -55~+125 +3.3±0.33
NP5032SB 156.25MHZ NSC5402B NDK晶振 5.0x3.2 LVDS 0~85 -55~+125 +3.3±0.33
NP5032SB 100MHZ NSC5401C NDK晶振 5.0x3.2 LVDS -40~85 -55~+125 +2.5±0.125
NP5032SB 102.564MHZ NSC5401C NDK晶振 5.0x3.2 LVDS -40~85 -55~+125 +2.5±0.125
NP5032SB 125MHZ NSC5401C NDK晶振 5.0x3.2 LVDS -40~85 -55~+125 +2.5±0.125
NP5032SB 148.5MHZ NSC5401C NDK晶振 5.0x3.2 LVDS -40~85 -55~+125 +2.5±0.125
NP5032SB 156.25MHZ NSC5401C NDK晶振 5.0x3.2 LVDS -40~85 -55~+125 +2.5±0.125
NP5032SB 100MHZ NSC5402C NDK晶振 5.0x3.2 LVDS -40~85 -55~+125 +3.3±0.33
NP5032SB 102.564MHZ NSC5402C NDK晶振 5.0x3.2 LVDS -40~85 -55~+125 +3.3±0.33
NP5032SB 125MHZ NSC5402C NDK晶振 5.0x3.2 LVDS -40~85 -55~+125 +3.3±0.33
