歐洲石英晶振,SMX-7S無源諧振器,24.576MHZ晶體,6GWIFI晶振，尺寸2.0*1.6mm,頻率24.576MHZ，無源晶體，歐美進口晶振，小體積晶振，貼片石英晶體，石英貼片晶振，SMD諧振器，石英晶體諧振器，無源貼片晶振，石英無源晶振，四腳貼片晶振，藍牙音響晶振，移動通信晶振，6G無線設備晶振，6GWIF專用晶振，網絡設備晶振，低損耗無源晶振，高精度石英晶振，高品質貼片晶振，高性能貼片晶振，產品具有低損耗高精度高品質的特點.
石英晶振產品比較適合用于可視化智能家居，移動通信，藍牙音響，無線設備，網絡產品，小型設備，儀器儀表，汽車，電信，醫療等領域。歐洲石英晶振,SMX-7S無源諧振器,24.576MHZ晶體,6GWIFI晶振.

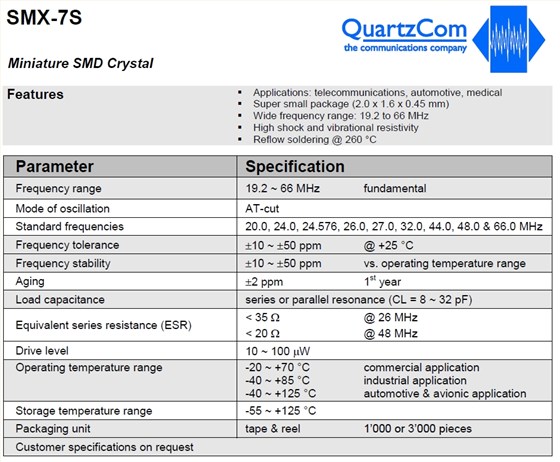

歐洲石英晶振,SMX-7S無源諧振器,24.576MHZ晶體,6GWIFI晶振參數表
Parameter
Specification
Frequency range
24.576MHZfundamental
Mode of oscillation
AT-cut
Standard frequencies
20.0, 24.0, 24.576, 26.0, 27.0, 32.0, 44.0, 48.0 & 66.0 MHz
Frequency tolerance
土10 ~土50 ppm@ +25 °C
Frequency stability
土10 ~土50 ppmvs. operating temperature range
Aging
土2 ppm
1st
year
Load capacitance
series or parallel resonance (CL = 8 ~ 32 pF)
Equivalent series resistance (ESR)
< 35Ω
< 20Ω
@ 26 MHz
@ 48 MHz
Drive level
10 ~ 100μW
Operating temperature range
-20 ~ +70 °C
-40 ~ +85 °C
-40 ~ +125 °C
commercial application
industrial application
automotive & avionic application
Storage temperature range
-55 ~ +125 °C
Packaging unit
tape & reel1’000 or 3’000 pieces
Customer specifications on request

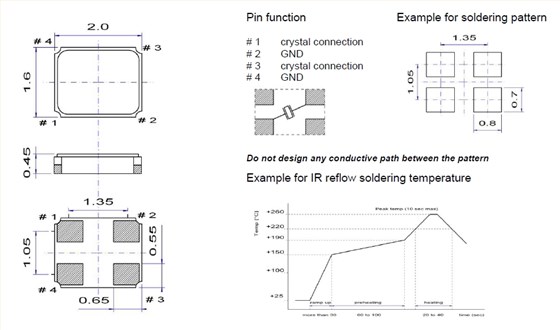

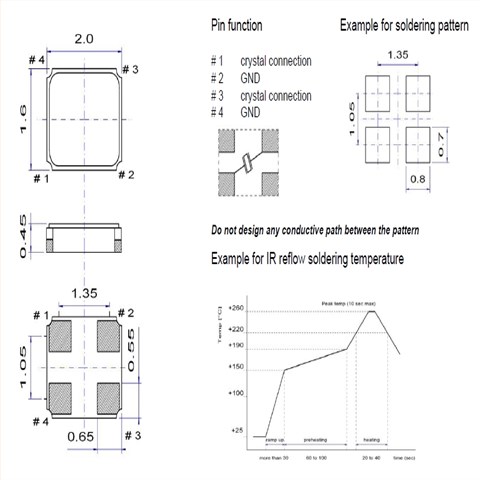

歐洲石英晶振,SMX-7S無源諧振器,24.576MHZ晶體,6GWIFI晶振尺寸圖
歐洲石英晶振產品特性：
超小型包裝（2.0 x 1.6 x 0.45毫米）
寬頻率范圍：19.2至66MHz
高沖擊和振動電阻率
回流焊@260°C
更多相關歐洲石英EUROQUARTZ晶振型號，請聯系我們！
