EPSON低電壓晶振,X1G004241000720,SG3225VAN儀器儀表晶振，日本進口晶振，EPSON愛普生晶振，型號：SG3225VAN，編碼為：X1G004241000720，頻率為：106.250000 MHz，小體積晶振尺寸：3.2x2.5x1.2mm封裝，六腳貼片晶振，SPXO石英晶體振蕩器，LVDS輸出差分晶振，石英貼片晶振，有源晶振，SMD晶振，無鉛環保晶振，工作溫度范圍：-40℃至+85℃，能夠很容易地識別小信號。具有超小型，輕薄型，低抖動，低功耗，低耗能，低電壓，低損耗，低相位噪聲，高精度，高性能，高品質等特點。差分晶體，被廣泛應用于：通訊設備、無線網絡，藍牙模塊，物聯網，機頂盒、光端機、醫療設備，安防設備、路由器/交換機、儀器儀表，光纖通信，導航儀，以太網等應用。

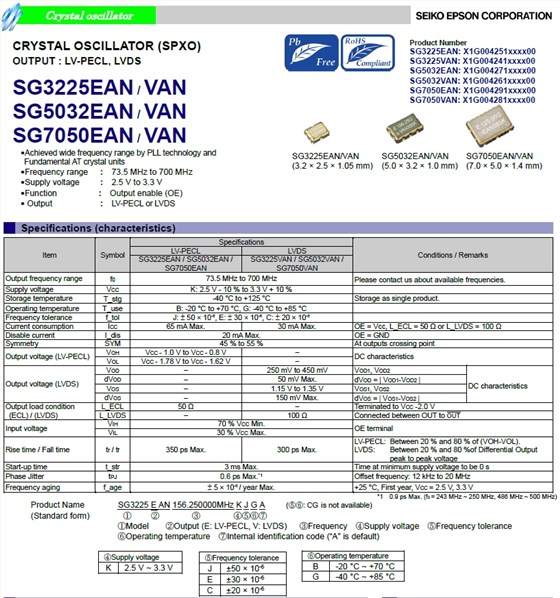

EPSON低電壓晶振,X1G004241000720,SG3225VAN儀器儀表晶振參數表

Item	Symbol	Specifications		Condition/Remarks
		LV-PECL	LVDS
		SG3225EAN	SG3225VAN
		SG5032EAN	SG5032VAN
		SG7050EAN	SG7050VAN
Output frequency range	f0	106.250MHz		Please contact us about available frequencies.
Supply voltage	VCC	K : 2.5 V to 3.3 V		VCC= ±10 %
Storage temperature	T_stg	-40 °C to +125 °C		Store as bare product.
Operating temperature	T_use	B : -20 °C to +70 °C
		G : -40 °C to +85 °C
Frequency tolerance	f_tol	C : ±20 × 10-6
		E : ±30 × 10-6
		J : ±50 × 10-6
Current consumption	ICC	65m A Max.	30 mA Max.	OE = VCC
				L_ECL = 50 Ω or L_LVDS = 100 Ω
				f0= 700 MHz
Disable current	I_dis	20 mA Max.		OE = GND
Symmetry	SYM	45 % to 55 %		At outputs crossing point
Output voltage	VOH	VCC- 1.0 V to VCC- 0.8 V	-	DC characteristics
(LV-PECL)	VOL	VCC- 1.78 V to VCC- 1.62 V	-
Output voltage	VOD	-	250 mV to 450 mV	VOD1, VOD2	DC characteristics
(LVDS)	dVOD	-	50 mV Max.	dVOD= \| VOD1- VOD2\|
	VOS	-	1.15 V to 1.35 V	VOS1, VOS2
	dVOS	-	150 mV Max.	dVOS= \| VOS1- VOS2\|
Output load condition	L_ECL	50 Ω	-	Terminated to VCC- 2.0 V
(ECL)/(LVDS)	L_LVDS	-	100 Ω	Connected between OUT toOUT
Input voltage	VIH	70 % VCCMin.		OE terminal
	VIL	30 % VCCMax.
Rise time / Fall time	tr/tf	350 ps Max.	-	Between 20 % and 80 % of ( VOH- VOL)
		-	300 ps Max.	Between 20 % and 80 %of Differential Output peak to peak voltage.
Start-up time	t_str	3 ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter	tPJ	0.6 ps Max. *1		Offset frequency: 12 kHz to 20 MHz
Frequency aging	f_aging	±5 × 10-6/ year Max.		+25 °C , VCC= 2.5 V or 3.3 V
				First year.

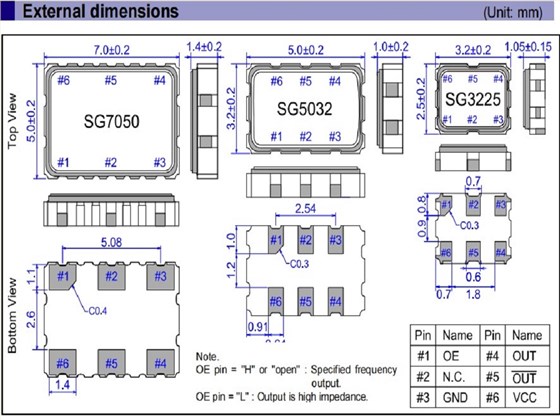

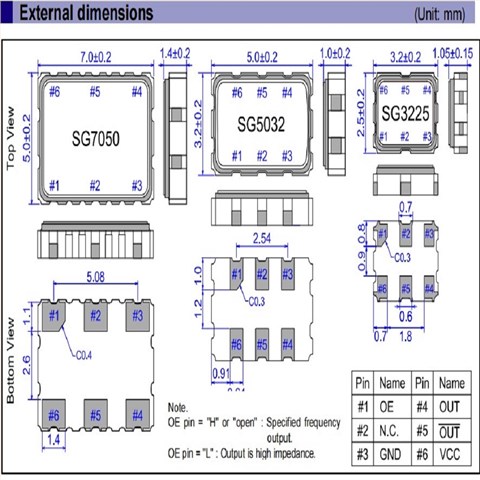

EPSON低電壓晶振,X1G004241000720,SG3225VAN儀器儀表晶振尺寸圖

EPSON低電壓晶振,X1G004241000720,SG3225VAN儀器儀表晶振

產品特點：

通過PLL技術和基本AT晶體單元實現寬頻率范圍

頻率范圍： 73.5MHz至700MHz

電源電壓： 2.5V到3.3V貼片晶振

功能：輸出啟用（OE）

輸出： LV-PECL或LVDS

編碼	晶振廠家	型號	頻率	尺寸	輸出方式
X1G004241000100	EPSON晶振	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241000200	EPSON晶振	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241000400	EPSON晶振	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241000500	EPSON晶振	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241000600	EPSON晶振	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241000700	EPSON晶振	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241000800	EPSON晶振	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241000900	EPSON晶振	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241001000	EPSON晶振	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241001100	EPSON晶振	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241001200	EPSON晶振	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241001400	EPSON晶振	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241001500	EPSON晶振	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241001600	EPSON晶振	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241001700	EPSON晶振	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241002000	EPSON晶振	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241002100	EPSON晶振	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241002300	EPSON晶振	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241002400	EPSON晶振	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241002500	EPSON晶振	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241002600	EPSON晶振	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241002700	EPSON晶振	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241002800	EPSON晶振	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241002900	EPSON晶振	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241003000	EPSON晶振	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241003100	EPSON晶振	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241003300	EPSON晶振	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241003400	EPSON晶振	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241003500	EPSON晶振	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241003600	EPSON晶振	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241003900	EPSON晶振	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241004000	EPSON晶振	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241004200	EPSON晶振	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241004300	EPSON晶振	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241004400	EPSON晶振	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241004500	EPSON晶振	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241004600	EPSON晶振	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241004700	EPSON晶振	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241004800	EPSON晶振	SG3225VAN	148.500000 MHz	3225晶振	LVDS
X1G004241004900	EPSON晶振	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241005000	EPSON晶振	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241005200	EPSON晶振	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241005300	EPSON晶振	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241005400	EPSON晶振	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241005500	EPSON晶振	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241005800	EPSON晶振	SG3225VAN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241005900	EPSON晶振	SG3225VAN	125.006250 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241006100	EPSON晶振	SG3225VAN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241006200	EPSON晶振	SG3225VAN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241006300	EPSON晶振	SG3225VAN	400.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241006400	EPSON晶振	SG3225VAN	106.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241006500	EPSON晶振	SG3225VAN	212.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241006600	EPSON晶振	SG3225VAN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241006700	EPSON晶振	SG3225VAN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241006800	EPSON晶振	SG3225VAN	75.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241006900	EPSON晶振	SG3225VAN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241007100	EPSON晶振	SG3225VAN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241007200	EPSON晶振	SG3225VAN	312.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241007300	EPSON晶振	SG3225VAN	312.515625 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241007400	EPSON晶振	SG3225VAN	161.132800 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241007900	EPSON晶振	SG3225VAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241008000	EPSON晶振	SG3225VAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241008300	EPSON晶振	SG3225VAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241008400	EPSON晶振	SG3225VAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241008700	EPSON晶振	SG3225VAN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241008800	EPSON晶振	SG3225VAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241009200	EPSON晶振	SG3225VAN	68.750000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241010000	EPSON晶振	SG3225VAN	133.333333 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241010100	EPSON晶振	SG3225VAN	148.350000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241010200	EPSON晶振	SG3225VAN	114.285000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241010300	EPSON晶振	SG3225VAN	250.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241010400	EPSON晶振	SG3225VAN	350.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241010500	EPSON晶振	SG3225VAN	80.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241010600	EPSON晶振	SG3225VAN	98.304000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
X1G004241010800	EPSON晶振	SG3225VAN	297.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS
