首頁 愛普生晶振

EPSON差分振蕩器SG2520VHN,6G路由器晶振,X1G0059410009

EPSON差分振蕩器SG2520VHN,6G路由器晶振,X1G0059410009EPSON差分振蕩器SG2520VHN,6G路由器晶振,X1G0059410009

產品簡介

EPSON差分振蕩器SG2520VHN,6G路由器晶振,X1G0059410009,尺寸2.50x2.00x0.84mm,頻率156.25MHz,輸出邏輯LVDS,差分晶體振蕩器,OSC差分晶振,LVDS輸出晶振,低電壓差分晶振,低損耗差分晶振,LVDS晶振,低抖動差分晶振,高性能差分晶振,低相噪差分晶振,路由器差分晶振,交換機差分晶振,測試測量差分晶振,產品主要應用范圍廣泛,包含網絡設備(路由器、交換機、光模塊等),數據中心,測試和測量設備,工廠自動化,高速轉換器,如ADC和DAC等領域。
6G將使網絡通信流量呈指數級增長。6G通信網絡要求高速寬頻帶,同時把噪音降到最低。這可以通過高頻率,用于通信設備的低抖動參考時鐘。光通信模塊為400gbps /800gbps傳輸超過80公里需要一個小的外形因素,±20 × 10-6的穩定性參考時鐘。SG2016VHN/SG2520VHN差分晶體振蕩器是非常受歡迎的SG3225VEN系列的下一代產品具有廣泛的可用頻率范圍,低抖動和改進的頻率容限的功能組合由于采用了內部設計的具有溫度補償?shù)募呻娐?,其封裝尺寸縮小了63%。EPSON差分振蕩器SG2520VHN,6G路由器晶振,X1G0059410009.

產品詳情

EPSON差分振蕩器SG2520VHN,6G路由器晶振,X1G0059410009,尺寸2.50x2.00x0.84mm,頻率156.25MHz,輸出邏輯LVDS,差分晶體振蕩器,OSC差分晶振,LVDS輸出晶振,低電壓差分晶振,低損耗差分晶振,LVDS晶振,低抖動差分晶振,高性能差分晶振,低相噪差分晶振,路由器差分晶振,交換機差分晶振,測試測量差分晶振,產品主要應用范圍廣泛,包含網絡設備(路由器、交換機、光模塊等),數據中心,測試和測量設備,工廠自動化,高速轉換器,如ADC和DAC等領域。
6G將使網絡通信流量呈指數級增長。6G通信網絡要求高速寬頻帶,同時把噪音降到最低。這可以通過高頻率,用于通信設備的低抖動參考時鐘。光通信模塊為400gbps /800gbps傳輸超過80公里需要一個小的外形因素,±20 × 10-6的穩定性參考時鐘。SG2016VHN/SG2520VHN差分晶體振蕩器是非常受歡迎的SG3225VEN系列的下一代產品具有廣泛的可用頻率范圍,低抖動和改進的頻率容限的功能組合由于采用了內部設計的具有溫度補償?shù)募呻娐罚浞庋b尺寸縮小了63%。EPSON差分振蕩器SG2520VHN,6G路由器晶振,X1G0059410009.耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

EPSON差分振蕩器SG2520VHN,6G路由器晶振,X1G0059410009參數表

Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Maximum supply voltage VCC -0.3 - 4.0 V
Input voltage Vin -0.3 - VCC+ 0.5 V 一一
OE/ST terminal
Storage temperature range T_stg -55 - +125 °C
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Supply voltage VCC 1.71 1.8 1.89 V Suffix: E, Output option: A or C
2.375 2.5 2.625 V Suffix: D
3.135 3.3 3.465 V Suffix: C
Supply voltage GND 0.0 0.0 0.0 V
Operating temperature range T_use -40 +25 +85 °C Suffix: G
-40 +25 +105 °C Suffix: H
LVDS load condition L_LVDS 100 Ω
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Output frequency *1 fo 25 - 500 MHz
Frequency tolerance *2 f_tol -20 - +20 ×10-6 Suffix: C
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Startup time t_str - - 10 ms t = 0 at 90 % VCC
Current consumption ICC - - 25 mA Output option: A, fo < 212 MHz
VCC= 2.5 V, 3.3 V Typ.
- - 28 mA Output option: A, fo≥212 MHz
VCC= 2.5 V, 3.3 V Typ.
- - 30 mA Output option: B, fo < 212 MHz
VCC= 2.5 V, 3.3 V Typ.
- - 35 mA Output option: B, fo≥212 MHz
VCC= 2.5 V, 3.3 V Typ.
- - 25 mA Output option: C, fo < 212 MHz
VCC= 2.5 V, 3.3 V Typ.
- - 28 mA Output option: C,
212 MHz≤fo < 392 MHz
VCC= 2.5 V, 3.3 V Typ.
- - 30 mA Output option: C, fo≥392 MHz
VCC= 2.5 V, 3.3 V Typ.
- - 25 mA Output option: A or C
VCC= 1.8 V Typ.
Disable current I_dis - - 20 mA OE = GND
Stand-by current I_std - - 30 μA = GND, T_use Max. = +85 °C
- - 60 μA = GND, T_use Max. = +105 °C
Rise time / Fall time tr / tf - - 0.35 ns 20 % - 80 % of VSW
Symmetry SYM 45 50 55 % At output crossing point
Output voltage VOD 250 - 450 mV Output option: A
400 - 800 mV Output option: B
Not available for VCC= 1.8 V Typ.
300 - 600 mV Output option: C
dVOD - - 50 mV |VOD1- VOD2|
VOS 1.15 - 1.35 V VCC= 2.5 V, 3.3 V Typ.
0.65 - 0.85 V VCC= 1.8 V Typ.
dVOS - - 50 mV |VOS1- VOS2|
Differential swing VSW 500 - 900 mV Output option: A
800 - 1 600 mV Output option: B
Not available for VCC= 1.8 V Typ.
600 - 1 200 mV Output option: C
Input voltage VIH 70 % VCC - - V OE/terminal
VIL - - 30 % VCC V
Output disable time (OE) tstp_oe - - 100 ns Measured from the time OE
pin crosses 30 % VCC
Output disable time (ST) tstp_st - - 100 ns Measured from the time
pin crosses 30 % VCC
Output enable time (OE) tsta_oe - - 500 ns Measured from the time OE
pin crosses 70 % VCC
Output enable time (ST) tsta_st - - 10 ms Measured from the time
pin crosses 70 % VCC
Phase jitter
VCC= 2.5 V, 3.3 V Typ.
Offset frequency
fo < 50 MHz; 12 kHz to 5 MHz
fo≥50 MHz: 12 kHz to 20 MHz
tPJ - - 250 fs fo < 100 MHz
- - 100 fs 100 MHz≤fo≤156 MHz
- - 60 fs 156 MHz < fo≤212 MHz
- - 50 fs fo > 212 MHz
Phase jitter
VCC= 1.8 V Typ.
Offset frequency
fo < 50 MHz: 12 kHz to 5 MHz
fo≥50 MHz: 12 kHz to 20 MHz
- - 400 fs fo < 100 MHz
- - 130 fs 100 MHz≤fo≤156 MHz
- - 70 fs 156 MHz < fo≤212 MHz
- - 60 fs fo > 212 MHz
耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

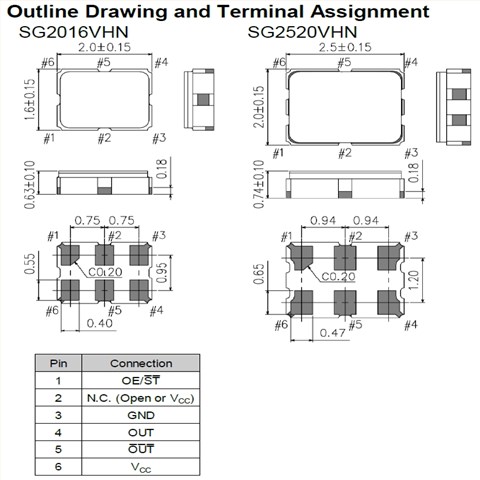

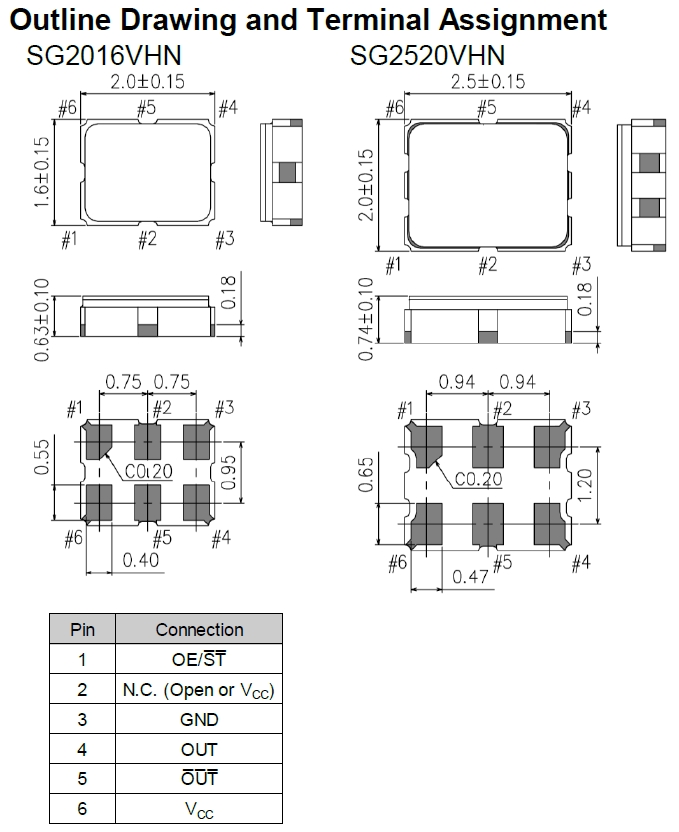

EPSON差分振蕩器SG2520VHN,6G路由器晶振,X1G0059410009尺寸圖SG2016VHN SG2520VHN 4

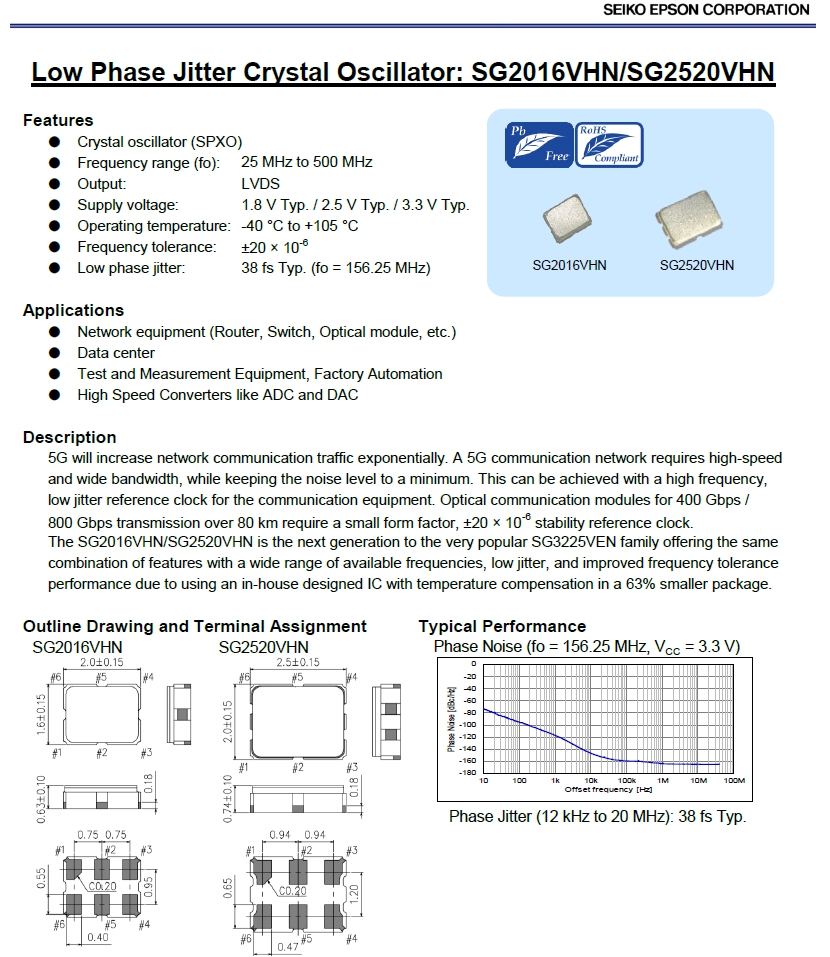

產品特性:

石英晶體振蕩器(SPXO)

頻率范圍: 25MHz至500MHz

輸出:LVDS

電源電壓:1.8 V型。/ 2.5 V/ 3.3 V類型

工作溫度:-40℃~ +105℃

頻率公差:±20 × 10-6

低相位抖動:38fs(fo = 156.25MHz)SG2016VHN SG2520VHN 1

更多相關日本EPSON CRYSTAL型號

編碼 品牌 型號 頻率 尺寸 輸出方式 電源電壓 工作溫度
X1M0003610002 愛普生晶振 XG-2103CA 133.333333 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0004210002 愛普生晶振 MG7050VAN 212.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0004210003 愛普生晶振 MG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0004210004 愛普生晶振 MG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.375 to 2.625 V -20 to 70 °C
X1M0004210005 愛普生晶振 MG7050VAN 644.531250 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.375 to 2.625 V -20 to 70 °C
X1M0004210006 愛普生晶振 MG7050VAN 322.265625 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.375 to 2.625 V -20 to 70 °C
X1M0004210007 愛普生晶振 MG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210008 愛普生晶振 MG7050VAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210009 愛普生晶振 MG7050VAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210010 愛普生晶振 MG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210011 愛普生晶振 MG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210012 愛普生晶振 MG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210013 愛普生晶振 MG7050VAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210014 愛普生晶振 MG7050VAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210015 愛普生晶振 MG7050VAN 322.265625 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0004210016 愛普生晶振 MG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1G0059010001 愛普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 85 °C
X1G0059010002 愛普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
X1G0059010003 愛普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1G0059010004 愛普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 105 °C
X1G0059010006 愛普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1G0059010007 愛普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 105 °C
X1G0059010008 愛普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 105 °C
X1G0059410001 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 85 °C
X1G0059410002 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1G0059410003 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 105 °C
X1G0059410004 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
X1G0059410005 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 105 °C
X1G0059410006 愛普生晶振 SG2520VHN 155.520000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 85 °C
X1G0059410007 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
X1G0059410008 愛普生晶振 SG2520VHN 174.703000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1G0059410009 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 105 °C
X1G0059410010 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 85 °C
X1G0059410011 愛普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
X1G0059410603 愛普生晶振 SG2520VHN 400.000000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.970 to 3.465 V -40 to 85 °C
X1G0059410604 愛普生晶振 SG2520VHN 400.000000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.970 to 3.465 V -40 to 85 °C
X1G0059410605 愛普生晶振 SG2520VHN 467.529297 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
