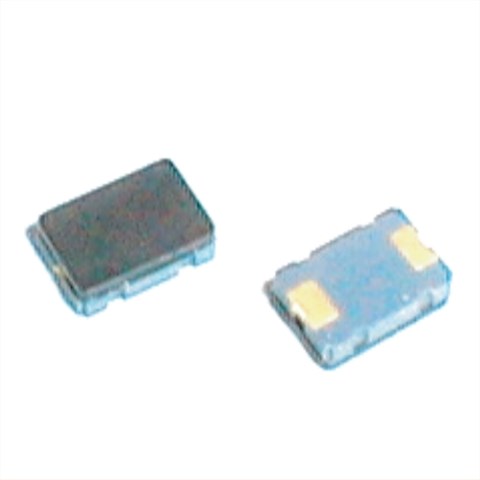

Fortiming水晶振動子,XCR53-30M000-1C20D10,5032mm,30MHZ,美國富通晶振,富通貼片晶振,兩腳貼片晶振,陶瓷晶振,5032mm小尺寸晶振,30MHZ晶體諧振器,輕薄型晶振,SMD無源晶振,無源晶體,尺寸5.0*3.2mm,頻率30MHZ,工作溫度-20°C~+70°C,低成本晶振,低損耗晶振,高密度應用晶振,智能手機晶振,移動設備晶振,便攜式設備晶振.

Fortiming水晶振動子,XCR53-30M000-1C20D10,5032mm,30MHZ特點:

超小型無源晶振設計（5 x 3.2毫米），最大高度1.4毫米

AT以經(jīng)濟成本削減性能

行業(yè)因素標準足跡

非常適合高密度表面安裝

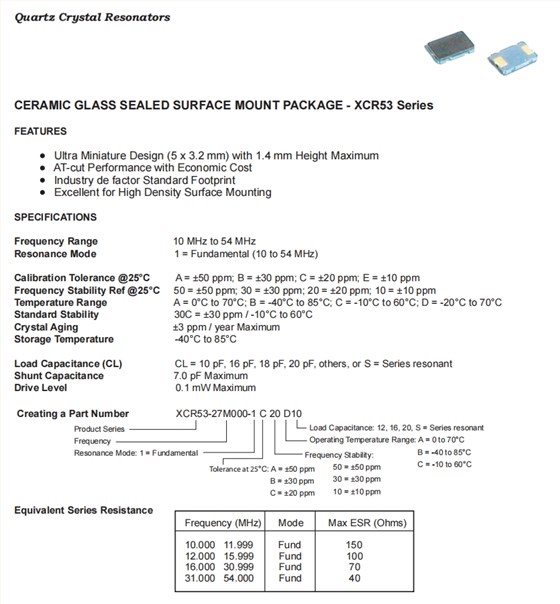

Fortiming水晶振動子,XCR53-30M000-1C20D10,5032mm,30MHZ 參數(shù)表

Frequency Range						30 MHz
Resonance Mode						1 = Fundamental (10 to 54 MHz)
Calibration Tolerance @25°C						A = ±50 ppm; B = ±30 ppm; C = ±20 ppm; E = ±10 ppm
Frequency Stability Ref @25°C						50 = ±50 ppm; 30 = ±30 ppm; 20 = ±20 ppm; 10 = ±10 ppm
Temperature Range						A = 0°C to 70°C; B = -40°C to 85°C; C = -10°C to 60°C; D = -20°C to 70°C
Standard Stability						30C = ±30 ppm / -10°C to 60°C
Crystal Aging						±3 ppm / year Maximum
Storage Temperature						-40°C to 85°C
Load Capacitance (CL)						CL = 10 pF, 16 pF, 18 pF, 20 pF, others, or S = Series resonant
Shunt Capacitance						7.0 pF Maximum
Drive Level						0.1 mW Maximum

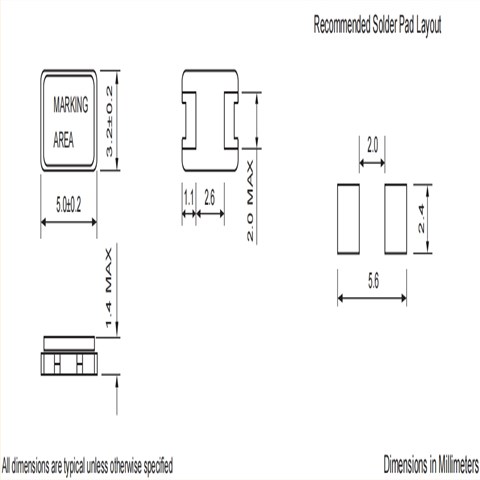

Fortiming水晶振動子,XCR53-30M000-1C20D10,5032mm,30MHZ 尺寸圖
