QV3T-7XEF12.5-32.768,QVS手表晶體,1610mm,32.768KHZ,美國進口晶振,QVS晶體諧振器,1610mm小尺寸晶振,兩腳貼片晶振,音叉晶體,水晶振動子,32.768K貼片晶振,SMD晶體,尺寸1.6*1.0mm,頻率32.768KHZ,負載12.5pF,低老化晶振,環保晶振,低耗能晶振,高品質晶振,實時時鐘晶振,數字顯示晶振,娛樂設備晶振,無線藍牙晶振.
QV3T-7XEF12.5-32.768,QVS手表晶體,1610mm,32.768KHZ特點:

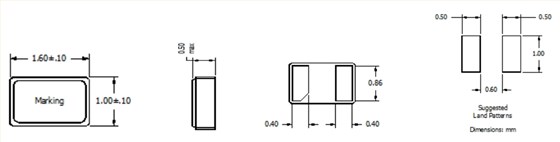

尺寸1.6*1.0mm
頻率32.768KHZ諧振器
符合RoHS標準且無鉛

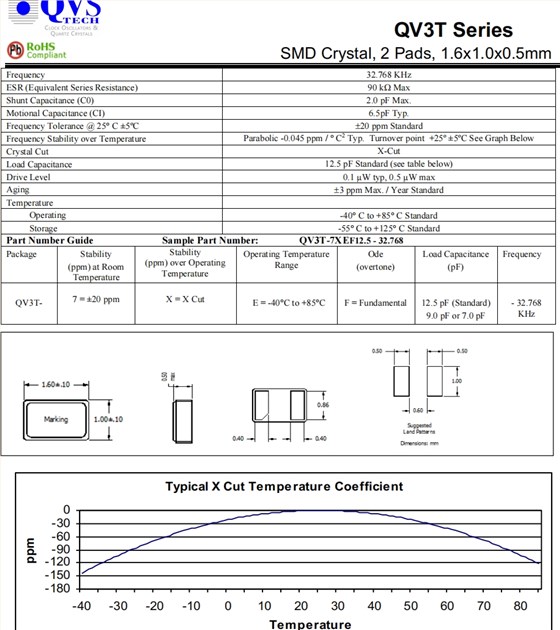

QV3T-7XEF12.5-32.768,QVS手表晶體,1610mm,32.768KHZ 參數表
| Frequency | 32.768 KHz | |||||||||
| ESR (Equivalent Series Resistance) | 90 k? Max | |||||||||
| Shunt Capacitance (C0) | 2.0 pF Max. | |||||||||
| Motional Capacitance (CI) | 6.5pF Typ. | |||||||||
| Frequency Tolerance @ 25℃ ±5ºC | ±20 ppm Standard | |||||||||
| Frequency Stability over Temperature | Parabolic -0.045 ppm / ℃2 Typ.Turnover point+25º ±5ºC See Graph Below | |||||||||
| Crystal Cut | X-Cut | |||||||||
| Load Capacitance | 12.5 pF Standard (see table below) | |||||||||
| Drive Level | 0.1 µW typ, 0.5 µW max | |||||||||
| Aging | ±3 ppm Max. / Year Standard | |||||||||
| Temperature | ||||||||||
| Operating | -40℃ to +85℃ Standard | |||||||||
| Storage | -55℃ to +125℃ Standard | |||||||||
