5032mm,20MHZ,276-20.0M-16-20HS-TR,奧斯康利小尺寸晶振，尺寸5.0*3.2mm,頻率20MHZ，Oscilent奧斯康利石英晶振，5032mm晶體諧振器，水晶振動子，輕薄型晶振，四腳無源晶振，石英晶體諧振器，無源石英晶振，石英貼片晶振，無源晶振，SMD晶振，智能手機晶振，多媒體設備晶振，娛樂設備晶振，數碼相機晶振，測試測量晶振，小型設備晶振，低損耗晶振，低功耗晶振，高性能晶振，高品質晶振，具有輕薄型高性能高品質的特點。
5032貼片晶振產品超級適合用于智能手機，多媒體設備，娛樂設備，數碼相機，測試測量，小型設備等應用。5032mm,20MHZ,276-20.0M-16-20HS-TR,奧斯康利小尺寸晶振.

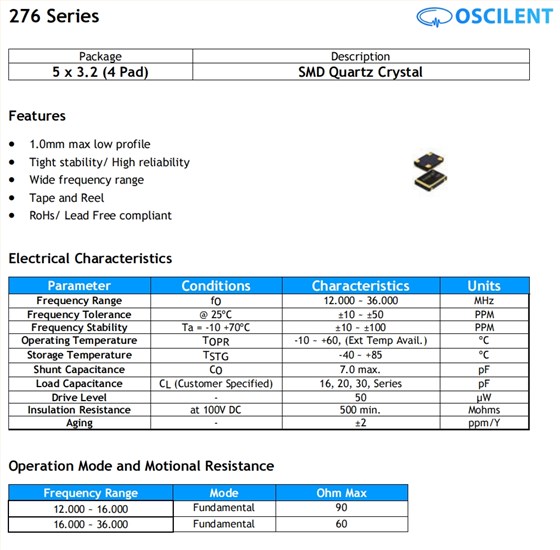

5032mm,20MHZ,276-20.0M-16-20HS-TR,奧斯康利小尺寸晶振 參數表
| Parameter | Conditions | Characteristics | Units | |||||||
| Frequency Range | fO | 20.000 | MHz | |||||||
| Frequency Tolerance | @ 25ºC | ±10 ~ ±50 | PPM | |||||||
| Frequency Stability | Ta = -10 +70ºC | ±10 ~ ±100 | PPM | |||||||
| Operating Temperature | TOPR | -10 ~ +60, (Ext Temp Avail.) | ºC | |||||||
| Storage Temperature | TSTG | -40 ~ +85 | ºC | |||||||
| Shunt Capacitance | CO | 7.0 max. | pF | |||||||
| Load Capacitance | CL (Customer Specified) | 16, 20, 30, Series | pF | |||||||
| Drive Level | - | 50 | µW | |||||||
| Insulation Resistance | at 100V DC | 500 min. | Mohms | |||||||
| Aging | - | ±2 | ppm/Y | |||||||

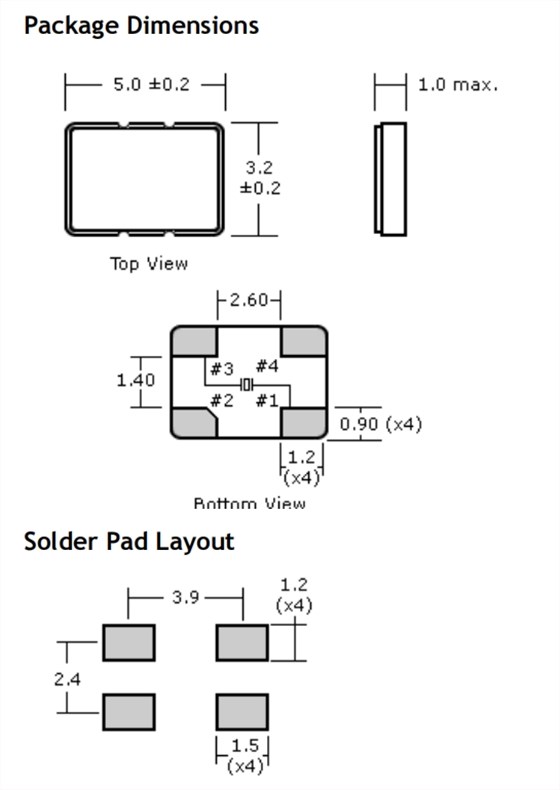

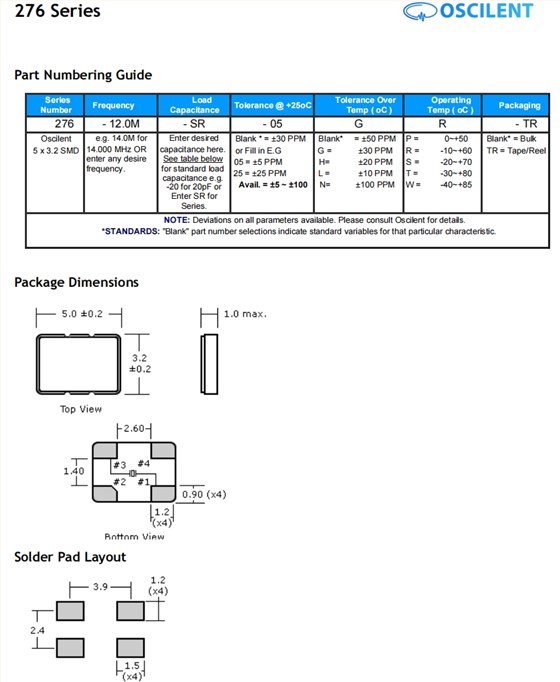

5032mm,20MHZ,276-20.0M-16-20HS-TR,奧斯康利小尺寸晶振 尺寸圖
5032mm,20MHZ,276-20.0M-16-20HS-TR,奧斯康利小尺寸晶振
產品特性：
1.0mm最大低剖面
穩定性強/可靠性高
寬頻率范圍
磁帶和卷軸
RoHs/無鉛合規
