QVS輕薄型晶振,3215mm,QV3X-7XCF12.5-32.768KHz,QV3X系列晶體,歐美進口晶振,音叉諧振器,SMD晶體,3215mm水晶振動子,輕薄型晶體,音叉晶振32.768K,無源貼片晶振,無源晶體,尺寸3.2*1.5mm,頻率32.768KHZ,負載12.5pF,低耗能晶振,低損耗晶振,高精度晶振,智能手表晶振,收音機晶振,移動電話晶振,智能電表晶振.
QVS輕薄型晶振,3215mm,QV3X-7XCF12.5-32.768KHz,QV3X系列晶體特點:

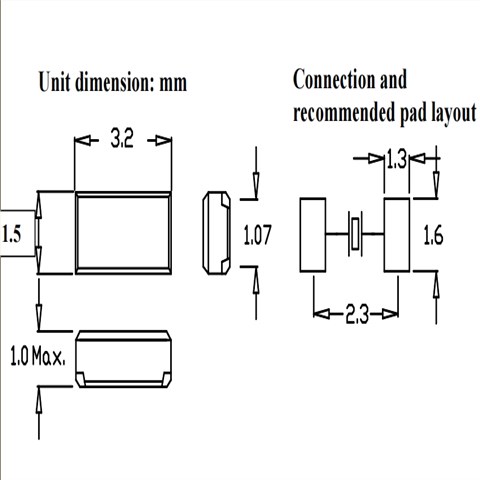

SMD晶振手表水晶，2個墊片3.2x1.5x1.0mm，X-CUT
頻率32.768KHZ
低耗能高精度

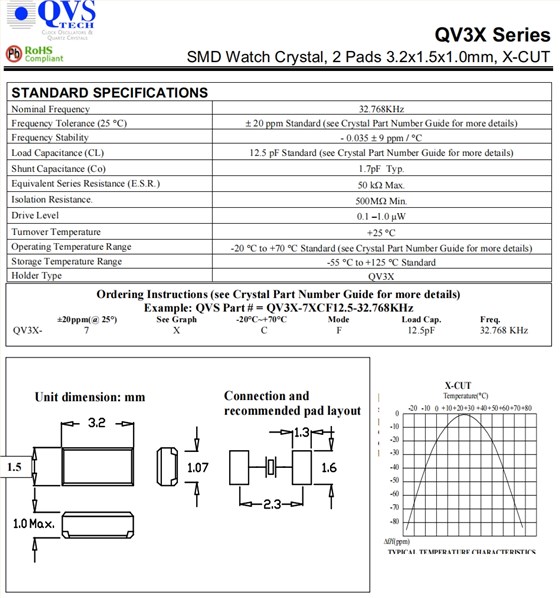

QVS輕薄型晶振,3215mm,QV3X-7XCF12.5-32.768KHz,QV3X系列晶體 參數(shù)表
| Nominal Frequency | 32.768KHz | |||||||||||||||||||||||||||||
| Frequency Tolerance (25 ℃) | ±20 ppm Standard (see Crystal Part Number Guide for more details) | |||||||||||||||||||||||||||||
| Frequency Stability | - 0.035 ± 9 ppm / ℃ | |||||||||||||||||||||||||||||
| Load Capacitance (CL) | 12.5 pF Standard (see Crystal Part Number Guide for more details) | |||||||||||||||||||||||||||||
| Shunt Capacitance (Co) | 1.7pFTyp. | |||||||||||||||||||||||||||||
| Equivalent Series Resistance (E.S.R.) | 50 kΩMax. | |||||||||||||||||||||||||||||
| Isolation Resistance. | 500MΩMin. | |||||||||||||||||||||||||||||
| Drive Level | 0.1 – 1.0 µW | |||||||||||||||||||||||||||||
| Turnover Temperature | +25 ℃ | |||||||||||||||||||||||||||||
| Operating Temperature Range | -20 ℃ to +70 ℃ Standard (see Crystal Part Number Guide for more details) | |||||||||||||||||||||||||||||
| Storage Temperature Range | -55 ℃ to +125 ℃ Standard | |||||||||||||||||||||||||||||
| Holder Type | QV3X | |||||||||||||||||||||||||||||
