功率優化的MEMS振蕩器AMPMAGD-18.0000T延長電池壽命并提高耐用性

返回列表 來源：冠杰電子 瀏覽：- 發布日期：2022-10-21 16:25:17【大 中 小】

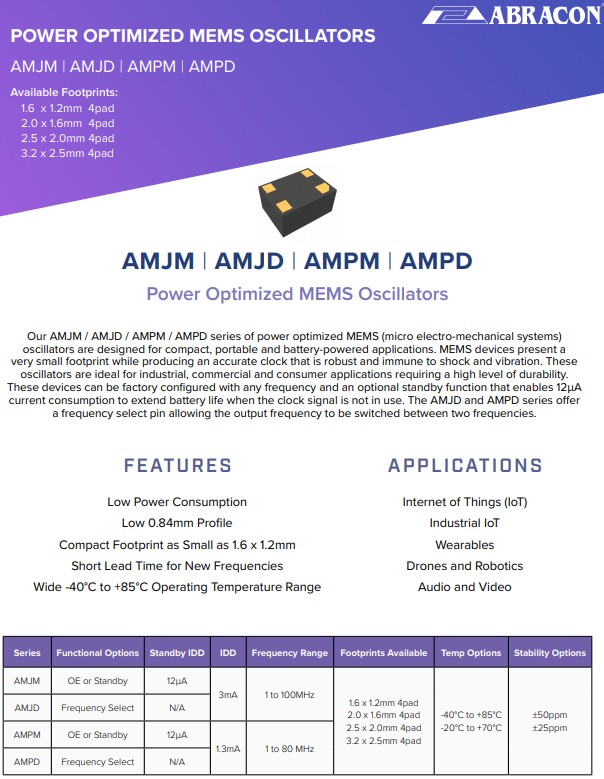

Our AMJM / AMJD / AMPM / AMPD series of power optimized MEMS (micro electro-mechanical systems) oscillators are designed for compact, portable and battery-powered applications. MEMS devices present a very small footprint while producing an accurate clock that is robust and immune to shock and vibration. These oscillators are ideal for industrial, commercial and consumer applications requiring a high level of durability. These devices can be factory configured with any frequency and an optional standby function that enables 12µA current consumption to extend battery life when the clock signal is not in use. The AMJD and AMPD series offer a frequency select pin allowing the output frequency to be switched between two frequencies.

我們的AMJM/AMJD/AMPM/AMPD系列功率優化MEMS（微機電系統）可編程晶體振蕩器專為緊湊型、便攜式和電池供電應用而設計。MEMS器件的占用空間非常小，同時可生產出堅固且不受沖擊和振動影響的精確時鐘。這些振蕩器非常適合需要高度耐用性的工業、商業和消費應用。這些器件可在出廠時配置為任何頻率和可選的待機功能，當時鐘信號未使用時，可實現12µA電流消耗以延長電池壽命。AMJD和AMPD系列貼片晶振提供頻率選擇引腳，允許在兩個頻率之間切換輸出頻率。

功率優化的MEMS振蕩器AMPMAGD-18.0000T延長電池壽命并提高耐用性

AST3TDA

產品編碼 品牌 Series Type類型 Frequency 頻率 電壓 工作溫度
ASDMB-24.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASDMB MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASDMB-24.576MHZ-LC-T Abracon Crystal Pure Silicon™ ASDMB MEMS (Silicon) 24.576MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASDMB-27.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASDMB MEMS (Silicon) 27MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASDMB-8.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASDMB MEMS (Silicon) 8MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASDMB-25.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASDMB MEMS (Silicon) 25MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASDMB-16.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASDMB MEMS (Silicon) 16MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASDMB-50.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASDMB MEMS (Silicon) 50MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASDMB-10.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASDMB MEMS (Silicon) 10MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASDMB-48.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASDMB MEMS (Silicon) 48MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASDMB-12.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASDMB MEMS (Silicon) 12MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASEMB-50.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASEMB MEMS (Silicon) 50MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASEMB-8.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASEMB MEMS (Silicon) 8MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASEMB-25.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASEMB MEMS (Silicon) 25MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASFLMB-50.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASFLMB MEMS (Silicon) 50MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASFLMB-25.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASFLMB MEMS (Silicon) 25MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASFLMB-24.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASFLMB MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASDM1-25.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASDM MEMS (Silicon) 25MHz 3.3V -40°C ~ 85°C
ASEM1-50.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASEM MEMS (Silicon) 50MHz 3.3V -40°C ~ 85°C
ASDMB-25.000MHZ-LR-T Abracon Crystal Pure Silicon™ ASDMB MEMS (Silicon) 25MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASEM1-24.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASEM MEMS (Silicon) 24MHz 3.3V -40°C ~ 85°C
ASEM1-12.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASEM MEMS (Silicon) 12MHz 3.3V -40°C ~ 85°C
ASEM1-100.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASEM MEMS (Silicon) 100MHz 3.3V -40°C ~ 85°C
ASEM1-25.000MHZ-LC-T

Abracon

Crystal

Pure Silicon™ ASEM MEMS (Silicon) 25MHz 3.3V -40°C ~ 85°C
ASFLMPHC-100.000MHZ-LR-T Abracon Crystal Pure Silicon™ ASFLMP MEMS (Silicon) 100MHz 2.25 V ~ 3.6 V -40°C ~ 85°C
ASFLMB-25.000MHZ-LR-T Abracon Crystal Pure Silicon™ ASFLMB MEMS (Silicon) 25MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASDM1-27.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASDM MEMS (Silicon) 27MHz 3.3V -40°C ~ 85°C
ASDM1-50.000MHZ-LC-T Abracon Crystal Pure Silicon™ ASDM MEMS (Silicon) 50MHz 3.3V -40°C ~ 85°C
ASDMB-26.000MHZ-LY-T Abracon Crystal Pure Silicon™ ASDMB MEMS (Silicon) 26MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASFLMB-25.000MHZ-LY-T Abracon Crystal Pure Silicon™ ASFLMB MEMS (Silicon) 25MHz 1.8 V ~ 3.3 V -40°C ~ 85°C
ASDMB-27.000MHZ-XY-T Abracon Crystal Pure Silicon™ ASDMB MEMS (Silicon) 27MHz 1.8 V ~ 3.3 V -40°C ~ 105°C
ASDMB-24.000MHZ-XY-T Abracon Crystal Pure Silicon™ ASDMB MEMS (Silicon) 24MHz 1.8 V ~ 3.3 V -40°C ~ 105°C
ASEMB-26.000MHZ-LY-T Abracon Crystal Pure Silicon™ ASEMB MEMS (Silicon) 26MHz 1.8 V ~ 3.3 V -40°C ~ 85°C

功率優化的MEMS振蕩器AMPMAGD-18.0000T延長電池壽命并提高耐用性

特征：低功耗硅晶振，低0.84毫米輪廓，緊湊的占地面積（小至1.6x1.2毫米），新頻率的交貨時間短，-40℃至+85℃寬工作溫度范圍
應用：物聯網 (IoT)，工業物聯網，可穿戴設備，無人機和機器人，音頻和視頻
