EUROQUARTZ超低電流微型振蕩器CXOU3ST-32.768K,50/M

返回列表 來源：冠杰電子 瀏覽：- 發布日期：2024-04-11 16:54:47【大 中 小】

EUROQUARTZ超低電流微型振蕩器CXOU3ST-32.768K,50/M

Euroquartz Limited是一家總部位于英國的獨立制造商和供應商，為全球電子制造業提供石英晶體、晶體振蕩器、濾波器和頻率相關產品。

頻率控制專家Euroquartz晶振廠家推出了Statek Inc .的一系列新型微型晶體振蕩器，提供超低電流并專為高可靠性應用而開發。新型CXOU振蕩器密封在高度可靠的陶瓷外殼中，頻率范圍為32.768至100.000kHz。
CXOU根據頻率輸出提供1.75至3.9A的超低電流消耗，啟動電壓為0.9至5.0V .標準校準公差為20ppm、50ppm和100ppm，如果需要，可根據特殊訂單提供更窄的范圍。典型啟動時間為200毫秒，上升/下降時間為30納秒，而第一年的老化時間為2ppm。標準CMOS輸出負載為10pF，其他負載可根據特殊訂單提供。新型晶體振蕩器還能夠承受高達5.000克（0.3毫秒正弦）的峰值沖擊。
CXOU系列振蕩器采用非磁性、氦氣不可滲透的陶瓷封裝，蓋子尺寸僅為1.2x2.0x0.76mm石英晶振，非常適合許多醫療植入應用，包括起搏器、除顫器和神經設備以及外部醫療產品。根據MIL-PRF-55310進行的全面軍事測試可供訂購，振蕩器也適用于許多國防和航空航天應用。
其它特性和規格包括三態使能/禁用選項和工作溫度范圍，適用于商業（0至70°C）、工業（-40至+85°C）和軍事（-55至+125°C）應用。過程額定溫度為260°C，最長持續2分鐘。
Statek CXOU石英晶體振蕩器提供托盤包裝或12毫米載帶178或330毫米卷軸（EIA481）。

Euroquartz是一家總部位于英國的獨立制造商，為全球電子制造業提供石英晶體、振蕩器、濾波器和頻率相關產品。該公司已通過AS9100認證，為包括主要原始設備制造商在內的廣泛客戶設計和制造全面的頻率控制元件，涵蓋廣泛的應用領域，包括軍事和航空航天、通信、通用電子、計算、控制系統和石化等。

EUROQUARTZ推出DFXO系列差分晶體振蕩器

EUROQUARTZ超低電流微型振蕩器CXOU3ST-32.768K,50/M

ULTRA-LOW CURRENT MINIATURE OSCILLATORS

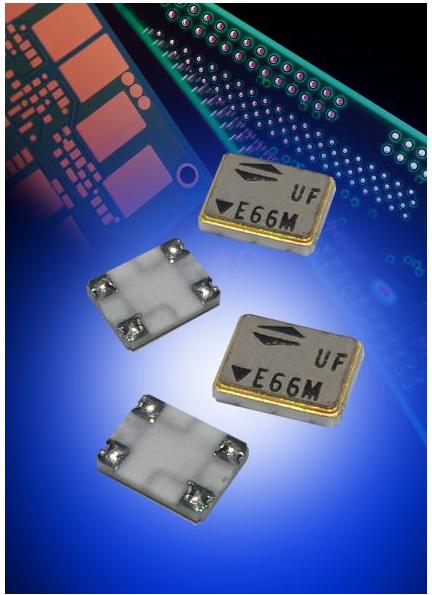

Frequency control specialist, Euroquartz Crystal has launched a new range of miniature crystal oscillators from Statek Inc. offering ultra-low current and developed for high reliability applications. Hermetically sealed in a highly reliable ceramic housing, the new CXOU oscillator is available in frequencies from 32.768 to 100,000kHz.
The CXOU offers ultra-low current consumption from 1.75 to 3.9µA depending on frequency output with start-up voltages from 0.9 to 5.0V. Standard calibration tolerances are ±20, ±50 and ±100ppm with tighter bands available to special order if required. Typical start-up time is 200ms with rise/fall times of 30ns while ageing is ±2ppm for first year. Standard CMOS output load is 10pF with other loads available to special order. The new crystal oscillators are also capable of withstanding peak shock up to 5,000g (0.3ms ½ sine).
Housed in a non-magnetic, helium-impermeable ceramic package and lid measuring just 1.2 x 2.0 x 0.76mm, the CXOU range of oscillators is ideal for use in many medical implantable applications including pacemakers, defibrillators and neuro devices as well as external medical products. With full military testing per MIL-PRF-55310 available to order, the oscillators are also suitable for many defence and aerospace applications.
Additional features and specifications include tristate enable/disable options and operating temperature ranges for commercial (0 to 70°C), industrial (-40 to +85°C) and military (-55 to +125°C) applications. Process temperature rating is 260°C for 2 minutes maximum.
Statek CXOU oscillators are available in tray packs or 12mm carrier tape 178 or 330mm reels (EIA481).
Euroquartz is an independent UK-based manufacturer and supplier of quartz crystals, oscillators, filters and frequency-related products to the electronics manufacturing industry worldwide. The company is AS9100 registered and designs and manufactures a comprehensive range of frequency control components for a wide range of customers including major OEMs covering a broad spectrum of applications including military and aerospace, communications, general electronics, computing, control systems and petrochemical among many others.
