ECS推出新穎的TCXO振蕩器用于智能電表ECS-2012MV-327KE-TR，The ECS-2012MV-327KE is a 2.0 mm x 1.2 mm 32.768 kHz HCMOS oscillator with MultiVoltTM capabilities. This small electronic component offers low current consumption and improved stability against uncompensated crystal oscillators.

ECS-2012MV-327KE是一款2.0 mm x 1.2 mm 32.768 kHz HCMOS振蕩器，具有MultiVoltTM功能。這種小的電子元件提供低電流消耗和改進的穩定性對溫度補償晶體振蕩器。

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Frequency 頻率	Operating Temperature     工作溫度
ECS-2520S33-200-FN-TR	ECS晶振	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S33-200-FN-TR	ECS晶振	ECS-2520S	20MHz	-40°C ~ 85°C
ECS-2520S33-260-FN-TR	ECS晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S33-260-FN-TR	ECS晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S33-260-FN-TR	ECS晶振	ECS-2520S	26MHz	-40°C ~ 85°C
ECS-2520S33-120-FN-TR	ECS晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S33-120-FN-TR	ECS晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-2520S33-120-FN-TR	ECS晶振	ECS-2520S	12MHz	-40°C ~ 85°C
ECS-3525-143-B-TR	ECS晶振	ECS-3525	14.31818MHz	0°C ~ 70°C
ECS-3525-143-B-TR	ECS晶振	ECS-3525	14.31818MHz	0°C ~ 70°C
ECS-3525-640-B-TR	ECS晶振	ECS-3525	64MHz	0°C ~ 70°C
ECS-3525-640-B-TR	ECS晶振	ECS-3525	64MHz	0°C ~ 70°C
ECS-3525-640-B-TR	ECS晶振	ECS-3525	64MHz	0°C ~ 70°C
ECS-3525-666-B-TR	ECS晶振	ECS-3525	66.666MHz	0°C ~ 70°C
ECS-3525-666-B-TR	ECS晶振	ECS-3525	66.666MHz	0°C ~ 70°C
ECS-3525-666-B-TR	ECS晶振	ECS-3525	66.666MHz	0°C ~ 70°C
ECS-2033-035-BN	ECS晶振	ECS-2033	3.579545MHz	-40°C ~ 85°C
ECS-2033-035-BN	ECS晶振	ECS-2033	3.579545MHz	-40°C ~ 85°C
ECS-2033-035-BN	ECS晶振	ECS-2033	3.579545MHz	-40°C ~ 85°C
ECS-3951C-036-TR	ECS晶振	ECS-3951C	3.6864MHz	0°C ~ 70°C
ECS-3951C-036-TR	ECS晶振	ECS-3951C	3.6864MHz	0°C ~ 70°C
ECS-3951C-036-TR	ECS晶振	ECS-3951C	3.6864MHz	0°C ~ 70°C
ECS-3951M-500-B-TR	ECS晶振	ECS-3951M	50MHz	-10°C ~ 70°C
ECS-3951M-500-B-TR	ECS晶振	ECS-3951M	50MHz	-10°C ~ 70°C
ECS-3951M-500-B-TR	ECS晶振	ECS-3951M	50MHz	-10°C ~ 70°C

Image	Part Number	Frequency	Frequency Stability	Operating Temperature	Datasheet	Inventory

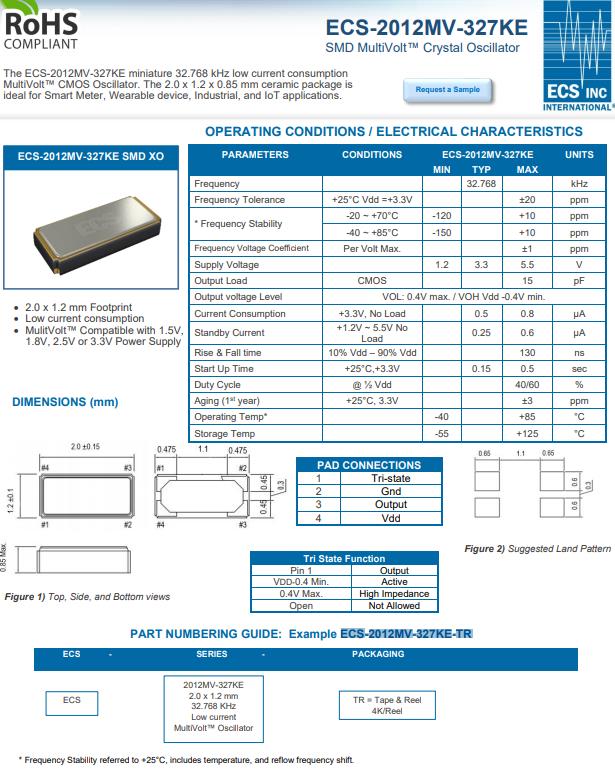

	ECS-2012MV-327KE-TR	32.768 kHz	±20ppm	-40°C ~ +85°C

The ECS-3215MV-327KE series of HCMOS oscillators are in a 2.0 mm x 1.2 mm x 0.85 mm ceramic package that offers MultiVoltTM capabilities. These electronic components offer a frequency of 32.768 kHz with a frequency stability of ±10 ppm and low 0.5µA current consumption at the standard industrial operating temperature of -40ºC to +85ºC. As a part of the MultiVoltTM series of oscillators, the ECS-2012MV-327KE is designed to operate on a variable supply voltage of 1.2V to 5.5V or a standard 1.8V, 2.5V, 3.0V or 3.3V supply. As it offers improved stability against various uncompensated crystal oscillators, this component is ideal smart meter, wearable, industrial and IoT applications.

ECS推出新穎的TCXO振蕩器用于智能電表ECS-2012MV-327KE-TR，ECS-3215MV-327KE系列HCMOS振蕩器采用2.0 mm x 1.2 mm x 0.85 mm陶瓷封裝，提供MultiVoltTM功能。這些電子元件提供32.768 kHz的頻率，頻率穩定性為±10 ppm，在-40ºC至+85ºC的標準工業工作溫度下低0.5µa電流消耗。作為MultiVoltTM系列SMD振蕩器的一部分，ECS-2012MV-327KE設計用于在1.2V至5.5V的可變電源電壓或標準1.8V, 2.5V, 3.0V或3.3V電源上工作。由于它對各種溫度補償晶體振蕩器提供了更好的穩定性，因此該組件是理想的智能電表，可穿戴，工業和物聯網應用。

編碼ECS-2012MV-327KE-TR有源晶振特點：2.0 mm x 1.2 mm x 0.85 mm 4-pad占地面積，32.768 kHz頻率，穩定性:-150到+10 ppm @ -40ºC ~ +85ºC，溫度范圍:-40ºC ~ +85ºC，電流消耗:0.5 μ A，MultiVoltTM能力+1.8 V， +2.5 V， +3.0 V或+3.3 V或1.2 V ~ 5.5 V電源，HCMOS輸出，符合RoHS和REACH標準.

應用：物聯網，工業，無線，可穿戴，智能電表，醫療(非維持生命).
