ECS Inc. International 以提供最新的新興技術而享有盛譽，其產品范圍廣泛，包括晶體、有源晶體振蕩器、諧振器、石英和 SAW 濾波器、功率電感器以及最近的實時時鐘。所有這些產品都非常適合汽車、醫療和多種無線/可穿戴應用。低抖動精細的壓控晶體振蕩器是ECS公司具有創意之作ECXV-P35B2N-24.000

ECS-3953M-080-B-TR	ECS晶振	ECS-3953M	8MHz	-10°C ~ 70°C
ECS-3953M-080-B-TR	ECS晶振	ECS-3953M	8MHz	-10°C ~ 70°C
ECS-3953M-080-B-TR	ECS晶振	ECS-3953M	8MHz	-10°C ~ 70°C
ECS-3953M-100-B-TR	ECS晶振	ECS-3953M	10MHz	-10°C ~ 70°C
ECS-3953M-100-B-TR	ECS晶振	ECS-3953M	10MHz	-10°C ~ 70°C
ECS-3953M-100-B-TR	ECS晶振	ECS-3953M	10MHz	-10°C ~ 70°C
ECS-3953M-240-B-TR	ECS晶振	ECS-3953M	24MHz	-10°C ~ 70°C
ECS-3953M-240-B-TR	ECS晶振	ECS-3953M	24MHz	-10°C ~ 70°C
ECS-3953M-240-B-TR	ECS晶振	ECS-3953M	24MHz	-10°C ~ 70°C
ECS-3953M-500-BN-TR	ECS晶振	ECS-3953M-BN	50MHz	-40°C ~ 85°C
ECS-3953M-500-BN-TR	ECS晶振	ECS-3953M-BN	50MHz	-40°C ~ 85°C
ECS-3953M-500-BN-TR	ECS晶振	ECS-3953M-BN	50MHz	-40°C ~ 85°C
ECS-3953M-040-BN-TR	ECS晶振	ECS-3953M-BN	4MHz	-40°C ~ 85°C
ECS-3953M-040-BN-TR	ECS晶振	ECS-3953M-BN	4MHz	-40°C ~ 85°C
ECS-3953M-040-BN-TR	ECS晶振	ECS-3953M-BN	4MHz	-40°C ~ 85°C
ECS-3953M-018-BN-TR	ECS晶振	ECS-3953M-BN	1.8432MHz	-40°C ~ 85°C
ECS-3953M-018-BN-TR	ECS晶振	ECS-3953M-BN	1.8432MHz	-40°C ~ 85°C
ECS-3953M-018-BN-TR	ECS晶振	ECS-3953M-BN	1.8432MHz	-40°C ~ 85°C
ECS-3953M-200-BN-TR	ECS晶振	ECS-3953M-BN	20MHz	-40°C ~ 85°C
ECS-3953M-200-BN-TR	ECS晶振	ECS-3953M-BN	20MHz	-40°C ~ 85°C
ECS-3953M-200-BN-TR	ECS晶振	ECS-3953M-BN	20MHz	-40°C ~ 85°C
ECS-3953M-480-AU-TR	ECS晶振	ECS-3953M-AU	48MHz	-55°C ~ 125°C
ECS-3953M-480-AU-TR	ECS晶振	ECS-3953M-AU	48MHz	-55°C ~ 125°C

“ECS 近年來發展迅猛，因此更新企業使命、愿景和價值觀聲明已經有很長一段時間了，”ECS晶振公司總裁 Eric Slatten 說。“我們將我們的增長歸功于我們的公司文化和與客戶建立的融洽關系。新的聲明反映了我們現在成長中的公司的特點以及我們希望在未來成為的樣子。”

壓控晶體振蕩器 (VCXO) 對于離散鎖相環的正常功能至關重要。ECS Inc. 的 VCXO 產品具有廣泛的頻率范圍、多種不同的電壓和輸出選項。輸出邏輯配置包括 HCMOS、LVDS 和 LVPECL。電壓控制晶體振蕩器可提供表面貼裝器件 (SMD) 和通孔封裝配置。低抖動精細的壓控晶體振蕩器是ECS公司具有創意之作ECXV-P35B2N-24.000

ECS-3953M-480-AU-TR	ECS晶振	ECS-3953M-AU	48MHz	-55°C ~ 125°C
ECS-3963-080-BN-TR	ECS晶振	ECS-3963-BN	8MHz	-40°C ~ 85°C
ECS-3963-080-BN-TR	ECS晶振	ECS-3963-BN	8MHz	-40°C ~ 85°C
ECS-3963-080-BN-TR	ECS晶振	ECS-3963-BN	8MHz	-40°C ~ 85°C
ECS-3961-040-AU-TR	ECS晶振	ECS-3961	4MHz	-55°C ~ 125°C
ECS-3961-040-AU-TR	ECS晶振	ECS-3961	4MHz	-55°C ~ 125°C
ECS-3961-040-AU-TR	ECS晶振	ECS-3961	4MHz	-55°C ~ 125°C
ECS-3963-250-BN-TR	ECS晶振	ECS-3963-BN	25MHz	-40°C ~ 85°C
ECS-3963-250-BN-TR	ECS晶振	ECS-3963-BN	25MHz	-40°C ~ 85°C
ECS-3963-250-BN-TR	ECS晶振	ECS-3963-BN	25MHz	-40°C ~ 85°C
ECS-3961-200-AU-TR	ECS晶振	ECS-3961	20MHz	-55°C ~ 125°C
ECS-3961-200-AU-TR	ECS晶振	ECS-3961	20MHz	-55°C ~ 125°C
ECS-3961-200-AU-TR	ECS晶振	ECS-3961	20MHz	-55°C ~ 125°C
ECS-3963-240-BN-TR	ECS晶振	ECS-3963-BN	24MHz	-40°C ~ 85°C
ECS-3963-240-BN-TR	ECS晶振	ECS-3963-BN	24MHz	-40°C ~ 85°C
ECS-3963-240-BN-TR	ECS晶振	ECS-3963-BN	24MHz	-40°C ~ 85°C
ECS-3963-400-BN-TR	ECS晶振	ECS-3963-BN	40MHz	-40°C ~ 85°C
ECS-3963-400-BN-TR	ECS晶振	ECS-3963-BN	40MHz	-40°C ~ 85°C
ECS-3963-400-BN-TR	ECS晶振	ECS-3963-BN	40MHz	-40°C ~ 85°C
ECS-2033-147.4-AU	ECS晶振	ECS-2033	14.7456MHz	-55°C ~ 125°C
ECS-2033-147.4-AU	ECS晶振	ECS-2033	14.7456MHz	-55°C ~ 125°C
ECS-2033-147.4-AU	ECS晶振	ECS-2033	14.7456MHz	-55°C ~ 125°C

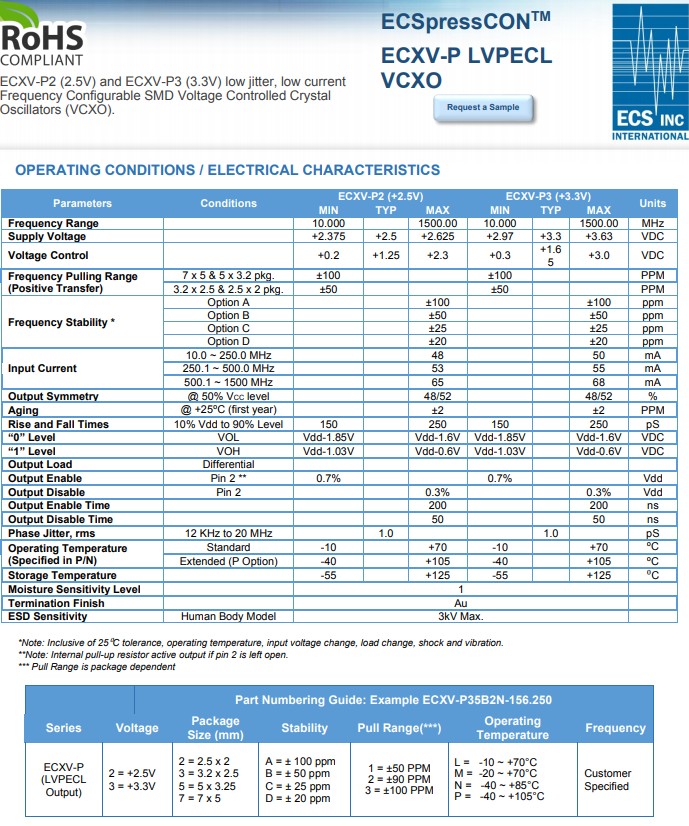

ECXV-P2 (2.5V) and ECXV-P3 (3.3V) low jitter, low current Frequency Configurable SMD Voltage Controlled Crystal Oscillators (VCXO).

ECXV-P2 (2.5V)和ECXV-P3 (3.3V)低抖動，低電流頻率可配置的SMD壓控晶體振蕩器(VCXO振蕩器)。

*Note: Inclusive of 25?C tolerance, operating temperature, input voltage change, load change, shock and vibration.
**Note: Internal pull-up resistor active output if pin 2 is left open.
*** Pull Range is package dependent
**注:包括25?C的公差、操作溫度、輸入電壓變化、負載變化、沖擊和振動。
**注:內部上拉電阻有源輸出，如果引腳2是開放的。
***拉范圍是包依賴的

ECS-3963-250-AU-TR	ECS晶振	ECS-3963	25MHz	-55°C ~ 125°C
ECS-3963-250-AU-TR	ECS晶振	ECS-3963	25MHz	-55°C ~ 125°C
ECS-3963-250-AU-TR	ECS晶振	ECS-3963	25MHz	-55°C ~ 125°C
ECS-3963-333-BN-TR	ECS晶振	ECS-3963-BN	33.333MHz	-40°C ~ 85°C
ECS-3963-333-BN-TR	ECS晶振	ECS-3963-BN	33.333MHz	-40°C ~ 85°C
ECS-3963-333-BN-TR	ECS晶振	ECS-3963-BN	33.333MHz	-40°C ~ 85°C
ECS-2033-080-AU	ECS晶振	ECS-2033	8MHz	-55°C ~ 125°C
ECS-2033-080-AU	ECS晶振	ECS-2033	8MHz	-55°C ~ 125°C
ECS-2033-080-AU	ECS晶振	ECS-2033	8MHz	-55°C ~ 125°C
ECS-3963-160-AU-TR	ECS晶振	ECS-3963	16MHz	-55°C ~ 125°C
ECS-3963-160-AU-TR	ECS晶振	ECS-3963	16MHz	-55°C ~ 125°C
ECS-3963-160-AU-TR	ECS晶振	ECS-3963	16MHz	-55°C ~ 125°C
ECS-3961-160-AU-TR	ECS晶振	ECS-3961	16MHz	-55°C ~ 125°C
ECS-3961-160-AU-TR	ECS晶振	ECS-3961	16MHz	-55°C ~ 125°C
ECS-3961-160-AU-TR	ECS晶振	ECS-3961	16MHz	-55°C ~ 125°C
ECS-3953M-666-BN-TR	ECS晶振	ECS-3953M-BN	66.666MHz	-40°C ~ 85°C
ECS-3953M-666-BN-TR	ECS晶振	ECS-3953M-BN	66.666MHz	-40°C ~ 85°C
ECS-3953M-666-BN-TR	ECS晶振	ECS-3953M-BN	66.666MHz	-40°C ~ 85°C
ECS-3525-250-B-TR	ECS晶振	ECS-3525	25MHz	0°C ~ 70°C
ECS-3525-250-B-TR	ECS晶振	ECS-3525	25MHz	0°C ~ 70°C
ECS-3525-250-B-TR	ECS晶振	ECS-3525	25MHz	0°C ~ 70°C
ECS-3525-240-B-TR	ECS晶振	ECS-3525	24MHz	0°C ~ 70°C
ECS-3525-240-B-TR	ECS晶振	ECS-3525	24MHz	0°C ~ 70°C

Parameters Conditions ECXV-P2 (+2.5V) ECXV-P3 (+3.3V) Units MIN TYP MAX MIN TYP MAX Frequency Range 10.000 1500.00 10.000 1500.00 MHz Supply Voltage +2.375 +2.5 +2.625 +2.97 +3.3 +3.63 VDC Voltage Control +0.2 +1.25 +2.3 +0.3 +1.6 5 +3.0 VDC Frequency Pulling Range (Positive Transfer) 7 x 5 & 5 x 3.2 pkg. ±100 ±100 PPM 3.2 x 2.5 & 2.5 x 2 pkg. ±50 ±50 PPM Frequency Stability * Option A ±100 ±100 ppm Option B ±50 ±50 ppm Option C ±25 ±25 ppm Option D ±20 ±20 ppm Input Current 10.0 ~ 250.0 MHz 48 50 mA 250.1 ~ 500.0 MHz 53 55 mA 500.1 ~ 1500 MHz 65 68 mA Output Symmetry @ 50% VCC level 48/52 48/52 % Aging @ +25?C (first year) ±2 ±2 PPM Rise and Fall Times 10% Vdd to 90% Level 150 250 150 250 pS “0” Level VOL Vdd-1.85V Vdd-1.6V Vdd-1.85V Vdd-1.6V VDC “1” Level VOH Vdd-1.03V Vdd-0.6V Vdd-1.03V Vdd-0.6V VDC Output Load Differential Output Enable Pin 2 ** 0.7% 0.7% Vdd Output Disable Pin 2 0.3% 0.3% Vdd Output Enable Time 200 200 ns Output Disable Time 50 50 ns Phase Jitter, rms 12 KHz to 20 MHz 1.0 1.0 pS Operating Temperature (Specified in P/N) Standard -10 +70 -10 +70 ?C Extended (P Option) -40 +105 -40 +105 ?C Storage Temperature -55 +125 -55 +125 ?C Moisture Sensitivity Level 1 Termination Finish Au ESD Sensitivity Human Body Model 3kV Max.
