FCD-Tech的FBO2736L通孔低相位噪聲OCXO振蕩器

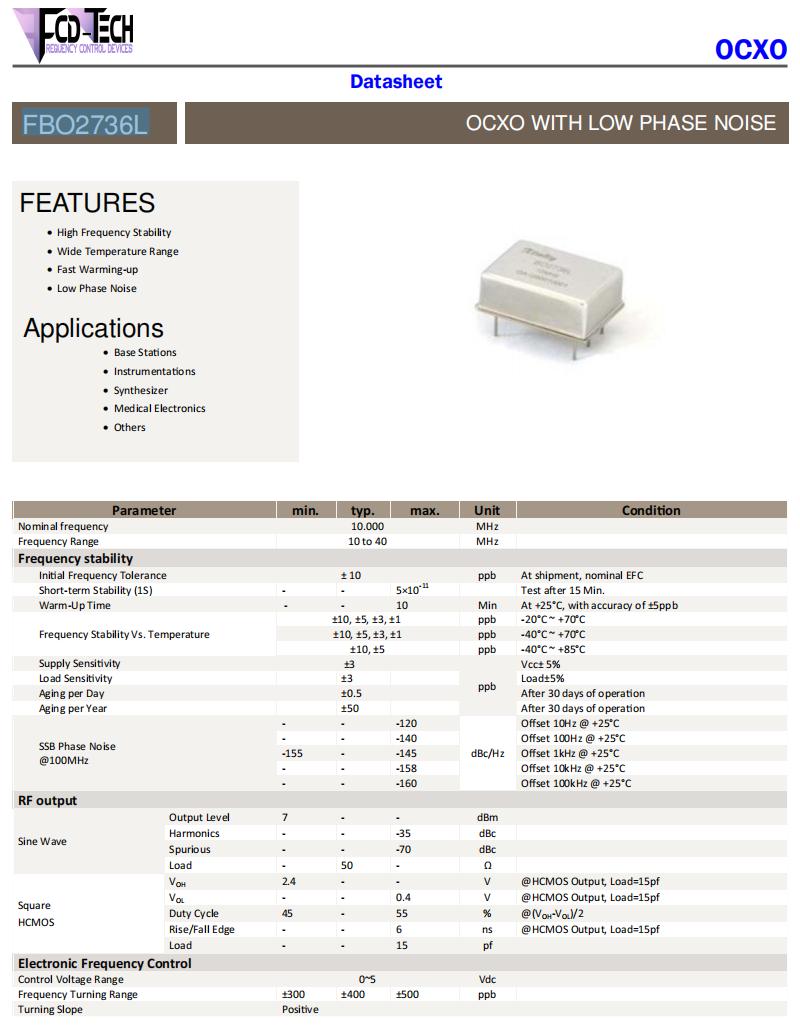

FBO2736L - Through-hole Low Phase Noise OCXO Oscillator (27 x 36 mm)
The FBO2736L is a through-hole Low Phase Noise OCXO Oscillator in metal package, size 27 x 36 and 13/14 mm height. This OCXO oscillator can be supplied for the frequency range of 10.000 MHz to 40.000 MHz. Frequency stability up to +/-50ppb with tuning option. Output logic of the OCXO can be HCMOS or Sine Wave. The Sine wave OCXO has an output level of +7 dBm minimal (R 50Ω). The OCXO features low Phase Noise levels up to -150dBc/Hz @ 1KHz (several options). OCXO warm up time of 10 minutes maximum with an accuracy of +/-5ppb at 25°C. The FBO2736L is available with +5V and +12V Supply voltage. Frequency tuning by EFC (Electronic Frequency Control) with typical +/-400ppb. Control Voltage Range (Vcon) is 0 to +5Vdc. For environmental conditions see data sheet.
Applications： Base Stations, Intrumentations, Synthesizer, Medical Electronics
FEATURES：
Low Phase Noise OCXO Oscillator
Frequency range: 10 to 40 MHz
Through hole package, size 27 x 36 mm
High Frequency Stability
Wide Temperature Range
Output logic Sine Wave or HCMOS
Fast Warming-up time
