令人難以置信的廣泛最終報告提供了對連接的見解，將確認被測電路的正確尺寸，或可能包含調整建議。對該系列的支持是與客戶的工程、采購、生產和QA部門協調進行的。我們的目標是利用非常廣泛的服務，幫助客戶快速上市。

全球領先PETERMANN適用于超聲波的低成本貼片石英

彼得曼技術公司服務于所有應用領域，包括汽車的–創新的頻率控制部件隨著低成本下的卓越性能和卓越品質是必需的。我們提供頻率控制產品諸如貼片晶振和THT石英晶體在1.8432 MHz–200 MHz頻率范圍內。我們的“石英晶體”產品系列由以下產品補充32.768 kHz解決方案在各種各樣的外殼中頻率容差從10ppm開始。當然，4pF還是低電阻32.768千赫石英晶體也可以很快得到。我們極具創新的“硅振蕩器”產品系列包括非常實惠的組件人們通?？梢杂盟鼇泶媸⒒騇EMS振蕩器. 低功率時鐘振蕩器根據，可在短時間內用于LPO-AUT或WTLPO-AUT系列的所有汽車應用AECQ100。當然，我們還提供典型值為0.25皮秒的差分振蕩器。相位抖動或低抖動時鐘振蕩器UPO系列的。你在找什么擴展頻譜或者高溫振蕩器？你會發現這些產品在我們的產品范圍內，有各種各樣的外殼和精度。我們還提供TCXOs和VC-TCXOs。對于新開發，使用2.5x2.0mm毫米陶瓷外殼中的相應版本，以及壓控VCXO石英振蕩器。我們的產品范圍包括高精度OCXO以及超低功耗MHz和kHz振蕩器，可讓您節省高達50%的系統能源。我們還可以提供陶瓷諧振器還有更多。

全球領先PETERMANN適用于超聲波的低成本貼片石英

LOW-COST SMD QUARTZ SUITABLE FOR ULTRASONIC
Every development and production specialist knows it! Quartz crystal can’t handle ultrasonic welding and cleaning. The quartz resonators are damaged by the high-frequency welding or cleaning process.

The clocking specialist PETERMANN-TECHNIK from Landsberg am Lech is the first in the world to present an SMD quartz in miniaturised ceramic housing measuring 3.2×2.5 mm, which was specially developed to handle ultrasonic-based welding and cleaning. A sensation!

In the meantime, the SMD quartz in 3.2×2.5 mm/4pad housing (series SMD03025/4) has become the cheapest miniaturised SMD quartz in ceramic housing. For this reason, it is only logical that the quartz suitable for ultrasonic welding and cleaning is available in the housing that is in greatest demand, 3.2×2.5 mm/4pad.

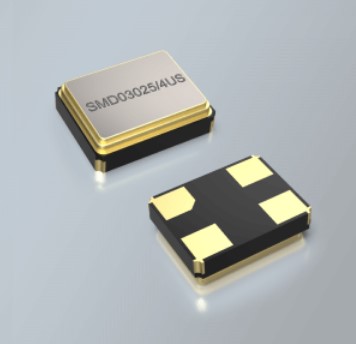

The SMD quartz suitable for ultrasonic from the “SMD03025/4US” series can be welded and cleaned by ultrasonic. In doing so, this quartz, whose quartz resonator has a special fixed ultrasonic limit, is designed for ultrasonic frequencies of 15 kHz, 20 kHz, 35 kHz and 40 kHz.

The “SMD03025/4US”, available with a frequency range of 12–40 MHz, can be shipped with frequency tolerances starting at ±10 ppm at +25 °C and with temperature stabilities beginning at ±10 ppm beyond the temperature range of -20/+70 °C. Beyond the industrial temperature range of -40/+85 °C, the closest temperature stability is ±15 ppm.

Because of the very affordable price, the ultrasonic-resistant all-rounder, which is manufactured in clean rooms, can be used in any application that demands very inexpensive SMD quartz with excellent parameters and outstanding durability, such as in the automotive, medical, embedded, industrial, commercial, WIFI, wireless (WLAN, ISM, KNX, ZigBee, Z-Wave, etc.), consumer and telecommunications sectors and more.

Of course, the range of PETERMANN-TECHNIK products also includes 32.768 kHz solutions (quartzes and ultra low power oscillators).

In addition to the very extensive product range, the specialists at PETERMANN-TECHNIK also provide comprehensive product advice. Very comprehensive circuit analyses/circuit simulations can also be performed by in-house engineering as needed. These analyses are carried out based on the DIN/IEC60444 standards for oscillating crystals and include oscillation safety tests (determination of the exact oscillation reserve), determination of the piezoelectricity and many other tests.

The incredibly extensive final report provides insight on the connection, will confirm the correct dimensioning of the tested circuitry or may contain proposals for adjustment. Support for this series is carried out in coordination with the customer’s engineering, purchasing, production and QA departments. The aim is to make use of a very extensive range of services to be able to facilitate a fast time to market for the customer.
