JAUCH發布新振蕩器JO22和JO32實時時鐘

HIGH PERFORMANCE FREQUENCY STABILITY FOR RTC DEVICES: JAUCH QUARTZ RELEASES NEW OSCILLATORS
Real Time Clocks (RTCs) ensure accurate time measurement in laptops, smartphones, metering and numerous other electronic devices. At the heart of each RTC there is usually a tuning fork quartz crystal with a frequency of exactly 32.768 kHz.

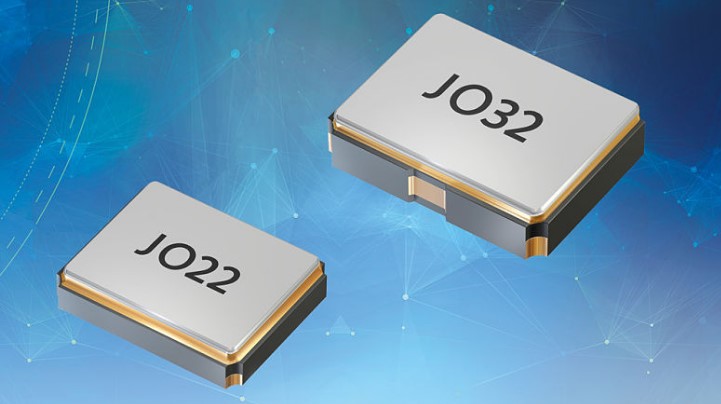

Jauch Quartz developed the new oscillators JO22 32.768 kHz and JO32 32.768 kHz especially for these applications. In contrast to tuning fork-based oscillators, these new Jauch components use an AT-cut quartz blank and thus feature a significantly superior frequency stability.
In a temperature range between -20°C and 70°C a frequency stability of ± 25 ppm is achieved. In the extended temperature range between -40°C and 85°C ± 30 ppm is possible and even at extreme heat of up to 125°C the oscillators reliably generate the desired frequency to ± 100 ppm.
Just like the JO22 and JO32 oscillators for the MHz range that were introduced last year, the new Jauch components for 32.768 kHz operate with a variable supply voltage between 1.8 V and 3.3 V. Within this range, variations in the operating voltage have no negative effect on frequency stability.
The JO22 32.768 kHz and the JO32 32.768 kHz have an LVCMOS-compatible output signal which is suitable for operating standard logic circuits. Thanks to their ultra-compact miniature SMD packages of only 2.5 mm x 2.0 mm x 0.8 mm and 3.2 mm x 2.5 mm x 1.0 mm, respectively, the oscillators are ideally suited for the development of particularly small PCBs and circuits within various applications.
The oscillators are 100 percent lead-free and RoHS and REACH compliant. Both components comply to conflict minerals regulations.

RTC器件的高性能頻率穩定性：JAUCH發布新振蕩器JO22和JO32實時時鐘

振蕩器100%無鉛，符合RoHS和REACH標準。這兩種成分都符合沖突礦物法規。

Jauch根據您的要求為您的電池系統提供完整的解決方案-標準電池和定制電池組，從簡單的電池到最苛刻應用的智能電池組。
Jauch晶振頻率控制產品按照最高質量標準生產和配置。因此，即使在極端條件下，對于最復雜的半導體芯片，它們也能可靠地設定速度。
Jauch集團是石英晶體、晶體振蕩器和電池技術的主要專家之一。成立于1954年，我們現在是頻率控制產品領域的領先公司之一，也是鋰離子和鋰聚合物電池新興市場的公認專家。
