JAUCH的STRATUM 3兼容TCXOS和VCTCXOS

NEW: STRATUM 3 COMPLIANT TCXOS AND VCTCXOS FROM JAUCH QUARTZ

Jauch Quartz introduces a new series of temperature-compensated crystal oscillators and their voltage-controlled version. The devices offer Stratum 3 compliant short-term and long-term stability, making them suitable for use in demanding environments. All versions feature a free-run stability of ±4.6 parts per million (ppm) over 20 years and frequency stability of ±0.28 ppm in the extended temperature range up to +105°C.
In addition, this series of (VC)TCXOs features an excellent 24-hour holdover stability of ±0.37 ppm max and superior Allen deviation (ADEV) of 0.1 parts per billion (ppb) typ. / 0.2 ppb max. at an averaging time of 1 second.
Jauch Quartz introduces a new series of temperature-compensated crystal oscillators and their voltage-controlled version. The devices offer Stratum 3 compliant short-term and long-term stability, making them suitable for use in demanding environments. All versions feature a free-run stability of ±4.6 parts per million (ppm) over 20 years and frequency stability of ±0.28 ppm in the extended temperature range up to +105°C.
In addition, this series of (VC)TCXOs features an excellent 24-hour holdover stability of ±0.37 ppm max and superior Allen deviation (ADEV) of 0.1 parts per billion (ppb) typ. / 0.2 ppb max. at an averaging time of 1 second.

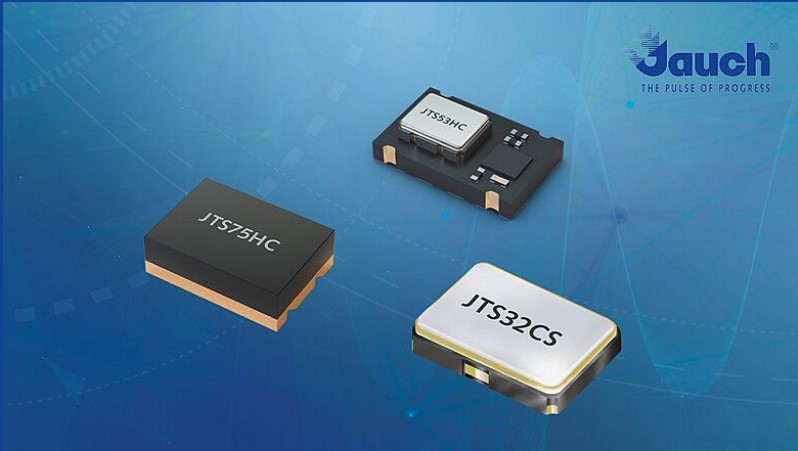

The JTS75HC(V) and JTS53HC(V) versions even provide exceptional frequency stability of up to ±50 ppb to advantageously ease the task of the tight budget for allowed frequency error. These two versions also come with an HCMOS-compatible output, while the smaller JTS32CS(V) version has a clipped sine output.
Both the JTS75HC(V) and JTS53HC(V) are compliant with ITU-T G.8262 Option 1 & 2, Telcordia GR-1244 Core Stratum 3 and GR-253-Core standards. These features make the new Jauch (VC)TCXO series suitable for use in high data rate, low latency communications networks such as SONET, SDH, SERDES, GSM, CDMA, 4G and 5G wireless, Gigabit Ethernet, and 10G and 40G systems or IEEE1588 ordinary, boundary and transparent clocks.
For the physical layer frequency support as a backup for PTP, Stratum 3-compliant (VC)TCXOs can be used in SyncE nodes to increase the resiliency of a synchronized network. For power-sensitive systems such as NICs for PTP networks, these (VC)TCXOs offer an advantage over similarly specified oven-controlled oscillators due to their low supply current of only a few mA.
Further applications are precision GNSS systems as well as GPS disciplined oscillators or test and measurement systems.

JAUCH的STRATUM 3兼容TCXOS和VCTCXOS

Jauch Quartz推出了一系列新的溫度補償晶體振蕩器及其壓控版本。這些器件具有Stratum 3兼容的短期和長期穩定性，適合在苛刻的環境中使用。所有版本在20年內的自由振蕩穩定性為百萬分之4.6(ppm)，在高達+105°c的擴展溫度范圍內的頻率穩定性為0.28 ppm
此外，該系列(VC)TCXO壓控溫補振蕩器具有出色的24小時保持穩定性，最大值為0.37ppm，出色的艾倫偏差(ADEV)典型值為0.1ppb。/最大0.2ppb。平均時間為1秒。

Jauch晶振公司推出了一系列新的溫度補償晶體振蕩器及其壓控版本。這些器件具有Stratum 3兼容的短期和長期穩定性，適合在苛刻的環境中使用。所有版本在20年內的自由振蕩穩定性為百萬分之4.6(ppm)，在高達+105°c的擴展溫度范圍內的頻率穩定性為0.28 ppm。
此外，該系列(VC)TCXO具有出色的24小時保持穩定性，最大值為0.37 ppm，出色的艾倫偏差(ADEV)典型值為0.1 ppb。/最大0.2 ppb。平均時間為1秒。
石英晶體振蕩器JTS75HC(V)和JTS53HC(V)版本甚至提供高達50 ppb的出色頻率穩定性，有利于緩解預算緊張、頻率誤差允許的任務。這兩個版本還帶有HCMOS兼容輸出，而較小的JTS32CS(V)版本具有削波正弦輸出。
JTS75HC(V)和JTS53HC(V)均符合ITU-T G.8262選項1和2、Telcordia GR-1244 Core Stratum 3和GR-253-Core標準。這些特性使得新的Jauch (VC)TCXO系列石英晶振適用于高數據速率、低延遲通信網絡，如SONET、SDH、SERDES、GSM、CDMA、4G和5G無線、千兆以太網、10G和40G系統或IEEE1588普通、邊界和透明時鐘。
對于作為PTP備份的物理層頻率支持，Stratum 3兼容(VC)tcxo可用于SyncE節點，以提高同步網絡的彈性。對于功率敏感型系統，如PTP網絡的網卡，這些(VC)TCXO的電源電流只有幾mA，比類似的恒溫振蕩器更低。
其他應用包括精密GNSS系統以及GPS訓練振蕩器或測試和測量系統。

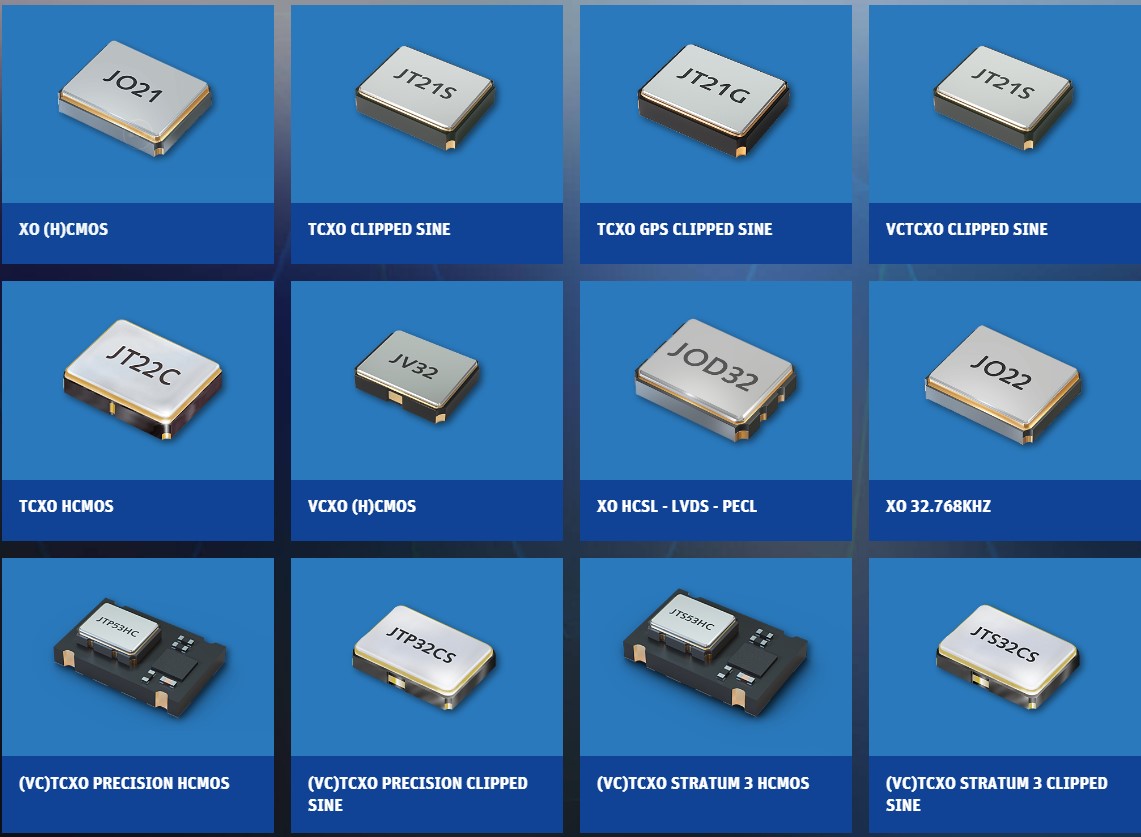

JAUCH晶體振蕩器一覽表，您可以在這里找到適合您應用的振蕩器。無論是固定頻率振蕩器(XO)、溫度補償振蕩器(TCXO)還是壓控振蕩器(VCXO)，它們都能提供最佳精度和質量。
