具備良好性能的無源晶體適合5G室內路由器應用Q22FA23V0002216，日本愛普生晶振公司的名氣并非突然爆發出來的，而是經過很長一段時間的默默無聞，隨之通過自身的打造出優質的石英晶體諧振器產品，一炮而紅，并吸引了無數用戶前來探究其的發展故事，這是一家1942年成立之初,便將綠色創新精神融入自身基因,堅信技術創新?lián)碛锌梢愿淖兪澜绲木薮鬂撃?并在追求商業與自然和諧發展的道路上不斷探索。

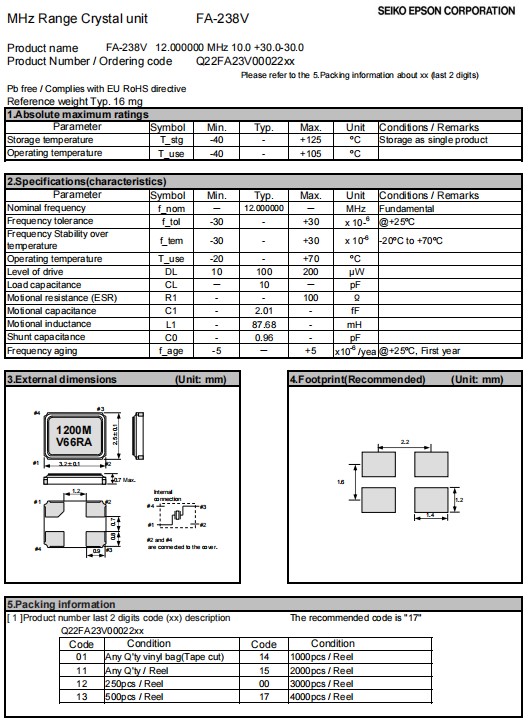

愛普生推出了FA-238V晶振，石英晶振編碼Q22FA23V0002216，頻率12.000000兆赫，尺寸(LxWxH)3.2 x 2.5 x 0.7 mm，客戶負載電容10pf，頻率公差+ / -30 ppm，F(xiàn)o / temp。特征公差+ / -30 ppm，溫度范圍-20至+70°C，具有一定的穩定性能，非常適合5G室內路由器，藍牙彩燈控制模塊，儀器設備，電子數碼產品等行業。

產品編碼	尺寸	EPSON晶振	頻率	負載	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range	ESR [Max]
Q22FA2380192616	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	12 pF	+/-20 ppm	+/-30 ppm	-40 to +105 °C	≤ 50 Ω
Q22FA2380193216	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	18 pF	+/-50 ppm	+/-30 ppm	-40 to +85 °C	≤ 60 Ω
Q22FA2380193616	3.2 x 2.5 x 0.7mm	FA-238	52.000000 MHz	8 pF	+/-25 ppm	+/-30 ppm	-40 to +105 °C	≤ 40 Ω
Q22FA2380193716	3.2 x 2.5 x 0.7mm	FA-238	28.224000 MHz	12 pF	+/-20 ppm	+/-30 ppm	-20 to +70 °C	≤ 50 Ω
Q22FA2380193916	3.2 x 2.5 x 0.7mm	FA-238	16.588800 MHz	7 pF	+/-50 ppm	+/-50 ppm	-30 to +85 °C	≤ 80 Ω
Q22FA2380194216	3.2 x 2.5 x 0.7mm	FA-238	32.000000 MHz	16 pF	+/-50 ppm	+/-30 ppm	-40 to +85 °C	≤ 40 Ω
Q22FA23V0001216	3.2 x 2.5 x 0.7mm	FA-238V	13.560000 MHz	12 pF	+/-50 ppm	+/-30 ppm	-40 to +80 °C	≤ 80 Ω
Q22FA23V0001816	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	12 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0002216	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	10 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0002616	3.2 x 2.5 x 0.7mm	FA-238V	13.000000 MHz	10 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0002716	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	20 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0002816	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	15 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0002916	3.2 x 2.5 x 0.7mm	FA-238V	13.000000 MHz	20 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0003016	3.2 x 2.5 x 0.7mm	FA-238V	13.000000 MHz	20 pF	+/-30 ppm	+/-50 ppm	-20 to +60 °C	≤ 100 Ω
Q22FA23V0003316	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	12 pF	+/-30 ppm	+/-30 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0003716	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	20 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0004416	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	20 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0004816	3.2 x 2.5 x 0.7mm	FA-238V	13.000000 MHz	7 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 100 Ω
Q22FA23V0005216	3.2 x 2.5 x 0.7mm	FA-238V	13.560000 MHz	10 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
Q22FA23V0006816	3.2 x 2.5 x 0.7mm	FA-238V	14.318000 MHz	12 pF	+/-50 ppm	+/-30 ppm	-20 to +70 °C	≤ 80 Ω
