Jauch推出TCXO高精度JT21S專用于無線網絡

返回列表 來源：冠杰電子 瀏覽：- 發布日期：2023-10-19 14:02:46【大 中 小】

Jauch推出TCXO高精度JT21S專用于無線網絡

NEW JAUCH-TCXOS: HIGHEST PRECISION FOR BLUETOOTH, WIFI, ZIGBEE ETC

Whether it’s Bluetooth, ZigBee, WiFi or SigFox; these standards for wireless data transmission operate with extremely low high-frequency channel bandwidths. Wireless applications using these standards thus rely on a highly precise reference clock to guarantee smooth functioning.
In order to meet the needs of these applications, Jauch Quartz has advanced the development of its JT-series, launching the JT21S. This new component is a temperature compensated crystal oscillator (TCXO), characterized by an excellent frequency stability of up to ± 0.5 ppm. The JT21S thus works even more precisely than the other components of the JT product family. The improved pad layout also ensures optimum compatibility with almost all applications.
Under the designation JT21SV, Jauch also offers the new component as VCTCXO with additional voltage control. This enables the user to fine-tune the desired output frequency by at least ± 8.0 ppm.
The JT21S and JT21SV are available in the frequency range from 9.5 MHz to 52.0 MHz. Their operating voltage ranges from 1.8 Volt to 3.3 Volt. Thanks to their "clipped sine" output, typical for the JT-series, both oscillators have very low current consumption.
Measuring only 2.6 mm x 1.6 mm x 0.7 mm, the JT21S and JT21SV are the smallest members of the JT product family and are therefore ideally suited for the use on particularly compact PCBs and circuits. Both components are available for the industrial operating temperature range from -40°C to 85°C.
Besides IoT applications, metering solutions or consumer products benefit from the excellent frequency stability of the new components. Additionally, Jauch recently introduced its newly developed TCXOs JT21G and JT21GE for use in satellite-based navigation systems.

The JT21S and JT21SV are both 100 percent lead-free and RoHS and REACH compliant. Both also comply to conflict minerals regulations.

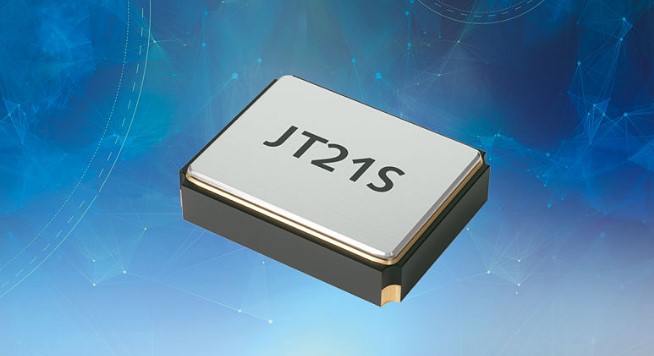

JT21S


Jauch推出TCXO高精度JT21S專用于無線網絡

新的JAUCH-TCXOS:最高精度的藍牙，無線網絡，ZIGBEE等
無論是藍牙、ZigBee、WiFi還是SigFox這些無線數據傳輸標準以極低的高頻信道帶寬工作。因此，使用這些標準的無線應用依賴高度精確的參考時鐘來保證平穩運行。
為了滿足這些應用的需求，Jauch Quartz推進了JT系列的開發，推出了JT21S。這款新器件是一款溫度補償晶振(TCXO)，具有高達0.5ppm的出色頻率穩定性。因此，JT21S比JT產品系列的其他組件工作更精確。改進的焊盤布局也確保了與幾乎所有應用的最佳兼容性。JT21S小體積尺寸：2.0x1.6mm封裝，四腳貼片晶振，石英晶振，TCXO晶振，有源晶振，石英晶體振蕩器。具有超小型，輕薄型，高精度，高性能，高品質，低抖動，低功耗，低電壓，低相位噪聲，低電平等特點。
在JT21SV名稱下，Jauch還提供了帶有附加電壓控制的新元件VCTCXO。這使用戶能夠?qū)⑺栎敵鲱l率微調至少8.0ppm。
JT21S和JT21SV的工作頻率范圍為9.5MHz至52.0MHz。它們的工作電壓從1.8V到3.3V不等。由于其“削波正弦”輸出，典型的JT系列，兩個振蕩器具有非常低的電流消耗。
Jauch晶振JT21S和JT21SV的尺寸僅為2.6mmx1.6mmx0.7mm石英晶振，是JT產品家族中最小的成員，因此非常適合在特別緊湊的PCB和電路上使用。這兩款器件均可用于-40°C至85°C的工業工作溫度范圍。
除了物聯網應用之外，計量解決方案或消費產品也受益于新器件出色的頻率穩定性。此外，Jauch最近推出了新開發的用于衛星導航系統的TCXOs JT21G和JT21GE。
JT21S和JT21SV均為100%無鉛產品，符合RoHS和REACH標準。兩者都符合沖突礦物法規。

貼片晶振 品牌 描述 系列 頻率
Q 26.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 10PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 10PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 10PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 12PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 12PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 12PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 8PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 8PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 8PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 9PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 9PF SMD JXS21-WA 26MHz
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 26MHZ 9PF SMD JXS21-WA 26MHz
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 10PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 10PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 10PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 12PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 12PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 12PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 8PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 8PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 8PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 9PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 27.12MHZ 9PF SMD JXS21-WA 27.12MHz
Q 27.12-JXS21-9-10/10-FU-WA-LF Jauch晶振 CRYSTAL 27.12MHZ 9PF SMD JXS21-WA 27.12MHz
Q 38.4-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 10PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 10PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 10PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 12PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 12PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 12PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 8PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 8PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 8PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 9PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 9PF SMD JXS21-WA 38.4MHz
Q 38.4-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 38.4MHZ 9PF SMD JXS21-WA 38.4MHz
Q 40.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 10PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 10PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 10PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 12PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 12PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 12PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 8PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 8PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 8PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 9PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 9PF SMD JXS21-WA 40MHz
Q 40.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 40MHZ 9PF SMD JXS21-WA 40MHz
Q 32.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 10PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 10PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-10-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 10PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 12PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 12PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-12-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 12PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 8PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 8PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-8-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 8PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 9PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 9PF SMD JXS21-WA 32MHz
Q 32.0-JXS21-9-10/10-FU-WA-LF Jauch Quartz CRYSTAL 32MHZ 9PF SMD JXS21-WA 32MHz
Q 19.2-JXS21-10-10/10-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 10PF SMD JXS21-WA 19.2MHz
Q 19.2-JXS21-10-10/10-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 10PF SMD JXS21-WA 19.2MHz
Q 19.2-JXS21-10-10/10-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 10PF SMD JXS21-WA 19.2MHz
Q 19.2-JXS21-12-10/10-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 12PF SMD JXS21-WA 19.2MHz
Q 19.2-JXS21-12-10/10-WA-LF Jauch Quartz CRYSTAL 19.2MHZ 12PF SMD JXS21-WA 19.2MHz
