Preserve Accurate Timing with Suntsu’s Upgraded GPS Disciplined Oscillator SGO12S Series
Suntsu Crystal released the first version of our GPS Disciplined Oscillator (GPSDO), the SGO10S. Now, we’re happy to say we’ve been working on a new GPSDO to help you build better products. A GPSDO, also called a GPS clock, is made up of a high-stability oscillator and a GPS receiver. These devices work by having the output of the oscillator controlled, or steered, through a tracking loop according to the GPS receiver or GNSS satellite signal.GPS Disciplined Oscillator (GPSDO), the SGO10S

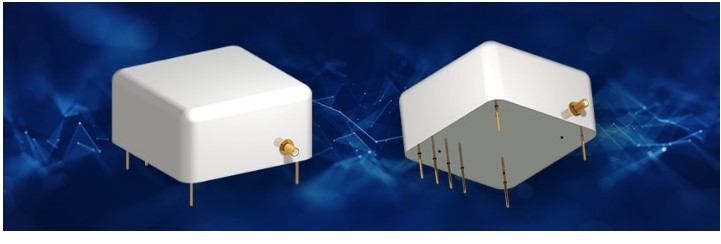

The combination of a GPS receiver and the oscillator allows both short- and long-term stability for the device, making them one of the most accurate and trusted sources of timing. Because of this, GPS clocks are used in various network and satellite systems. Other applications they are good for include functioning as the basis for Coordinated Universal Time (UTC), synchronization to wireless base stations, PNT such as passive radar, critical infrastructure, and Cube and LEO Satellite Communications. After working to upgrade electrical performance and reduce the package size to meet market demands, Suntsu is proud to announce the next GPS Disciplined OCXO series, SGO12S, to our product line. Because we have improved phase noise performance and frequency stability over operating temperature without GPS lock, our upgraded GPSDO can be used for military communication equipment.
Suntsu’s SGO12S includes an internal GNSS receiver with 1PPS output compatible with GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1, WAAS, EGNOS, MSAS, GAGAN, and Galileo applications. This oscillator is also connected to an external antenna via a SMA connector which can maintain a 1PPS signal with a holdover of 1.5µs for a 24-hour period if GNSS signals fail. It’s important to note that a reliable OCXO is necessary to ensure that even when signals are lost, accurate timing is preserved.
Suntsu晶振OCXO系列SGO12S振蕩器保持精確計時
使用Suntsu升級的GPS專業振蕩器SGO12S系列保持精確計時
Suntsu松圖晶振發布了第一個版本的GPS紀律振蕩器(GPSDO)，SGO10S。現在，我們很高興地說，我們正在開發一個新的GPSDO來幫助您構建更好的產品。GPSDO也稱為GPS時鐘，由高穩定性石英晶體振蕩器和GPS接收器組成。這些設備的工作原理是根據GPS接收器或GNSS衛星信號，通過跟蹤環路控制或操縱振蕩器的輸出。
GPS接收器和振蕩器的結合使設備具有短期和長期穩定性，使其成為最精確和最可靠的時間源之一。因此，GPS時鐘被用于各種網絡和衛星系統。它們擅長的其他應用包括用作協調世界時(UTC)的基礎、與無線基站同步、PNT(如無源雷達)、關鍵基礎設施以及Cube和LEO衛星通信。在努力提升電氣性能和縮小封裝尺寸以滿足市場需求后，Suntsu自豪地宣布我們產品線的下一代GPS規范OCXO晶振系列SGO12S。由于我們?cè)跊](méi)有GPS鎖定的情況下改善了工作溫度范圍內的相位噪聲性能和頻率穩定性，因此升級后的GPSDO可用于軍事通信設備。
| SGO12S石英晶振產品規格 | |
| 包裝尺寸 | 50mmx 50mm |
| 頻率 | 10MHz |
|
頻率穩定性與工作溫度的關系 (不帶GPS鎖定) |
-20 ~ 60°C時為0.1ppb |
| 在-20 ~ 70°C范圍內為5.0ppb | |
| -40 ~ 80°C時為15.0ppb | |
| 頻率準確度 | 1ppt |
| 脈沖寬度 | 1PPS基準電壓輸入和輸出 |
| 保持24小時 | 1.5秒 |
| 電源電壓 | 12.0V |
| 其他功能 | 正弦波輸出 |
| 超低相位噪聲 | |
Suntsu的SGO12S有源晶體包括一個內置GNSS接收器，1PPS輸出，兼容GPS/QZSS L1 C/A、GLONASS L10F、北斗B1 SBAS L1、WAAS、EGNOS、MSAS、GAGAN和伽利略應用。該振蕩器還通過SMA連接器連接到外部天線，如果GNSS信號失敗，該連接器可以在24小時內保持1PPS信號，保持時間為1.5 s。需要注意的是，可靠的OCXO是必要的，以確保即使信號丟失，也能保持準確的時序。
SGO12S石英晶體產品特點：
1PPS和10MHz輸出恒溫晶振
GPS/QZSS L1 C/A、GLONASS L10F、北斗B1 SBAS L1
C/A:WAAS、EGNOS、MSAS、GAGAN Galileo E1B/C
頻帶：L1（1575.42MHz）
跟蹤代碼：C/A代碼
跟蹤能力：多達24顆衛星
應用程序：4G/5G/LTE，時鐘源，基站，測試設備，軍事通信設備
恒溫晶體振蕩器——OCXO的
Suntsu晶振廠家，生產的OCXO的有通孔包裝，有多種尺寸可供選擇。我們提供許多不同的電壓和邏輯選項，并可提供800ppt穩定性的器件。從下面列出的數據表中選擇一個標準零件號，或者聯系我們的銷售團隊請求您想要的任何定制參數，我們將根據您的特定需求進行設計。
恒溫晶體振蕩器使用溫控室將振蕩器內部的石英晶體保持在恒定溫度，以防止由于外部溫度變化而導致的頻率變化。OCXO通常用于控制無線電發射機、蜂窩基站、軍事通信設備的頻率，以及需要晶體提供最高頻率穩定性的測量應用。
