Connor-Winfield低相位的溫補有源晶振T602-025.0M常常用于測試和測量,Connor-Winfield公司作為一家全球型計時解決方案公司，一直走在技術的最前沿，憑著自身的努力與奮斗，實現自我價值的同時，也幫助廣大用戶解決在有源晶振產品所遇到的問題點，正是這種幫助他人，成就自我的使命感，使得Connor-Winfield公司不斷超越自我的極限，總能生產出令人出乎領料的產品和高品質，并使每一位用戶對其產生深深的信任感。

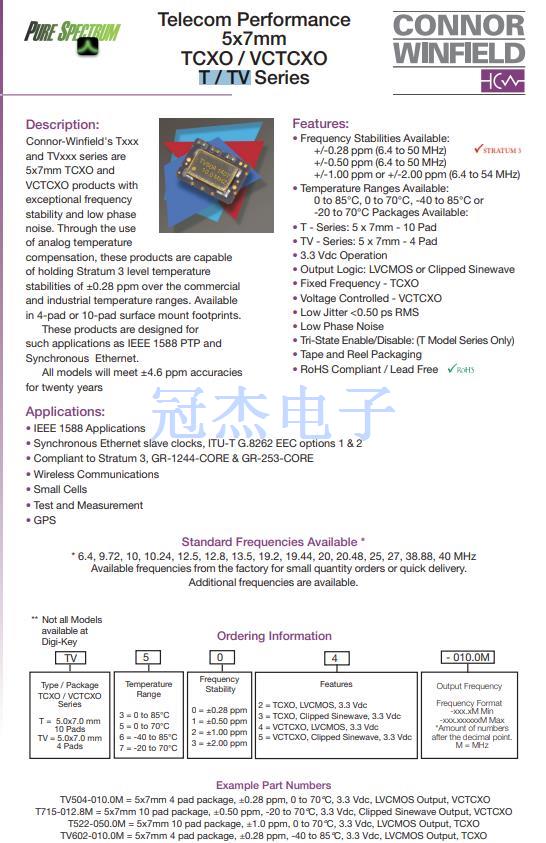

編碼T602-025.0M，康納-溫菲爾德的Txxx 和TVxxx系列都是 5x7毫米TCXO溫補晶振和 VCTCXO產品具有異常頻率，穩定性和低相位噪音。通過使用模擬溫度補償，這些產品有能力保持地層3級溫度與商用產品相比，穩定性為0.28 ppm和工業溫度范圍。采用4焊盤或10焊盤表貼封裝。 這些產品專為諸如IEEE 1588 PTP和同步以太網。 所有型號都將達到4.6 ppm的精度.Connor-Winfield低相位的溫補有源晶振T602-025.0M常常用于測試和測量

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Frequency 頻率	Operating Temperature     工作溫度
T602-020.0M	Connor-Winfield有源晶振	T	20MHz	-40°C ~ 85°C
T602-010.0M	Connor-Winfield有源晶振	T	10MHz	-40°C ~ 85°C
T602-010.0M	Connor-Winfield有源晶振	T	10MHz	-40°C ~ 85°C
T602-010.0M	Connor-Winfield有源晶振	T	10MHz	-40°C ~ 85°C
T604-020.0M	Connor-Winfield有源晶振	T	20MHz	-40°C ~ 85°C
T604-020.0M	Connor-Winfield有源晶振	T	20MHz	-40°C ~ 85°C
T604-020.0M	Connor-Winfield有源晶振	T	20MHz	-40°C ~ 85°C
T604-030.72M	Connor-Winfield有源晶振	T	30.72MHz	-40°C ~ 85°C
T604-030.72M	Connor-Winfield有源晶振	T	30.72MHz	-40°C ~ 85°C
T604-030.72M	Connor-Winfield有源晶振	T	30.72MHz	-40°C ~ 85°C
DV75C-040.0M	Connor-Winfield有源晶振	DV75C	40MHz	-40°C ~ 85°C
DV75C-040.0M	Connor-Winfield有源晶振	DV75C	40MHz	-40°C ~ 85°C
DV75C-040.0M	Connor-Winfield有源晶振	DV75C	40MHz	-40°C ~ 85°C
P143-100.0M	Connor-Winfield有源晶振	P	100MHz	0°C ~ 70°C
D75AS-020.0M	Connor-Winfield有源晶振	D75AS	20MHz	0°C ~ 70°C
D75AS-020.0M	Connor-Winfield有源晶振	D75AS	20MHz	0°C ~ 70°C
D75J-050.0M	Connor-Winfield有源晶振	D75J	50MHz	0°C ~ 70°C
D75J-050.0M	Connor-Winfield有源晶振	D75J	50MHz	0°C ~ 70°C
D75J-038.88M	Connor-Winfield有源晶振	D75J	38.88MHz	0°C ~ 70°C
D75J-038.88M	Connor-Winfield有源晶振	D75J	38.88MHz	0°C ~ 70°C
D75J-038.88M	Connor-Winfield有源晶振	D75J	38.88MHz	0°C ~ 70°C
D75J-040.0M	Connor-Winfield有源晶振	D75J	40MHz	0°C ~ 70°C
D75J-040.0M	Connor-Winfield有源晶振	D75J	40MHz	0°C ~ 70°C
D75J-040.0M	Connor-Winfield有源晶振	D75J	40MHz	0°C ~ 70°C
DV75D-010.0M	Connor-Winfield有源晶振	DV75D	10MHz	-40°C ~ 85°C
DV75D-010.0M	Connor-Winfield有源晶振	DV75D	10MHz	-40°C ~ 85°C
DV75D-010.0M	Connor-Winfield有源晶振	DV75D	10MHz	-40°C ~ 85°C
DV75D-020.0M	Connor-Winfield有源晶振	DV75D	20MHz	-40°C ~ 85°C
DV75D-020.0M	Connor-Winfield有源晶振	DV75D	20MHz	-40°C ~ 85°C
DV75D-020.0M	Connor-Winfield有源晶振	DV75D	20MHz	-40°C ~ 85°C
D75A-010.0M	Connor-Winfield有源晶振	D75A	10MHz	0°C ~ 70°C
D75A-010.0M	Connor-Winfield有源晶振	D75A	10MHz	0°C ~ 70°C
D75A-010.0M	Connor-Winfield有源晶振	D75A	10MHz	0°C ~ 70°C
D75A-019.2M	Connor-Winfield有源晶振	D75A	19.2MHz	0°C ~ 70°C
D75A-019.2M	Connor-Winfield貼片型晶體振蕩器	D75A	19.2MHz	0°C ~ 70°C
D75A-019.2M	Connor-Winfield有源晶振	D75A	19.2MHz	0°C ~ 70°C
DV75C-020.0M	Connor-Winfield有源晶振	DV75C	20MHz	-40°C ~ 85°C
DV75C-020.0M	Connor-Winfield有源晶振	DV75C	20MHz	-40°C ~ 85°C
DV75C-020.0M	Connor-Winfield有源晶振	DV75C	20MHz	-40°C ~ 85°C
DV75C-010.0M	Connor-Winfield有源晶振	DV75C	10MHz	-40°C ~ 85°C
DV75C-010.0M	Connor-Winfield有源晶振	DV75C	10MHz	-40°C ~ 85°C
DV75C-010.0M	Connor-Winfield有源晶振	DV75C	10MHz	-40°C ~ 85°C
P123-125.0M	Connor-Winfield有源晶振	P	125MHz	0°C ~ 70°C
P122-100.0M	Connor-Winfield有源晶振	P	100MHz	0°C ~ 70°C
P122-125.0M	Connor-Winfield有源晶振	P	125MHz	0°C ~ 70°C
D53G-020.0M	Connor-Winfield有源晶振	D53G	20MHz	-30°C ~ 85°C
D53G-020.0M	Connor-Winfield有源晶振	D53G	20MHz	-30°C ~ 85°C
D53G-020.0M	Connor-Winfield有源晶振	D53G	20MHz	-30°C ~ 85°C
D75A-012.8M	Connor-Winfield有源晶振	D75A	12.8MHz	0°C ~ 70°C
D75A-012.8M	Connor-Winfield有源晶振	D75A	12.8MHz	0°C ~ 70°C
D75A-012.8M	Connor-Winfield有源晶振	D75A	12.8MHz	0°C ~ 70°C
D75A-020.0M	Connor-Winfield有源晶振	D75A	20MHz	0°C ~ 70°C
D75A-020.0M	Connor-Winfield有源晶振	D75A	20MHz	0°C ~ 70°C
D75A-020.0M	Connor-Winfield有源晶振	D75A	20MHz	0°C ~ 70°C
P122-156.25M	Connor-Winfield有源晶振	P	156.25MHz	0°C ~ 70°C
P123-156.25M	Connor-Winfield有源晶振	P	156.25MHz	0°C ~ 70°C
T602-025.0M	Connor-Winfield有源晶振	T	25MHz	-40°C ~ 85°C
T602-025.0M	Connor-Winfield有源晶振	T	25MHz	-40°C ~ 85°C
T602-025.0M	Connor-Winfield有源晶振	T	25MHz	-40°C ~ 85°C
T602-020.0M	Connor-Winfield有源晶振	T	20MHz	-40°C ~ 85°C
T602-020.0M	Connor-Winfield有源晶振	T	20MHz	-40°C ~ 85°C

T602-025.0M有源晶體振蕩器特點: 可用的頻率穩定性: +/-0.28 ppm (6.4至50兆赫) +/-0.50 ppm (6.4至50兆赫) +/-1.00 ppm或+/-2.00 ppm (6.4至54 MHz) 可用溫度范圍: 0至85攝氏度，0至70攝氏度，-40至85攝氏度或 -可提供20至70°C的封裝: T系列:5 x 7毫米- 10毫米襯墊 電視系列:5 x 7毫米- 4個墊子 3.3 Vdc操作 輸出邏輯:LVCMOS或削波正弦波 固定頻率- TCXO 電壓控制- VCTCXO 低抖動< 0.50 ps RMS低相位噪聲，三態啟用/禁用:(僅T型號系列) 帶卷包裝 符合RoHS標準/無鉛

應用: IEEE1588應用，同步以太網從時鐘，ITU-T G.8262 EEC選項1和2 符合Stratum 3、GR-1244芯和GR-253芯標準 無線通信，小細胞，測試和測量，全球定位系統.
