當前位置：首頁 » 行業資訊 » HCMOS時鐘振蕩器TC32L5C32K7680實鐘模塊專用晶振

HCMOS時鐘振蕩器TC32L5C32K7680實鐘模塊專用晶振

返回列表 來源：冠杰電子 瀏覽：- 發布日期：2023-04-28 13:33:04【大 中 小】

CTS晶振型號TC32是一個低成本，小尺寸3.2x2.5mm四腳貼片晶振，HCMOS時鐘振蕩器[XO]運行在32.768K有源晶振。TC32采用了提供低電流消耗的IC技術，提供了一個具有優異的穩定性和低相位抖動性能的實時時鐘參考。具有超小型，輕薄型，低功耗，200µA最大，陶瓷表面安裝封裝，基本晶體設計，頻率32.768kHz，石英晶體振蕩器，工作電壓+1.8V，+2.5V或+3.3V，工作溫度范圍到-40°C到+85°C，輸出使標準，磁帶和卷軸包裝，應用程序：實時時鐘參考，物聯網，便攜式電子產品，智能計量，無線通信，遠程信息通信，數據記錄器，定時同步，電池供電的應用程序.HCMOS時鐘振蕩器TC32L5C32K7680實鐘模塊專用晶振

原廠代碼 品牌 型號 頻率 頻率穩定度 包裝/封裝
TC32M5I32K7680 CTS晶振 TC32 32.768kHz ±25ppm 4-SMD, No Lead
TC32N5I32K7680 CTS晶振 TC32 32.768kHz ±25ppm 4-SMD, No Lead
TC32L5I32K7680 CTS晶振 TC32 32.768kHz ±25ppm 4-SMD, No Lead
TC32L5A32K7680 CTS晶振 TC32 32.768kHz ±25ppm 4-SMD, No Lead
TC32L3A32K7680 美國CTS晶振 TC32 32.768kHz ±50ppm 4-SMD, No Lead
TC32N3A32K7680 CTS晶振 TC32 32.768kHz ±50ppm 4-SMD, No Lead
TC32M5A32K7680 CTS晶振 TC32 32.768kHz ±25ppm 4-SMD, No Lead
TC32L3I32K7680 CTS晶振 TC32 32.768kHz ±50ppm 4-SMD, No Lead
TC32N3I32K7680 CTS晶振 TC32 32.768kHz ±50ppm 4-SMD, No Lead
TC32V5A32K7680 CTS晶振 TC32 32.768kHz ±25ppm 4-SMD, No Lead
TC32V5I32K7680 CTS晶振 TC32 32.768kHz ±25ppm 4-SMD, No Lead
TC32V3I32K7680 CTS晶振 TC32 32.768kHz ±50ppm 4-SMD, No Lead
TC32L5C32K7680 CTS晶振 TC32 32.768kHz ±25ppm 4-SMD, No Lead
TC32L3C32K7680 CTS晶振 TC32 32.768kHz ±50ppm 4-SMD, No Lead
TC32N5C32K7680 CTS晶振 TC32 32.768kHz ±25ppm 4-SMD, No Lead
TC32N3C32K7680 CTS晶振 TC32 32.768kHz ±50ppm 4-SMD, No Lead
TC32M5C32K7680 CTS晶振 TC32 32.768kHz ±25ppm 4-SMD, No Lead
TC32M3C32K7680 CTS晶振 TC32 32.768kHz ±50ppm 4-SMD, No Lead
TC32V5C32K7680 CTS晶振 TC32 32.768kHz ±25ppm 4-SMD, No Lead
TC32V3C32K7680 CTS晶振 TC32 32.768kHz ±50ppm 4-SMD, No Lead
TC32N5A32K7680 CTS晶振 TC32 32.768kHz ±25ppm 4-SMD, No Lead
TC32M3A32K7680 CTS晶振 TC32 32.768kHz ±50ppm 4-SMD, No Lead
TC32M3I32K7680 CTS晶振 TC32 32.768kHz ±50ppm 4-SMD, No Lead
TC32V3A32K7680 進口晶振 TC32 32.768kHz ±50ppm 4-SMD, No Lead
TC32L6C32K7680 CTS晶振 TC32 32.768kHz ±20ppm 4-SMD, No Lead
TC32N6C32K7680 CTS晶振 TC32 32.768kHz ±20ppm 4-SMD, No Lead
TC32M6C32K7680 CTS晶振 TC32 32.768kHz ±20ppm 4-SMD, No Lead
TC32V6C32K7680 CTS晶振 TC32 32.768kHz ±20ppm 4-SMD, No Lead
TC32M6A32K7680 CTS晶振 TC32 32.768kHz ±20ppm 4-SMD, No Lead
TC32V6A32K7680 CTS晶振 TC32 32.768kHz ±20ppm 4-SMD, No Lead
TC32L6A32K7680 CTS晶振 TC32 32.768kHz ±20ppm 4-SMD, No Lead
TC32N6A32K7680 CTS晶振 TC32 32.768kHz ±20ppm 4-SMD, No Lead
HCMOS時鐘振蕩器TC32L5C32K7680實鐘模塊專用晶振，晶振素有“工業之鹽”之稱，可以說，有電子產品的地方就有石英晶振，像人類的“心臟”一樣，每時每刻穩定地發送著時鐘信號，使數字電路正常運轉。時鐘晶體振蕩器是利用了晶體的壓電效應制造的,當在晶片的兩面上加交變電壓時，晶片會反復的機械變形而產生振動，而這種機械振動又會反過來產生交變電壓。

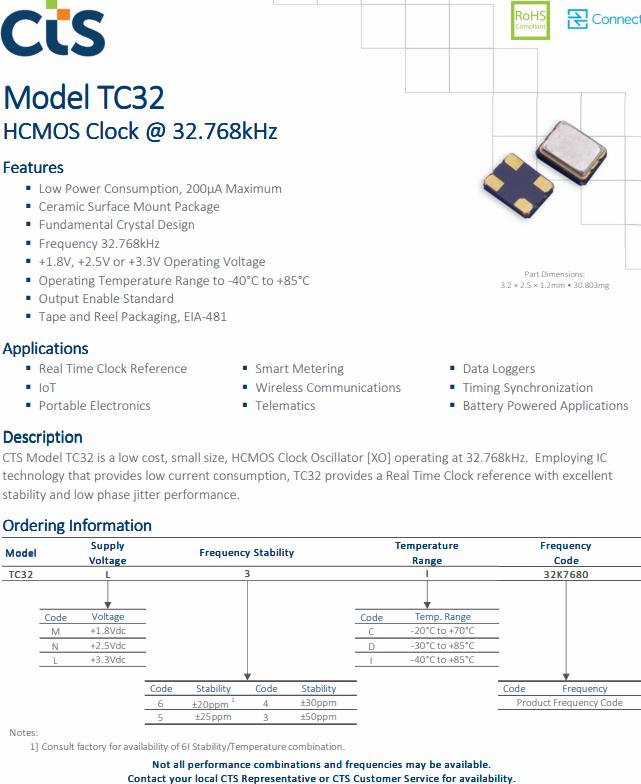

CTS TC32 11
