低抖動的LVDS差分晶振適合汽車氛圍燈控制器X1G004281004900，愛普生公司是一家成立于1942年的杰出制造商，通過自身的實力，實現名利和財富雙贏的局面，憑的是自身的魄力，以及敢于不斷挑戰自我的極限，使得其在晶體行業擁有許多的機會，開發很多優質的石英晶振產品，并將綠色創新精神融入自身基因,堅信技術創新?lián)碛锌梢愿淖兪澜绲木薮鬂撃?并在追求商業與自然和諧發展的道路上不斷探索。

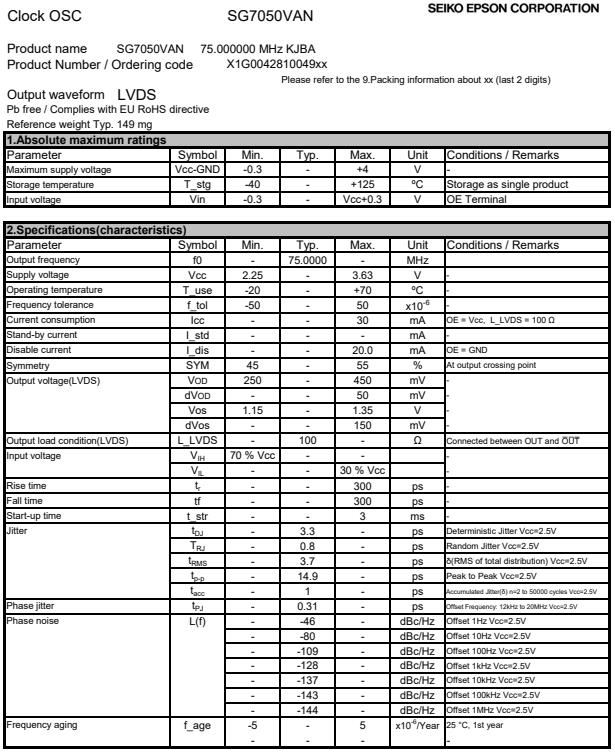

愛普生公司很高興推出了的這款SG7050VAN晶振，OSC晶振編碼X1G004281004900，頻率75.000000兆赫，輸出WaveLVDS，電源電壓2.25 ~ 3.63 V，尺寸(LxWxH)7.00 x 5.00 x 1.60 mm，操作溫度-20至+70°C，頻率公差±50ppm，額外的OptionsN /OSC TypeClock OSC，具有低電壓，低相噪的特點,非常適用于汽車氛圍燈，無人機，智能家居，航空電子等領域,SG7050VAN晶振其小體積,高精度,低功耗的特性以及優良的耐熱性與耐環境特性,成為智能家居，無人機的最佳之選。

Product Number	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G004281003200	SG7050VAN	155.520000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004281003300	SG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004281003400	SG7050VAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004281003500	SG7050VAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004281003600	SG7050VAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004281003800	SG7050VAN	700.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004281003900	SG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS晶振	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1G004281004000	SG7050VAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1G004281004200	SG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1G004281004300	SG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1G004281004400	SG7050VAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1G004281004500	SG7050VAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1G004281004600	SG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1G004281004700	SG7050VAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1G004281004800	SG7050VAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1G004281004900	SG7050VAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1G004281005000	SG7050VAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1G004281005200	SG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1G004281005300	SG7050VAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1G004281005400	SG7050VAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
X1G004281005500	SG7050VAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-50 ppm
