帶電壓且CMOS輸出的普通有源晶振X1G005601017300，近年來，由衷感受到人工智能，5G通信，物聯網等帶來的震撼和便利，而這些產品的推出，其核心都離不開那顆被稱之為心臟的晶振，晶振對于很多電子產品來說都是福音一般的存在，能夠解決產品的穩定性能以及耐壓性能，我們都知道在有源晶體振蕩器的世界里,自從誕生以來就一直在通信、電子、航海航空航天及醫學等領域扮演重要的角色,具有廣泛的用途。在無線電技術發展的初期,它就在發射機中用來產生高頻載波電壓,在超外差接收機中用作本機振蕩器,成為發射和接收設備的基本部件。

Product Number	愛普生晶振型號	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.	I [Max]
X1G005601014400	SG-8018CG	3.686400 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601014500	SG-8018CG	3.686400 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601014600	SG-8018CG	49.152000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601014700	SG-8018CG	4.194304 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601014800	SG-8018CG	16.483200 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601014900	SG-8018CG	51.840000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 5.2 mA
X1G005601015000	SG-8018CG	77.760000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 5.9 mA
X1G005601015100	SG-8018CG	12.800000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601015200	SG-8018CG	1.024000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601015300	SG-8018CG	0.819200 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601015400	SG-8018CG	37.125000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601015500	SG-8018CG	148.500000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 8.1 mA
X1G005601015600	SG-8018CG	74.250000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 5.2 mA
X1G005601015700	SG-8018CG	13.225600 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601015800	SG-8018CG	104.857600 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 6.7 mA
X1G005601015900	SG-8018CG	9.900000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601016000	SG-8018CG	18.430000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601016500	SG-8018CG	35.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA
X1G005601016600	SG-8018CG	15.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601016700	SG-8018CG	9.830400 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601016800	SG-8018CG	9.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601016900	SG-8018CG	2.097000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601017000	SG-8018CG	6.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601017100	SG-8018CG	11.059200 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601017200	SG-8018CG	9.900000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601017300	SG-8018CG	12.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 3.5 mA
X1G005601017400	SG-8018CG	33.500000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm	≤ 4.4 mA

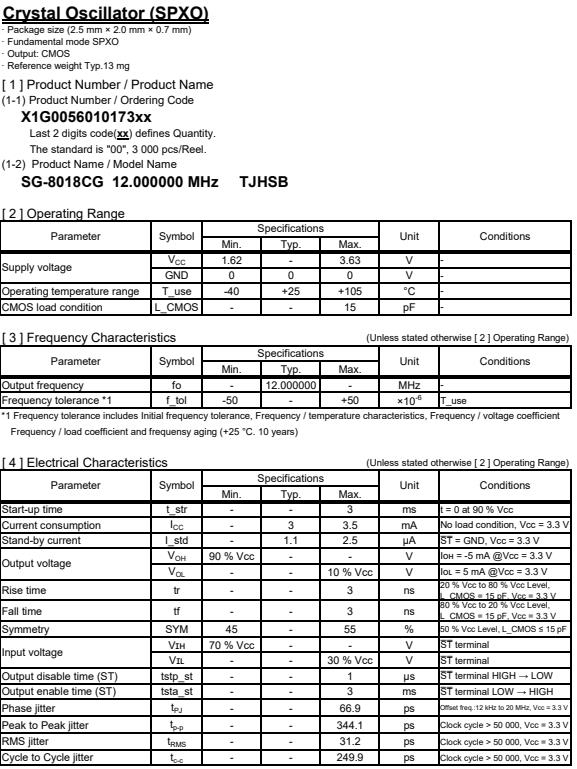

愛普生的這款SG-8018CG晶振，普通有源晶振編碼X1G005601017300，頻率12.000000兆赫,輸出WaveCMOS，供電電壓1.62至3.63 V，尺寸(長×寬×高)2.50 × 2.00 × 0.80毫米，工作溫度-40到+105°C，頻率公差±50ppm，額外的OptionsN /，OSC TypeProgrammable Clock時鐘OSC,具有非常高的穩定性,非常適用于智能穿戴設備設計,小體積,高精度,低功耗的特性以及優良的耐熱性與耐環境特性,成為智能穿戴設備時鐘的最佳之選.
