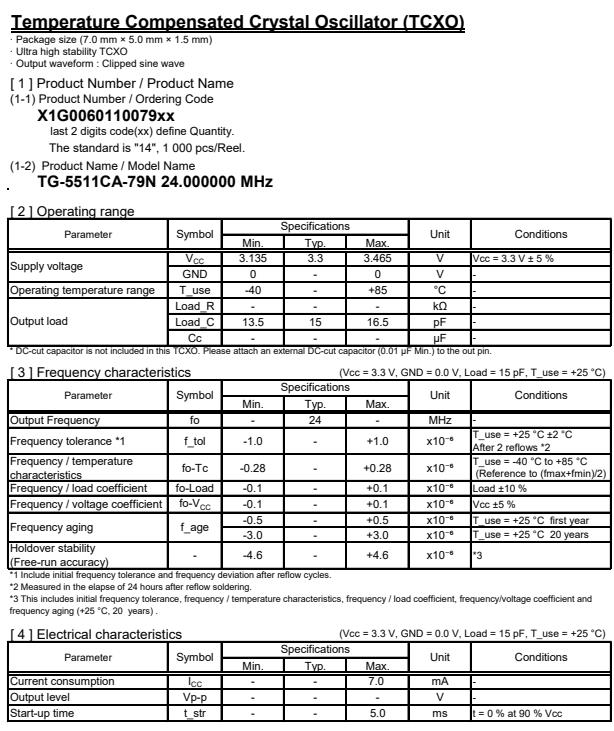

溫補晶振編碼X1G006011007914是蘋果手機智能音響的臻選，愛普生公司經過多年的積累，擁有獨特的創新能力，以及快速交付的能力，通過自身的成長，開發了許多新興產品，因其對于晶振產品有著獨特心得，開發這款TG-5511CA晶振，編碼X1G006011007914，頻率24.000000兆赫，輸出剪波正弦波，電源電壓3.13 ~ 3.46 V，電源電壓(一般)3.300 V，尺寸(LxWxH)7.0 x 5.0 x 1.5 mm，操作溫度-40至+85°C，頻率公差+/- 1.0 ppm，這是一款高精度，低抖動的溫補晶振，十分適合用于蘋果手機智能音響，醫療設備，無線模塊等領域。

在2010年全球晶振廠家排名中,占據首位.愛普生僅此一項水晶振動子行業就能足矣讓電子世界的人都敬佩不已.愛普生晶體以32.768KHZ晶振稱霸晶振行業,主要消費在手機,PCB,等電子產品.同時愛普生以提供原子鐘的精準振蕩器知名業界.

編碼	型號	頻率	尺寸	電源電壓	F.Tol@25°C	Ope Temperature	Freq/Temp
X1G006011004214	TG-5511CA	19.200000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C	+/-0.28 ppm
X1G006011004314	TG-5511CA	20.000000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C	+/-0.28 ppm
X1G006011004414	TG-5511CA	24.576000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C	+/-0.28 ppm
X1G006011004514	TG-5511CA	25.000000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C	+/-0.28 ppm
X1G006011004614	TG-5511CA	38.880000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C	+/-0.28 ppm
X1G006011004714	TG-5511CA	40.000000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C	+/-0.28 ppm
X1G006011004814	TG-5511CA	50.000000 MHz	7050石英晶振	3.135 to 3.465 V	+/-1.0 ppm	-40 to +105 °C	+/-0.28 ppm
X1G006011007614	TG-5511CA	30.720000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G006011007714	TG-5511CA	24.576000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G006011007814	TG-5511CA	49.152000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G006011007914	TG-5511CA	24.000000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C	+/-0.28 ppm
X1G006011008014	TG-5511CA	48.000000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C	+/-0.28 ppm
X1G006011008114	TG-5511CA	19.200000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G006011008214	TG-5511CA	38.400000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G006011008314	TG-5511CA	27.000000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C	+/-0.28 ppm
X1G006011009014	TG-5511CA	25.000000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G006011009114	TG-5511CA	19.440000 MHz	7.00 x 5.00 x 1.50 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
