當前位置：首頁 » 行業資訊 » KX501系列32.768kHz超小型5032mm晶體振蕩器,KX5011AS032.768000,時鐘晶體振蕩器

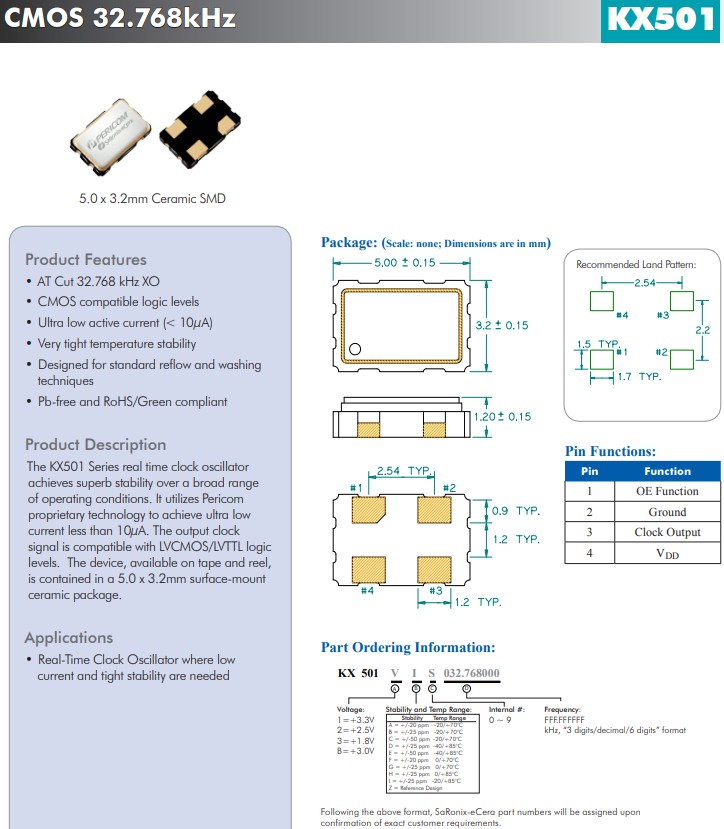

KX501系列32.768kHz超小型5032mm晶體振蕩器,KX5011AS032.768000,時鐘晶體振蕩器

返回列表 來源：冠杰電子 瀏覽：- 發布日期：2022-07-13 08:45:48【大 中 小】

亞陶晶振KX501系列實時時鐘晶體振蕩器在廣泛的工作條件下實現了卓越的穩定性。KX501系列1.8V/2.5V/3.3V, 小體積尺寸5.0x3.2mm, 32.768kHz， CMOS晶體振蕩器，它利用Pericom專有技術實現小于10μA的超低電流。輸出時鐘信號與LVCMOS/LVTTL 邏輯電平兼容。該器件采用卷帶包裝，采用5.0x3.2mm表面貼裝陶瓷封裝

特征：
AT Cut 32.768kHz晶振 XO
CMOS兼容邏輯電平
超低有功電流（< 10μA）
非常嚴格的溫度穩定性
專為標準回流和清洗技術而設計
無鉛且符合 RoHS/Green 標準
應用：需要低電流和高度穩定性的實時時鐘振蕩器

KX501系列32.768kHz超小型5032mm晶體振蕩器,KX5011AS032.768000,時鐘晶體振蕩器

UX72F6214Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX72F6214Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX72F6214Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX31F6203Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6203Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6203Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6201Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6201Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6201Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX52I0501Z Diodes Incorporated SaRonix-eCera™ UX 180.55MHz ±50ppm -40°C ~ 85°C
UX52I0501Z Diodes Incorporated SaRonix-eCera™ UX 180.55MHz ±50ppm -40°C ~ 85°C
UX52I0501Z Diodes Incorporated SaRonix-eCera™ UX 180.55MHz ±50ppm -40°C ~ 85°C
NX7021D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm -40°C ~ 85°C
NX7021D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm -40°C ~ 85°C
NX7021D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm -40°C ~ 85°C
KD3270037 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KD3270037 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KD3270037 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KX2513G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 70°C
KX3211A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
KX3211A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
KX3211A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
YNETHE125 Diodes Incorporated SaRonix-eCera™ ASSP VCXO 125MHz ±50ppm -40°C ~ 85°C
YNETHE125 Diodes Incorporated SaRonix-eCera™ ASSP VCXO 125MHz ±50ppm -40°C ~ 85°C
YNETHE125 Diodes Incorporated SaRonix-eCera™ ASSP VCXO 125MHz ±50ppm -40°C ~ 85°C
KX3211D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -40°C ~ 85°C

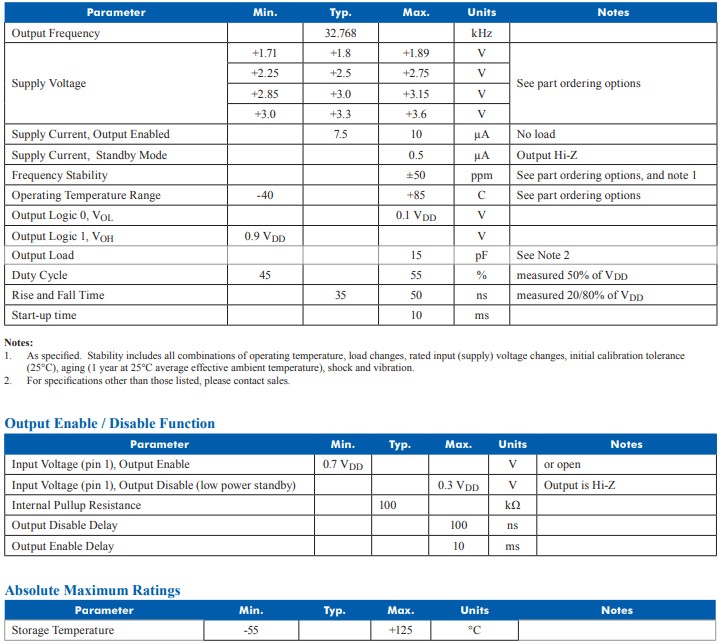

Product Parameters

Output Logic CMOS
Supply Voltage (V) 1.8,2.5,3.3
Package Size (mm) 5.0 x 3.2 x 1.2
PkgType Ceramic Seam
Stability (PPM) 20 to 50
ProductSeries KX501
Freq Range (MHz) 32.768KHZ
Jitter RMS (ps) <1 PS
Pads 4
Family kHz XO

KX501系列32.768kHz超小型5032mm晶體振蕩器,KX5011AS032.768000,時鐘晶體振蕩器

產品參數：

輸出邏輯 CMOS
電源電壓 1.8V,2.5V,3.3V
包裝尺寸 5.0x3.2x1.2mm小體積晶振
包裝類型 陶瓷縫
穩定性 20PPM到50PPM
產品系列 KX501
頻率范圍 (MHz) 32.768KHZ
抖動均方根 (ps) <1 PS
墊 4腳
家庭 千赫XO
FRSTB1027 Diodes Incorporated SaRonix-eCera™ FR 27MHz ±25ppm -20°C ~ 70°C
FRTELE016 Diodes Incorporated SaRonix-eCera™ FR 16.384MHz ±25ppm -20°C ~ 70°C
FRETHE025 Diodes Incorporated SaRonix-eCera™ FR 25MHz ±25ppm -20°C ~ 70°C
KX2013B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX2013D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -40°C ~ 85°C
KX2511A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
KX2513D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -40°C ~ 85°C
KJ3270008 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
KJ3270008 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
KJ3270008 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
JX7011E0059.000000 Diodes Incorporated SaRonix-eCera™ JX 59MHz ±50ppm -40°C ~ 85°C
JX7011E0059.000000 Diodes Incorporated SaRonix-eCera™ JX 59MHz ±50ppm -40°C ~ 85°C
JX7011E0059.000000 Diodes Incorporated SaRonix-eCera™ JX 59MHz ±50ppm -40°C ~ 85°C
KK3270046 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KK3270046 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KK3270046 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KD3270031 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KD3270031 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KD3270031 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KK3270045 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270045 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270045 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270049 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270049 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270049 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
12

KK3270052 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -20°C ~ 70°C
KK3270052 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -20°C ~ 70°C
KK3270052 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -20°C ~ 70°C
JX7011B0044.736000 Diodes Incorporated SaRonix-eCera™ JX 44.736MHz ±25ppm -20°C ~ 70°C
JX7011B0044.736000 Diodes Incorporated SaRonix-eCera™ JX 44.736MHz ±25ppm -20°C ~ 70°C
JX7011B0044.736000 Diodes Incorporated SaRonix-eCera™ JX 44.736MHz ±25ppm -20°C ~ 70°C
KK3270051 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KK3270051 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KK3270051 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
JX5011C0120.000000 Diodes Incorporated SaRonix-eCera™ JX 120MHz ±50ppm -20°C ~ 70°C
JX5011C0120.000000 Diodes Incorporated SaRonix-eCera™ JX 120MHz ±50ppm -20°C ~ 70°C
JX5011C0120.000000 Diodes Incorporated SaRonix-eCera™ JX 120MHz ±50ppm -20°C ~ 70°C
KX2132709Z Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX2132709Z Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX2132709Z Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
JX7012D0025.001875 Diodes Incorporated SaRonix-eCera™ JX 25.001875MHz ±25ppm -40°C ~ 85°C
JX7012D0025.001875 Diodes Incorporated SaRonix-eCera™ JX 25.001875MHz ±25ppm -40°C ~ 85°C
JX7012D0025.001875 Diodes Incorporated SaRonix-eCera™ JX 25.001875MHz ±25ppm -40°C ~ 85°C
JX7011E0091.500000 Diodes Incorporated SaRonix-eCera™ JX 91.5MHz ±50ppm -40°C ~ 85°C
JX7011E0091.500000 Diodes Incorporated SaRonix-eCera™ JX 91.5MHz ±50ppm -40°C ~ 85°C
JX7011E0091.500000 Diodes Incorporated SaRonix-eCera™ JX 91.5MHz ±50ppm -40°C ~ 85°C
KJ3270004Z Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±50ppm -20°C ~ 70°C
KJ3270004Z Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±50ppm -20°C ~ 70°C
KJ3270004Z Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±50ppm -20°C ~ 70°C
PD10GE159 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 159.375MHz ±50ppm -20°C ~ 70°C

我們的32.768kHz晶體振蕩器(XO)具有適用于各種應用的卓越性能。我們的產品包括世界上最小的32.768kHz晶體振蕩器(XO)，尺寸僅為2.0x1.6mm（KM 系列）。KM系列旨在應對小型化的挑戰，同時保持時序信號的卓越精度。我們還提供 KX 系列晶體振蕩器，它們是業界功耗最低（小于10 µA）和最嚴格穩定性 (+/- 20 ppm) 的32kHz XO。
由于許多低功耗和便攜式應用程序大部分時間都處于待機模式，因此這些系統必須最大限度地降低待機功耗。我們基于32.768kHz的定時源允許這些系統快速轉換到待機模式（<10ms），以最大限度地延長電池壽命，而不會犧牲維持準確時鐘和日歷所需的穩定性（± 20ppm）。

KX501系列32.768kHz超小型5032mm晶體振蕩器,KX5011AS032.768000,時鐘晶體振蕩器

PD10GE159 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 159.375MHz ±50ppm -20°C ~ 70°C
PD10GE159 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 159.375MHz ±50ppm -20°C ~ 70°C
PDGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
PDGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
PDGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
JX7011D0104.000000 Diodes Incorporated SaRonix-eCera™ JX 104MHz ±25ppm -40°C ~ 85°C
JX7011D0104.000000 Diodes Incorporated SaRonix-eCera™ JX 104MHz ±25ppm -40°C ~ 85°C
JX7011D0104.000000 Diodes Incorporated SaRonix-eCera™ JX 104MHz ±25ppm -40°C ~ 85°C
JT255BI0032.000000 Diodes Incorporated SaRonix-eCera™ JT 32MHz ±2ppm -30°C ~ 85°C
JT255BI0032.000000 Diodes Incorporated SaRonix-eCera™ JT 32MHz ±2ppm -30°C ~ 85°C
JT255BI0032.000000 Diodes Incorporated SaRonix-eCera™ JT 32MHz ±2ppm -30°C ~ 85°C
LDA000004 Diodes Incorporated SaRonix-eCera™ LD 100MHz ±50ppm -40°C ~ 85°C
FN2500246 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500246 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500246 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN1000064 Diodes Incorporated SaRonix-eCera™ FN 10MHz ±50ppm -20°C ~ 70°C
FN1000064 Diodes Incorporated SaRonix-eCera™ FN 10MHz ±50ppm -20°C ~ 70°C
FN1000064 Diodes Incorporated SaRonix-eCera™ FN 10MHz ±50ppm -20°C ~ 70°C
UJ2600001 Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -30°C ~ 85°C
UJ2600001 Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -30°C ~ 85°C
UJ2600001 Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -30°C ~ 85°C
FN7500043 Diodes Incorporated SaRonix-eCera™ FN 75MHz ±25ppm -20°C ~ 70°C
FN7500043 Diodes Incorporated SaRonix-eCera™ FN 75MHz ±25ppm -20°C ~ 70°C
FN7500043 Diodes Incorporated SaRonix-eCera™ FN 75MHz ±25ppm -20°C ~ 70°C
FNSTB1027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C

KX501系列32.768kHz超小型5032mm晶體振蕩器,KX5011AS032.768000,時鐘晶體振蕩器

KX201 1.82.53.3 2.0x1.6x0.75 陶瓷縫 20~50 KX201 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.0x1.6mm,

32.768kHz CMOS晶體振蕩器

KX251 1.82.53.3 2.5x2.0x0.9 陶瓷縫 20~50 KX251 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.5x2.0mm,

32.768k振蕩器CMOS晶體振蕩器

KX31Q 3.32.51.8 3.2x2.5 陶瓷縫 20~50 KXQ 32.768KHZ <1 4 1.8/2.5/3.3V、3.2x2.5mm、超低電流、

32.768KHz、汽車級CMOS晶體振蕩器
KX321 1.82.53.3 3.2x2.5x1.0 陶瓷縫 20~50 KX321 32.768KHZ <1 4 1.8V/2.5V/3.3V, 3.2x2.5mm,

32.768kHz CMOS晶體振蕩器
KX501 1.82.53.3 5.0x3.2x1.2 陶瓷縫 20~50 KX501 32.768KHZ <1 4 1.8V/2.5V/3.3V, 5.0x3.2mm,

32.768kHz CMOS晶體振蕩器
