百利通亞陶晶振公司的總部位于美國德克薩斯州的密爾皮特斯.主要生產晶振,石英晶振,有源晶振,壓控振蕩器,壓電石英晶體元器件、壓電石英晶體、有源晶振等水晶元件以及二極管、整流橋、晶體管、場效應管等等.還包括電源管理設備,如LED驅動、交直流轉換器和控制器,電源開關和線性穩壓器和電壓參考特殊功能的設備,如USB電源開關、負荷開關、電壓主管,和馬達控制器.

擴頻晶體振蕩器SSXO使用專有的PLL和擴頻時鐘發生器(SSCG)技術來合成和調制輸入晶體的頻率。測量的基頻和諧波頻率處的輻射能量被降低，以符合電磁兼容性 (EMC) 要求。內部出廠設置功能可靈活選擇輸出頻率、調制率和擴頻比。MD系列擴頻晶體振蕩器,FM3900001Z,KM3270004,晶體振蕩器,ECERA晶振

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Frequency 頻率	Frequency Stability頻率穩定度
FNETHE025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm
FNETHE025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm
FNETHE025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm
FNSURV027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm
FNSURV027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm
FNSURV027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm
FNGEPO002	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	2.048MHz	±50ppm
FNGEPO002	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	2.048MHz	±50ppm
FNGEPO002	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	2.048MHz	±50ppm
FKSSD1025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm
FKSSD1025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm
FKSSD1025	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	25MHz	±25ppm
UJWIFI026	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	26MHz	±20ppm
UJWIFI026	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	26MHz	±20ppm
UJWIFI026	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	26MHz	±20ppm
FNEPON125	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	125MHz	±50ppm
FNEPON125	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	125MHz	±50ppm
FNEPON125	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	125MHz	±50ppm
FK1330001Z	Diodes Incorporated	SaRonix-eCera™ FK	13.3333MHz	±25ppm
FK1330001Z	Diodes Incorporated	SaRonix-eCera™ FK	13.3333MHz	±25ppm
FK1330001Z	Diodes Incorporated	SaRonix-eCera™ FK	13.3333MHz	±25ppm
FJ2400011	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm
FJ2400011	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm
FJ2400011	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm
FJ2400002	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm
FJ2400002	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm
FJ2400002	Diodes Incorporated	SaRonix-eCera™ FJ	24MHz	±50ppm
FN2500149	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm
FN2500149	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm

MD系列擴頻晶體振蕩器,FM3900001Z,KM3270004,晶體振蕩器,ECERA晶振

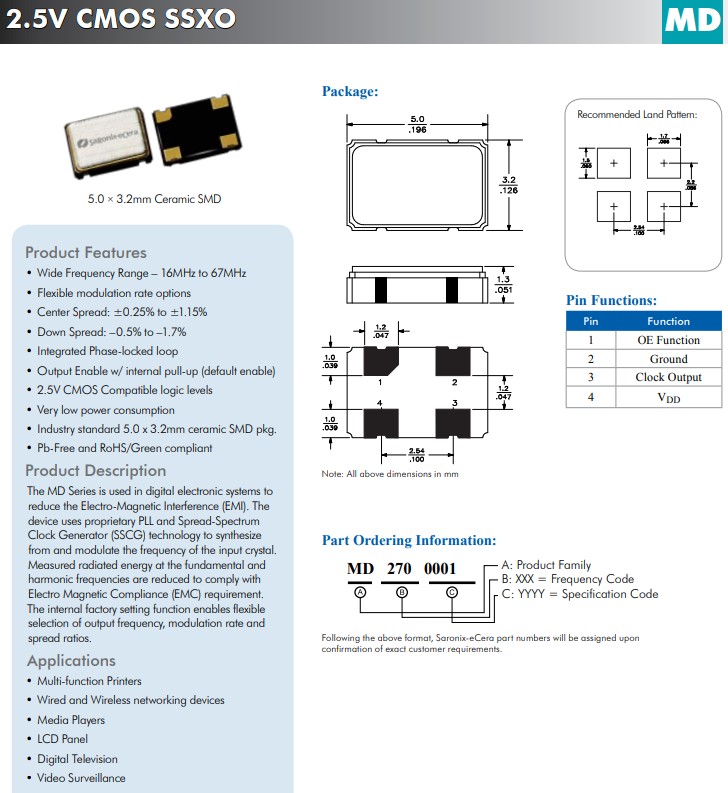

MD系列用于數字電子系統以減少電磁干擾(EMI)。低功耗晶振，該器件使用專有的PLL和擴頻時鐘發生器(SSCG)技術來合成和調制輸入晶體的頻率。測量的基頻和諧波頻率處的輻射能量被降低，以符合電磁兼容性(EMC)要求。內部出廠設置功能可靈活選擇輸出頻率、調制率和擴頻比。

特征：
寬頻率范圍-16MHz至67MHz
靈活的調制速率選項
中心擴散：±0.25%至±1.15%
向下點差：–0.5%至–1.7%
集成鎖相環
帶內部上拉的輸出使能（默認使能）
2.5V CMOS兼容邏輯電平
行業標準5.0x3.2mm陶瓷SMD晶振封裝
無鉛且符合RoHS/Green 標準
應用：
多功能打印機
有線和無線網絡設備
媒體播放器
液晶面板
數字電視
視頻監控

FN2500149	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm
SXGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm
SXGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm
SXGPON155	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	155.52MHz	±50ppm
HX2513F0026.000000	Diodes Incorporated	SaRonix-eCera™ HX	26MHz	±50ppm
HX2513F0026.000000	Diodes Incorporated	SaRonix-eCera™ HX	26MHz	±50ppm
HX2513F0026.000000	Diodes Incorporated	SaRonix-eCera™ HX	26MHz	±50ppm
HX3125006Q	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±30ppm
HX3125006Q	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±30ppm
HX3125006Q	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±30ppm
NX3211C0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm
NX3211C0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm
NX3211C0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm
FJ1600002	Diodes Incorporated	SaRonix-eCera™ FJ	16MHz	±50ppm
FJ1600002	Diodes Incorporated	SaRonix-eCera™ FJ	16MHz	±50ppm
FJ1600002	Diodes Incorporated	SaRonix-eCera™ FJ	16MHz	±50ppm
JX7011D0070.656000	Diodes Incorporated	SaRonix-eCera™ JX	70.656MHz	±25ppm
JX7011D0070.656000	Diodes Incorporated	SaRonix-eCera™ JX	70.656MHz	±25ppm
JX7011D0070.656000	Diodes Incorporated	SaRonix-eCera™ JX	70.656MHz	±25ppm
UJ2600007Z	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm
UJ2600007Z	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm
UJ2600007Z	Diodes Incorporated	SaRonix-eCera™ UJ	26MHz	±20ppm
FJ1120001Z	Diodes Incorporated	SaRonix-eCera™ FJ	11.2896MHz	±25ppm
FJ1120001Z	Diodes Incorporated	SaRonix-eCera™ FJ	11.2896MHz	±25ppm
FJ1120001Z	Diodes Incorporated	SaRonix-eCera™ FJ	11.2896MHz	±25ppm
FDC500026	Diodes Incorporated	SaRonix-eCera™ FD	125MHz	±50ppm
FDC500026	Diodes Incorporated	SaRonix-eCera™ FD	125MHz	±50ppm
FDC500026	Diodes Incorporated	SaRonix-eCera™ FD	125MHz	±50ppm
HX7011C0025.000000	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±25ppm
HX7011C0025.000000	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±25ppm

Product Parameters

ProductSeries	MD_2
Family	SSXO
OutputLogic	CMOS
Supply Voltage (V)	2.5
Freq Range (MHz)	1 to 200
Jitter RMS (ps)	<200 ps cy-cy
PkgType	Ceramic Seam
Package Size (mm)	5.0 x 3.2 x 1.3
Pads	4
NotRecommended	0

MD系列擴頻晶體振蕩器,FM3900001Z,KM3270004,晶體振蕩器,ECERA晶振

產品參數：

產品系列 MD_2
家庭SSXO
輸出邏輯 CMOS
電源電壓 2.5V
頻率范圍 1MHz到200MHz
抖動均方根 (ps) <200 ps周期
包裝類型 陶瓷縫
包裝尺寸5.0x3.2x1.3mm
墊 4

不建議 0

HX7011C0025.000000	Diodes Incorporated	SaRonix-eCera™ HX	25MHz	±25ppm
NX5011B0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm
NX5011B0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm
NX5011B0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm
FNA000088Z	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm
FNA000088Z	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm
FNA000088Z	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±50ppm
FNA000065	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±25ppm
FNA000065	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±25ppm
FNA000065	Diodes Incorporated	SaRonix-eCera™ FN	100MHz	±25ppm
NX71C50003	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm
NX71C50003	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm
NX71C50003	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±25ppm
FNC500131	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm
FNC500131	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm
FNC500131	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm
NX71C50001	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±20ppm
NX71C50001	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±20ppm
NX71C50001	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±20ppm
FM3900001Z	Diodes Incorporated	SaRonix-eCera™ FM	39.0625MHz	±50ppm
FM3900001Z	Diodes Incorporated	SaRonix-eCera™ FM	39.0625MHz	±50ppm
FM3900001Z	Diodes Incorporated	SaRonix-eCera™ FM	39.0625MHz	±50ppm
FKA000018Z	Diodes Incorporated	SaRonix-eCera™ FK	100MHz	±50ppm
FKA000018Z	Diodes Incorporated	SaRonix-eCera™ FK	100MHz	±50ppm
FKA000018Z	Diodes Incorporated	SaRonix-eCera™ FK	100MHz	±50ppm
HX3124501Q	Diodes Incorporated	SaRonix-eCera™ HX	24.545452MHz	±25ppm
HX3124501Q	Diodes Incorporated	SaRonix-eCera™ HX	24.545452MHz	±25ppm
HX3124501Q	Diodes Incorporated	SaRonix-eCera™ HX	24.545452MHz	±25ppm
HX31330001	Diodes Incorporated	SaRonix-eCera™ HX	33MHz	±50ppm
HX31330001	Diodes Incorporated	SaRonix-eCera™ HX	33MHz	±50ppm

MD系列擴頻晶體振蕩器,FM3900001Z,KM3270004,晶體振蕩器,ECERA晶振

MD 2.5V 2.5 1 到 200 5.0 x 3.2 x 1.3 4 2.5V、5.0x3.2mm、擴頻晶體振蕩器
MD 3.3V 3.3 1 到 200 5.0 x 3.2 x 1.3 4 3.3V、5.0x3.2mm、擴頻晶體振蕩器
MK 2.5V 2.5 1 到 64 3.2 x 2.5 x 1.0 4 2.5V、3.2x2.5mm、擴頻晶體振蕩器
MK 3.3V 3.3 1 到 64 3.2 x 2.5 x 1.0 4 3.3V、3.2x2.5mm、擴頻晶體振蕩器
明尼蘇達 2.5V 2.5 1 到 200 7.0 x 5.0 x 1.8 4 2.5V、7.0x5.0mm、擴頻晶體振蕩器
錳 3.3V 3.3 1 到 200 7.0 x 5.0 x 1.8 4 3.3V、7.0x5.0mm、擴頻晶體振蕩器
