XRQ系列非常適合在密集或小型PCB應用,XR25J3H50.0000A2Q,汽車電子晶振,ECERA石英晶體

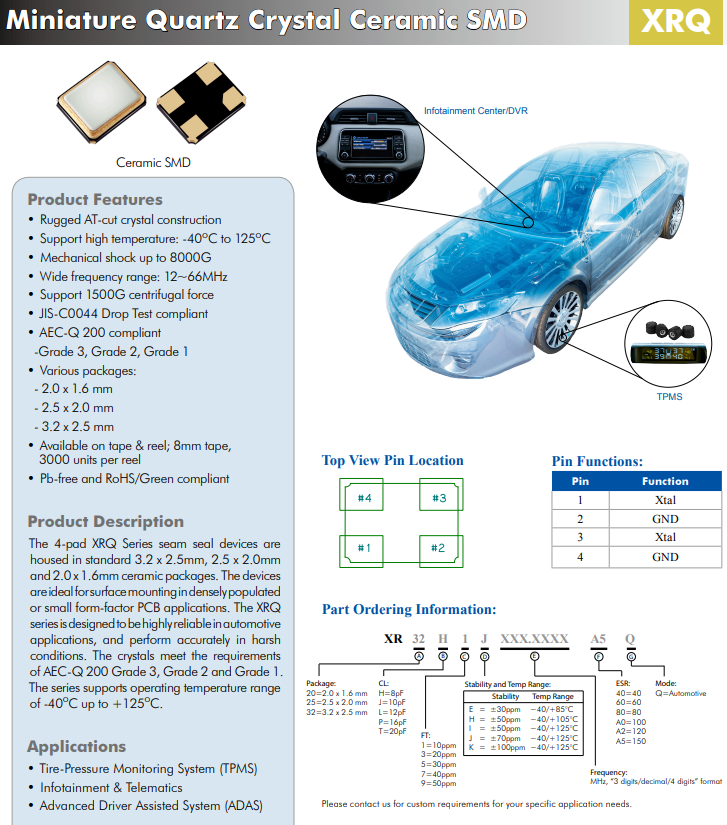

百利通亞陶晶振XRQ系列接縫密封裝置，采用標準3.2x2.5mm、2.5x2.0mm和2.0x1.6mm陶瓷封裝。這些器件非常適合在密集或小型PCB應用中進行表面貼裝。XRQ系列旨在在汽車應用中高度可靠，并在惡劣條件下準確運行。石英晶體符合AEC-Q 200 3級、2級和1級的要求。該系列支持-40℃至+125℃的工作溫度范圍。
特征：
堅固的AT切割晶體結構
支持高溫：-40℃至125℃
機械沖擊高達8000G
寬頻率范圍：12~66MHz
支持1500G離心力
符合JIS-C0044跌落測試
AEC-Q 200兼容 -3級、2級、1級
各種封裝：2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
8毫米膠帶，每卷3000個單位
無鉛且符合 RoHS/Green標準
應用程序：
胎壓監測系統 (TPMS)
信息娛樂和遠程信息處理
高級駕駛員輔助系統 (ADAS)
XRQ系列非常適合在密集或小型PCB應用,XR25J3H50.0000A2Q,汽車電子晶振,ECERA石英晶體
|
Manufacturer Part Number 原廠編碼 |
Manufacturer廠家 | Series型號 | Type 系列 | Frequency | Frequency Stability頻率穩定度 |
| GC0800044 | Diodes Incorporated | SaRonix-eCera™ GC | MHz Crystal | 8MHz | ±50ppm |
| GC0800044 | Diodes Incorporated | SaRonix-eCera™ GC | MHz Crystal | 8MHz | ±50ppm |
| GC0800044 | Diodes Incorporated | SaRonix-eCera™ GC | MHz Crystal | 8MHz | ±50ppm |
| FL1200112 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 12MHz | ±30ppm |
| FL1200112 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 12MHz | ±30ppm |
| FL1200112 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 12MHz | ±30ppm |
| FL2000059 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 20MHz | ±10ppm |
| FL2000059 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 20MHz | ±10ppm |
| FL2000059 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 20MHz | ±10ppm |
| FL2400022 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 24MHz | ±10ppm |
| FL2400022 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 24MHz | ±10ppm |
| FL2400022 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 24MHz | ±10ppm |
| FL2500133 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 25MHz | ±20ppm |
| FL2500133 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 25MHz | ±20ppm |
| FL2500133 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 25MHz | ±20ppm |
| FL3000037 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 30MHz | ±30ppm |
| FL3000037 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 30MHz | ±30ppm |
| FL3000037 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 30MHz | ±30ppm |
| FL2400081 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 24MHz | ±30ppm |
| FL2400081 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 24MHz | ±30ppm |
| FL2400081 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 24MHz | ±30ppm |
| FL3200037 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 32MHz | ±15ppm |
| FL3200037 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 32MHz | ±15ppm |
| FL3200037 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 32MHz | ±15ppm |
| FL2400067 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 24MHz | ±20ppm |
| FL2400067 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 24MHz | ±20ppm |
| FL2400067 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 24MHz | ±20ppm |
| FL4000157Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 40MHz | ±10ppm |
| FL4000157Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 40MHz | ±10ppm |
| FL4000157Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 40MHz | ±10ppm |
| FL2600177Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 26MHz | ±20ppm |
| FL2600177Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 26MHz | ±20ppm |
| FL2600177Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 26MHz | ±20ppm |
| FL2700102Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 27MHz | ±30ppm |
| FL2700102Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 27MHz | ±30ppm |
| FL2700102Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 27MHz | ±30ppm |
| FQ2400005 | Diodes Incorporated | SaRonix-eCera™ FQ | MHz Crystal | 24MHz | ±30ppm |
| FQ2400005 | Diodes Incorporated | SaRonix-eCera™ FQ | MHz Crystal | 24MHz | ±30ppm |
| FQ2400005 | Diodes Incorporated | SaRonix-eCera™ FQ | MHz Crystal | 24MHz | ±30ppm |
| FY2500117 | Diodes Incorporated | SaRonix-eCera™ FY | MHz Crystal | 25MHz | ±20ppm |
| FY2500117 | Diodes Incorporated | SaRonix-eCera™ FY | MHz Crystal | 25MHz | ±20ppm |
| FY2500117 | Diodes Incorporated | SaRonix-eCera™ FY | MHz Crystal | 25MHz | ±20ppm |
| FL2500123Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 25MHz | ±50ppm |
| FL2500123Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 25MHz | ±50ppm |
| FL2500123Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 25MHz | ±50ppm |
| FL5000058Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 50MHz | ±15ppm |
| FL5000058Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 50MHz | ±15ppm |
| FL5000058Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 50MHz | ±15ppm |
| FY0800018 | Diodes Incorporated | SaRonix-eCera™ FY | MHz Crystal | 8MHz | ±30ppm |
Product Parameters
| Compliance (Only Automotive supports PPAP) | Automotive |
|---|---|
| ProductSeries | XRQ |
| Family | Xtals/Crystals |
| Legacy PN | None |
| Freq Range (MHz) | 12 to 66, 16 to 66, 24 to 66 |
| Package Type | Ceramic Seam |
| Package Size (mm) | 3.2 x 2.5 x 0.65, 2.5 x 2.0 x 0.6, 2.0 x 1.6 x 0.45 |
| Pads | 4 |
| NotRecommended | 0 |
XRQ系列非常適合在密集或小型PCB應用,XR25J3H50.0000A2Q,汽車電子晶振,ECERA石英晶體
產品參數：
合規性（僅汽車支持PPAP）汽車產品系列 XRC
家庭 Xtals/無源晶振
舊版 PN 沒有任何
頻率范圍 12至66MHz、16至66MHz、24至66MHz
包裝類型 陶瓷縫
包裝尺寸 3.2x2.5x0.65mm、2.5x2.0x0.6mm、2.0x1.6x0.45mm
墊 4腳
不建議 0
| FY0800018 | Diodes Incorporated | SaRonix-eCera™ FY | MHz Crystal | 8MHz | ±30ppm |
| FY0800018 | Diodes Incorporated | SaRonix-eCera™ FY | MHz Crystal | 8MHz | ±30ppm |
| FY1000009 | Diodes Incorporated | SaRonix-eCera™ FY | MHz Crystal | 10MHz | ±30ppm |
| FY1000009 | Diodes Incorporated | SaRonix-eCera™ FY | MHz Crystal | 10MHz | ±30ppm |
| FY1000009 | Diodes Incorporated | SaRonix-eCera™ FY | MHz Crystal | 10MHz | ±30ppm |
| FH1200004 | Diodes Incorporated | SaRonix-eCera™ FH | MHz Crystal | 12MHz | ±15ppm |
| FH1200004 | Diodes Incorporated | SaRonix-eCera™ FH | MHz Crystal | 12MHz | ±15ppm |
| FH1200004 | Diodes Incorporated | SaRonix-eCera™ FH | MHz Crystal | 12MHz | ±15ppm |
| FH3000007 | Diodes Incorporated | SaRonix-eCera™ FH | MHz Crystal | 30MHz | ±30ppm |
| FH3000007 | Diodes Incorporated | SaRonix-eCera™ FH | MHz Crystal | 30MHz | ±30ppm |
| FH3000007 | Diodes Incorporated | SaRonix-eCera™ FH | MHz Crystal | 30MHz | ±30ppm |
| FH4000047 | Diodes Incorporated | SaRonix-eCera™ FH | MHz Crystal | 40MHz | ±10ppm |
| FH4000047 | Diodes Incorporated | SaRonix-eCera™ FH | MHz Crystal | 40MHz | ±10ppm |
| FH4000047 | Diodes Incorporated | SaRonix-eCera™ FH | MHz Crystal | 40MHz | ±10ppm |
| GB0400034 | Diodes Incorporated | SaRonix-eCera™ GB | MHz Crystal | 4MHz | ±30ppm |
| GB1000015 | Diodes Incorporated | SaRonix-eCera™ GB | MHz Crystal | 10MHz | ±30ppm |
| FW1600008 | Diodes Incorporated | SaRonix-eCera™ FW | MHz Crystal | 16MHz | ±20ppm |
| FW1600008 | Diodes Incorporated | SaRonix-eCera™ FW | MHz Crystal | 16MHz | ±20ppm |
| FW1600008 | Diodes Incorporated | SaRonix-eCera™ FW | MHz Crystal | 16MHz | ±20ppm |
| FW1920001 | Diodes Incorporated | SaRonix-eCera™ FW | MHz Crystal | 19.2MHz | ±20ppm |
| FW1920001 | Diodes Incorporated | SaRonix-eCera™ FW | MHz Crystal | 19.2MHz | ±20ppm |
| FW1920001 | Diodes Incorporated | SaRonix-eCera™ FW | MHz Crystal | 19.2MHz | ±20ppm |
| F90800018Q | Diodes Incorporated | SaRonix-eCera™ F9 | MHz Crystal | 8MHz | ±50ppm |
| F90800018Q | Diodes Incorporated | SaRonix-eCera™ F9 | MHz Crystal | 8MHz | ±50ppm |
| F90800018Q | Diodes Incorporated | SaRonix-eCera™ F9 | MHz Crystal | 8MHz | ±50ppm |
XRQ水晶系列是設計高度可靠，在汽車應用中 并且在以下方面表現準確 惡劣的條件。 石英晶體諧振器，這些零件有資格AEC-Q200，是PPAP有能力，并且 制造于IATF16949:2016認證 設施。零件包括 三個溫度范圍 允許他們支持 引擎蓋下，乘客隔間熱點，以及普通乘客 隔間位置。它們是接縫密封裝置，有三種尺寸可供選擇 陶瓷封裝: XR32Q:3.2毫米x 2.5mm毫米 XR25Q:2.5毫米x 2.0mm毫米 XR20Q:2.0毫米x 1.6mm毫米 這些器件支持頻率 從12兆赫到66兆赫。 XRQ系列符合 超聲波的要求 焊接制造 過程以及 行業標準跌落測試。
| FY2400053 | Diodes Incorporated | SaRonix-eCera™ FY | MHz Crystal | 24MHz | ±10ppm |
| FY2400053 | Diodes Incorporated | SaRonix-eCera™ FY | MHz Crystal | 24MHz | ±10ppm |
| FY2400053 | Diodes Incorporated | SaRonix-eCera™ FY | MHz Crystal | 24MHz | ±10ppm |
| FL2400097 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 24MHz | ±15ppm |
| FL2400097 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 24MHz | ±15ppm |
| FL2400097 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 24MHz | ±15ppm |
| FL3840015Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 38.4MHz | ±10ppm |
| FL3840015Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 38.4MHz | ±10ppm |
| FL3840015Z | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 38.4MHz | ±10ppm |
| FL1840006 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 18.432MHz | ±20ppm |
| FL1840006 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 18.432MHz | ±20ppm |
| FL1840006 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 18.432MHz | ±20ppm |
| FL2500281 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 25MHz | ±50ppm |
| FL2500281 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 25MHz | ±50ppm |
| FL2500281 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 25MHz | ±50ppm |
| FL1350008 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 13.5MHz | ±20ppm |
| FL1350008 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 13.5MHz | ±20ppm |
| FL1350008 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 13.5MHz | ±20ppm |
| FL3740015 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 37.4MHz | ±15ppm |
| FL3740015 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 37.4MHz | ±15ppm |
| FL3740015 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 37.4MHz | ±15ppm |
| FL1920031 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 19.2MHz | ±10ppm |
| FL1920031 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 19.2MHz | ±10ppm |
| FL1920031 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 19.2MHz | ±10ppm |
| FL2400041 | Diodes Incorporated | SaRonix-eCera™ FL | MHz Crystal | 24MHz | ±30ppm |
XRQ系列非常適合在密集或小型PCB應用,XR25J3H50.0000A2Q,汽車電子晶振,ECERA石英晶體
XRQ系列為應用提供精確的定時
高可靠性是必須的。
三種寬頻率接縫密封包裝尺寸SMD晶體
XR32Q:3.2毫米x 2.5mm毫米，12兆赫至66兆赫
XR25Q:2.5毫米x 2.0mm毫米，16兆赫至66兆赫
XR20Q:2.0毫米x 1.6mm毫米，24兆赫至66兆赫
滿足SAE J2657 (2004)的離心力鑒定
符合TPMS的要求
符合AEC-Q200 in二極管IATF16949:2016認證
等級1: -40℃至+125℃
2級:-40℃至+105℃
3級:-40℃至+85℃
堅固的機械沖擊能力支持高達8000G
超過MIL-STD-202方法213(標準。:1500克)
