Cardinal藍牙晶振,CX325Z-A5B2C5-50-20.0D18,CX325石英振動子

尺寸3.2*2.5mm,頻率20MHZ

Cardinal藍牙晶振,CX325Z-A5B2C5-50-20.0D18,CX325石英振動子，尺寸3.2*2.5mm,頻率20MHZ，美國進口晶振，卡迪納爾石英晶振，貼片石英晶體，SMD晶振，石英振動子，3225mm石英晶振，無源貼片晶振，無源晶振，輕薄型晶振，無源石英晶體，無鉛環保晶振，高質量晶振，高性能晶振，低損耗晶振，低功耗晶振，低成本晶振，物聯網晶振，藍牙專用晶振，可視化電話晶振，平板電腦晶振，數碼電子晶振，安防晶振，儀器儀表專用晶振，游戲設備晶振，具有高質量高性能低成本的特點。

無源晶振產品特別適合用于藍牙，可視化電話，平板電腦，數碼電子，安防，儀器儀表，游戲設備等領域。Cardinal藍牙晶振,CX325Z-A5B2C5-50-20.0D18,CX325石英振動子.

訂購熱線：0755-27839151

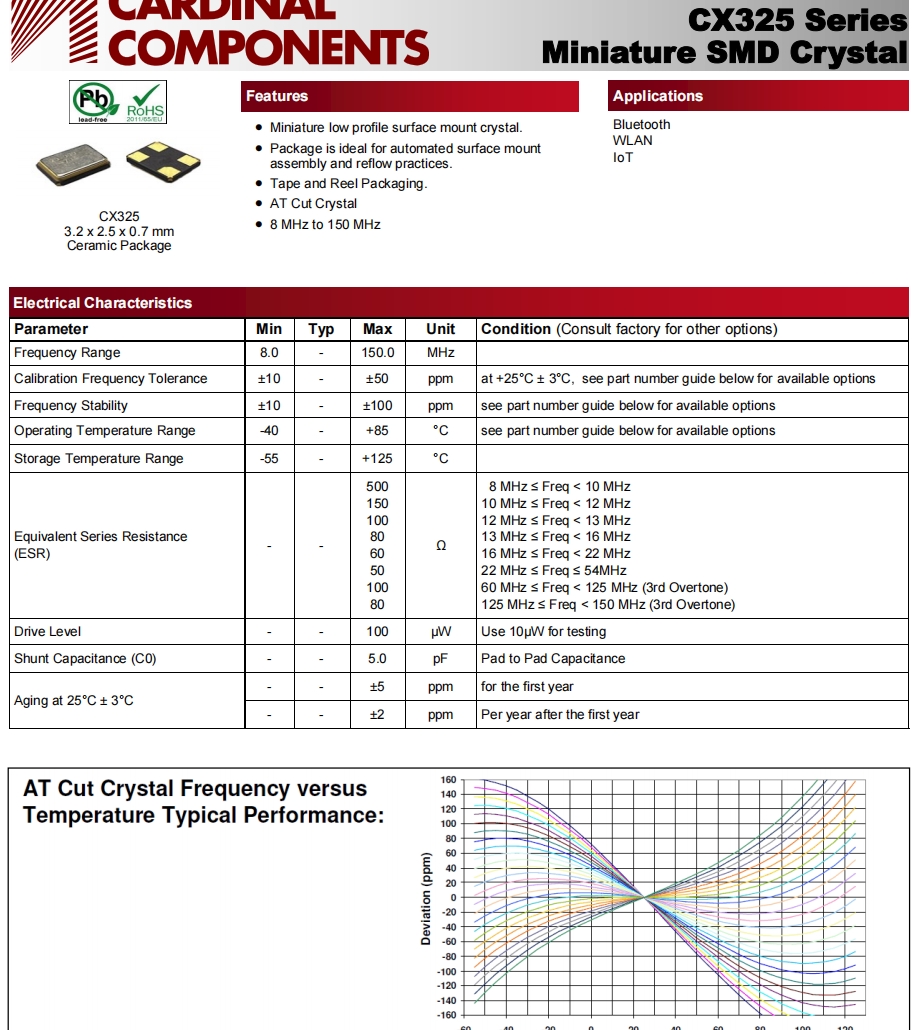

Cardinal藍牙晶振,CX325Z-A5B2C5-50-20.0D18,CX325石英振動子 參數表

Parameter

Min

Typ

Max

Unit

Condition (Consult factory for other options)

Frequency Range

MHz

Calibration Frequency Tolerance

±10

±50

ppm

at +25°C ± 3°C, see part number guide below for available options

Frequency Stability

±10

±100

ppm

see part number guide below for available options

Operating Temperature Range

-40

+85

°C

see part number guide below for available options

Storage Temperature Range

-55

+125

°C

Equivalent Series Resistance
(ESR)

500
150
100
80
60
50
100
80

8 MHz ≤ Freq < 10 MHz
10 MHz ≤ Freq < 12 MHz
12 MHz ≤ Freq < 13 MHz
13 MHz ≤ Freq < 16 MHz
16 MHz ≤ Freq < 22 MHz
22 MHz ≤ Freq ≤ 54MHz
60 MHz ≤ Freq < 125 MHz (3rd Overtone)
125 MHz ≤ Freq < 150 MHz (3rd Overtone)

Drive Level

100

µW

Use 10µW for testing

Shunt Capacitance (C0)

5.0

Pad to Pad Capacitance

Aging at 25°C ± 3°C

±5

ppm

for the first year

±2

ppm

Per year after the first year

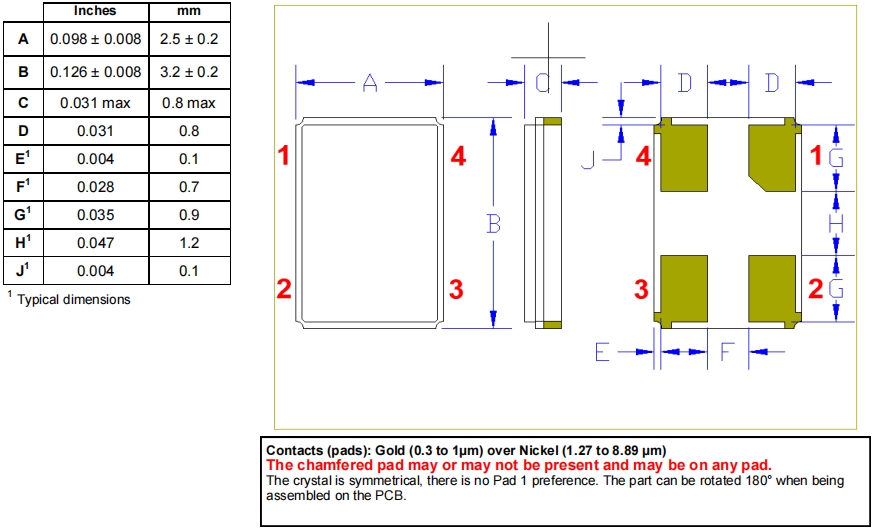

Cardinal藍牙晶振,CX325Z-A5B2C5-50-20.0D18,CX325石英振動子 尺寸圖

Cardinal藍牙晶振,CX325Z-A5B2C5-50-20.0D18,CX325石英振動子

產品特性：

微型低剖面表面貼裝石英晶體。

包裝是自動表面安裝的理想選擇組裝和回流實踐。

磁帶和卷軸包裝。

AT切割水晶

8MHz至150MHz

Manufacturer Part Number 原廠編碼	Manufacturer廠家	Description 參數	Series型號	Frequency	Frequency Stability頻率穩定度	Operating Temperature 工作溫度
CX532Z-A2B3C5-70-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CX532	16MHz	±30ppm	-40°C ~ 85°C
CX5Z-ARB2C5-70-7.3728D18	Cardinal晶振	CRYSTAL 7.3728MHZ 18PF SMD	CX5	7.3728MHz	±50ppm	-40°C ~ 125°C
CX325Z-A5B2C5-50-20.0D18	Cardinal晶振	CRYSTAL 20.0000MHZ 18PF SMD	CX325	20MHz	±50ppm	-20°C ~ 70°C
CX635A-A5B2C3-40-18.432D13	Cardinal晶振	CRYSTAL 18.4320MHZ 13PF SMD	CX635A	18.432MHz	±50ppm	-20°C ~ 70°C
CPFBZ-A2C5-32.768KD12.5	卡迪納爾晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	CPFB	32.768kHz	-	-40°C ~ 85°C
CSM4Z-A2B3C3-40-10.0D18	Cardinal晶振	CRYSTAL 10.0000MHZ 18PF SMD	CSM4	10MHz	±30ppm	-40°C ~ 85°C
CSM4Z-A2B3C3-40-20.0D18	Cardinal晶振	CRYSTAL 20.0000MHZ 18PF SMD	CSM4	20MHz	±30ppm	-40°C ~ 85°C
CSM4Z-A2B3C3-60-6.0D18	Cardinal晶振	CRYSTAL 6.0000MHZ 18PF SMD	CSM4	6MHz	±30ppm	-40°C ~ 85°C
CSM4Z-A2B3C3-60-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CSM4	8MHz	±30ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-12.0D18	Cardinal晶振	CRYSTAL 12.0000MHZ 18PF SMD	CX532	12MHz	±30ppm	-40°C ~ 85°C
CSM4Z-A2B3C3-40-29.49152D18-F	Cardinal晶振	CRYSTAL 29.49152MHZ 18PF SMD	CSM4	29.49152MHz	±30ppm	-40°C ~ 85°C
CSM4Z-A2B3C3-40-26.0D18-F	Cardinal晶振	CRYSTAL 26.0000MHZ 18PF SMD	CSM4	26MHz	±30ppm	-40°C ~ 85°C
CSM4Z-A2B3C3-180-4.0D18	Cardinal晶振	CRYSTAL 4.0000MHZ 18PF SMD	CSM4	4MHz	±30ppm	-40°C ~ 85°C
CSM4Z-A2B3C3-60-9.8304D18	Cardinal晶振	CRYSTAL 9.8304MHZ 18PF SMD	CSM4	9.8304MHz	±30ppm	-40°C ~ 85°C
CSM4Z-A2B3C3-40-11.0592D18	Cardinal晶振	CRYSTAL 11.0592MHZ 18PF SMD	CSM4	11.0592MHz	±30ppm	-40°C ~ 85°C
CSM4Z-A2B3C3-40-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CSM4	16MHz	±30ppm	-40°C ~ 85°C
CSM4Z-A2B3C3-60-7.3728D18	Cardinal晶振	CRYSTAL 7.3728MHZ 18PF SMD	CSM4	7.3728MHz	±30ppm	-40°C ~ 85°C
CX5Z-A5B2C5-40-27.0D18	Cardinal晶振	CRYSTAL 27.0000MHZ 18PF SMD	CX5	27MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.0D18	Cardinal晶振	CRYSTAL 24.0000MHZ 18PF SMD	CX5	24MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.576D18	Cardinal晶振	CRYSTAL 24.5760MHZ 18PF SMD	CX5	24.576MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-70-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CX5	8MHz	±50ppm	-20°C ~ 70°C
CX5Z-A1B2C5-40-24.0D18	Cardinal Crystal	CRYSTAL 24.0000MHZ 18PF SMD	CX5	24MHz	±50ppm	-10°C ~ 70°C
CX5Z-A5B2C5-50-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CX5	16MHz	±50ppm	-20°C ~ 70°C
CX5Z-A0B2C5-50-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CX5	16MHz	±50ppm	-10°C ~ 60°C
CX5Z-A2B2C5-40-10.0D18	Cardinal晶振	CRYSTAL 10.0000MHZ 18PF SMD	CX5	10MHz	±50ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-1966080D18	Cardinal晶振	CRYSTAL 19.6608MHZ 18PF SMD	CX532	19.6608MHz	±30ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-33.0D18	Cardinal晶振	CRYSTAL 33.0000MHZ 18PF SMD	CX532	33MHz	±30ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-27.0D18	Cardinal晶振	CRYSTAL 27.0000MHZ 18PF SMD	CX532	27MHz	±30ppm	-40°C ~ 85°C
CX532Z-A5B3C5-70-20.0D18	Cardinal晶振	CRYSTAL 20.0000MHZ 18PF SMD	CX532	20MHz	±30ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-14.7456D18	Cardinal晶振	CRYSTAL 17.7456MHZ 18PF SMD	CX532	14.7456MHz	±30ppm	-40°C ~ 85°C
CX532Z-A5B3C5-70-12.0D18	Cardinal晶振	CRYSTAL 12.0000MHZ 18PF SMD	CX532	12MHz	±30ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-50.0D18	Cardinal晶振	CRYSTAL 50.0000MHZ 18PF SMD	CX532	50MHz	±30ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-30.0D18	Cardinal晶振	CRYSTAL 30.0000MHZ 18PF SMD	CX532	30MHz	±30ppm	-40°C ~ 85°C
CX532Z-A5B3C5-70-27.0D18	Cardinal晶振	CRYSTAL 27.0000MHZ 18PF SMD	CX532	27MHz	±30ppm	-20°C ~ 70°C
CX532AZ-A5B2C5-70-25.0D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±50ppm	-20°C ~ 70°C
CX532Z-A5B3C5-70-25.0D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±30ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-20.0D18	Cardinal晶振	CRYSTAL 20.0000MHZ 18PF SMD	CX532	20MHz	±30ppm	-40°C ~ 85°C
CX5Z-A2B2C5-70-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CX5	8MHz	±50ppm	-40°C ~ 85°C
CX5Z-A2B2C5-40-25D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX5	25MHz	±50ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CX532	8MHz	±30ppm	-40°C ~ 85°C
CSM4Z-A2B3C3-40-14.7456D18	Cardinal晶振	CRYSTAL 14.7456MHZ 18PF SMD	CSM4	14.7456MHz	±30ppm	-40°C ~ 85°C
CPFBZ-A2C5-32.768D6	Cardinal晶振	CRYSTAL 32.7680KHZ 6PF SMD	CPFB	32.768kHz	-	-40°C ~ 85°C
CX5Z-A2B2C5-40-12.0D18	Cardinal晶振	CRYSTAL 12.0000MHZ 18PF SMD	CX5	12MHz	±50ppm	-40°C ~ 85°C
