當前位置：首頁 » 進口晶振 » Fortiming晶振 » Fortiming水晶振動子,XCR53-30M000-1C20D10,5032mm,30MHZ

prevnext

Fortiming水晶振動子,XCR53-30M000-1C20D10,5032mm,30MHZ

尺寸5.0*3.2mm,頻率30MHZ

Fortiming水晶振動子,XCR53-30M000-1C20D10,5032mm,30MHZ,美國富通晶振,富通貼片晶振,兩腳貼片晶振,陶瓷晶振,5032mm小尺寸晶振,30MHZ晶體諧振器,輕薄型晶振,SMD無源晶振,無源晶體,尺寸5.0*3.2mm,頻率30MHZ,工作溫度-20°C~+70°C,低成本晶振,低損耗晶振,高密度應用晶振,智能手機晶振,移動設備晶振,便攜式設備晶振.

訂購熱線：0755-27839151

Fortiming水晶振動子,XCR53-30M000-1C20D10,5032mm,30MHZ特點:

超小型無源晶振設計（5 x 3.2毫米），最大高度1.4毫米

AT以經濟成本削減性能

行業因素標準足跡

非常適合高密度表面安裝

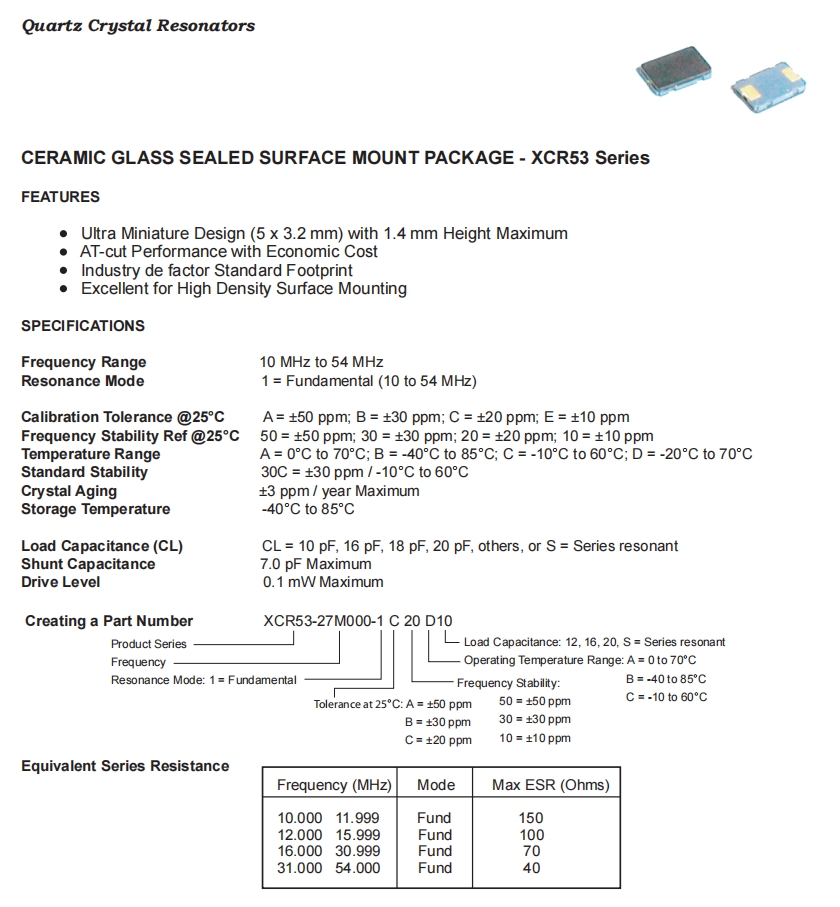

Fortiming水晶振動子,XCR53-30M000-1C20D10,5032mm,30MHZ 參數表

Frequency Range

30 MHz

Resonance Mode

1 = Fundamental (10 to 54 MHz)

Calibration Tolerance @25°C

A = ±50 ppm; B = ±30 ppm; C = ±20 ppm; E = ±10 ppm

Frequency Stability Ref @25°C

50 = ±50 ppm; 30 = ±30 ppm; 20 = ±20 ppm; 10 = ±10 ppm

Temperature Range

A = 0°C to 70°C; B = -40°C to 85°C; C = -10°C to 60°C; D = -20°C to 70°C

Standard Stability

30C = ±30 ppm / -10°C to 60°C

Crystal Aging

±3 ppm / year Maximum

Storage Temperature

-40°C to 85°C

Load Capacitance (CL)

CL = 10 pF, 16 pF, 18 pF, 20 pF, others, or S = Series resonant

Shunt Capacitance

7.0 pF Maximum

Drive Level

0.1 mW Maximum

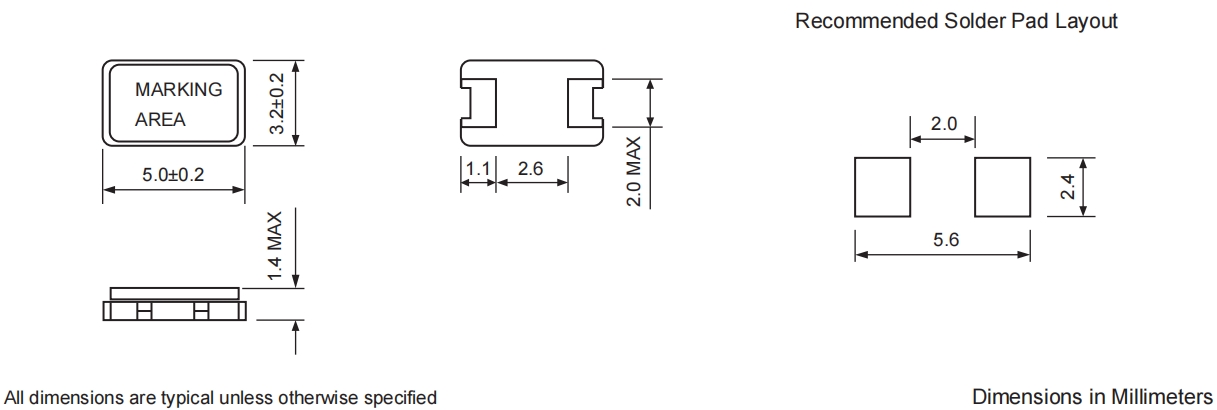

Fortiming水晶振動子,XCR53-30M000-1C20D10,5032mm,30MHZ 尺寸圖

聯系人：李玉龍

電話：86-0755-27839151

手機：13828756848

QQ:987260611

郵箱：guanjiedz@163.com

www.ljbzc.com

地址：深圳市寶安區中心區商都賽格電子大廈1C48

Fortiming水晶振動子 XCR53-30M000-1C20D10 5032mm 30MHZ

訂購：Fortiming水晶振動子,XCR53-30M000-1C20D10,5032mm,30MHZ

*聯系人：
*手機：
公司名稱：
郵箱：
電話：
地址：
*訂購意向：
*驗證碼：
