當前位置：首頁 » 進口晶振 » GED晶振 » GED以太網晶振,SMD600.3C(E/D)-32.000MHz,6035mm,3.3V

prevnext

GED以太網晶振,SMD600.3C(E/D)-32.000MHz,6035mm,3.3V

尺寸6.0*3.5mm,頻率32MHZ

GED以太網晶振,SMD600.3C(E/D)-32.000MHz,6035mm,3.3V,美國GED振蕩器,有源貼片晶振,有源晶體振蕩器,OSC貼片晶振,6035mm有源晶振,時鐘有源晶振,32M晶體振蕩器,貼片有源晶振,尺寸6.0*3.5mm,頻率32MHZ,電壓3.3V,輸出HCMOS,低老化晶振,低電壓晶振,低功耗晶振,高品質晶振,低相位晶振,測試設備晶振,智能手機晶振,數字音頻晶振,無線局域網晶振,以太網晶振,視聽設備晶振.

訂購熱線：0755-27839151

GED以太網晶振,SMD600.3C(E/D)-32.000MHz,6035mm,3.3V特點:

HCMOS輸出晶體振蕩器/TTL輸出

3.3V和5.0V電源電壓

陶瓷SMD封裝

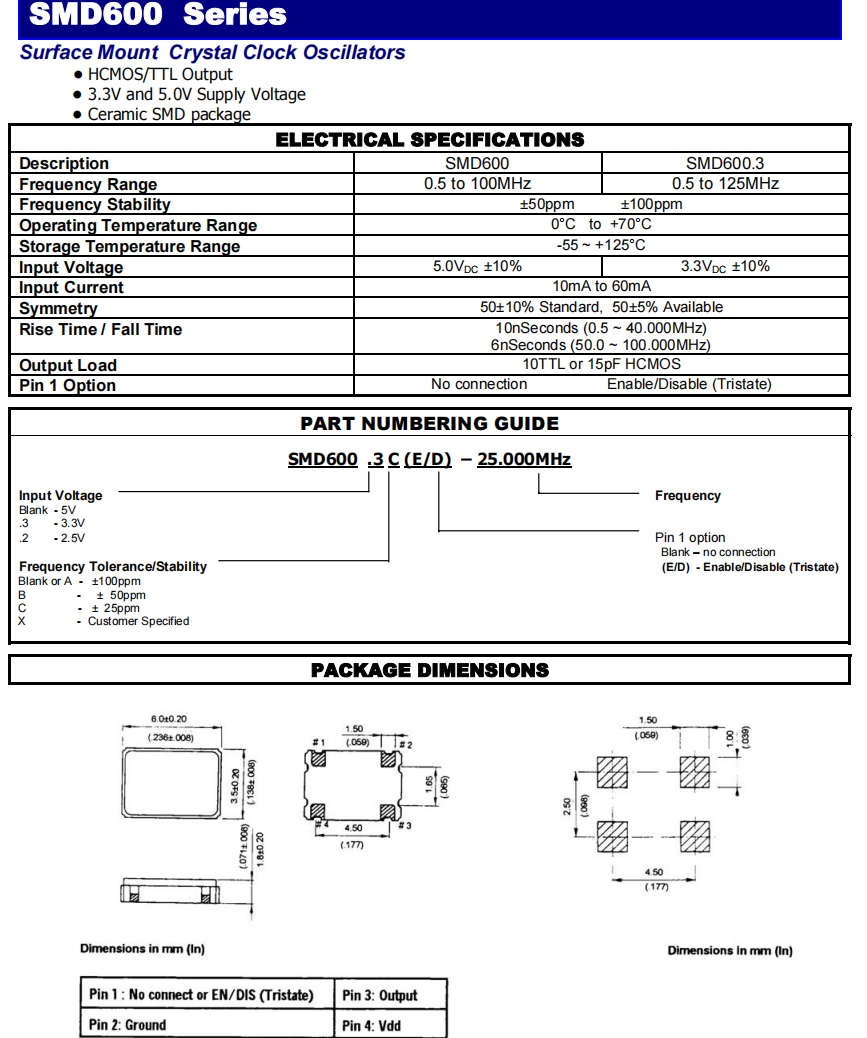

GED以太網晶振,SMD600.3C(E/D)-32.000MHz,6035mm,3.3V 參數表

ELECTRICAL SPECIFICATIONS
Description	SMD600	SMD600.3
Frequency Range	0.5 to 100MHz	32MHz
Frequency Stability	±50ppm ±100ppm
Operating Temperature Range	0°C to +70°C
Storage Temperature Range	-55 ~ +125°C
Input Voltage	5.0VDC ±10%	3.3VDC ±10%
Input Current	10mA to 60mA
Symmetry	50±10% Standard, 50±5% Available
Rise Time / Fall Time	10nSeconds (0.5 ~ 40.000MHz) 6nSeconds (50.0 ~ 100.000MHz)
Output Load	10TTL or 15pF HCMOS
Pin 1 Option	No connection Enable/Disable (Tristate)

GED以太網晶振,SMD600.3C(E/D)-32.000MHz,6035mm,3.3V 尺寸圖

聯系人：李玉龍

電話：86-0755-27839151

手機：13828756848

QQ:987260611

郵箱：guanjiedz@163.com

www.ljbzc.com

地址：深圳市寶安區中心區商都賽格電子大廈1C48

GED以太網晶振 SMD600.3C(E/D)-32.000MHz 6035mm 3.3V
