278-27.0M1015HW-TR,3225mm,Oscilent石英諧振器,27MHZ，尺寸3.2*2.5mm,頻率27MHZ，美國奧斯康利晶振，歐美石英晶振，石英水晶振動子，3225貼片晶振，輕薄型晶振，無鉛環保晶振，四腳石英晶體，無源貼片晶振，無源石英晶振，無源晶振，SMD晶振，27MHZ貼片晶體，電信設備晶振，無線電晶振，PC應用晶振，移動設備晶振，物聯網晶振，平板電腦晶振，攝像機晶振，高品質晶振，高性能晶振，低損耗晶振，低功耗晶振，低成本晶體，具有超高的穩定性能。無源晶振產品合適的應用包括電信設備、短程無線電鏈路模塊、DVC、DSC、PDA和PC，攝像機，平板電腦，物聯網等應用。278-27.0M1015HW-TR,3225mm,Oscilent石英諧振器,27MHZ.

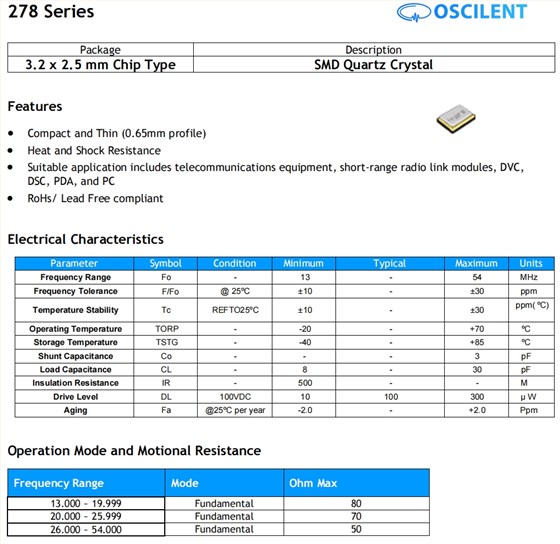

278-27.0M1015HW-TR,3225mm,Oscilent石英諧振器,27MHZ 參數表
| Parameter | Symbol | Condition | Minimum | Typical | Maximum | Units | |||||
| Frequency Range | Fo | - | 13 | - | 54 | MHz | |||||
| Frequency Tolerance | F/Fo | @ 25ºC | ±10 | - | ±30 | ppm | |||||
| Temperature Stability | Tc | REFTO25ºC | ±10 | - | ±30 | ppm( ºC) | |||||
| Operating Temperature | TORP | - | -20 | - | +70 | ºC | |||||
| Storage Temperature | TSTG | - | -40 | - | +85 | ºC | |||||
| Shunt Capacitance | Co | - | - | - | 3 | pF | |||||
| Load Capacitance | CL | - | 8 | - | 30 | pF | |||||
| Insulation Resistance | IR | - | 500 | - | - | M | |||||
| Drive Level | DL | 100VDC | 10 | 100 | 300 | µ W | |||||
| Aging | Fa | @25ºC per year | -2.0 | - | +2.0 | Ppm | |||||

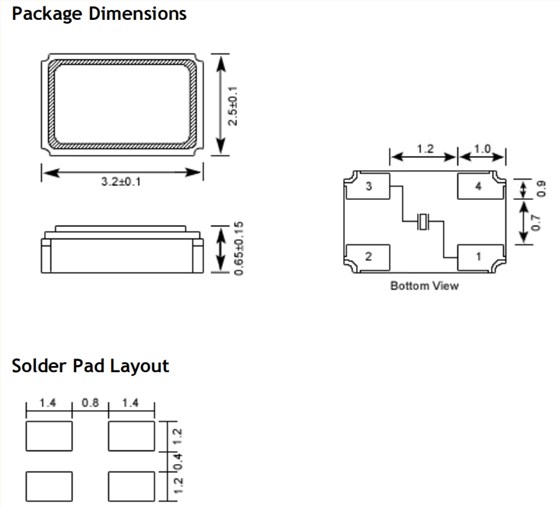

278-27.0M1015HW-TR,3225mm,Oscilent石英諧振器,27MHZ 尺寸圖
278-27.0M1015HW-TR,3225mm,Oscilent石英諧振器,27MHZ
石英晶體產品特性：
緊湊而薄（0.65mm輪廓）
耐熱性和抗震性
RoHs/無鉛compila
