CX3225GA車載晶振,CX3225GA27000D0PTVCC,京瓷陶瓷晶振

尺寸3.2*2.5mm,頻率27MHZ

CX3225GA車載晶振,CX3225GA27000D0PTVCC,京瓷陶瓷晶振，尺寸3.2*2.5mm,頻率27MHZ，Kyocera京瓷無源晶振，日本進口晶振，日本Kyocera晶振，無源晶振，無源SMD晶體，陶瓷晶振，3225mm貼片晶振，兩腳貼片晶振，27MHZ無源晶振，SMD晶振，陶瓷諧振器，無鉛環保晶振，薄型晶體，水晶振動子，車載音響晶振，網絡設備晶振，發動機控制專用晶振，輪胎氣壓監測系統專用晶體，小型設備晶振，便攜式設備晶振，低損耗晶體，低功耗晶振，低耗能晶振，高性能晶振，高品質晶振，具有良好的穩定性能。

SMD晶振產品主要應用范圍包含：發動機控制，輪胎氣壓監測系統（TPMS），高速車載網絡，小型設備，便攜式設備等應用.CX3225GA車載晶振,CX3225GA27000D0PTVCC,京瓷陶瓷晶振.


訂購熱線：0755-27839151

CX3225GA車載晶振,CX3225GA27000D0PTVCC,京瓷陶瓷晶振，尺寸3.2*2.5mm,頻率27MHZ，Kyocera京瓷無源晶振，日本進口晶振，日本Kyocera晶振，無源晶振，無源SMD晶體，陶瓷晶振，3225mm貼片晶振，兩腳貼片晶振，27MHZ無源晶振，SMD晶振，陶瓷諧振器，無鉛環保晶振，薄型晶體，水晶振動子，車載音響晶振，網絡設備晶振，發動機控制專用晶振，輪胎氣壓監測系統專用晶體，小型設備晶振，便攜式設備晶振，低損耗晶體，低功耗晶振，低耗能晶振，高性能晶振，高品質晶振，具有良好的穩定性能。

SMD晶振產品主要應用范圍包含：發動機控制，輪胎氣壓監測系統（TPMS），高速車載網絡，小型設備，便攜式設備等應用.CX3225GA車載晶振,CX3225GA27000D0PTVCC,京瓷陶瓷晶振.耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

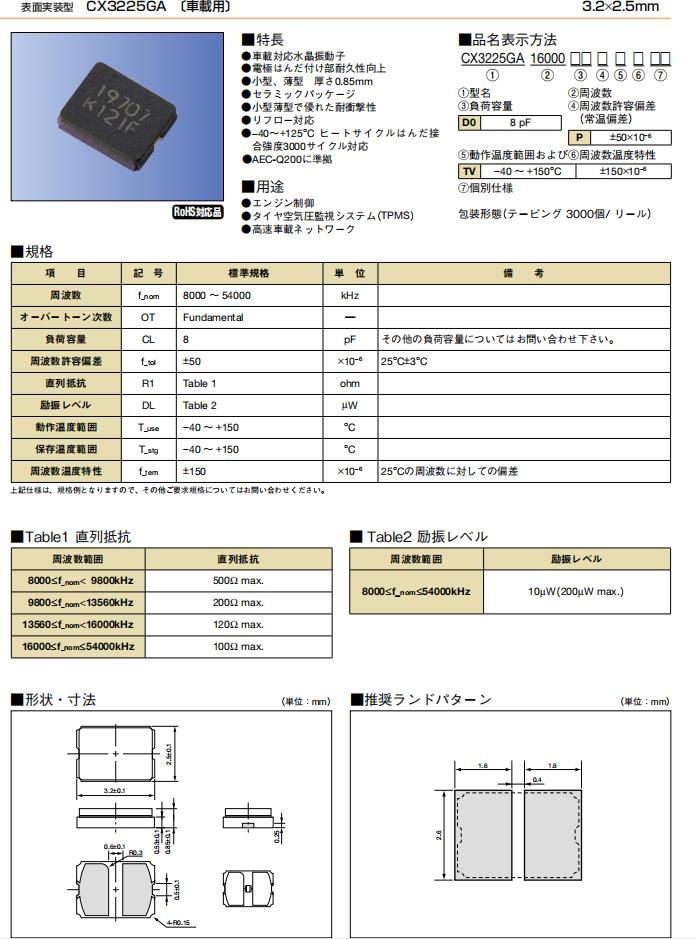

CX3225GA車載晶振,CX3225GA27000D0PTVCC,京瓷陶瓷晶振       參數表

項    目 記  號 標準規格 単  位 備    考
周波數 f_nom   27000 MHz
オーバートーン次數 OT   Fundamental ―
負荷容量 CL   8 pF その他の負荷容量についてはお問い合わせ下さい。
周波數許容偏差 f_tol ±50 × 10−6 25°C±3°C
直列抵抗 R1   Table 1 ohm
勵振レベル DL   Table 2 W
動作溫度範囲 T_use −40 ~ +150 °C
保存溫度範囲 T_stg −40 ~ +150 °C
周波數溫度特性 f_tem ± 150 × 10−6 相對于25°C頻率的偏差

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

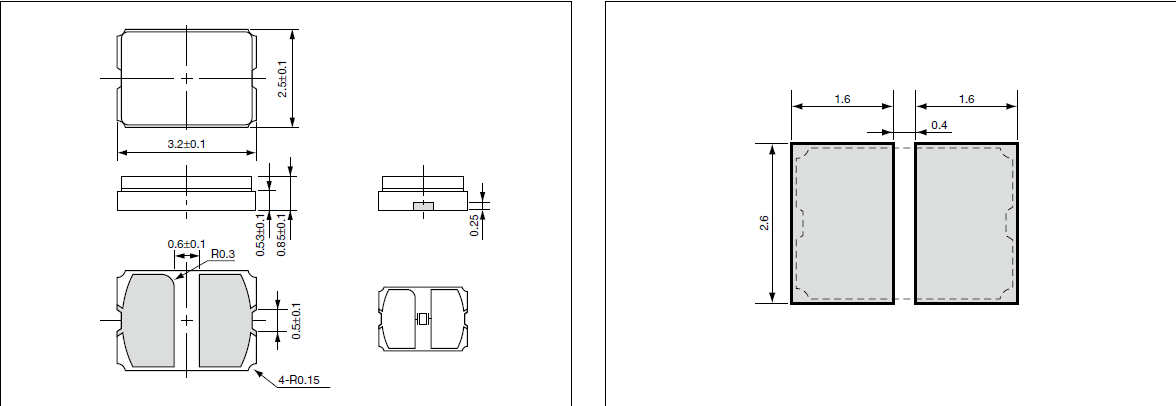

CX3225GA車載晶振,CX3225GA27000D0PTVCC,京瓷陶瓷晶振     尺寸圖

CX3225GA_3.2_2.5

CX3225GA車載晶振,CX3225GA27000D0PTVCC,京瓷陶瓷晶振

3225晶振產品特性：

車載對應水晶振動子

提高電極焊接部分耐久性

小型，薄型厚度0.85mm

陶瓷封裝

小型薄型，出色的抗沖擊性

對應回流

-40~+125°C熱循環焊結強度對應3000循環

CX3225GA 1


Manufacturer Part Number原廠編碼 Manufacturer廠家 Series型號 Type 系列 Frequency Operating Temperature   工作溫度
CX3225CA32000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 32MHz -40°C ~ 125°C
CX3225CA25000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 25MHz -40°C ~ 125°C
CT2520DB19200C0FLHAF AVX Corp/Kyocera Corp CT2520DB, Kyocera MHz Crystal 19.2MHz -30°C ~ 85°C
CX5032GB10000H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 10MHz -10°C ~ 70°C
CX5032GB16000H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 16MHz -10°C ~ 70°C
CX5032GB20000H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 20MHz -10°C ~ 70°C
CX3225CA12000P0HSTC1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 12MHz -40°C ~ 125°C
CX5032GB12000H0HPQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 12MHz -40°C ~ 85°C
CX3225CA12000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 12MHz -40°C ~ 125°C
CX3225CA16000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 16MHz -40°C ~ 125°C
CX3225GA24000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 24MHz -40°C ~ 150°C
CX3225GA25000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 25MHz -40°C ~ 150°C
CX5032GB27000H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 27MHz -10°C ~ 70°C
CX5032GB14318H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 14.31818MHz -10°C ~ 70°C
CX2520SB24000D0PESZZ AVX Corp/Kyocera Corp CX2520SB, Kyocera MHz Crystal 24MHz -10°C ~ 70°C
CX3225CA09843D0HSSTT AVX Corp/Kyocera Corp CX3225CA, 3225貼片晶振 MHz Crystal 9.843MHz -40°C ~ 125°C
CX3225CA28636D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 28.63636MHz -40°C ~ 125°C
CX3225CA27000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 27MHz -40°C ~ 125°C
CX3225CA30000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 30MHz -40°C ~ 125°C
CX3225GA20000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 20MHz -40°C ~ 150°C
CX3225GA26000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 26MHz -40°C ~ 150°C
CX3225GA30000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 30MHz -40°C ~ 150°C
CX3225GA27000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 27MHz -40°C ~ 150°C
CX3225GA13560D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 13.56MHz -40°C ~ 150°C
CX3225GA32000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 32MHz -40°C ~ 150°C
CX3225GA09843D0PTVTT AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 9.843MHz -40°C ~ 150°C
CX5032GB16000H0HPQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 16MHz -40°C ~ 85°C
CX5032GB08000H0HPQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 8MHz -40°C ~ 85°C
CX5032GB10000H0HPQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 10MHz -40°C ~ 85°C
CX3225CA24000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 24MHz -40°C ~ 125°C
CX5032GB14745H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 14.7456MHz -10°C ~ 70°C
CX5032GB24576H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 24.576MHz -10°C ~ 70°C
CX2520SB13560D0GEJCC AVX Corp/Kyocera Corp CX2520SB, Kyocera MHz Crystal 13.56MHz -10°C ~ 70°C
CX2520SB40000H0WZK06 AVX Corp/Kyocera Corp CX2520SB, Kyocera MHz Crystal 40MHz 0°C ~ 85°C
CX2520SB40000H0DZF08 AVX Corp/Kyocera Corp CX2520SB, Kyocera MHz Crystal 40MHz -10°C ~ 85°C
CX3225CA13560D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 13.56MHz -40°C ~ 125°C
CX3225CA16000H0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 16MHz -40°C ~ 125°C
CX3225GA12000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 12MHz -40°C ~ 150°C
CT2520DB26000C0FZZA1 AVX Corp/Kyocera Corp CT2520DB, Kyocera MHz Crystal 26MHz -25°C ~ 85°C
CX5032GB08000H0HEQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 8MHz -10°C ~ 70°C
CX1612DB48000D0FPJC1 AVX Corp/Kyocera Corp CX1612DB, Kyocera MHz Crystal 48MHz -40°C ~ 85°C
CX5032GB12000H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 12MHz -10°C ~ 70°C
CX3225CA10000D0HSSTT AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 10MHz -40°C ~ 125°C
CX3225CA20000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 20MHz -40°C ~ 125°C
CX3225CA26000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 26MHz -40°C ~ 125°C
CX3225CA40000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 40MHz -40°C ~ 125°C
CX3225GA10000D0PTVTT AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 10MHz -40°C ~ 150°C
CX3225GA16000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 16MHz -40°C ~ 150°C
CX3225GA28636D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 28.63636MHz -40°C ~ 150°C
CX3225GA40000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 40MHz -40°C ~ 150°C
CX1612DB26000D0FLJC1 AVX Corp/Kyocera Corp CX1612DB, Kyocera MHz Crystal 26MHz -30°C ~ 85°C
CX1612DB52000D0FLJC1 AVX Corp/Kyocera Corp CX1612DB, Kyocera MHz Crystal 52MHz -30°C ~ 85°C
CX5032GB19200P0HEQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera MHz Crystal 19.2MHz -10°C ~ 70°C
CX2520SB13560D0GEJZ1 AVX Corp/Kyocera Corp CX2520SB, Kyocera MHz Crystal 13.56MHz -10°C ~ 70°C
CX3225CA09843D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 9.84375MHz -40°C ~ 125°C
CX3225CA10000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 10MHz -40°C ~ 125°C
CX3225CA28636D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 28.63636MHz -40°C ~ 125°C
CX3225CA12000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 12MHz -40°C ~ 125°C
CX3225GA25000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 25MHz -40°C ~ 150°C
CX3225CA32000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 32MHz -40°C ~ 125°C
CX3225GA26000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 26MHz -40°C ~ 150°C
CX3225GA27000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 27MHz -40°C ~ 150°C
CX3225GA09843D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 9.84375MHz -40°C ~ 150°C
CX3225CA20000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 20MHz -40°C ~ 125°C
CX3225GA28636D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 28.63636MHz -40°C ~ 150°C
CX3225CA24000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 24MHz -40°C ~ 125°C
CX3225GA30000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 30MHz -40°C ~ 150°C
CX3225GA10000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 10MHz -40°C ~ 150°C
CX3225CA25000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 25MHz -40°C ~ 125°C
CX3225GA32000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 32MHz -40°C ~ 150°C
CX3225GA12000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 12MHz -40°C ~ 150°C
CX3225CA26000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 26MHz -40°C ~ 125°C
CX3225GA40000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 40MHz -40°C ~ 150°C
CX3225GA13560D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 13.56MHz -40°C ~ 150°C
CX3225GA16000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 16MHz -40°C ~ 150°C
CX3225CA27000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 27MHz -40°C ~ 125°C
CX3225GA20000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 20MHz -40°C ~ 150°C
CX3225GA24000D0PTVZ1 AVX Corp/Kyocera Corp CX3225GA, Kyocera MHz Crystal 24MHz -40°C ~ 150°C
CX3225CA30000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 30MHz -40°C ~ 125°C
CX3225CA13560D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 13.56MHz -40°C ~ 125°C
CX3225CA16000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 16MHz -40°C ~ 125°C
CX3225CA40000D0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 40MHz -40°C ~ 125°C
CX3225CA16000H0HSSZ1 AVX Corp/Kyocera Corp CX3225CA, Kyocera MHz Crystal 16MHz -40°C ~ 125°C
