當前位置：首頁 » 進口晶振 » 京瓷晶振 » CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子

$CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子$

prevnext

CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子

尺寸5.0*3.2mm,頻率8MHZ

CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子，尺寸5.0*3.2mm,頻率8MHZ，日本進口晶振，京瓷無源晶振，兩腳貼片晶振，輕薄型晶振，環保晶振，無源晶振，無源SMD晶體，陶瓷諧振器，貼片陶瓷晶體，5032貼片晶振，SMD晶振，水晶振動子，陶瓷晶振，低功耗晶振，低損耗晶振，高質量晶振，高性能晶振，高可靠晶振，數字音頻晶振，消費產品專用晶振，汽車音響晶振，數碼電子晶振，智能手機專用晶振，可視化電話專用晶振，具有高質量高性能的特點。

陶瓷晶振產品可滿足不同應用程序的需求，尤其適合用于數字電子，消費產品，汽車，音頻及配件，智能手機，可視化電話等領域。CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子.

訂購熱線：0755-27839151

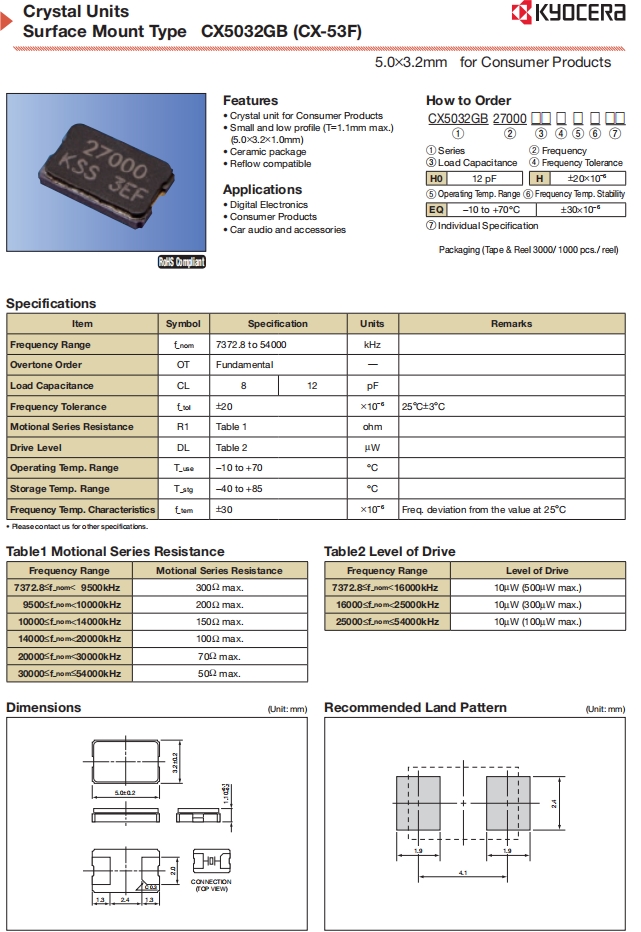

CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子 參數表

Item

Symbol

Specification

Units

Remarks

Frequency Range

f_nom

8.000

MHz

Overtone Order

Fundamental

―

Load Capacitance

Frequency Tolerance

f_tol

±20

× 10-6

25°C±3°C

Motional Series Resistance

Table 1

ohm

Drive Level

Table 2

Operating Temp. Range

T_use

-10 to +70

°C

Storage Temp. Range

T_stg

-40 to +85

°C

Frequency Temp. Characteristics

f_tem

±30

× 10-6

Freq. deviation from the value at 25°C

Frequency Range

Motional Series Resistance

Frequency Range

Level of Drive

7372.8≤f_nom< 9500kHz

300Ω max.

7372.8≤f_nom<16000kHz

10μW (500μW max.)

9500≤f_nom<10000kHz

200Ω max.

16000≤f_nom<25000kHz

10μW (300μW max.)

10000≤f_nom<14000kHz

150Ω max.

25000≤f_nom≤54000kHz

10μW (100μW max.)

14000≤f_nom<20000kHz

100Ω max.

20000≤f_nom<30000kHz

70Ω max.

30000≤f_nom≤54000kHz

50Ω max.

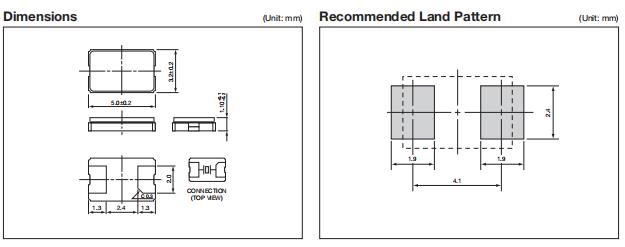

CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子 尺寸圖

CX5032GB08000H0HPQZ1\CX5032GB數字音頻晶振\Kyocera水晶振動子

諧振器產品特性：

小而低輪廓（T=最大1.1mm）

（5.0×3.2×1.0mm）

陶瓷包回流兼容

Manufacturer Part Number原廠編碼	Manufacturer廠家	Series型號	Type 系列	Frequency	Operating Temperature 工作溫度
CT2520DB19200C0FLHAF	AVX Corp/Kyocera Corp	CT2520DB, Kyocera	MHz Crystal	19.2MHz	-30°C ~ 85°C
CX5032GB10000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	10MHz	-10°C ~ 70°C
CX5032GB16000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	16MHz	-10°C ~ 70°C
CX5032GB20000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	20MHz	-10°C ~ 70°C
CX3225CA12000P0HSTC1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	12MHz	-40°C ~ 125°C
CX5032GB12000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	12MHz	-40°C ~ 85°C
CX3225CA12000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	12MHz	-40°C ~ 125°C
CX3225CA16000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	16MHz	-40°C ~ 125°C
CX3225GA24000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	24MHz	-40°C ~ 150°C
CX3225GA25000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	25MHz	-40°C ~ 150°C
CX5032GB27000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	27MHz	-10°C ~ 70°C
CX5032GB14318H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	14.31818MHz	-10°C ~ 70°C
CX2520SB24000D0PESZZ	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	24MHz	-10°C ~ 70°C
CX3225CA09843D0HSSTT	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	9.843MHz	-40°C ~ 125°C
CX3225CA28636D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	28.63636MHz	-40°C ~ 125°C
CX3225CA27000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	27MHz	-40°C ~ 125°C
CX3225CA30000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	30MHz	-40°C ~ 125°C
CX3225GA20000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	20MHz	-40°C ~ 150°C
CX3225GA26000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	26MHz	-40°C ~ 150°C
CX3225GA30000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	30MHz	-40°C ~ 150°C
CX3225GA27000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	27MHz	-40°C ~ 150°C
CX3225GA13560D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 150°C
CX3225GA32000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	32MHz	-40°C ~ 150°C
CX3225GA09843D0PTVTT	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	9.843MHz	-40°C ~ 150°C
CX5032GB16000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	16MHz	-40°C ~ 85°C
CX5032GB08000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	8MHz	-40°C ~ 85°C
CX5032GB10000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	10MHz	-40°C ~ 85°C
CX3225CA24000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	24MHz	-40°C ~ 125°C
CX5032GB14745H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	14.7456MHz	-10°C ~ 70°C
CX5032GB24576H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	24.576MHz	-10°C ~ 70°C
CX2520SB13560D0GEJCC	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	13.56MHz	-10°C ~ 70°C
CX2520SB40000H0WZK06	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	40MHz	0°C ~ 85°C
CX2520SB40000H0DZF08	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	40MHz	-10°C ~ 85°C
CX3225CA13560D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 125°C
CX3225CA16000H0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	16MHz	-40°C ~ 125°C
CX3225GA12000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	12MHz	-40°C ~ 150°C
CT2520DB26000C0FZZA1	AVX Corp/Kyocera Corp	CT2520DB, Kyocera	MHz Crystal	26MHz	-25°C ~ 85°C
CX5032GB08000H0HEQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	8MHz	-10°C ~ 70°C
CX1612DB48000D0FPJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	48MHz	-40°C ~ 85°C
CX5032GB12000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	12MHz	-10°C ~ 70°C
CX5032SA08000H0PSVZ1	AVX Corp/Kyocera Corp	CX5032SA, Kyocera	MHz Crystal	8MHz	-40°C ~ 125°C
CX3225CA10000D0HSSTT	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	10MHz	-40°C ~ 125°C
CX3225CA20000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	20MHz	-40°C ~ 125°C
CX3225CA26000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	26MHz	-40°C ~ 125°C
CX3225CA40000D0HSSCC	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	40MHz	-40°C ~ 125°C
CX3225GA10000D0PTVTT	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	10MHz	-40°C ~ 150°C
CX3225GA16000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	16MHz	-40°C ~ 150°C
CX3225GA28636D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	28.63636MHz	-40°C ~ 150°C
CX3225GA40000D0PTVCC	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	40MHz	-40°C ~ 150°C
CX1612DB26000D0FLJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	26MHz	-30°C ~ 85°C
CX1612DB52000D0FLJC1	AVX Corp/Kyocera Corp	CX1612DB, Kyocera	MHz Crystal	52MHz	-30°C ~ 85°C
CX5032GB19200P0HEQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	19.2MHz	-10°C ~ 70°C
CX2520SB13560D0GEJZ1	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	13.56MHz	-10°C ~ 70°C
CX3225CA09843D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	9.84375MHz	-40°C ~ 125°C
CX3225CA10000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	10MHz	-40°C ~ 125°C
CX3225CA28636D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	28.63636MHz	-40°C ~ 125°C
CX3225CA12000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	12MHz	-40°C ~ 125°C
CX3225GA25000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	25MHz	-40°C ~ 150°C
CX3225CA32000D0HSSZ1	京瓷晶振	CX3225CA, Kyocera	MHz Crystal	32MHz	-40°C ~ 125°C
CX3225GA26000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	26MHz	-40°C ~ 150°C
CX3225GA27000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	27MHz	-40°C ~ 150°C
CX3225GA09843D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	9.84375MHz	-40°C ~ 150°C
CX3225CA20000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	20MHz	-40°C ~ 125°C
CX3225GA28636D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	28.63636MHz	-40°C ~ 150°C
CX3225CA24000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	24MHz	-40°C ~ 125°C
CX3225GA30000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	30MHz	-40°C ~ 150°C
CX3225GA10000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	10MHz	-40°C ~ 150°C
CX3225CA25000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	25MHz	-40°C ~ 125°C
CX3225GA32000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	32MHz	-40°C ~ 150°C
CX3225GA12000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	12MHz	-40°C ~ 150°C
CX3225CA26000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	26MHz	-40°C ~ 125°C
CX3225GA40000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	40MHz	-40°C ~ 150°C
CX3225GA13560D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 150°C
CX3225GA16000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	16MHz	-40°C ~ 150°C
CX3225CA27000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	27MHz	-40°C ~ 125°C
CX3225GA20000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	20MHz	-40°C ~ 150°C
CX3225GA24000D0PTVZ1	AVX Corp/Kyocera Corp	CX3225GA, Kyocera	MHz Crystal	24MHz	-40°C ~ 150°C
CX3225CA30000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	30MHz	-40°C ~ 125°C
CX3225CA13560D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	13.56MHz	-40°C ~ 125°C
CX3225CA16000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	16MHz	-40°C ~ 125°C
CX3225CA40000D0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	40MHz	-40°C ~ 125°C
CX3225CA16000H0HSSZ1	AVX Corp/Kyocera Corp	CX3225CA, Kyocera	MHz Crystal	16MHz	-40°C ~ 125°C
