時鐘振蕩器,ECS-100AX-270,伊西斯晶振,6G物聯網晶振
尺寸20.86mmx13.20mm,頻率27MHZ
時鐘振蕩器,ECS-100AX-270,伊西斯晶振,6G物聯網晶振，尺寸20.86mmx13.20mm,頻率27MHZ，長方型鐘振，石英晶體振蕩器，有源晶體振蕩器，XO時鐘振蕩器，進口有源晶振，OSC晶振，高品質晶振，低抖動晶振，低電壓晶振，低相位晶振，無線模塊晶振，藍牙音響晶振，儀器設備晶振，外圍設備晶振，6G應用專用晶振，ECS-100X時鐘振蕩器與TTL完全兼容電路。帶引腳#7外殼接地的金屬包裝作為屏蔽以減少輻射。
有源晶振產品非常適合用于無線模塊，藍牙音響，儀器設備，外圍設備，6G應用，小型設備等領域。時鐘振蕩器,ECS-100AX-270,伊西斯晶振,6G物聯網晶振.
訂購熱線：0755-27839151
時鐘振蕩器,ECS-100AX-270,伊西斯晶振,6G物聯網晶振，尺寸20.86mmx13.20mm,頻率27MHZ，長方型鐘振，石英晶體振蕩器，有源晶體振蕩器，XO時鐘振蕩器，進口有源晶振，OSC晶振，高品質晶振，低抖動晶振，低電壓晶振，低相位晶振，無線模塊晶振，藍牙音響晶振，儀器設備晶振，外圍設備晶振，6G應用專用晶振，ECS-100X時鐘振蕩器與TTL完全兼容電路。帶引腳#7外殼接地的金屬包裝作為屏蔽以減少輻射。
有源晶振產品非常適合用于無線模塊，藍牙音響，儀器設備，外圍設備，6G應用，小型設備等領域。時鐘振蕩器,ECS-100AX-270,伊西斯晶振,6G物聯網晶振.

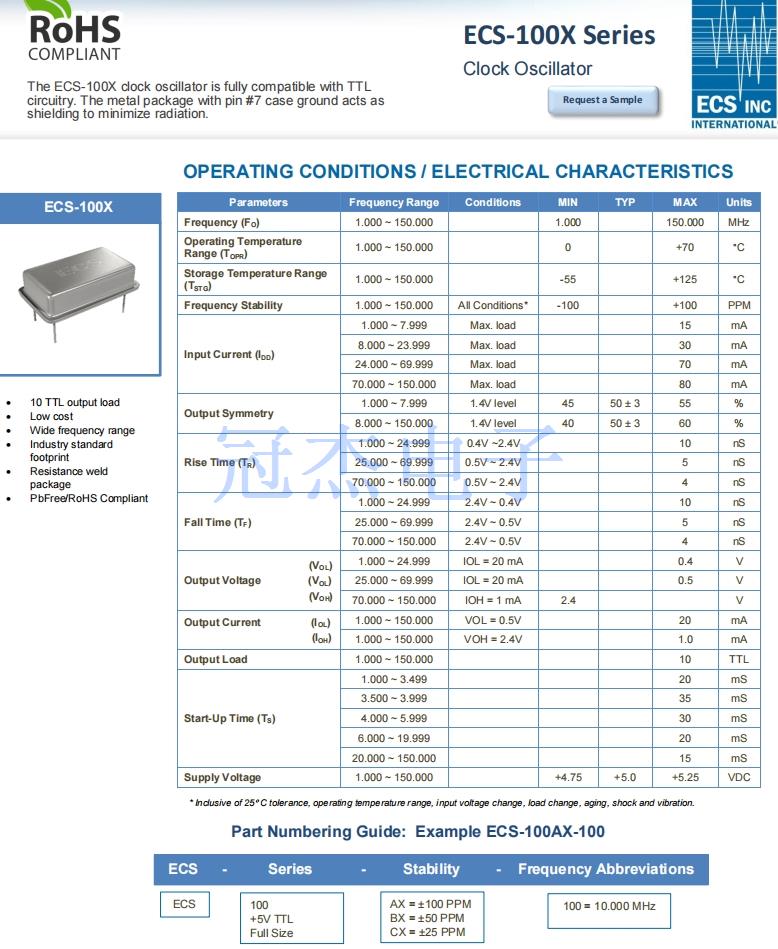

時鐘振蕩器,ECS-100AX-270,伊西斯晶振,6G物聯網晶振 參數表
| Parameters | Frequency Range | Conditions | MIN | TYP | MAX | Units | |||||||
| Frequency (FO) | 1.000 ~ 150.000 |
|
27 | MHz | |||||||||
|
Operating Temperature Range (TOPR) |
1.000 ~ 150.000 | 0 | +70 | °C | |||||||||
|
Storage Temperature Range (TSTG) |
1.000 ~ 150.000 | --55 | +125 | °C | |||||||||
| Frequency Stability | 1.000 ~ 150.000 | All Conditions* | --100 | +100 | PPM | ||||||||
| Input Current (IDD) | 1.000 ~ 7.999 | Max. load | 15 | mA | |||||||||
| 8.000 ~ 23.999 | Max. load | 30 | mA | ||||||||||
| 24.000 ~ 69.999 | Max. load | 70 | mA | ||||||||||
| 70.000 ~ 150.000 | Max. load | 80 | mA | ||||||||||
| Output Symmetry | 1.000 ~ 7.999 | 1.4V level | 45 | 50 ± 3 | 55 | % | |||||||
| 8.000 ~ 150.000 | 1.4V level | 40 | 50 ± 3 | 60 | % | ||||||||
| Rise Time (TR) | 1.000 ~ 24.999 | 0.4V ~2.4V | 10 | nS | |||||||||
| 25.000 ~ 69.999 | 0.5V ~ 2.4V | 5 | nS | ||||||||||
| 70.000 ~ 150.000 | 0.5V ~ 2.4V | 4 | nS | ||||||||||
| Fall Time (TF) | 1.000 ~ 24.999 | 2.4V ~ 0.4V | 10 | nS | |||||||||
| 25.000 ~ 69.999 | 2.4V ~ 0.5V | 5 | nS | ||||||||||
| 70.000 ~ 150.000 | 2.4V ~ 0.5V | 4 | nS | ||||||||||
| Output Voltage |
(VOL) (VOL) (VOH) |
1.000 ~ 24.999 | IOL = 20 mA | 0.4 | V | ||||||||
| 25.000 ~ 69.999 | IOL = 20 mA | 0.5 | V | ||||||||||
| 70.000 ~ 150.000 | IOH = 1 mA | 2.4 | V | ||||||||||
| Output Current |
(IOL) (IOH) |
1.000 ~ 150.000 | VOL = 0.5V | 20 | mA | ||||||||
| 1.000 ~ 150.000 | VOH = 2.4V | 1.0 | mA | ||||||||||
| Output Load | 1.000 ~ 150.000 | 10 | TTL | ||||||||||
| Start-Up Time (TS) | 1.000 ~ 3.499 | 20 | mS | ||||||||||
| 3.500 ~ 3.999 | 35 | mS | |||||||||||
| 4.000 ~ 5.999 | 30 | mS | |||||||||||
| 6.000 ~ 19.999 | 20 | mS | |||||||||||
| 20.000 ~ 150.000 | 15 | mS | |||||||||||
| Supply Voltage | 1.000 ~ 150.000 | +4.75 | +5.0 | +5.25 | VDC | ||||||||

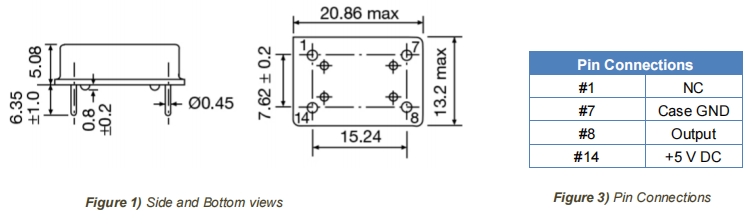

時鐘振蕩器,ECS-100AX-270,伊西斯晶振,6G物聯網晶振 尺寸圖
產品特性：
10 TTL輸出負載
低成本
寬頻率范圍
行業標準尺寸
電阻焊包
符合PbFree/RoHS標準
-
更多相關ECS伊西斯晶振型號
-
Manufacturer Part Number原廠代碼 Manufacturer品牌 Series型號 Frequency 頻率 Operating Temperature 工作溫度 ECS-100AX-040 ECS Inc. ECS-100X 4MHz 0°C ~ 70°C ECS-100AX-200 ECS Inc. ECS-100X 20MHz 0°C ~ 70°C ECS-100A-110.5 ECS Inc. ECS-100 11.0592MHz 0°C ~ 70°C ECS-100AX-160 ECS Inc. ECS-100X 16MHz 0°C ~ 70°C ECS-100AX-500 ECS Inc. ECS-100X 50MHz 0°C ~ 70°C ECS-100AX-010 ECS Inc. ECS-100X 1MHz 0°C ~ 70°C ECS-100A-200 ECS Inc. ECS-100 20MHz 0°C ~ 70°C ECS-100AX-147.4 ECS Inc. ECS-100X 14.7456MHz 0°C ~ 70°C ECS-100AX-640 ECS Inc. ECS-100X 64MHz 0°C ~ 70°C ECS-100AX-250 ECS Inc. ECS-100X 25MHz 0°C ~ 70°C ECS-100AX-100 ECS Inc. ECS-100X 10MHz 0°C ~ 70°C ECS-100AX-110.5 ECS Inc. ECS-100X 11.0592MHz 0°C ~ 70°C ECS-100AX-320 ECS Inc. ECS-100X 32MHz 0°C ~ 70°C ECS-100AX-060 ECS Inc. ECS-100X 6MHz 0°C ~ 70°C ECS-100AX-098.3 ECS Inc. ECS-100X 9.8304MHz 0°C ~ 70°C ECS-100AX-480 ECS Inc. ECS-100X 48MHz 0°C ~ 70°C ECS-100AX-080 ECS Inc. ECS-100X 8MHz 0°C ~ 70°C ECS-100A-250 ECS Inc. ECS-100 25MHz 0°C ~ 70°C ECS-100A-160 ECS Inc. ECS-100 16MHz 0°C ~ 70°C ECS-100A-051 ECS Inc. ECS-100 5.0688MHz 0°C ~ 70°C ECS-100A-500 ECS Inc. ECS-100 50MHz 0°C ~ 70°C ECS-100A-240 ECS Inc. ECS-100 24MHz 0°C ~ 70°C ECS-100AX-018 ECS Inc. ECS-100X 1.8432MHz 0°C ~ 70°C ECS-100AX-020 ECS Inc. ECS-100X 2MHz 0°C ~ 70°C ECS-100A-080 ECS Inc. ECS-100 8MHz 0°C ~ 70°C ECS-100A-010 ECS Inc. ECS-100 1MHz 0°C ~ 70°C ECS-100A-184 ECS Inc. ECS-100 18.432MHz 0°C ~ 70°C ECS-100AX-036 ECS Inc. ECS-100X 3.6864MHz 0°C ~ 70°C ECS-100A-049 ECS Inc. ECS-100 4.9152MHz 0°C ~ 70°C ECS-100AX-184 ECS Inc. ECS-100X 18.432MHz 0°C ~ 70°C ECS-100A-050 ECS Inc. ECS-100 5MHz 0°C ~ 70°C ECS-100A-147.4 ECS Inc. ECS-100 14.7456MHz 0°C ~ 70°C ECS-100A-018 ECS Inc. ECS-100 1.8432MHz 0°C ~ 70°C ECS-100A-120 ECS Inc. ECS-100 12MHz 0°C ~ 70°C ECS-100A-100 ECS Inc. ECS-100 10MHz 0°C ~ 70°C ECS-100A-480 ECS Inc. ECS-100 48MHz 0°C ~ 70°C ECS-100AX-035 ECS Inc. ECS-100X 3.579545MHz 0°C ~ 70°C ECS-100A-320 ECS Inc. ECS-100 32MHz 0°C ~ 70°C ECS-100AX-300 ECS Inc. ECS-100X 30MHz 0°C ~ 70°C ECS-100A-020 ECS Inc. ECS-100 2MHz 0°C ~ 70°C ECS-100A-251.7 ECS Inc. ECS-100 25.175MHz 0°C ~ 70°C ECS-100A-400 ECS Inc. ECS-100 40MHz 0°C ~ 70°C ECS-100A-196.6 ECS Inc. ECS-100 19.6608MHz 0°C ~ 70°C ECS-100AX-061 ECS Inc. ECS-100X 6.144MHz 0°C ~ 70°C ECS-100A-098.3 ECS Inc. ECS-100 9.8304MHz 0°C ~ 70°C ECS-100A-143 ECS Inc. ECS-100 14.31818MHz 0°C ~ 70°C ECS-100AX-143 ECS Inc. ECS-100X 14.31818MHz 0°C ~ 70°C ECS-100A-061 ECS Inc. ECS-100 6.144MHz 0°C ~ 70°C ECS-100AX-012.2 ECS Inc. ECS-100X 1.2288MHz 0°C ~ 70°C ECS-100A-012.2 ECS Inc. ECS-100 1.2288MHz 0°C ~ 70°C ECS-100A-036 美國ECS晶振 ECS-100 3.6864MHz 0°C ~ 70°C ECS-100A-073 ECS Inc. ECS-100 7.3728MHz 0°C ~ 70°C ECS-100AX-073 ECS Inc. ECS-100X 7.3728MHz 0°C ~ 70°C ECS-100AX-400 ECS Inc. ECS-100X 40MHz 0°C ~ 70°C ECS-100A-035 ECS Inc. ECS-100 3.579545MHz 0°C ~ 70°C ECS-100A-640 ECS Inc. ECS-100 64MHz 0°C ~ 70°C ECS-100A-040 ECS Inc. ECS-100 4MHz 0°C ~ 70°C ECS-100AX-196.6 ECS Inc. ECS-100X 19.6608MHz 0°C ~ 70°C ECS-100A-060 ECS Inc. ECS-100 6MHz 0°C ~ 70°C ECS-100A-024 ECS Inc. ECS-100 2.4576MHz 0°C ~ 70°C ECS-100A-092.1 ECS Inc. ECS-100 9.216MHz 0°C ~ 70°C ECS-100A-180 ECS Inc. ECS-100 18MHz 0°C ~ 70°C ECS-100A-162.5 ECS Inc. ECS-100 16.257MHz 0°C ~ 70°C ECS-100A-283.2 ECS Inc. ECS-100 28.322MHz 0°C ~ 70°C ECS-100A-325.1 ECS Inc. ECS-100 32.514MHz 0°C ~ 70°C ECS-100A-350 ECS Inc. ECS-100 35MHz 0°C ~ 70°C ECS-100A-666 ECS Inc. ECS-100 66.666MHz 0°C ~ 70°C ECS-100A-300 ECS Inc. ECS-100 30MHz 0°C ~ 70°C
