西迪斯晶振,MXO45T-6I-27M000000,石英晶體振蕩器,6G網絡設備晶振

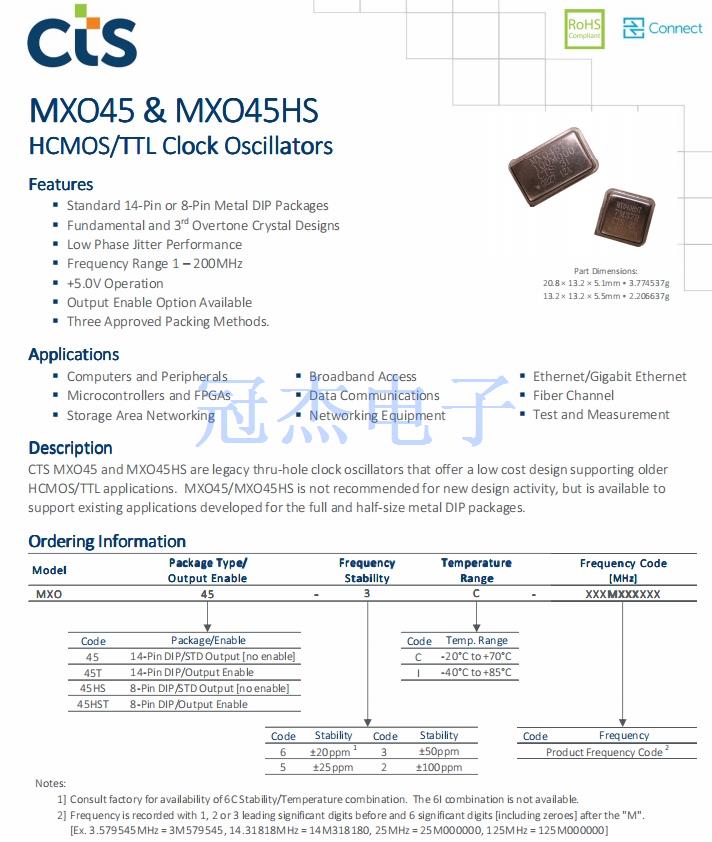

西迪斯晶振,MXO45T-6I-27M000000,石英晶體振蕩器,6G網絡設備晶振，尺寸為20.8×13.2×5.1mm,頻率27MHZ，石英晶體振蕩器，有源晶體振蕩器，時鐘振蕩器，進口XO振蕩器，OSC晶振，CTS MXO45和MXO45HS是傳統的通孔時鐘振蕩器，提供了一個低成本的設計，支持舊的HCMOS/TTL應用程序。MXO45/MXO45HS不推薦用于新的設計活動，但可用于支持為完整和半尺寸的金屬DIP包開發的現有應用程序。
有源晶振產品應用范圍：計算機和外圍設備,微控制器和fpga,存儲區域組網,寬帶接入,數據通信,網絡設備,以太網/千兆以太網,光纖通道,測試與測量.西迪斯晶振,MXO45T-6I-27M000000,石英晶體振蕩器,6G網絡設備晶振.
西迪斯晶振,MXO45T-6I-27M000000,石英晶體振蕩器,6G網絡設備晶振，尺寸為20.8×13.2×5.1mm,頻率27MHZ，石英晶體振蕩器，有源晶體振蕩器，時鐘振蕩器，進口XO振蕩器，OSC晶振，CTS MXO45和MXO45HS是傳統的通孔時鐘振蕩器，提供了一個低成本的設計，支持舊的HCMOS/TTL應用程序。MXO45/MXO45HS不推薦用于新的設計活動，但可用于支持為完整和半尺寸的金屬DIP包開發的現有應用程序。
有源晶振產品應用范圍：計算機和外圍設備,微控制器和fpga,存儲區域組網,寬帶接入,數據通信,網絡設備,以太網/千兆以太網,光纖通道,測試與測量.西迪斯晶振,MXO45T-6I-27M000000,石英晶體振蕩器,6G網絡設備晶振.
西迪斯晶振,MXO45T-6I-27M000000,石英晶體振蕩器,6G網絡設備晶振 參數表
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNIT
Maximum Supply Voltage VCC
-
-0 .5
-
7 .0 V
Supply Voltage
VCC
±10%
4 .5
5 .0
5 .5
V
Supply Current
Freq Range [tested load noted for TYP values.]
1 .0MHz to 20MHz [CL = 30pF]
-
10
26
20 .001MHz to 40MHz [CL = 30pF]
-
20
40
ICC
40 .001MHz to 80MHz [CL = 30pF]
-
30
60
mA
80 .001MHz to 125MHz [CL = 15pF]
-
40
70
125 .001MHz to 200MHz [CL = 15pF]
-
55
80
O perating Temperature
TA
-
-20
-40
+25
+70
+85
°C
Storage Temperature TSTG - -40 - +100 °C
Frequency Stability
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNIT
Frequency Range
O
-
27
MHz
Freq uency Stability [Note 1]
Δf/fO
-
20, 25, 50 or 100
±ppm
Aging
Δf/f25
First Year @ +25°C, nominal VCC -5
±3
5
ppm
1.] Inclusive of initial tolerance at time
of shipment, changes
in supply voltage, load, temperature and 1st year aging.
Output Parameters
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNIT
Output Type
-
-
HCMOS
-
Output Load
1 .0MHz to 50MHz [CMOS Load] -
15
50
CL
50 .001MHz to 80MHz [CMOS Load] -
15
30
pF
80 .001MHz to 200MHz [CMOS Load] -
15
15
1 .0MHz to 200MHz [TTL Load] -
-
10
TTL
O utput Voltage Levels
VOH
VOL
CMOS Load
10TTL Load
CMOS Load
10TTL Load
0 .9VCC
2 .4
-
-
-
-
-
-
-
-
0 .1VCC
0 .4
V
O utput Current Levels
IOH
IOL
VOH = 3 .9V, VCC = 4 .5V
VOL = 0 .4V, VCC = 4 .5V
-
-
-
-
-16
16
mA
O utput Duty Cyc le
SYM
@ 50% Level 45
-
55
%
Rise and Fall Time
@ 10%/90% Levels [tested load noted for TYP values.]
1 .0MHz to 20MHz [CL = 30pF] -
8
10
TR, TF
20 .001MHz to 80MHz [CL = 30pF]
80 .001MHz to 125MHz [CL = 15pF]
-
-
5
2 .5
8
5
ns
125 .001MHz to 200MHz [CL = 15pF] -
-
2
Start Up Time
TS
Application of VCC, CL = 15pF -
5
10
ms

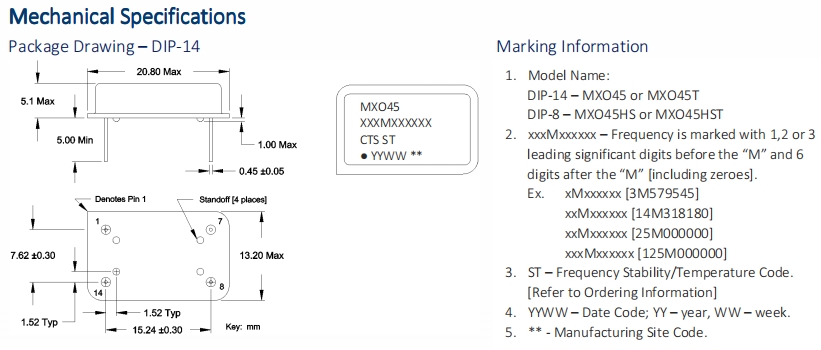

西迪斯晶振,MXO45T-6I-27M000000,石英晶體振蕩器,6G網絡設備晶振 尺寸圖
產品特性：
標準14針或8針金屬DIP封裝
基本和第三泛音晶體設計
低相位抖動性能
頻率范圍1 - 200MHz
+ 5.0 v操作
輸出啟用選項可用
三種批準的包裝方法。
