愛普生GPS導航定位晶振,TG-5035CE溫補振蕩器,X1G0038310038

尺寸3.2*2.5mm,頻率16.368MHZ

愛普生GPS導航定位晶振,TG-5035CE溫補振蕩器,X1G0038310038，尺寸3.2*2.5mm,頻率16.368MHZ，日本進口晶振，EPSON有源晶振，石英晶體振蕩器，溫補石英晶振，貼片溫補晶振，3225mm溫補晶振，有源溫補振蕩器，TCXO晶體振蕩器，溫度補償晶體振蕩器，衛星導航晶振， 低電壓溫補晶振，低功耗溫補晶振，低耗能溫補晶振，低抖動溫補晶振，低相位溫補晶振，低相噪溫補晶振，高品質溫補晶振，GPS導航定位專用溫補晶振，無線通信溫補晶振，無線路由器溫補晶振，航空電子溫補晶振，智能家居溫補晶振，AOA定位溫補晶振，北斗模塊溫補晶振，具有穩定性高低相位低相噪的特點。

超小型溫補晶振產品可滿足不同應用的需求，適合用于GPS、RF、無線通信設備（CDMA、WCDMA、LTE、WiMAX等），北斗模塊，AOA定位，智能家居等應用.愛普生GPS導航定位晶振,TG-5035CE溫補振蕩器,X1G0038310038.

訂購熱線：0755-27839151

愛普生GPS導航定位晶振,TG-5035CE溫補振蕩器,X1G0038310038，尺寸3.2*2.5mm,頻率16.368MHZ，日本進口晶振，EPSON有源晶振，石英晶體振蕩器，溫補石英晶振，貼片溫補晶振，3225mm溫補晶振，有源溫補振蕩器，TCXO晶體振蕩器，溫度補償晶體振蕩器，衛星導航晶振， 低電壓溫補晶振，低功耗溫補晶振，低耗能溫補晶振，低抖動溫補晶振，低相位溫補晶振，低相噪溫補晶振，高品質溫補晶振，GPS導航定位專用溫補晶振，無線通信溫補晶振，無線路由器溫補晶振，航空電子溫補晶振，智能家居溫補晶振，AOA定位溫補晶振，北斗模塊溫補晶振，具有穩定性高低相位低相噪的特點。

超小型溫補晶振產品可滿足不同應用的需求，適合用于GPS、RF、無線通信設備（CDMA、WCDMA、LTE、WiMAX等），北斗模塊，AOA定位，智能家居等應用.愛普生GPS導航定位晶振,TG-5035CE溫補振蕩器,X1G0038310038.耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

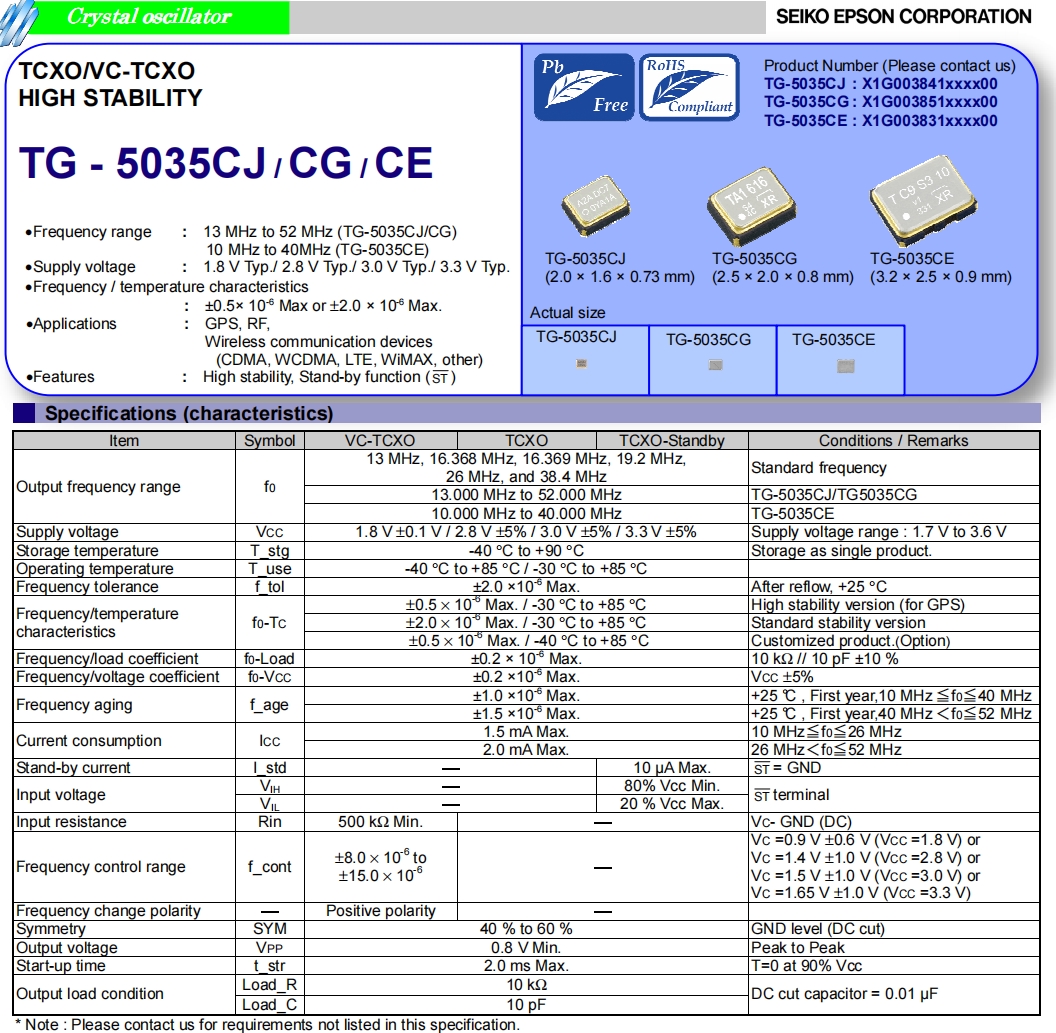

愛普生GPS導航定位晶振,TG-5035CE溫補振蕩器,X1G0038310038        參數表

Item Symbol VC-TCXO TCXO TCXO-Standby Conditions / Remarks
Output frequency range f0 16.368 MHz

 16.369 MHz, 19.2 MHz,

26 MHz, and 38.4 MHz 		Standard frequency
13.000 MHz to 52.000 MHz TG-5035CJ/TG5035CG
10.000 MHz to 40.000 MHz TG-5035CE
Supply voltage VCC 1.8 V ±0.1 V / 2.8 V ±5% / 3.0 V ±5% / 3.3 V ±5% Supply voltage range : 1.7 V to 3.6 V
Storage temperature T_stg -40 。C to +90 。C Storage as single product.
Operating temperature T_use -40 。C to +85 。C / -30 。C to +85 。C
Frequency tolerance f_tol ±2.0 ×10-6  Max. After reflow, +25 。C
Frequency/temperature
characteristics 		f0-TC ±0.5 x 10-6  Max. / -30 。C to +85 。C High stability version (for GPS)
±2.0 x 10-6  Max. / -30 。C to +85 。C Standard stability version
±0.5 x 10-6  Max. / -40 。C to +85 。C Customized product.(Option)
Frequency/load coefficient f0-Load ±0.2 × 10-6  Max. 10 kΩ // 10 pF ±10 %
Frequency/voltage coefficient f0-VCC ±0.2 ×10-6  Max. VCC ±5%
Frequency aging f_age ±1.0 ×10-6  Max. +25 °C , First year,10 MHz 三f0三40 MHz
±1.5 ×10-6  Max. +25 °C , First year,40 MHz
Current consumption ICC 1.5 mA Max. 10 MHz三f0三26 MHz
2.0 mA Max. 26 MHz
Stand-by current I_std - 10 μA Max. ST = GND
Input voltage VIH - 80% Vcc Min. ST terminal
VIL - 20 % Vcc Max.
Input resistance Rin 500 kΩ Min. - VC- GND (DC)
Frequency control range f_cont ±8.0 x 10-6 to
±15.0 x 10-6 		- VC =0.9 V ±0.6 V (VCC =1.8 V) or
VC =1.4 V ±1.0 V (VCC =2.8 V) or
VC =1.5 V ±1.0 V (VCC =3.0 V) or
VC =1.65 V ±1.0 V (VCC =3.3 V)
Frequency change polarity - Positive polarity -
Symmetry SYM 40 % to 60 % GND level (DC cut)
Output voltage VPP 0.8 V Min. Peak to Peak
Start-up time t_str 2.0 ms Max. T=0 at 90% Vcc
Output load condition Load_R 10 kΩ DC cut capacitor = 0.01 µF
Load_C 10 pF

耐振低頻進口諧振器,大型7050mm貼片晶體,CX5晶振

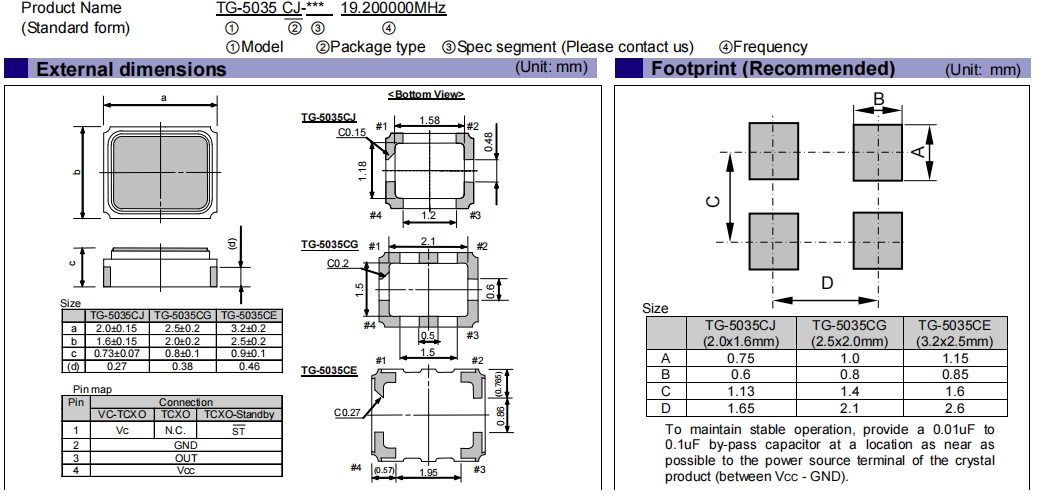

愛普生GPS導航定位晶振,TG-5035CE溫補振蕩器,X1G0038310038         尺寸圖

TG-5035CE TG-5035CJ TG-5035CG

愛普生GPS導航定位晶振,TG-5035CE溫補振蕩器,X1G0038310038

TCXO溫補晶振產品特性：

頻率范圍：13MHz至52MHz（TG-5035CJ/CG）10 MHz至40MHz（TG-5035CE）

電源電壓：1.8VTyp/2.8VTyp/3.0VTyp/3.3VTyp。

頻率/溫度特性：±0.5×10-6 Max或±2.0×10-6 Max。

TG-5035CE TG-5035CJ TG-5035CG 1

TG-5035CE TG-5035CJ TG-5035CG 2

Product Number Model Frequency LxWxH Output Wave 品牌 Supply Voltage
X1G0035610010 TG-5500CA 12.800000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610048 TG-5500CA 20.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610049 TG-5500CA 24.576000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610050 TG-5500CA 49.152000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610059 TG-5500CA 20.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0035610066 TG-5500CA 30.720000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610067 TG-5500CA 40.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610083 TG-5500CA 27.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610085 TG-5500CA 15.360000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610087 TG-5500CA 26.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610089 TG-5500CA 16.384000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610090 TG-5500CA 25.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610091 TG-5500CA 19.440000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610093 TG-5500CA 40.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610094 TG-5500CA 12.800000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610097 TG-5500CA 50.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610098 TG-5500CA 10.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0035610101 TG-5500CA 10.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0035610102 TG-5500CA 12.800000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0035610103 TG-5500CA 16.384000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0035610104 TG-5500CA 19.440000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0035610107 TG-5500CA 25.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0035610108 TG-5500CA 26.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0035610109 TG-5500CA 27.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0035610200 TG-5500CA 30.720000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0035610201 TG-5500CA 40.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0035610202 TG-5500CA 49.152000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0035610203 TG-5500CA 50.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0035610204 TG-5500CA 15.360000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0038310001 TG-5035CE 19.200000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 愛普生晶振 1.700 to 1.900 V
X1G0038310004 TG-5035CE 16.369000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 愛普生晶振 2.650 to 3.040 V
X1G0038310005 TG-5035CE 16.368000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 愛普生晶振 2.650 to 3.040 V
X1G0038310014 TG-5035CE 16.369000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 愛普生晶振 1.800 to 3.000 V
X1G0038310025 TG-5035CE 26.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 愛普生晶振 1.700 to 1.900 V
X1G0038310034 TG-5035CE 26.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 愛普生晶振 2.900 to 3.100 V
X1G0038310035 TG-5035CE 26.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 愛普生晶振 1.700 to 3.300 V
X1G0038310038 TG-5035CE 16.368000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 愛普生晶振 2.400 to 2.600 V
X1G0038310047 TG-5035CE 19.200000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0038310051 TG-5035CE 30.720000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0038310053 TG-5035CE 16.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 愛普生晶振 1.700 to 3.600 V
X1G0038310055 TG-5035CE 26.000000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 愛普生晶振 2.660 to 2.940 V
X1G0038310056 TG-5035CE 24.576000 MHz 3.20 x 2.50 x 0.90 mm Clipped sine wave 愛普生晶振 1.700 to 3.600 V
X1G0038410002 TG-5035CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 1.700 to 1.900 V
X1G0038410004 TG-5035CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 1.700 to 1.900 V
X1G0038410010 TG-5035CJ 33.600000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 1.700 to 3.300 V
X1G0038410011 TG-5035CJ 16.369000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 1.700 to 1.900 V
X1G0038410015 TG-5035CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 1.700 to 1.900 V
X1G0038410017 TG-5035CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 1.700 to 1.900 V
X1G0038410026 TG-5035CJ 38.400000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 1.700 to 1.900 V
X1G0038410027 TG-5035CJ 52.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 1.700 to 1.900 V
X1G0038410029 TG-5035CJ 16.368000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 1.700 to 3.300 V
X1G0038410030 TG-5035CJ 24.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 2.600 to 3.000 V
X1G0038410033 TG-5035CJ 16.369000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 1.700 to 1.900 V
X1G0038410034 TG-5035CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 1.700 to 3.300 V
X1G0038410040 TG-5035CJ 24.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 2.600 to 3.000 V
X1G0038410048 TG-5035CJ 16.368000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 1.700 to 3.300 V
X1G0038410052 TG-5035CJ 26.000000 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 1.700 to 1.900 V
X1G0038410054 TG-5035CJ 16.367667 MHz 2.00 x 1.60 x 0.73 mm Clipped sine wave 愛普生晶振 1.700 to 3.300 V
X1G0038510014 TG-5035CG 16.369000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 愛普生晶振 1.700 to 1.900 V
X1G0038510016 TG-5035CG 16.368000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 愛普生晶振 2.660 to 2.940 V
X1G0038510032 TG-5035CG 24.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0038510039 TG-5035CG 32.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 愛普生晶振 1.700 to 3.300 V
X1G0038510042 TG-5035CG 40.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 愛普生晶振 1.700 to 3.300 V
X1G0038510043 TG-5035CG 38.400000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 愛普生晶振 1.700 to 1.900 V
X1G0038510049 TG-5035CG 16.369000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 愛普生晶振 1.700 to 3.300 V
X1G0038510051 TG-5035CG 33.600000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 愛普生晶振 1.700 to 3.300 V
X1G0038510077 TG-5035CG 24.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 愛普生晶振 1.700 to 3.600 V
X1G003851A058 TG-5035CG 26.000000 MHz 2.50 x 2.00 x 0.80 mm Clipped sine wave 愛普生晶振 1.700 to 1.900 V
X1G0039010051 TG-5501CA 24.576000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0039010057 TG-5501CA 49.152000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0039010083 TG-5501CA 27.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0039010085 TG-5501CA 15.360000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0039010087 TG-5501CA 26.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0039010089 TG-5501CA 16.384000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0039010090 TG-5501CA 25.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0039010091 TG-5501CA 19.440000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0039010093 TG-5501CA 40.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0039010095 TG-5501CA 20.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0039010097 TG-5501CA 50.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0039010098 TG-5501CA 10.000000 MHz 7.00 x 5.00 x 1.50 mm CMOS 愛普生晶振 3.135 to 3.465 V
X1G0039010101 TG-5501CA 10.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0039010102 TG-5501CA 12.800000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0039010103 TG-5501CA 16.384000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0039010104 TG-5501CA 19.440000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0039010107 TG-5501CA 25.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0039010108 TG-5501CA 26.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0039010109 TG-5501CA 27.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0039010200 TG-5501CA 30.720000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0039010201 TG-5501CA 40.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0039010202 TG-5501CA 49.152000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0039010203 TG-5501CA 50.000000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
X1G0039010204 TG-5501CA 15.360000 MHz 7.00 x 5.00 x 1.50 mm Clipped sine wave 愛普生晶振 3.135 to 3.465 V
